SAXSdb — 1rjn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

menB

Mycobacterium tuberculosis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	COENZYME A × 2 3-[4-(2-HYDROXYETHYL)PIPERAZIN-1-YL]PROPANE-1-SULFONIC ACID × 2 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O06414_MYCTU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 26–339； UniProt 1–314 Author chain B； PDBConstruct 26–339； UniProt 1–314 Author chain C； PDBConstruct 26–339； UniProt 1–314

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rjn
Deposition date deposition_date	2003-11-19
Structure title title	The Crystal Structure of MenB (Rv0548c) from Mycobacterium tuberculosis in Complex with the CoA Portion of Naphthoyl CoA
Keywords keywords	;crotonase-like family, beta-beta-alpha, Structural Genomics, PSI, Protein Structure Initiative, TB Structural Genomics Consortium, TBSGC, LYASE ;; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1rjn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

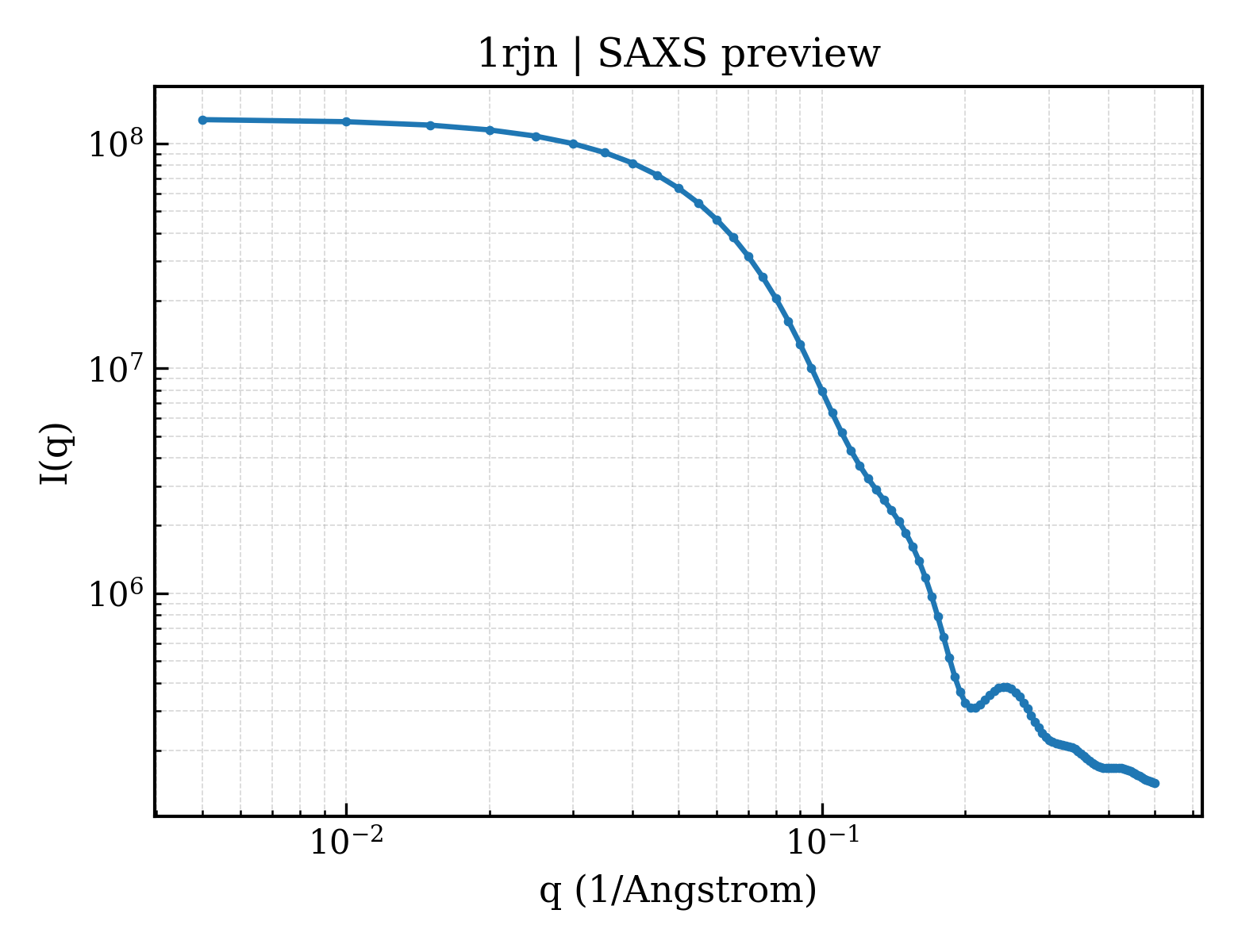

1rjn__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1rjn__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.26 Å
Rg (electron density)	32.00 Å
Total Rg	32.63 Å
Atom count	12294
Residues	1558
Excluded volume	215970 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1rjn__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	menB
Molecular weight formula_weight	37832.3 kDa
EC 编号 ec_number	4.1.3.36
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	6390

MSYYHHHHHHNYNIPTTENLYFQGAMVAPAGEQGRSSTALSDNPFDAKAWRLVDGFDDLTDITYHRHVDDATVRVAFNRPEVRNAFRPHTVDELYRVLDHARMSPDVGVVLLTGNGPSPKDGGWAFCSGGDQRIRGRSGYQYASGDTADTVDVARAGRLHILEVQRLIRFMPKVVICLVNGWAAGGGHSLHVVCDLTLASREYARFKQTDADVGSFDGGYGSAYLARQVGQKFAREIFFLGRTYTAEQMHQMGAVNAVAEHAELETVGLQWAAEINAKSPQAQRMLKFAFNLLDDGLVGQQLFAGEATRLAYMTDEAVEGRDAFLQKRPPDWSPFPRYF

Source Source

Source organism organism	Mycobacterium tuberculosis
NCBI taxonomy ID ncbi_taxonomy_id	1773
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	COENZYME A
Molecular weight formula_weight	767.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	3-[4-(2-HYDROXYETHYL)PIPERAZIN-1-YL]PROPANE-1-SULFONIC ACID
Molecular weight formula_weight	252.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	211

▼

6. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1rjna_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.3 — Crotonase-like

Domain ID domain_id	d1rjnb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.3 — Crotonase-like

Domain ID domain_id	d1rjnc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.3 — Crotonase-like

CATH v4.4 (6 domains)

Domain ID domain_id	1rjnA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1rjnA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	12 — Lyase 2-enoyl-coa Hydratase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lyase 2-enoyl-coa Hydratase, Chain A, domain 2

Domain ID domain_id	1rjnB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1rjnB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	12 — Lyase 2-enoyl-coa Hydratase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lyase 2-enoyl-coa Hydratase, Chain A, domain 2

Domain ID domain_id	1rjnC01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1rjnC02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	12 — Lyase 2-enoyl-coa Hydratase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lyase 2-enoyl-coa Hydratase, Chain A, domain 2

▶

Unit-cell length a length_a	112.105 Å
Unit-cell length b length_b	114.824 Å
Unit-cell length c length_c	87.972 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	123.36 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	24.490 Å
R factor r_factor	—
R_work r_work	0.1970
R_free r_free	0.2250
