SAXSdb — 1rp0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Thiazole biosynthetic enzyme

Arabidopsis thaliana

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 8	ZINC ION × 8 ADENOSINE DIPHOSPHATE 5-(BETA-ETHYL)-4-METHYL-THIAZOLE-2-CARBOXYLIC ACID × 8 HEPTANE-1,2,3-TRIOL × 4 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	THI4_ARATH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–284； UniProt 49–328 Author chain B； PDBConstruct 5–284； UniProt 49–328

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rp0
Deposition date deposition_date	2003-12-02
Structure title title	Crystal Structure of Thi1 protein from Arabidopsis thaliana
Keywords keywords	protein ligand complex, BIOSYNTHETIC PROTEIN; BIOSYNTHETIC PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1rp0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1rp0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

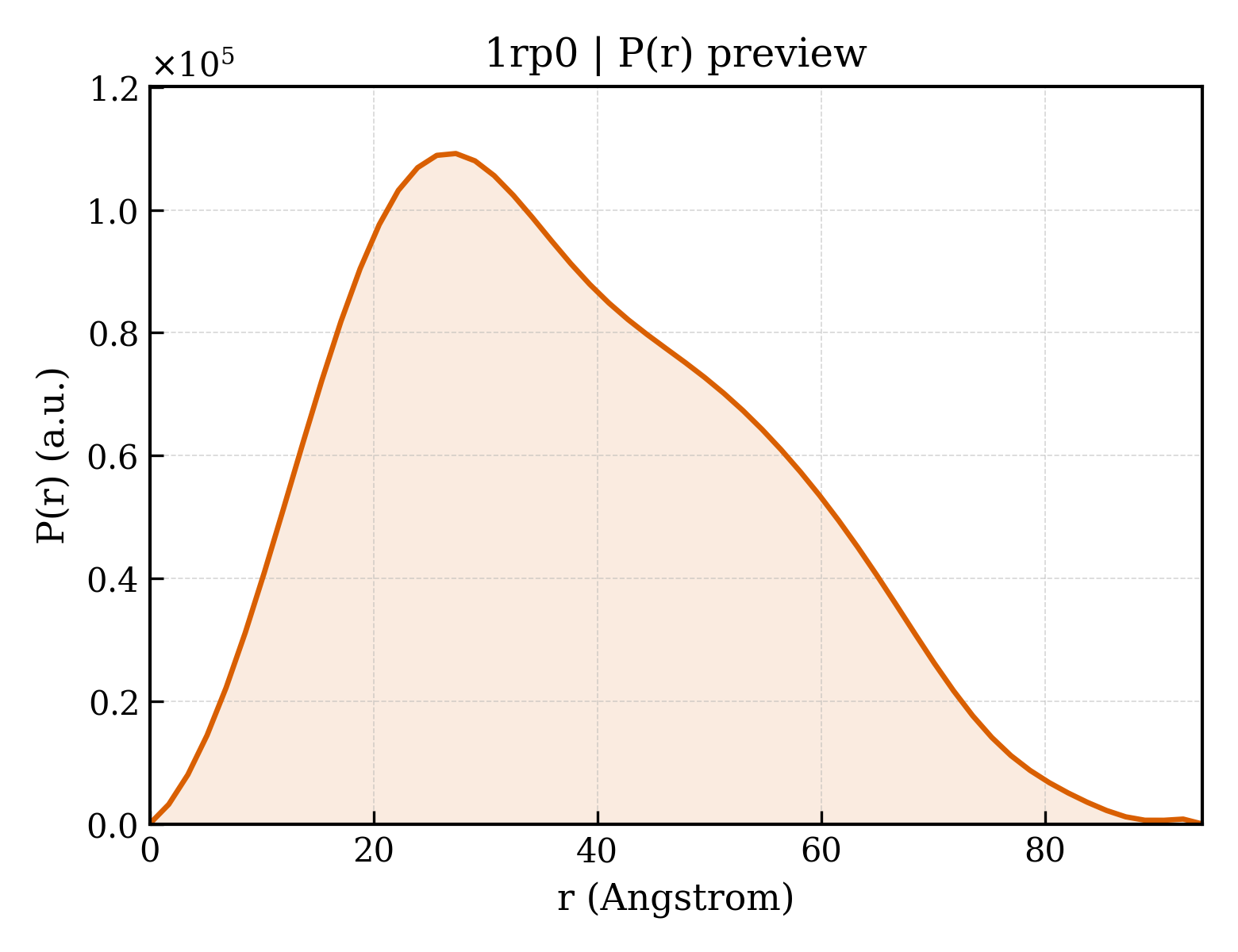

1rp0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.23 Å
Rg (electron density)	36.69 Å
Total Rg	37.10 Å
Atom count	16888
Residues	2224
Excluded volume	302050 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1rp0__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Thiazole biosynthetic enzyme
Molecular weight formula_weight	30079.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4688

GRGSAGYDLNAFTFDPIKESIVSREMTRRYMTDMITYAETDVVVVGAGSAGLSAAYEISKNPNVQVAIIEQSVSPGGGAWLGGQLFSAMIVRKPAHLFLDEIGVAYDEQDTYVVVKHAALFTSTIMSKLLARPNVKLFNAVAAEDLIVKGNRVGGVVTNWALVAQNHHTQSCMDPNVMEAKIVVSSCGHDGPFGATGVKRLKSIGMIDHVPGMKALDMNTAEDAIVRLTREVVPGMIVTGMEVAEIDGAPRMGPTFGAMMISGQKAGQLALKALGLPNAIDGTL

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE DIPHOSPHATE 5-(BETA-ETHYL)-4-METHYL-THIAZOLE-2-CARBOXYLIC ACID
Molecular weight formula_weight	593.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	HEPTANE-1,2,3-TRIOL
Molecular weight formula_weight	148.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	438

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1rp0a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.6 — Thi4-like

Domain ID domain_id	d1rp0b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.6 — Thi4-like

CATH v4.4 (4 domains)

Domain ID domain_id	1rp0A01
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	160 —

Domain ID domain_id	1rp0A02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1rp0B01
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	160 —

Domain ID domain_id	1rp0B02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

▶

Unit-cell length a length_a	102.356 Å
Unit-cell length b length_b	133.147 Å
Unit-cell length c length_c	142.301 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	F 2 2 2
Space-group number int_tables_number	22
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	70.710 Å
R factor r_factor	0.1407
R_work r_work	0.1391
R_free r_free	0.1706
