SAXSdb — 1rp1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PANCREATIC LIPASE RELATED PROTEIN 1

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CALCIUM ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LIP1_CANFA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–450； UniProt 18–467

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rp1
Deposition date deposition_date	1998-04-02
Structure title title	DOG PANCREATIC LIPASE RELATED PROTEIN 1
Keywords keywords	HYDROLASE, LIPID DEGRADATION, PANCREATIC LIPASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1rp1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1rp1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

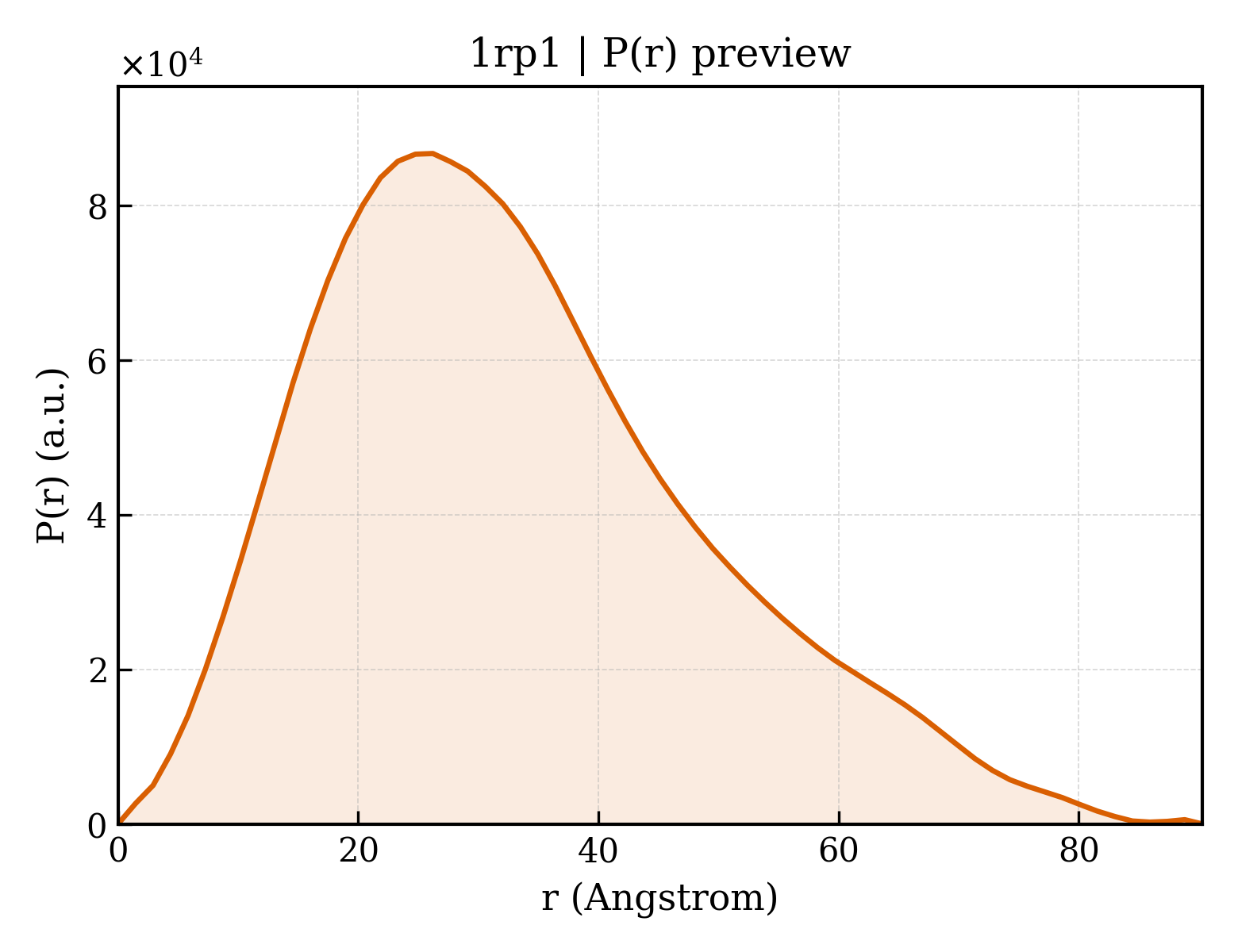

1rp1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.62 Å
Rg (electron density)	25.41 Å
Total Rg	26.14 Å
Atom count	3440
Residues	441
Excluded volume	60871 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1rp1__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PANCREATIC LIPASE RELATED PROTEIN 1
Molecular weight formula_weight	49676.8 kDa
EC 编号 ec_number	3.1.1.3
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3798

KEVCYEQIGCFSDAEPWAGTAIRPLKVLPWSPERIGTRFLLYTNKNPNNFQTLLPSDPSTIGASNFQTDKKTRFIIHGFIDKGEENWLLDMCKNMFKVEEVNCICVDWKKGSQTSYTQAANNVRVVGAQVAQMLSMLSANYSYSPSQVQLIGHSLGAHVAGEAGSRTPGLGRITGLDPVEASFQGTPEEVRLDPTDADFVDVIHTDAAPLIPFLGFGTSQQMGHLDFFPNGGEEMPGCKKNALSQIVDLDGIWEGTRDFVACNHLRSYKYYSESILNPDGFASYPCASYRAFESNKCFPCPDQGCPQMGHYADKFAVKTSDETQKYFLNTGDSSNFARWRYGVSITLSGKRATGQAKVALFGSKGNTHQFNIFKGILKPGSTHSNEFDAKLDVGTIEKVKFLWNNNVVNPTFPKVGAAKITVQKGEEKTVHSFCSESTVREDVLLTLTPC

Entity 2 Entity 2 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	358

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1rp1a1
Class class	b — All beta proteins
Fold Fold fold	b.12 — Lipase/lipooxygenase domain (PLAT/LH2 domain)
Superfamily Superfamily superfamily	b.12.1 — Lipase/lipooxygenase domain (PLAT/LH2 domain)
Family Family family	b.12.1.2 — Colipase-binding domain

Domain ID domain_id	d1rp1a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.19 — Pancreatic lipase, N-terminal domain

CATH v4.4 (2 domains)

Domain ID domain_id	1rp1A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	1rp1A02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	60 — Lipoxygenase-1
Homologous superfamily homologous superfamily	20 — PLAT/LH2 domain

▶

Unit-cell length a length_a	54.026 Å
Unit-cell length b length_b	150.748 Å
Unit-cell length c length_c	132.006 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	9.000 Å
R factor r_factor	0.1950
R_work r_work	0.1950
R_free r_free	0.2560
