SAXSdb — 1rq2

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1rq2
沉积日期 deposition_date	2003-12-04
结构标题 title	MYCOBACTERIUM TUBERCULOSIS FTSZ IN COMPLEX WITH CITRATE
关键词 keywords	CELL CYCLE, TUBULIN, GTPASE, SIGNALING PROTEIN; CELL CYCLE, SIGNALING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.43 Å
回转半径 Rg (电子) rg_electron	26.52 Å
零角强度 I(0) i0	62304400.00
分子量 molecular_weight	60241.0 kDa
排除体积 excluded_volume	75017 Å³
包络体积 envelope_volume	91998 Å³
水化壳体积 shell_volume	29272 Å³
包络直径 envelope_diameter	88.7 Å
壳层 Rg shell_rg	33.63 Å
包络 Rg envelope_rg	26.49 Å
形状 Rg shape_rg	26.55 Å
总 Rg total_rg	27.16 Å
总原子数 total_atoms	4221
残基数 n_residues	593
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	84.3 Å
Rg (实空间) rg_real	27.44 Å
Rg 误差 (实空间) rg_real_error	0.47 Å
I(0) (实空间) i0_real	6.2300e+07
I(0) 误差 (实空间) i0_real_error	1.0040e+06
Rg (倒空间) rg_reciprocal	27.44 Å
I(0) (倒空间) i0_reciprocal	62300000.0000
解质量估计 total_estimate	0.9030
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	82.9 Å
偏度 Skewness skewness	0.315
峰度 Kurtosis kurtosis	-0.564
角度范围 angular_range	— – 0.2900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	13500000.0000
实空间数据点数 n_real_points	59
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.952; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.887

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Cell division protein ftsZ
分子量 formula_weight	39073.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	4600

GSHMTPPHNYLAVIKVVGIGGGGVNAVNRMIEQGLKGVEFIAINTDAQALLMSDADVKLDVGRDSTRGLGAGADPEVGRKAAEDAKDEIEELLRGADMVFVTAGEGGGTGTGGAPVVASIARKLGALTVGVVTRPFSFEGKRRSNQAENGIAALRESCDTLIVIPNDRLLQMGDAAVSLMDAFRSADEVLLNGVQGITDLITTPGLINVDFADVKGIMSGAGTALMGIGSARGEGRSLKAAEIAINSPLLEASMEGAQGVLMSIAGGSDLGLFEINEAASLVQDAAHPDANIIFGTVIDDSLGDEVRVTVIAAGFDVSGPGRKPVMGETGGAHRIESAKAGKLTSTLFEPVDAVSVPLHTNGATLSIGGDDDDVDVPPFMRR

来源 Source

来源生物 organism	Mycobacterium tuberculosis
NCBI 分类编号 ncbi_taxonomy_id	1773
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	CITRIC ACID
分子量 formula_weight	192.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	311

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1rq2a1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.32 — Tubulin nucleotide-binding domain-like
超家族 Superfamily superfamily	c.32.1 — Tubulin nucleotide-binding domain-like
家族 Family family	c.32.1.1 — Tubulin, GTPase domain

结构域编号 domain_id	d1rq2a2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.79 — Bacillus chorismate mutase-like
超家族 Superfamily superfamily	d.79.2 — Tubulin C-terminal domain-like
家族 Family family	d.79.2.1 — Tubulin, C-terminal domain

结构域编号 domain_id	d1rq2b1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.32 — Tubulin nucleotide-binding domain-like
超家族 Superfamily superfamily	c.32.1 — Tubulin nucleotide-binding domain-like
家族 Family family	c.32.1.1 — Tubulin, GTPase domain

结构域编号 domain_id	d1rq2b2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.79 — Bacillus chorismate mutase-like
超家族 Superfamily superfamily	d.79.2 — Tubulin C-terminal domain-like
家族 Family family	d.79.2.1 — Tubulin, C-terminal domain

CATH v4.4 (4 domains)

结构域编号 domain_id	1rq2A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1440 — Tubulin/FtsZ, GTPase domain

结构域编号 domain_id	1rq2A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
同源超家族 H-superfamily homologous superfamily	20 — Tubulin/FtsZ, C-terminal domain

结构域编号 domain_id	1rq2B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1440 — Tubulin/FtsZ, GTPase domain

结构域编号 domain_id	1rq2B02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
同源超家族 H-superfamily homologous superfamily	20 — Tubulin/FtsZ, C-terminal domain

▶

7. 引用文献 (5)

▶

晶胞边长 a length_a	88.116 Å
晶胞边长 b length_b	88.116 Å
晶胞边长 c length_c	176.807 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 65
空间群编号 int_tables_number	170
晶系 crystal_system	—

分辨率 resolution	1.860 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	0.1889
R_work r_work	0.1871
R_free r_free	0.2217

fit	/app/data/saxs_computation/rq/1rq2/1rq2.fit
pddf	/app/data/pr_computation/rq/1rq2/1rq2.pr.out
profile	/app/data/saxs_computation/rq/1rq2/1rq2.dat

MYCOBACTERIUM TUBERCULOSIS FTSZ IN COMPLEX WITH CITRATE

SAXS 散射曲线 SAXS Profile

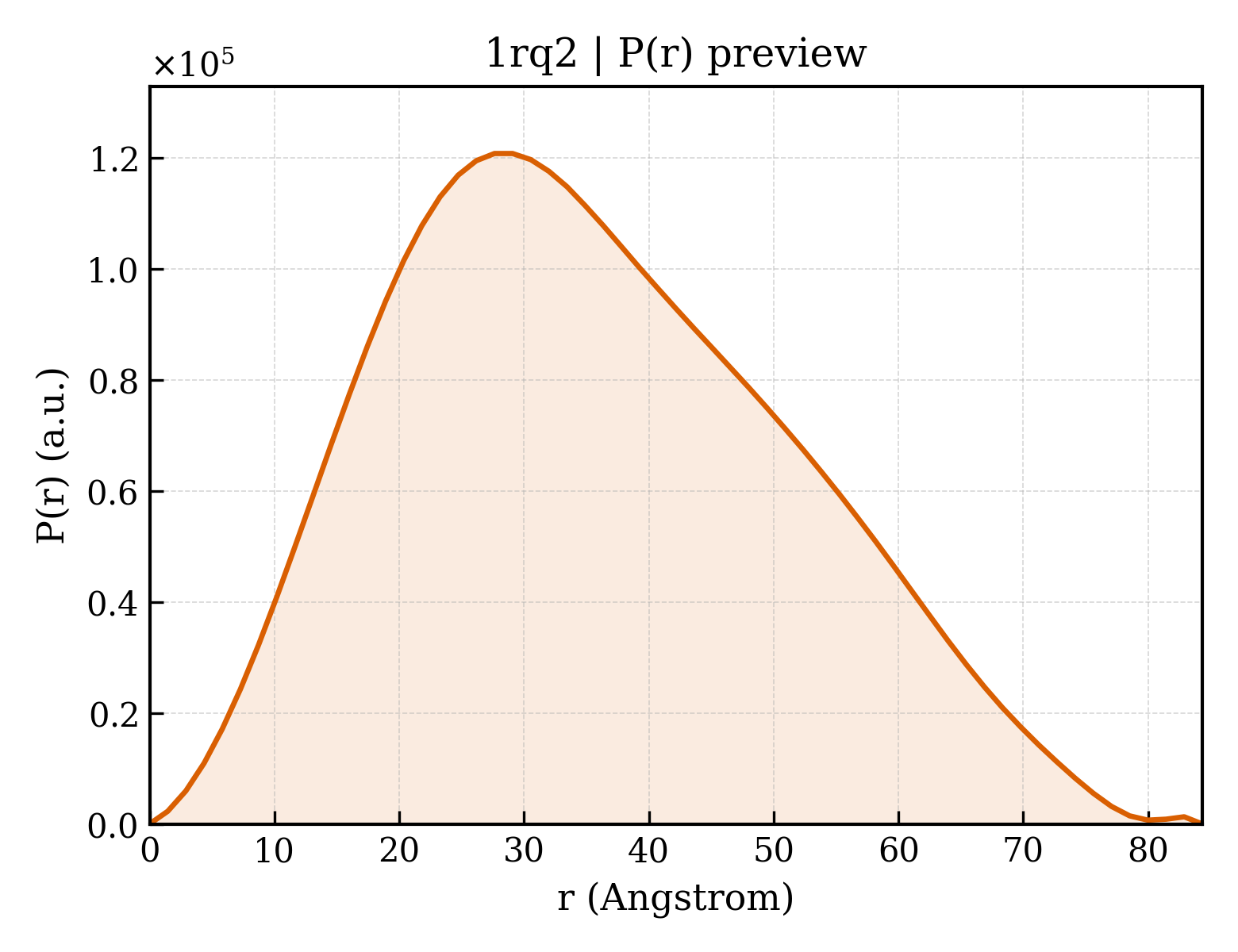

P(r) 距离分布 P(r) Distribution
