SAXSdb — 1rqu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

50S ribosomal protein L7/L12

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–120 Chain B； UniProt 1–120	Fragment：L7 dimer	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6.9；303 K；Ionic strength (raw mmCIF value) 0.15；Pressure ambient NMR sample composition：1mM L7 dimer U-15N; 50mM phosphate buffer; 90% H2O, 10% D2O; 30 C \| 90% H2O/10% D2O NMR sample composition：1mM L7 dimer U-15N; 50mM phosphate buffer; 99.9% D2O; 30 C \| 99.9% D2O NMR sample composition：1mM L7 dimer U-15N; 50mM phosphate buffer; 90% H2O, 10% D2O; 30 C; Tobacco virus alignment medium \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1RQU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CTF STRUCTURE OF THE C-TERMINAL DOMAIN OF THE RIBOSOMAL PROTEIN L7/L12 FROM ESCHERICHIA COLI AT 1.7 ANGSTROMS Deposited 1986-09-02	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 47–120（74 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.70 Å
1RQS NMR structure of C-terminal domain of ribosomal protein L7 from E.coli Deposited 2003-12-07	Different construct Different mutation/modification Different oligomeric state	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 47–120（74 aa） Fragment：C-Terminal Domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.9；303 K；Ionic strength (raw mmCIF value) 0.15；Pressure ambient NMR sample composition 1mM L7 dimer U-15N; 50mM phosphate buffer; 90% H2O, 10% D2O; 30 C \| 90% H2O/10% D2O NMR sample composition 1mM L7 dimer U-15N; 50mM phosphate buffer; 99.9% D2O; 30 C \| 99.9% D2O NMR sample composition 1mM L7 dimer U-15N; 50mM phosphate buffer; 90% H2O, 10% D2O; 30 C; Tobacco virus alignment medium \| 90% H2O/10% D2O	Resolution not provided
1RQT NMR structure of dimeric N-terminal domain of ribosomal protein L7 from E.coli Deposited 2003-12-07	Different construct Different experimental conditions	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–37（37 aa） Fragment：N-Terminal Domain Chain B 1–37（37 aa） Fragment：N-Terminal Domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.9；303 K；Ionic strength (raw mmCIF value) 0.15；Pressure ambient NMR sample composition 1mM L7 dimer U-15N; 50mM phosphate buffer; 90% H2O, 10% D2O; 30 C \| 90% H2O/10% D2O NMR sample composition 1mM L7 dimer U-15N; 50mM phosphate buffer; 99.9% D2O; 30 C \| 99.9% D2O	Resolution not provided
1RQV Spatial model of L7 dimer from E.coli with one hinge region in helical state Deposited 2003-12-07	Parsed fields agree	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–120（120 aa） Fragment：L7 dimer Chain B 1–120（120 aa） Fragment：L7 dimer	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.9；303 K；Ionic strength (raw mmCIF value) 0.15；Pressure ambient NMR sample composition 1mM L7 dimer U-15N; 50mM phosphate buffer; 90% H2O, 10% D2O; 30 C \| 90% H2O/10% D2O NMR sample composition 1mM L7 dimer U-15N; 50mM phosphate buffer; 99.9% D2O; 30 C \| 99.9% D2O NMR sample composition 1mM L7 dimer U-15N; 50mM phosphate buffer; 90% H2O, 10% D2O; 30 C; Tobacco virus alignment medium \| 90% H2O/10% D2O	Resolution not provided
2BCW Coordinates of the N-terminal domain of ribosomal protein L11,C-terminal domain of ribosomal protein L7/L12 and a portion of the G' domain of elongation factor G, as fitted into cryo-em map of an Escherichia coli 70SEF-GGDP*fusidic acid complex Deposited 2005-10-19	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 53–120（68 aa） Fragment：C-terminal domain	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 20mM HEPES-KOH (pH 7.5), 6mM MgCl2, and 150 mM NH4Cl, 2mM spermidine, 0.4 mM spermine；pH 7.5；20mM HEPES-KOH (pH 7.5), 6mM MgCl2, and 150 mM NH4Cl, 2mM spermidine, 0.4 mM spermine cryo-EM vitrification conditions RAPID-FREEZING IN LIQUID ETHANE	Resolution 11.20 Å
3J7Z Structure of the E. coli 50S subunit with ErmCL nascent chain Deposited 2014-08-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 32 PDB declaration: 35-meric	Chain 6 1–121（121 aa）	Not recorded	ERY ERYTHROMYCIN A × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；Plunged into liquid ethane (FEI VITROBOT MARK IV).	Resolution 3.90 Å
4V4V Structure of a pre-translocational E. coli ribosome obtained by fitting atomic models for RNA and protein components into cryo-EM map EMD-1056 Deposited 2006-05-09	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 46 PDB declaration: 52-meric	Chain B3 2–120（119 aa） Chain B5 2–120（119 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；rapid-freezing in liquid ethane	Resolution 15.00 Å
4V4W Structure of a SecM-stalled E. coli ribosome complex obtained by fitting atomic models for RNA and protein components into cryo-EM map EMD-1143 Deposited 2006-05-09	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 46 PDB declaration: 52-meric	Chain B3 3–121（119 aa） Chain B5 3–121（119 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；rapid-freezing in liquid ethane	Resolution 15.00 Å
4V5M tRNA tranlocation on the 70S ribosome: the pre-translocational translocation intermediate TI(PRE) Deposited 2010-10-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 57-meric	Chain BL 1–121（121 aa）	Not recorded	FUA FUSIDIC ACID × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, INSTRUMENT- VITROBOT (FEI)	Resolution 7.80 Å
4V5N tRNA translocation on the 70S ribosome: the post- translocational translocation intermediate TI(POST) Deposited 2010-10-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 57-meric	Chain BL 1–121（121 aa）	Not recorded	FUA FUSIDIC ACID × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, INSTRUMENT- VITROBOT (FEI)	Resolution 7.60 Å
4V7B Visualization of two tRNAs trapped in transit during EF-G-mediated translocation Deposited 2013-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 58-meric	Chain B6 1–121（121 aa）	Not recorded	FUA FUSIDIC ACID × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer 80 mM HEPES potassium, 75 mM NH4Cl, 10 mM MgCl2, 6 mM BME；pH 7.6；80 mM HEPES potassium, 75 mM NH4Cl, 10 mM MgCl2, 6 mM BME cryo-EM vitrification conditions blot for 5-10 seconds before plunging；96 K；Cryogen ETHANE；Blot for 5-10 seconds before plunging into liquid ethane (FEI VITROBOT MARK I)	Resolution 6.80 Å
4V7D Structure of the Ribosome with Elongation Factor G Trapped in the Pre-Translocation State (pre-translocation 70StRNAEF-G structure) Deposited 2013-11-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 60-meric	Chain AL 2–121（120 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer Polymix buffer；pH 7.6；10 mM HEPES-KOH, 5 mM MgCl2, 90 mM NH4Cl, 2 mM spermidine, 0.1 mM spermine, 6 mM BME, 0.5 mM viomycin, 0.5 mM GTP, 0.5 mM fusidic acid cryo-EM vitrification conditions Freshly glow-disharged grids were loaded into an FEI Mark II Vitrobot and equilibrated to 95% relative humidity at 22 degrees Celsius. 2 microliters of sample was applied through the side port, blotted for 7 seconds with a positional offset of 2, and plunged into liquid ethane.；Cryogen ETHANE；Freshly glow-disharged grids were loaded into an FEI Mark II Vitrobot and equilibrated to 95% relative humidity at 22 degrees Celsius. 2 microliters of sample was applied through the side port, blotted for 7 seconds with a positional offset of 2, and plunged into liquid ethane.	Resolution 7.60 Å
4V89 Crystal Structure of Release Factor RF3 Trapped in the GTP State on a Rotated Conformation of the Ribosome (without viomycin) Deposited 2011-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 58-meric	Chain BJ 1–121（121 aa） Chain BK 1–121（121 aa） Chain BL 1–121（121 aa） Chain BM 1–121（121 aa）	Not recorded	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；295 K；Tris Ac PH.7.0 25-35 mM KCL 6.1% PEG 20000 %1 glycerol 50mM sucrose , VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 3.70 Å R-free 0.290
4V9O Control of ribosomal subunit rotation by elongation factor G Deposited 2013-05-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 56-meric	Chain A6 1–121（121 aa）	Not recorded	MG MAGNESIUM ION × 187 ZN ZINC ION × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, MPD, KSCN, pH 6.5, microbatch, temperature 291K X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, KSCN, pH 6.5, microbatch, temperature 291K X-ray crystallization conditions MICROBATCH；pH 6.5；291 K；PEG8k, KSCN, pH 6.5, microbatch, temperature 291K	Resolution 2.90 Å R-free 0.272
5KCS Cryo-EM structure of the Escherichia coli 70S ribosome in complex with antibiotic Evernimycin, mRNA, TetM and P-site tRNA at 3.9A resolution Deposited 2016-06-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 53 PDB declaration: 58-meric	Chain 1L 1–121（121 aa）	Not recorded	EVN (2R,3R,4R,6S)-6-{[(2R,3aR,4R,4'R,5'S,6S,6'R,7S,7aR)-6-{[(2S,3R,4R,5S,6R)-2-{[(2R,3S,4S,5S,6S)-6-({(2R,3aS,3a'R,6S,7R,7' R,7aS,7a'S)-7'-[(2,4-dihydroxy-6-methylbenzoyl)oxy]-7-hydroxyoctahydro-4H-2,4'-spirobi[[1,3]dioxolo[4,5-c]pyran]-6-yl}ox y)-4-hydroxy-5-methoxy-2-(methoxymethyl)tetrahydro-2H-pyran-3-yl]oxy}-3-hydroxy-5-methoxy-6-methyltetrahydro-2H-pyran-4- yl]oxy}-4',7-dihydroxy-4,6',7a-trimethyloctahydro-4H-spiro[1,3-dioxolo[4,5-c]pyran-2,2'-pyran]-5'-yl]oxy}-4-{[(2R,4S,5R, 6S)-5-methoxy-4,6-dimethyl-4-nitrotetrahydro-2H-pyran-2-yl]oxy}-2-methyltetrahydro-2H-pyran-3-yl 3,5-dichloro-4-hydroxy-2-methoxy-6-methylbenzoate (non-preferred name) × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
6I0Y TnaC-stalled ribosome complex with the titin I27 domain folding close to the ribosomal exit tunnel Deposited 2018-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 33 PDB declaration: 36-meric	Chain 6 1–121（121 aa）	Not recorded	MG MAGNESIUM ION × 143 ZN ZINC ION × 1 TRP TRYPTOPHAN × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7N2C Elongating 70S ribosome complex in a fusidic acid-stalled intermediate state of translocation bound to EF-G(GDP) (INT2) Deposited 2021-05-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 55 PDB declaration: 61-meric	Chain LG 1–121（121 aa）	Not recorded	PUT 1,4-DIAMINOBUTANE × 21 MG MAGNESIUM ION × 197 ZN ZINC ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 SPD SPERMIDINE × 3 FUA FUSIDIC ACID × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.72 Å
8PHJ cA4-bound Cami1 in complex with 70S ribosome Deposited 2023-06-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 61-meric	Chain W 2–121（120 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 241	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.67 Å

18 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RL7_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–120； UniProt 1–120 Author chain B； PDBConstruct 1–120； UniProt 1–120

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rqu
Deposition date deposition_date	2003-12-07
Structure title title	NMR structure of L7 dimer from E.coli
Keywords keywords	protein L7/L12, ribosome; RIBOSOME
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.64 Å
Radius of gyration Rg (electron density) rg_electron	32.28 Å
Forward intensity I(0) i0	9733240.00
Molecular weight molecular_weight	24278.0 kDa
Excluded volume excluded_volume	30746 Å³
Envelope volume envelope_volume	53546 Å³
Hydration-shell volume shell_volume	15397 Å³
Envelope diameter envelope_diameter	94.6 Å
Shell Rg shell_rg	36.07 Å
Envelope Rg envelope_rg	29.53 Å
Shape Rg shape_rg	32.22 Å
Total Rg total_rg	32.96 Å
Total atoms total_atoms	3476
Residues n_residues	240
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	97.1 Å
Rg (real space) rg_real	32.64 Å
Rg uncertainty (real space) rg_real_error	0.80 Å
I(0) (real space) i0_real	9.7330e+06
I(0) uncertainty (real space) i0_real_error	1.5930e+05
Rg (reciprocal space) rg_reciprocal	32.65 Å
I(0) (reciprocal space) i0_reciprocal	9733000.0000
Solution quality estimate total_estimate	0.8051
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	57.5 Å
Skewness Skewness skewness	-0.041
Kurtosis Kurtosis kurtosis	-1.071
Angular range angular_range	— – 0.2450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	511200.0000
Real-space data points n_real_points	50
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.621; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.660; Smooth: 0.941

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1rqua1
Class class	a — All alpha proteins
Fold Fold fold	a.108 — Ribosomal protein L7/12, oligomerisation (N-terminal) domain
Superfamily Superfamily superfamily	a.108.1 — Ribosomal protein L7/12, oligomerisation (N-terminal) domain
Family Family family	a.108.1.1 — Ribosomal protein L7/12, oligomerisation (N-terminal) domain

Domain ID domain_id	d1rqua2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.45 — ClpS-like
Superfamily Superfamily superfamily	d.45.1 — ClpS-like
Family Family family	d.45.1.1 — Ribosomal protein L7/12, C-terminal domain

Domain ID domain_id	d1rqub1
Class class	a — All alpha proteins
Fold Fold fold	a.108 — Ribosomal protein L7/12, oligomerisation (N-terminal) domain
Superfamily Superfamily superfamily	a.108.1 — Ribosomal protein L7/12, oligomerisation (N-terminal) domain
Family Family family	a.108.1.1 — Ribosomal protein L7/12, oligomerisation (N-terminal) domain

Domain ID domain_id	d1rqub2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.45 — ClpS-like
Superfamily Superfamily superfamily	d.45.1 — ClpS-like
Family Family family	d.45.1.1 — Ribosomal protein L7/12, C-terminal domain

CATH v4.4 (4 domains)

Domain ID domain_id	1rquA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	710 — Single helix bin

Domain ID domain_id	1rquA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1390 — Ribosomal Protein L30; Chain: A,
Homologous superfamily homologous superfamily	10 — Ribosomal protein L7/L12, C-terminal domain/Adaptor protein ClpS

Domain ID domain_id	1rquB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	710 — Single helix bin

Domain ID domain_id	1rquB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1390 — Ribosomal Protein L30; Chain: A,
Homologous superfamily homologous superfamily	10 — Ribosomal protein L7/L12, C-terminal domain/Adaptor protein ClpS

▶

8. Citations (1)

▶

Description description	50S ribosomal protein L7/L12
Molecular weight formula_weight	12178.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3476

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/rq/1rqu/1rqu.fit
pddf	/app/data/pr_computation/rq/1rqu/1rqu.pr.out
profile	/app/data/saxs_computation/rq/1rqu/1rqu.dat

NMR structure of L7 dimer from E.coli

1. Protein Identity and Related Structures Protein Identity & Related Structures

50S ribosomal protein L7/L12

State in the Current Structure

Other States of the Same Protein in the Database

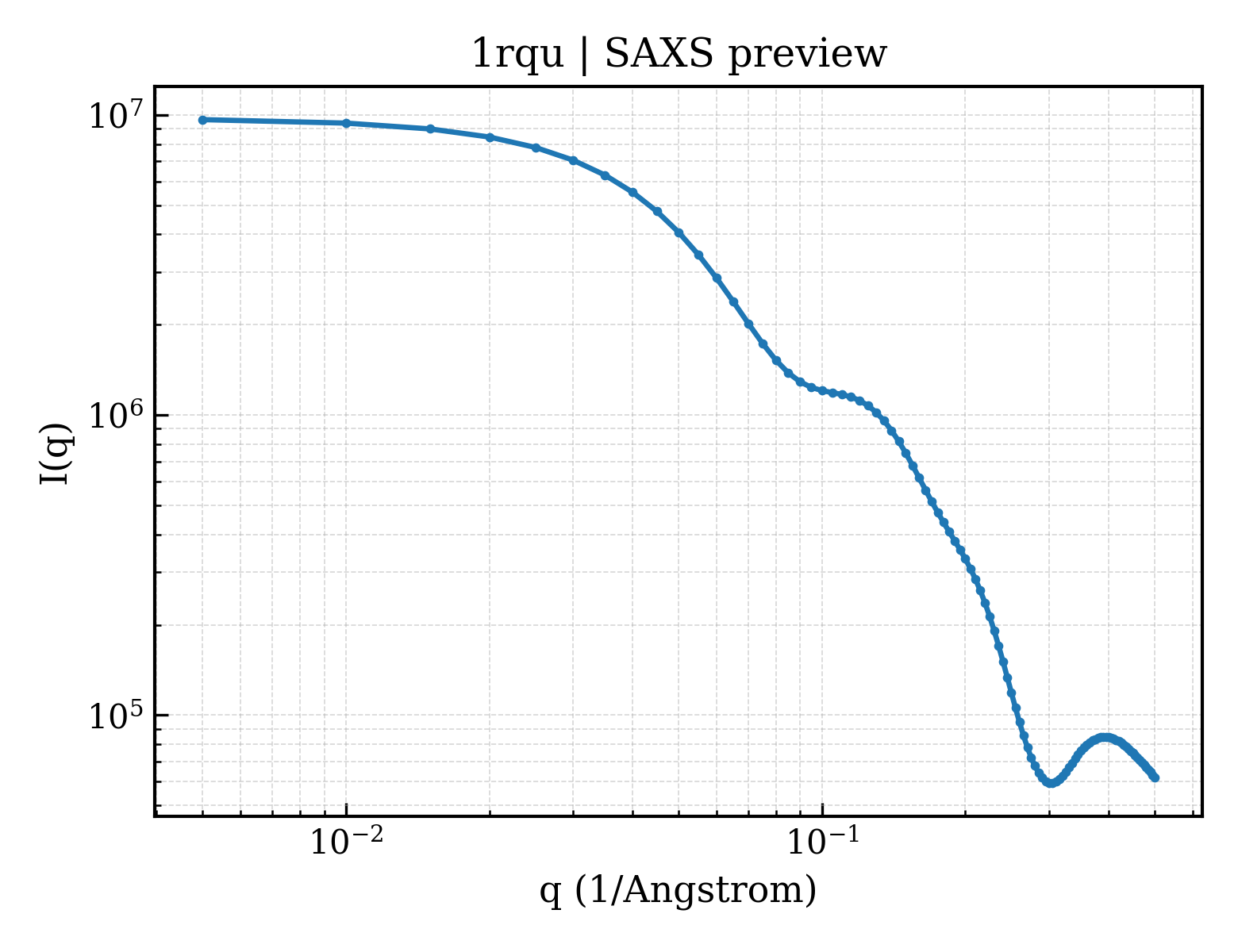

SAXS scattering curve SAXS Profile

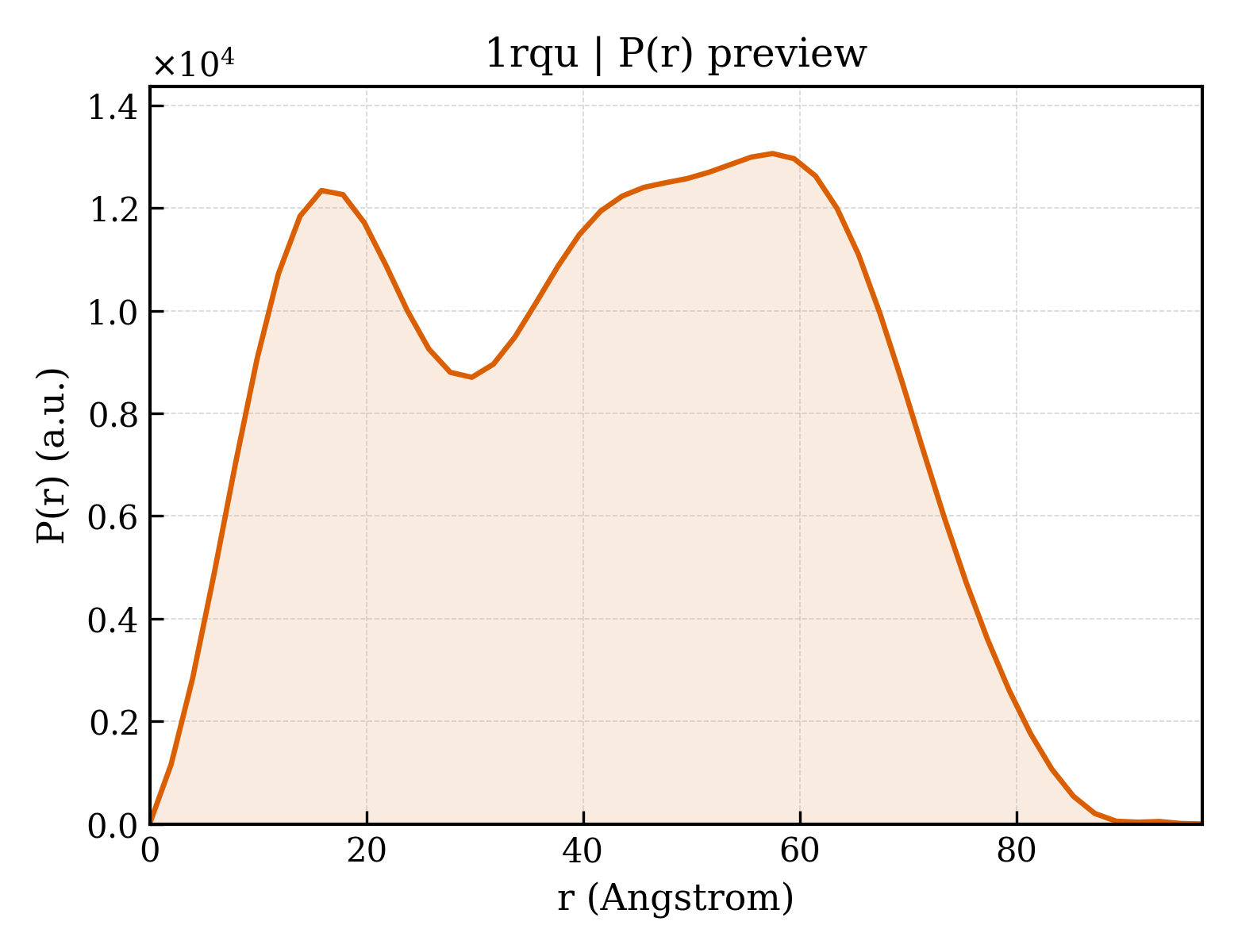

P(r) Distance Distribution P(r) Distribution
