1rqv
Spatial model of L7 dimer from E.coli with one hinge region in helical state
SAXS 散射曲线 SAXS Profile

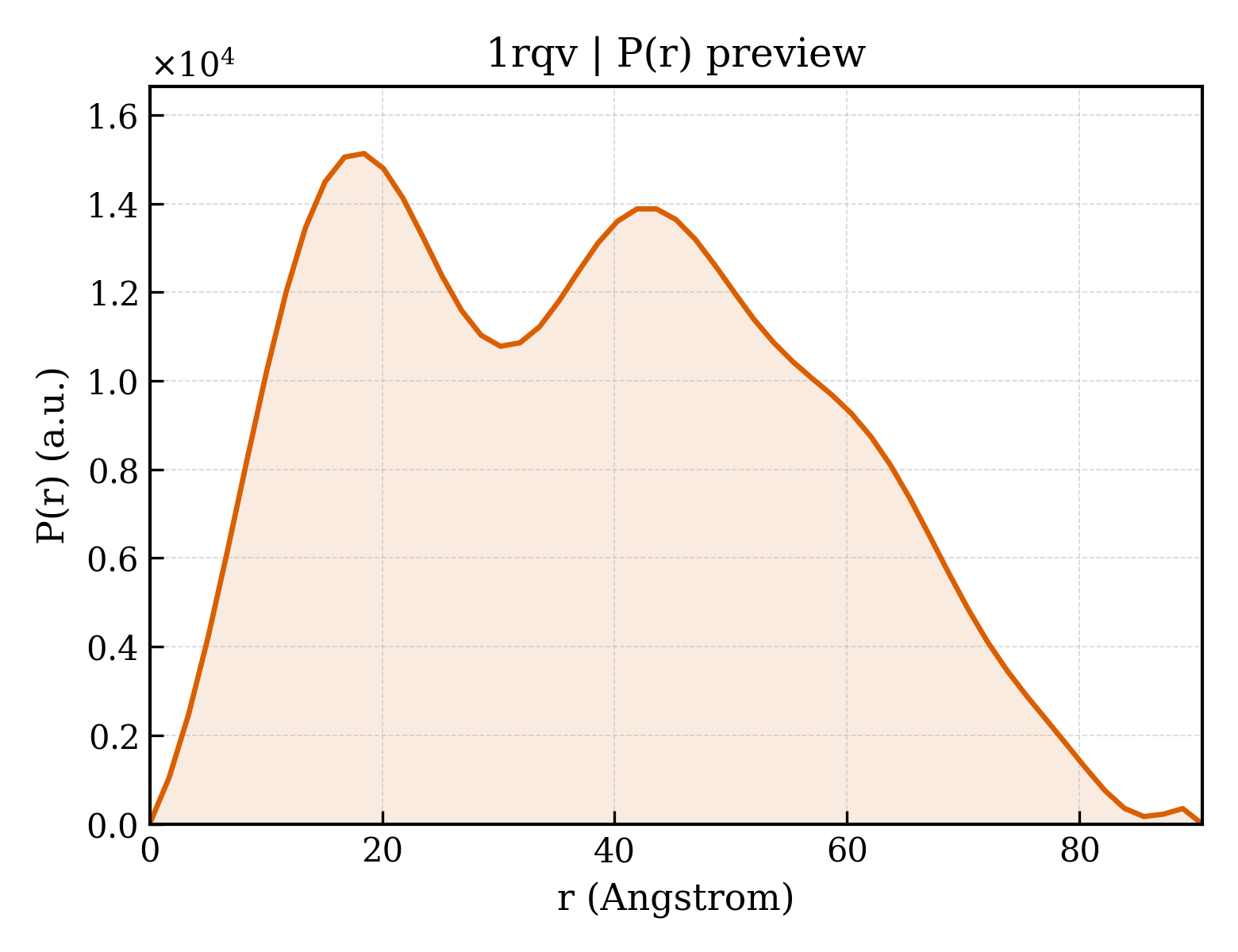

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1rqv |
| 沉积日期 deposition_date | 2003-12-07 |
| 结构标题 title | Spatial model of L7 dimer from E.coli with one hinge region in helical state |
| 关键词 keywords | protein L7/L12, ribosome; RIBOSOME |
| 实验方法 method | SOLUTION NMR |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 29.48 Å |
| 回转半径 Rg (电子) rg_electron | 29.15 Å |
| 零角强度 I(0) i0 | 9761870.00 |
| 分子量 molecular_weight | 24278.0 kDa |
| 排除体积 excluded_volume | 30746 ų |
| 包络体积 envelope_volume | 48989 ų |
| 水化壳体积 shell_volume | 15552 ų |
| 包络直径 envelope_diameter | 94.5 Å |
| 壳层 Rg shell_rg | 33.29 Å |
| 包络 Rg envelope_rg | 27.34 Å |
| 形状 Rg shape_rg | 29.11 Å |
| 总 Rg total_rg | 29.79 Å |
| 总原子数 total_atoms | 3476 |
| 残基数 n_residues | 240 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 90.5 Å |
| Rg (实空间) rg_real | 29.63 Å |
| Rg 误差 (实空间) rg_real_error | 0.76 Å |
| I(0) (实空间) i0_real | 9.7620e+06 |
| I(0) 误差 (实空间) i0_real_error | 1.5710e+05 |
| Rg (倒空间) rg_reciprocal | 29.57 Å |
| I(0) (倒空间) i0_reciprocal | 9761000.0000 |
| 解质量估计 total_estimate | 0.7845 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 18.4 Å |
| 偏度 Skewness skewness | 0.212 |
| 峰度 Kurtosis kurtosis | -0.896 |
| 角度范围 angular_range | — – 0.2700 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 1108000.0000 |
| 实空间数据点数 n_real_points | 55 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.699; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.527; Smooth: 0.571 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (1)
6. 折叠分类 (SCOP + CATH) 8 domains
SCOP 2.08 (4 domains)
| 结构域编号 domain_id | d1rqva1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.108 — Ribosomal protein L7/12, oligomerisation (N-terminal) domain |
| 超家族 Superfamily superfamily | a.108.1 — Ribosomal protein L7/12, oligomerisation (N-terminal) domain |
| 家族 Family family | a.108.1.1 — Ribosomal protein L7/12, oligomerisation (N-terminal) domain |
| 结构域编号 domain_id | d1rqva2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.45 — ClpS-like |
| 超家族 Superfamily superfamily | d.45.1 — ClpS-like |
| 家族 Family family | d.45.1.1 — Ribosomal protein L7/12, C-terminal domain |
| 结构域编号 domain_id | d1rqvb1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.108 — Ribosomal protein L7/12, oligomerisation (N-terminal) domain |
| 超家族 Superfamily superfamily | a.108.1 — Ribosomal protein L7/12, oligomerisation (N-terminal) domain |
| 家族 Family family | a.108.1.1 — Ribosomal protein L7/12, oligomerisation (N-terminal) domain |
| 结构域编号 domain_id | d1rqvb2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.45 — ClpS-like |
| 超家族 Superfamily superfamily | d.45.1 — ClpS-like |
| 家族 Family family | d.45.1.1 — Ribosomal protein L7/12, C-terminal domain |
CATH v4.4 (4 domains)
| 结构域编号 domain_id | 1rqvA01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 710 — Single helix bin |
| 结构域编号 domain_id | 1rqvA02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 1390 — Ribosomal Protein L30; Chain: A, |
| 同源超家族 H-superfamily homologous superfamily | 10 — Ribosomal protein L7/L12, C-terminal domain/Adaptor protein ClpS |
| 结构域编号 domain_id | 1rqvB01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 710 — Single helix bin |
| 结构域编号 domain_id | 1rqvB02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 1390 — Ribosomal Protein L30; Chain: A, |
| 同源超家族 H-superfamily homologous superfamily | 10 — Ribosomal protein L7/L12, C-terminal domain/Adaptor protein ClpS |
