SAXSdb — 1rr7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Middle operon regulator

Enterobacteria phage Mu

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	PLATINUM (II) ION × 2 water × 1	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	PLATINUM (II) ION × 4 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VMOR_BPMU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–129； UniProt 1–129

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rr7
Deposition date deposition_date	2003-12-08
Structure title title	Crystal structure of the Middle Operon Regulator protein of Bacteriophage Mu
Keywords keywords	Mor, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1rr7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1rr7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

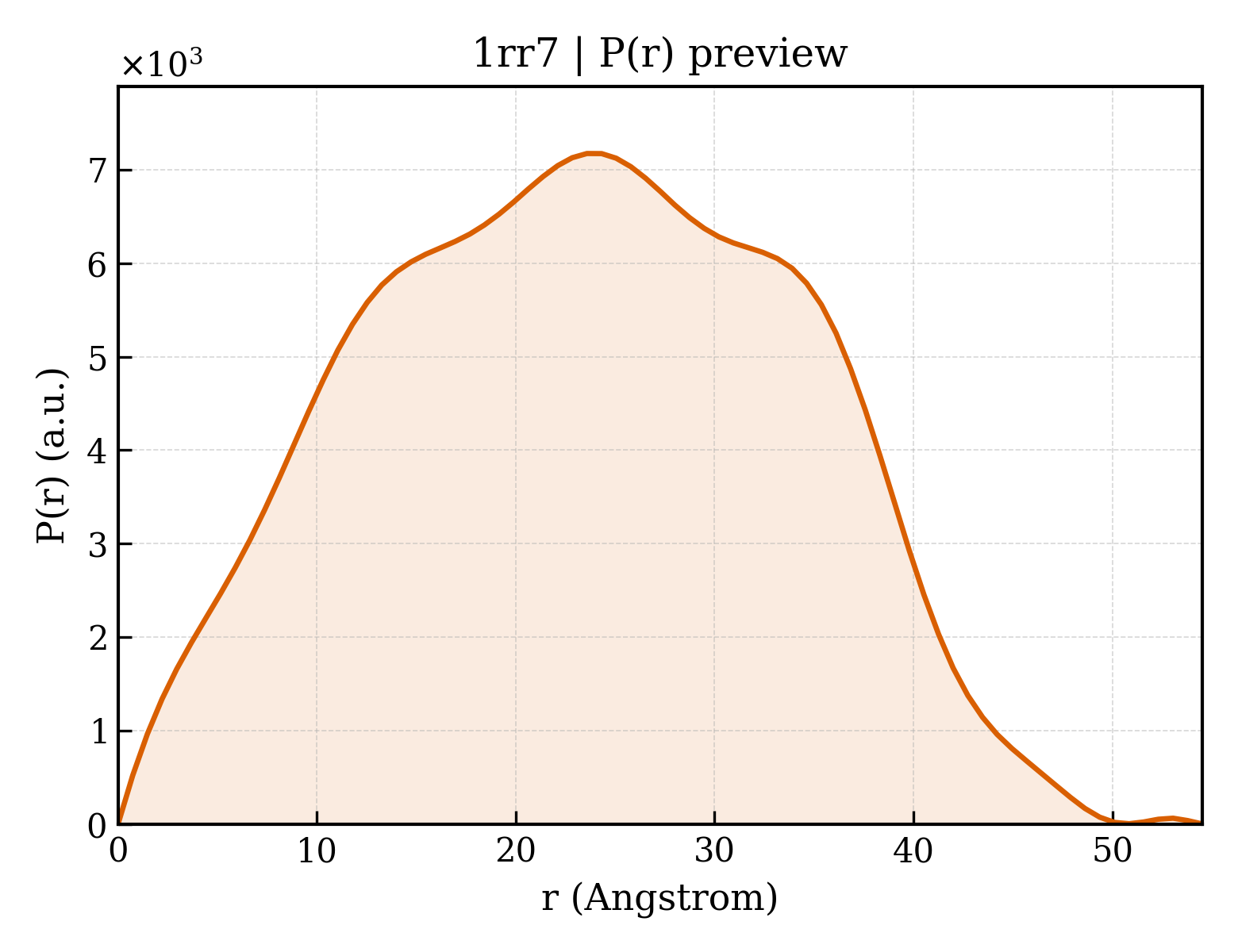

1rr7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.12 Å
Rg (electron density)	17.18 Å
Total Rg	17.94 Å
Atom count	745
Residues	94
Excluded volume	13306 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1rr7__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1rr7__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Middle operon regulator
Molecular weight formula_weight	14732.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	767

MTEDLFGDLQDDTILAHLDNPAEDTSRFPALLAELNDLLRGELSRLGVDPAHSLEIVVAICKHLGGGQVYIPRGQALDSLIRDLRIWNDFNGRNVSELTTRYGVTFNTVYKAIRRMRRLKYRQYQPSLL

Source Source

Source organism organism	Enterobacteria phage Mu
NCBI taxonomy ID ncbi_taxonomy_id	10677
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PLATINUM (II) ION
Molecular weight formula_weight	195.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	22

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1rr7a_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.1 — Homeodomain-like
Family Family family	a.4.1.14 — Middle operon regulator, Mor

CATH v4.4 (2 domains)

Domain ID domain_id	1rr7A01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	60 — Homeodomain-like

Domain ID domain_id	1rr7A02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	60 — Homeodomain-like

▶

Unit-cell length a length_a	81.631 Å
Unit-cell length b length_b	81.631 Å
Unit-cell length c length_c	44.843 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	—
R_work r_work	0.2519
R_free r_free	0.2680
