1ruz

1918 H1 Hemagglutinin

Method: X-RAY DIFFRACTION D_max: 136.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

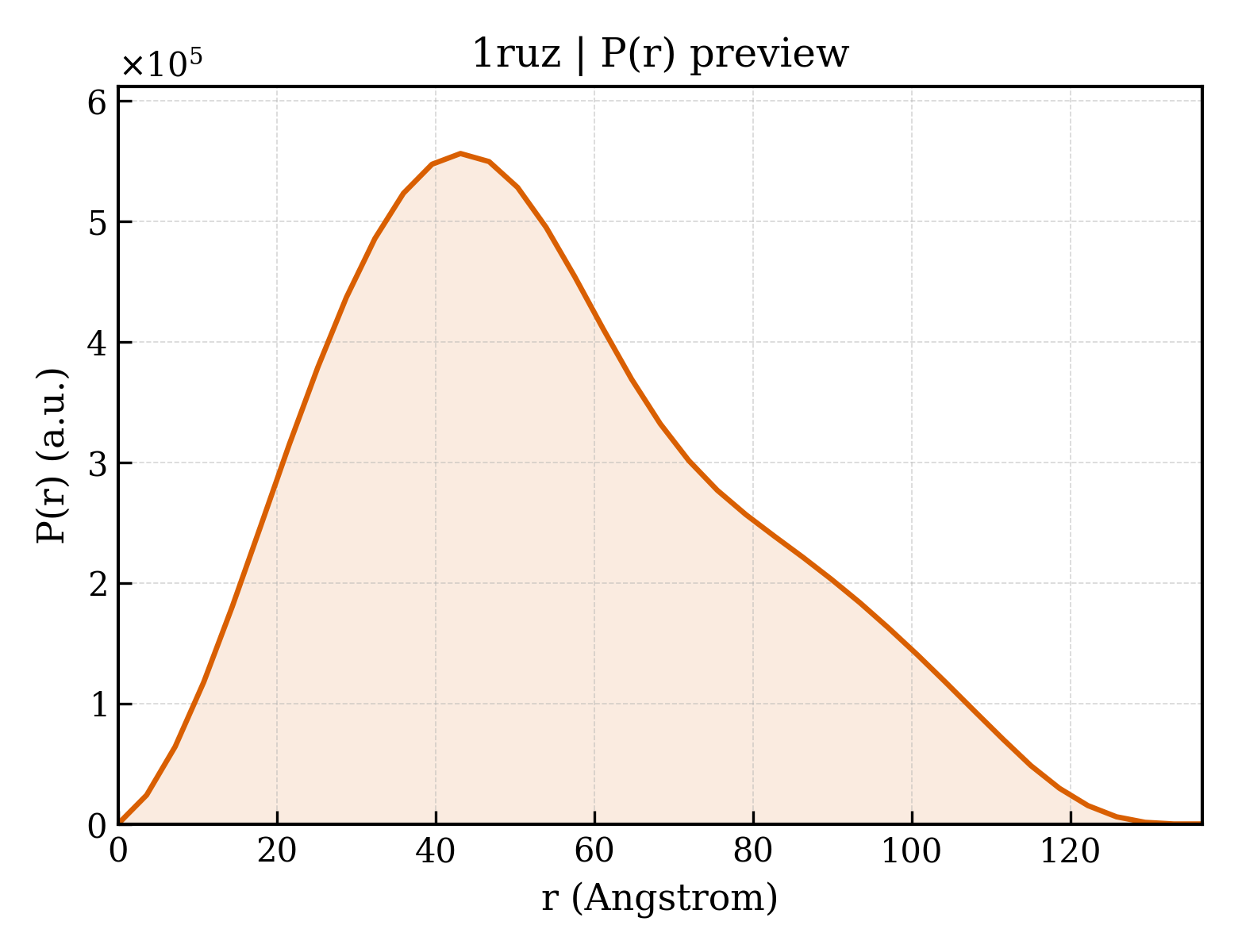

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ruz
沉积日期 deposition_date	2003-12-12
结构标题 title	1918 H1 Hemagglutinin
关键词 keywords	Hemagglutinin, INFLUENZA A VIRUS, Viral Protein; VIRAL PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	41.73 Å
回转半径 Rg (电子) rg_electron	41.30 Å
零角强度 I(0) i0	423952000.00
分子量 molecular_weight	164130.0 kDa
排除体积 excluded_volume	203490 Å³
包络体积 envelope_volume	272600 Å³
水化壳体积 shell_volume	56554 Å³
包络直径 envelope_diameter	137.2 Å
壳层 Rg shell_rg	44.80 Å
包络 Rg envelope_rg	40.78 Å
形状 Rg shape_rg	41.31 Å
总 Rg total_rg	41.47 Å
总原子数 total_atoms	11559
残基数 n_residues	1446
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	136.6 Å
Rg (实空间) rg_real	41.89 Å
Rg 误差 (实空间) rg_real_error	1.05 Å
I(0) (实空间) i0_real	4.2400e+08
I(0) 误差 (实空间) i0_real_error	6.8400e+06
Rg (倒空间) rg_reciprocal	41.73 Å
I(0) (倒空间) i0_reciprocal	423900000.0000
解质量估计 total_estimate	0.8461
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	43.1 Å
偏度 Skewness skewness	0.452
峰度 Kurtosis kurtosis	-0.440
角度范围 angular_range	— – 0.1900 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	43290000.0000
实空间数据点数 n_real_points	39
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.835; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.501

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	hemagglutinin
分子量 formula_weight	36125.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,J,L
原子数 atom_count	12108

ATNADTICIGYHANNSTDTVDTVLEKNVTVTHSVNLLEDSHNGKLCKLKGIAPLQLGKCNIAGWLLGNPECDLLLTASSWSYIVETSNSENGTCYPGDFIDYEELREQLSSVSSFEKFEIFPKTSSWPNHETTKGVTAACSYAGASSFYRNLLWLTKKGSSYPKLSKSYVNNKGKEVLVLWGVHHPPTGTDQQSLYQNADAYVSVGSSKYNRRFTPEIAARPKVRDQAGRMNYYWTLLEPGDTITFEATGNLIAPWYAFALNRGSGSGIITSDAPVHDCNTKCQTPHGAINSSLPFQNIHPVTIGECPKYVRSTKLRMATGLRNIPAR

Entity 2 polymer

描述 description	hemagglutinin
分子量 formula_weight	18212.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I,K,M

GLFGAIAGFIEGGWTGMIDGWYGYHHQNEQGSGYAADQKSTQNAIDGITNKVNSVIEKMNTQFTAVGKEFNNLERRIENLNKKVDDGFLDIWTYNAELLVLLENERTLDFHDSNVRNLYEKVKSQLKNNAKEIGNGCFEFYHKCDDACMESVRNGTYDYP

Entity 3 non-polymer

描述 description	2-acetamido-2-deoxy-alpha-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	9

Entity 4 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	549

▼

6. 折叠分类 (SCOP + CATH) 15 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d1ruzh_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.19 — Viral protein domain
超家族 Superfamily superfamily	b.19.1 — Viral protein domain
家族 Family family	b.19.1.2 — Influenza hemagglutinin headpiece

结构域编号 domain_id	d1ruzi_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
家族 Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

结构域编号 domain_id	d1ruzj_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.19 — Viral protein domain
超家族 Superfamily superfamily	b.19.1 — Viral protein domain
家族 Family family	b.19.1.2 — Influenza hemagglutinin headpiece

结构域编号 domain_id	d1ruzk_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
家族 Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

结构域编号 domain_id	d1ruzl_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.19 — Viral protein domain
超家族 Superfamily superfamily	b.19.1 — Viral protein domain
家族 Family family	b.19.1.2 — Influenza hemagglutinin headpiece

结构域编号 domain_id	d1ruzm_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
家族 Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

CATH v4.4 (9 domains)

结构域编号 domain_id	1ruzH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	77 — Hemagglutinin; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

结构域编号 domain_id	1ruzH02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

结构域编号 domain_id	1ruzI00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	20 — Hemagglutinin Ectodomain; Chain B
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1ruzJ01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	77 — Hemagglutinin; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

结构域编号 domain_id	1ruzJ02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

结构域编号 domain_id	1ruzK00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	20 — Hemagglutinin Ectodomain; Chain B
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1ruzL01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	77 — Hemagglutinin; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

结构域编号 domain_id	1ruzL02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

结构域编号 domain_id	1ruzM00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	20 — Hemagglutinin Ectodomain; Chain B
同源超家族 H-superfamily homologous superfamily	10 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	171.461 Å
晶胞边长 b length_b	171.461 Å
晶胞边长 c length_c	153.445 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	P 41 21 2
空间群编号 int_tables_number	92
晶系 crystal_system	—

分辨率 resolution	2.900 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2480
R_work r_work	0.2480
R_free r_free	0.2890
