SAXSdb — 1rv8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

fructose-1,6-bisphosphate aldolase

Thermus aquaticus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 6 COBALT (II) ION × 3 SODIUM ION × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 6 COBALT (II) ION × 2 SODIUM ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9RHA2_THEAQ
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–305； UniProt 1–305 Author chain B； PDBConstruct 1–305； UniProt 1–305 Author chain C； PDBConstruct 1–305； UniProt 1–305 Author chain D； PDBConstruct 1–305； UniProt 1–305

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rv8
Deposition date deposition_date	2003-12-12
Structure title title	Class II fructose-1,6-bisphosphate aldolase from Thermus aquaticus in complex with cobalt
Keywords keywords	class II aldolase, metal-depdendent aldolase, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1rv8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1rv8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

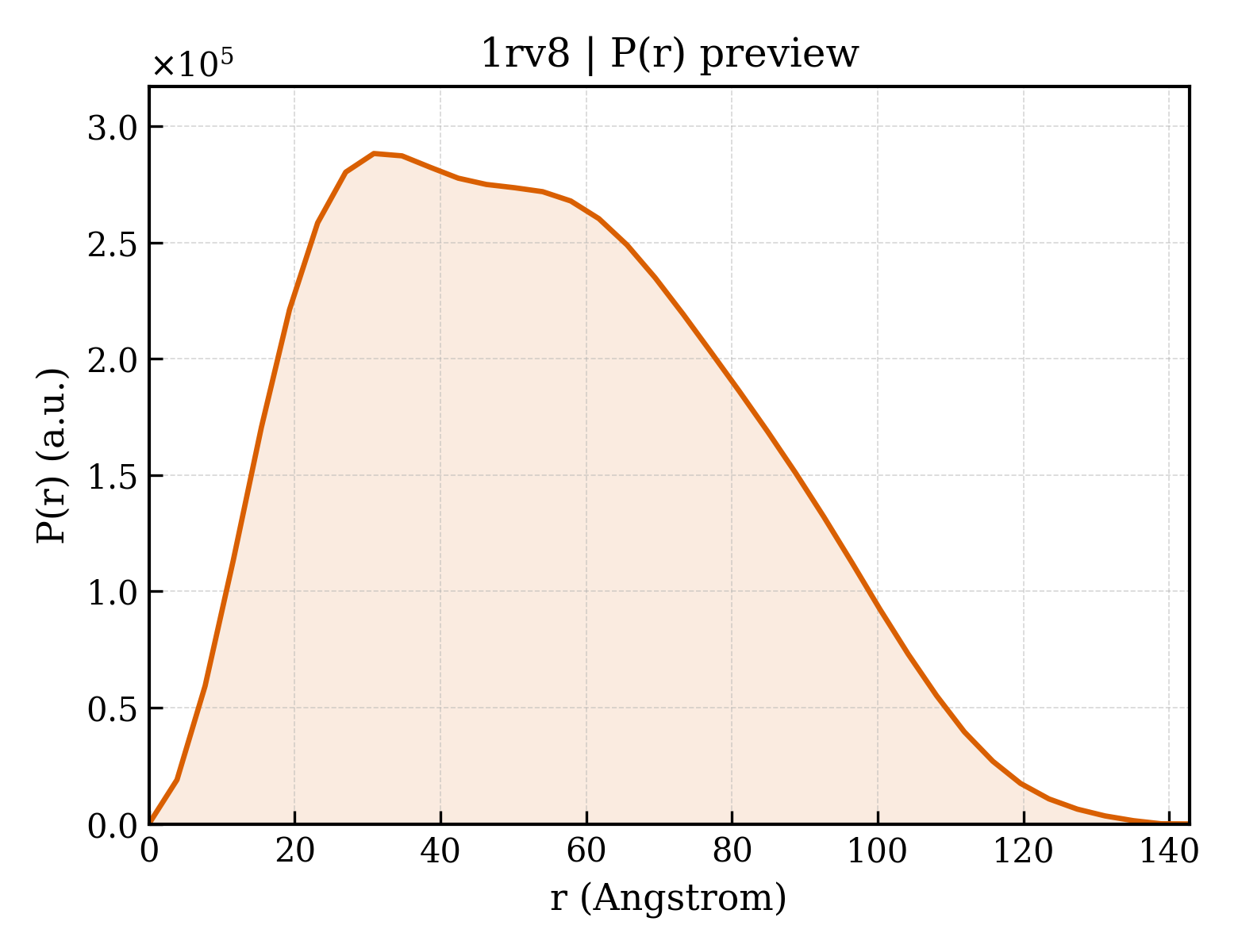

1rv8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.35 Å
Rg (electron density)	27.83 Å
Total Rg	28.34 Å
Atom count	4629
Residues	602
Excluded volume	82461 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1rv8__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1rv8__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	fructose-1,6-bisphosphate aldolase
Molecular weight formula_weight	33142.0 kDa
EC 编号 ec_number	4.1.2.13
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	10343

MLVTGLEILKKAREEGYGVGAFNVNNMEFLQAVLEAAEEQRSPVILALSEGAMKYGGRALTLMAVELAKEARVPVAVHLDHGSSYESVLRALRAGFTSVMIDKSHEDFETNVRETRRVVEAAHAVGVTVEAELGRLAGIEEHVAVDEKDALLTNPEEARIFMERTGADYLAVAIGTSHGAYKGKGRPFIDHARLERIARLVPAPLVLHGASAVPPELVERFRASGGEIGEAAGIHPEDIKKAISLGIAKINTDTDLRLAFTALIREALNKNPKEFDPRKYLGPAREAVKEVVKSRMELFGSVGRA

Source Source

Source organism organism	Thermus aquaticus
NCBI taxonomy ID ncbi_taxonomy_id	271
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 3 Entity 3 non-polymer

Description description	COBALT (II) ION
Molecular weight formula_weight	58.9 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	932

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1rv8a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.10 — Aldolase
Family Family family	c.1.10.2 — Class II FBP aldolase

Domain ID domain_id	d1rv8b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.10 — Aldolase
Family Family family	c.1.10.2 — Class II FBP aldolase

Domain ID domain_id	d1rv8c_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.10 — Aldolase
Family Family family	c.1.10.2 — Class II FBP aldolase

Domain ID domain_id	d1rv8d_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.10 — Aldolase
Family Family family	c.1.10.2 — Class II FBP aldolase

CATH v4.4 (4 domains)

Domain ID domain_id	1rv8A00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1rv8B00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1rv8C00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1rv8D00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

▶

Unit-cell length a length_a	99.354 Å
Unit-cell length b length_b	57.629 Å
Unit-cell length c length_c	138.577 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.23 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 2 1
Space-group number int_tables_number	3
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	40.430 Å
R factor r_factor	0.2110
R_work r_work	0.2110
R_free r_free	0.2520
