1rvz

1934 H1 Hemagglutinin in complex with LSTC

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

hemagglutinin

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 6 其他Polymer 3	N-acetyl-alpha-neuraminic acid-(2-6)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 water × 6	Consistent with protein count
2	Other combination	Homooligomer	Protein 6 其他Polymer 3	N-acetyl-alpha-neuraminic acid-(2-6)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q82766_9INFA
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 4–325； UniProt 17–338 Author chain C； PDBConstruct 4–325； UniProt 17–338 Author chain E； PDBConstruct 4–325； UniProt 17–338 Author chain G； PDBConstruct 4–325； UniProt 17–338 Author chain I； PDBConstruct 4–325； UniProt 17–338 Author chain K； PDBConstruct 4–325； UniProt 17–338 Author chain B； PDBConstruct 1–160； UniProt 344–503 Author chain D； PDBConstruct 1–160； UniProt 344–503 Author chain F； PDBConstruct 1–160； UniProt 344–503 Author chain H； PDBConstruct 1–160； UniProt 344–503 Author chain J； PDBConstruct 1–160； UniProt 344–503 Author chain L； PDBConstruct 1–160； UniProt 344–503

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rvz
Deposition date deposition_date	2003-12-15
Structure title title	1934 H1 Hemagglutinin in complex with LSTC
Keywords keywords	Hemagglutinin, Influenza A Virus, Viral Protein; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1rvz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1rvz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

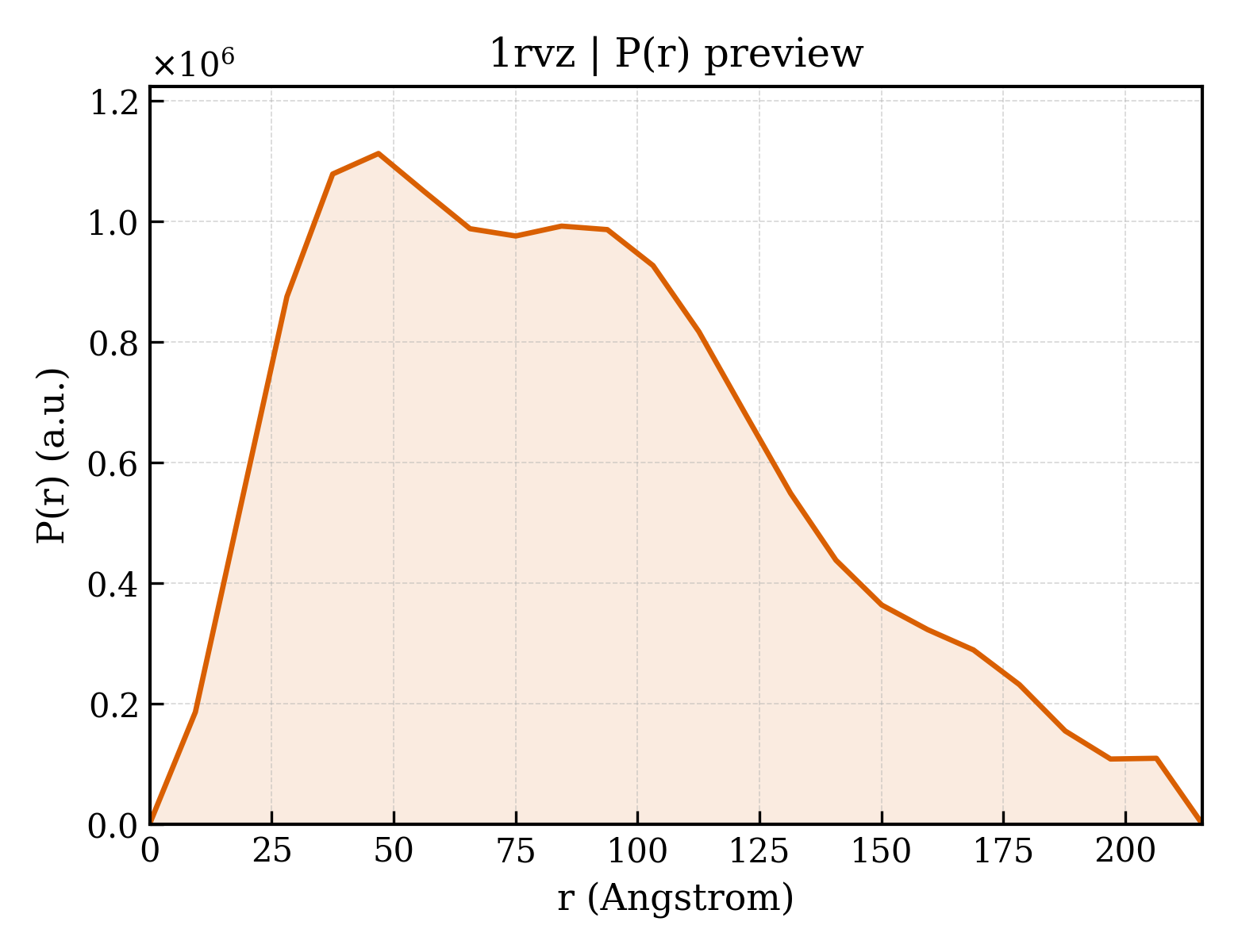

1rvz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.56 Å
Rg (electron density)	40.96 Å
Total Rg	41.11 Å
Atom count	11699
Residues	1449
Excluded volume	206250 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1rvz__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1rvz__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	hemagglutinin
Molecular weight formula_weight	36733.4 kDa
Source method src_method	nat
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G,I,K
Atom count atom_count	25452

ATNADTICIGYHANNSTDTVDTVLEKNVTVTHSVNLLEDSHNGKLCRLKGIAPLQLGKCNIAGWLLGNPECDPLLPVRSWSYIVETPNSENGICYPGDFIDYEELREQLSSVSSFERFEIFPKESSWPNHNTNGVTAACSHEGKSSFYRNLLWLTEKEGSYPKLKNSYVNKKGKEVLVLWGIHHPPNSKEQQNLYQNENAYVSVVTSNYNRRFTPEIAERPKVRDQAGRMNYYWTLLKPGDTIIFEANGNLIAPMYAFALRRGFGSGIITSNASMHECNTKCQTPLGAINSSLPYQNIHPVTIGECPKYVRSAKLRMVTGLRNIPAR

Entity 2 Entity 2 polymer

Description description	hemagglutinin
Molecular weight formula_weight	18242.2 kDa
Source method src_method	nat
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H,J,L

GLFGAIAGFIEGGWTGMIDGWYGYHHQNEQGSGYAADQKSTQNAINGITNKVNSVIEKMNIQFTAVGKEFNKLEKRMENLNNKVDDGFLDIWTYNAELLVLLENERTLDFHDSNVKNLYEKVKSQLKNNAKEIGNGCFEFYHKCDNECMESVRNGTYDYP

Entity 3 Entity 3 branched

Description description	N-acetyl-alpha-neuraminic acid-(2-6)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	674.6 kDa
Source method src_method	man
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	2098

▼

6. Fold Classification (SCOP + CATH) 30 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1rvza_
Class class	b — All beta proteins
Fold Fold fold	b.19 — Viral protein domain
Superfamily Superfamily superfamily	b.19.1 — Viral protein domain
Family Family family	b.19.1.2 — Influenza hemagglutinin headpiece

Domain ID domain_id	d1rvzb_
Class class	h — Coiled coil proteins
Fold Fold fold	h.3 — Stalk segment of viral fusion proteins
Superfamily Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
Family Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

Domain ID domain_id	d1rvzc_
Class class	b — All beta proteins
Fold Fold fold	b.19 — Viral protein domain
Superfamily Superfamily superfamily	b.19.1 — Viral protein domain
Family Family family	b.19.1.2 — Influenza hemagglutinin headpiece

Domain ID domain_id	d1rvzd_
Class class	h — Coiled coil proteins
Fold Fold fold	h.3 — Stalk segment of viral fusion proteins
Superfamily Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
Family Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

Domain ID domain_id	d1rvze_
Class class	b — All beta proteins
Fold Fold fold	b.19 — Viral protein domain
Superfamily Superfamily superfamily	b.19.1 — Viral protein domain
Family Family family	b.19.1.2 — Influenza hemagglutinin headpiece

Domain ID domain_id	d1rvzf_
Class class	h — Coiled coil proteins
Fold Fold fold	h.3 — Stalk segment of viral fusion proteins
Superfamily Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
Family Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

Domain ID domain_id	d1rvzg_
Class class	b — All beta proteins
Fold Fold fold	b.19 — Viral protein domain
Superfamily Superfamily superfamily	b.19.1 — Viral protein domain
Family Family family	b.19.1.2 — Influenza hemagglutinin headpiece

Domain ID domain_id	d1rvzh_
Class class	h — Coiled coil proteins
Fold Fold fold	h.3 — Stalk segment of viral fusion proteins
Superfamily Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
Family Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

Domain ID domain_id	d1rvzi_
Class class	b — All beta proteins
Fold Fold fold	b.19 — Viral protein domain
Superfamily Superfamily superfamily	b.19.1 — Viral protein domain
Family Family family	b.19.1.2 — Influenza hemagglutinin headpiece

Domain ID domain_id	d1rvzj_
Class class	h — Coiled coil proteins
Fold Fold fold	h.3 — Stalk segment of viral fusion proteins
Superfamily Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
Family Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

Domain ID domain_id	d1rvzk_
Class class	b — All beta proteins
Fold Fold fold	b.19 — Viral protein domain
Superfamily Superfamily superfamily	b.19.1 — Viral protein domain
Family Family family	b.19.1.2 — Influenza hemagglutinin headpiece

Domain ID domain_id	d1rvzl_
Class class	h — Coiled coil proteins
Fold Fold fold	h.3 — Stalk segment of viral fusion proteins
Superfamily Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
Family Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

CATH v4.4 (18 domains)

Domain ID domain_id	1rvzA01
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	77 — Hemagglutinin; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

Domain ID domain_id	1rvzA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
Homologous superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

Domain ID domain_id	1rvzB00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	20 — Hemagglutinin Ectodomain; Chain B
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1rvzC01
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	77 — Hemagglutinin; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

Domain ID domain_id	1rvzC02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
Homologous superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

Domain ID domain_id	1rvzD00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	20 — Hemagglutinin Ectodomain; Chain B
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1rvzE01
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	77 — Hemagglutinin; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

Domain ID domain_id	1rvzE02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
Homologous superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

Domain ID domain_id	1rvzF00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	20 — Hemagglutinin Ectodomain; Chain B
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1rvzG01
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	77 — Hemagglutinin; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

Domain ID domain_id	1rvzG02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
Homologous superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

Domain ID domain_id	1rvzH00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	20 — Hemagglutinin Ectodomain; Chain B
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1rvzI01
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	77 — Hemagglutinin; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

Domain ID domain_id	1rvzI02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
Homologous superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

Domain ID domain_id	1rvzJ00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	20 — Hemagglutinin Ectodomain; Chain B
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1rvzK01
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	77 — Hemagglutinin; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

Domain ID domain_id	1rvzK02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
Homologous superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

Domain ID domain_id	1rvzL00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	20 — Hemagglutinin Ectodomain; Chain B
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	227.583 Å
Unit-cell length b length_b	131.522 Å
Unit-cell length c length_c	175.017 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	110.07 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.250 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2250
R_work r_work	0.2250
R_free r_free	0.2570

1934 H1 Hemagglutinin in complex with LSTC

1. Protein Identity and Related Structures Protein Identity & Related Structures

hemagglutinin

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1rvz__assembly_1__model_1

1rvz__assembly_1__model_1 | I(q)

1rvz__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 branched

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

6. Fold Classification (SCOP + CATH) 30 domains

SCOP 2.08 (12 domains)

CATH v4.4 (18 domains)

7. Citations (1)

1934 H1 Hemagglutinin in complex with LSTC

1. Protein Identity and Related Structures Protein Identity & Related Structures

hemagglutinin

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1rvz__assembly_1__model_1

1rvz__assembly_1__model_1 | I(q)

1rvz__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 branched

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

6. Fold Classification (SCOP + CATH) 30 domains

SCOP 2.08 (12 domains)

CATH v4.4 (18 domains)

7. Citations (1)
