1ryi

STRUCTURE OF GLYCINE OXIDASE WITH BOUND INHIBITOR GLYCOLATE

Method: X-RAY DIFFRACTION D_max: 157.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

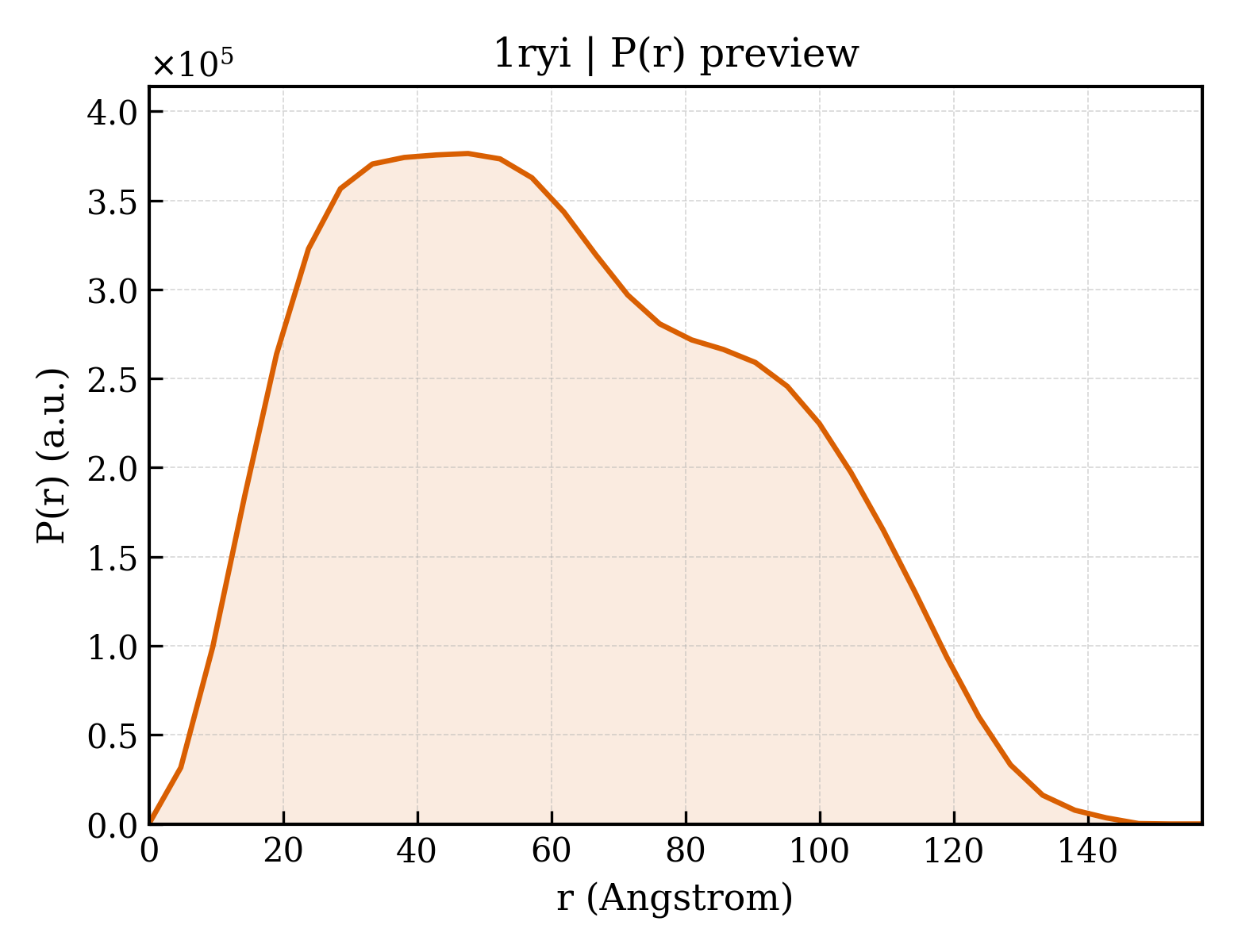

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ryi
沉积日期 deposition_date	2003-12-22
结构标题 title	STRUCTURE OF GLYCINE OXIDASE WITH BOUND INHIBITOR GLYCOLATE
关键词 keywords	FLAVOPROTEIN; OXIDASE; PROTEIN-INHIBITOR COMPLEX, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.56 Å
回转半径 Rg (电子) rg_electron	47.68 Å
零角强度 I(0) i0	401140000.00
分子量 molecular_weight	164940.0 kDa
排除体积 excluded_volume	205940 Å³
包络体积 envelope_volume	289810 Å³
水化壳体积 shell_volume	52398 Å³
包络直径 envelope_diameter	156.9 Å
壳层 Rg shell_rg	49.69 Å
包络 Rg envelope_rg	46.38 Å
形状 Rg shape_rg	47.69 Å
总 Rg total_rg	47.72 Å
总原子数 total_atoms	11608
残基数 n_residues	1456
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	157.1 Å
Rg (实空间) rg_real	47.82 Å
Rg 误差 (实空间) rg_real_error	2.03 Å
I(0) (实空间) i0_real	4.0110e+08
I(0) 误差 (实空间) i0_real_error	8.1380e+06
Rg (倒空间) rg_reciprocal	47.56 Å
I(0) (倒空间) i0_reciprocal	401000000.0000
解质量估计 total_estimate	0.8502
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	47.6 Å
偏度 Skewness skewness	0.286
峰度 Kurtosis kurtosis	-0.822
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	19520000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.831; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.841; Smooth: 0.714

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	GLYCINE OXIDASE
分子量 formula_weight	42636.7 kDa
EC 编号 ec_number	1.4.3.19
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	12720

MHHHHHHMARIRAMKRHYEAVVIGGGIIGSAIAYYLAKENKNTALFESGTMGGRTTSAAAGMLGAHAECEERDAFFDFAMHSQRLYKGLGEELYALSGVDIRQHNGGMFKLAFSEEDVLQLRQMDDLDSVSWYSKEEVLEKEPYASGDIFGASFIQDDVHVEPYFVCKAYVKAAKMLGAEIFEHTPVLHVERDGEALFIKTPSGDVWANHVVVASGVWSGMFFKQLGLNNAFLPVKGECLSVWNDDIPLTKTLYHDHCYIVPRKSGRLVVGATMKPGDWSETPDLGGLESVMKKAKTMLPAIQNMKVDRFWAGLRPGTKDGKPYIGRHPEDSRILFAAGHFRNGILLAPATGALISDLIMNKEVNQDWLHAFRIDRKEAVNI

来源 Source

来源生物 organism	Bacillus subtilis
NCBI 分类编号 ncbi_taxonomy_id	1423
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	FLAVIN-ADENINE DINUCLEOTIDE
分子量 formula_weight	785.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	GLYCOLIC ACID
分子量 formula_weight	76.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1046

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1ryia1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

结构域编号 domain_id	d1ryia2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.16 — FAD-linked reductases, C-terminal domain
超家族 Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
家族 Family family	d.16.1.3 — D-aminoacid oxidase-like

结构域编号 domain_id	d1ryib1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

结构域编号 domain_id	d1ryib2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.16 — FAD-linked reductases, C-terminal domain
超家族 Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
家族 Family family	d.16.1.3 — D-aminoacid oxidase-like

结构域编号 domain_id	d1ryic1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

结构域编号 domain_id	d1ryic2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.16 — FAD-linked reductases, C-terminal domain
超家族 Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
家族 Family family	d.16.1.3 — D-aminoacid oxidase-like

结构域编号 domain_id	d1ryid1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

结构域编号 domain_id	d1ryid2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.16 — FAD-linked reductases, C-terminal domain
超家族 Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
家族 Family family	d.16.1.3 — D-aminoacid oxidase-like

CATH v4.4 (8 domains)

结构域编号 domain_id	1ryiA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	1ryiA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	9 — D-Amino Acid Oxidase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — D-Amino Acid Oxidase, subunit A, domain 2

结构域编号 domain_id	1ryiB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	1ryiB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	9 — D-Amino Acid Oxidase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — D-Amino Acid Oxidase, subunit A, domain 2

结构域编号 domain_id	1ryiC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	1ryiC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	9 — D-Amino Acid Oxidase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — D-Amino Acid Oxidase, subunit A, domain 2

结构域编号 domain_id	1ryiD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	1ryiD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	9 — D-Amino Acid Oxidase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — D-Amino Acid Oxidase, subunit A, domain 2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	73.713 Å
晶胞边长 b length_b	218.765 Å
晶胞边长 c length_c	217.800 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	32

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	1.800 Å
最低分辨率 resolution_low	19.920 Å
R 因子 r_factor	0.1788
R_work r_work	0.1770
R_free r_free	0.2140
