Zea mays
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | Q9M5P4_MAIZE |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 13–205； UniProt 57–249 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1rym |
| Deposition date deposition_date | 2003-12-22 |
| Structure title title | Structure of the Group II Intron Splicing Factor CRS2 |
| Keywords keywords | ALPHA-BETA, TRANSLATION; TRANSLATION |
| Experimental Method method | X-RAY DIFFRACTION |

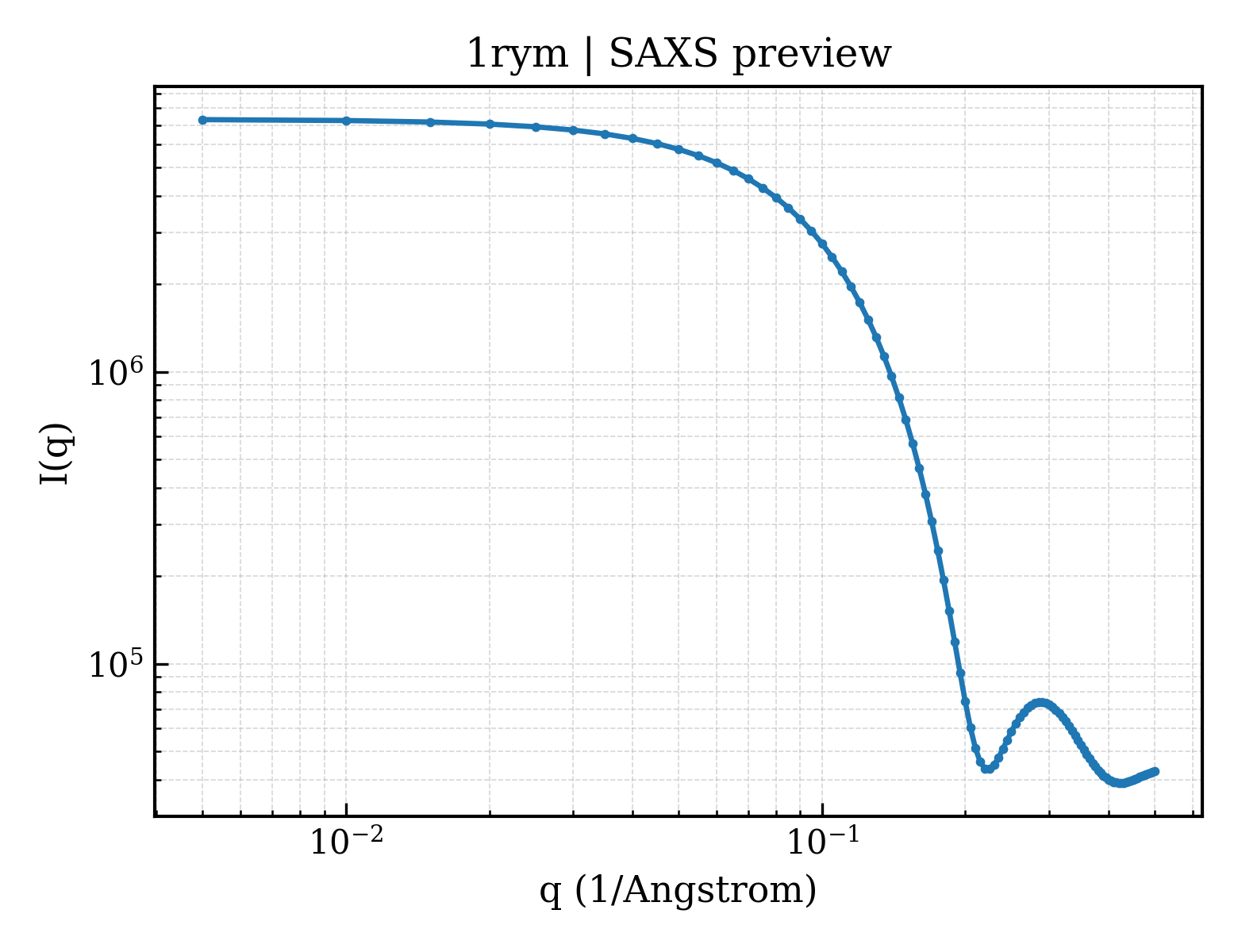

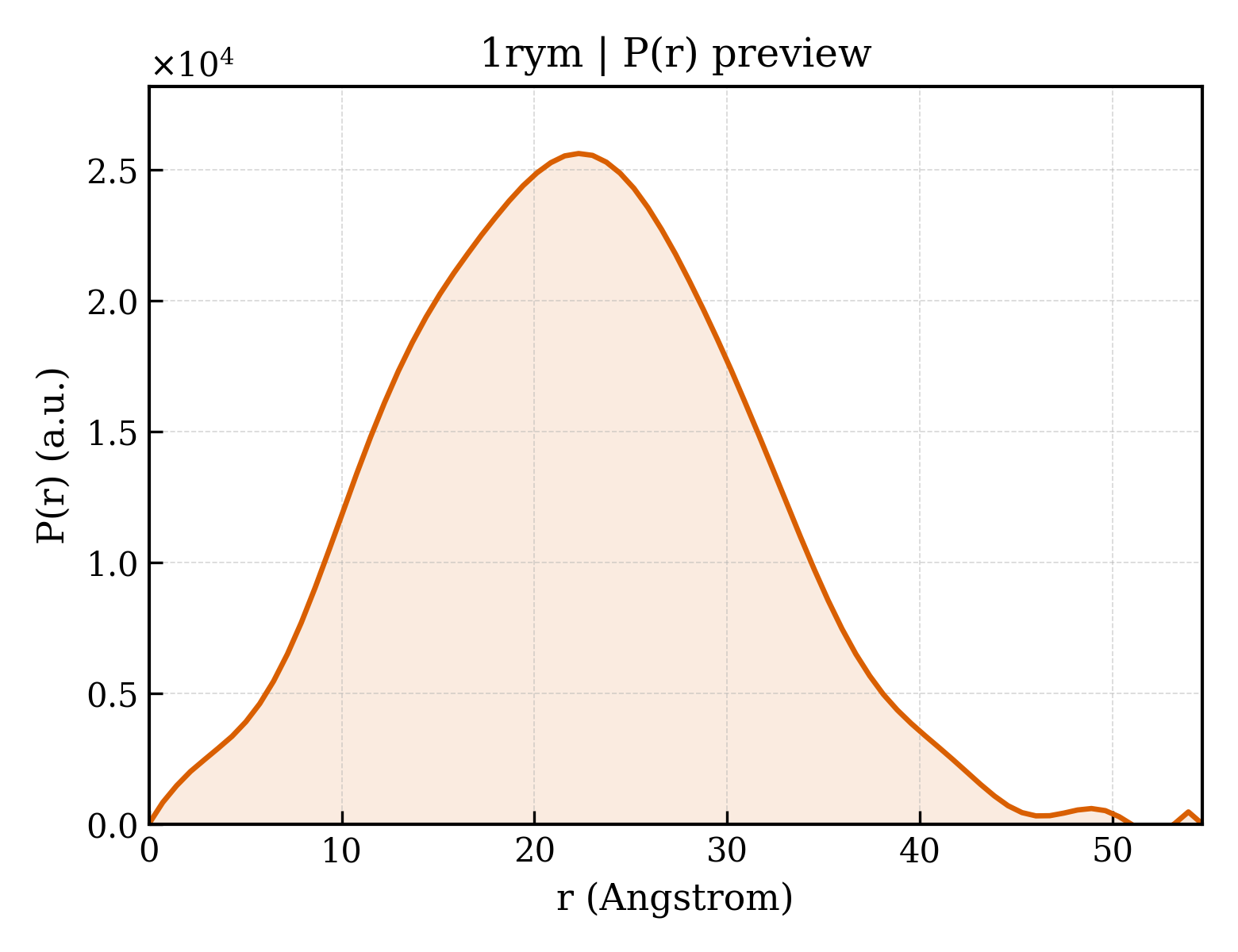

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 16.86 Å |
| Rg (electron density) | 15.63 Å |
| Total Rg | 16.80 Å |
| Atom count | 1411 |
| Residues | 185 |
| Excluded volume | 25214 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1ryma_ |
| Class class | c — Alpha and beta proteins (a/b) |
| Fold Fold fold | c.56 — Phosphorylase/hydrolase-like |
| Superfamily Superfamily superfamily | c.56.3 — Peptidyl-tRNA hydrolase-like |
| Family Family family | c.56.3.1 — Peptidyl-tRNA hydrolase-like |
| Domain ID domain_id | 1rymA00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 50 — Rossmann fold |
| Homologous superfamily homologous superfamily | 1470 — Peptidyl-tRNA hydrolase |
