1rys

REPLICATION OF A CIS-SYN THYMINE DIMER AT ATOMIC RESOLUTION

Method: X-RAY DIFFRACTION D_max: 117.2 Å Quality: GOOD

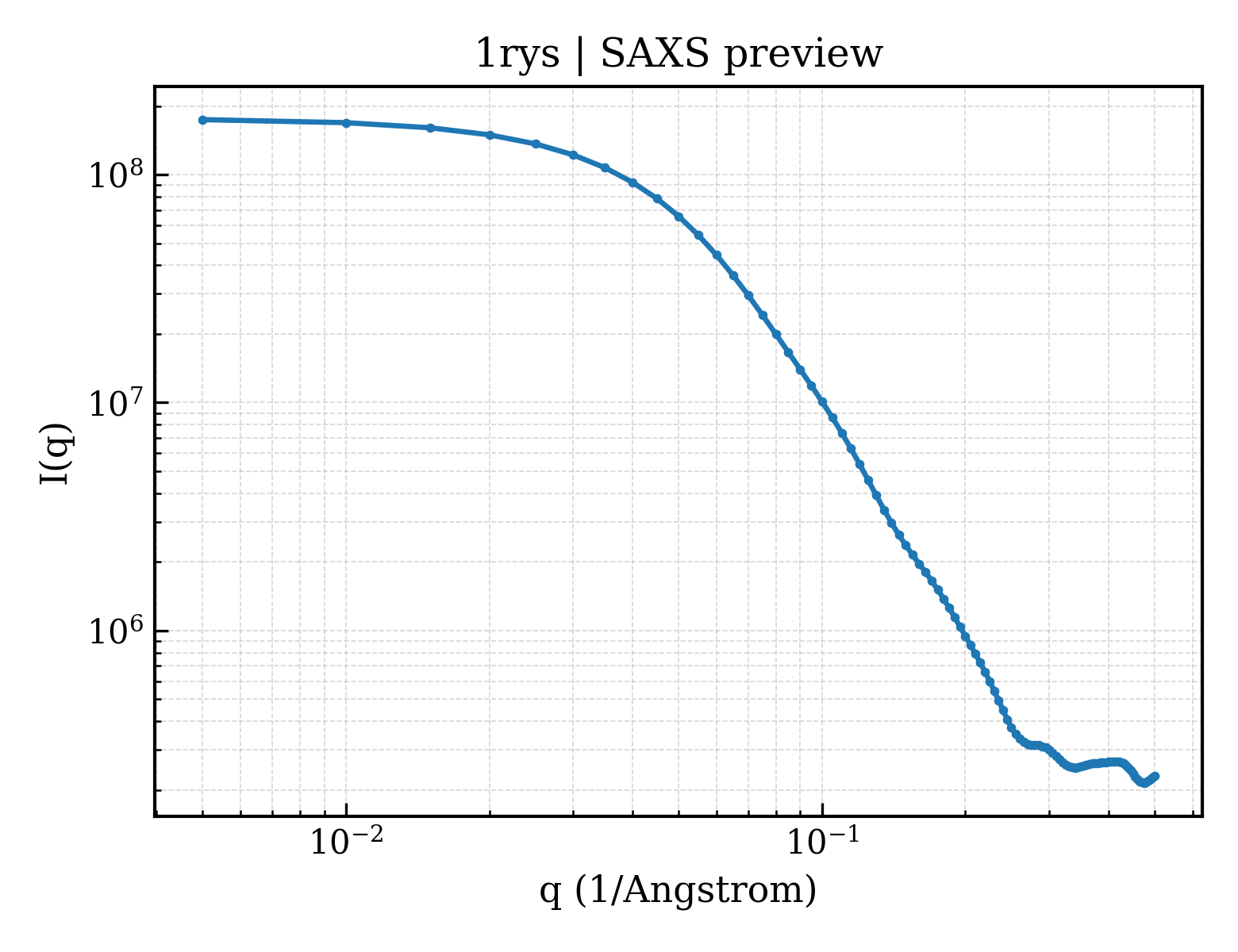

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1rys
沉积日期 deposition_date	2003-12-22
结构标题 title	REPLICATION OF A CIS-SYN THYMINE DIMER AT ATOMIC RESOLUTION
关键词 keywords	CPD DIMER, LESION BYPASS, POLYMERASE, TRANSFERASE-DNA COMPLEX; TRANSFERASE/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	34.98 Å
回转半径 Rg (电子) rg_electron	34.83 Å
零角强度 I(0) i0	175919000.00
分子量 molecular_weight	97762.0 kDa
排除体积 excluded_volume	118740 Å³
包络体积 envelope_volume	161880 Å³
水化壳体积 shell_volume	39466 Å³
包络直径 envelope_diameter	127.6 Å
壳层 Rg shell_rg	40.71 Å
包络 Rg envelope_rg	34.18 Å
形状 Rg shape_rg	34.84 Å
总 Rg total_rg	35.22 Å
总原子数 total_atoms	6788
残基数 n_residues	744
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	117.2 Å
Rg (实空间) rg_real	35.08 Å
Rg 误差 (实空间) rg_real_error	0.93 Å
I(0) (实空间) i0_real	1.7590e+08
I(0) 误差 (实空间) i0_real_error	3.1430e+06
Rg (倒空间) rg_reciprocal	35.02 Å
I(0) (倒空间) i0_reciprocal	175900000.0000
解质量估计 total_estimate	0.8885
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	36.5 Å
偏度 Skewness skewness	0.385
峰度 Kurtosis kurtosis	-0.446
角度范围 angular_range	— – 0.2250 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	15520000.0000
实空间数据点数 n_real_points	46
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.886; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.945; Smooth: 0.943

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (8)

Entity 1 polymer

描述 description	5'-D(GPGPGPGPAPAPGPGPAPTPTPCP*A)-3'
分子量 formula_weight	4080.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	C,E
原子数 atom_count	7523

GGGGAAGGATTCA

Entity 2 polymer

描述 description	5'-D(TPCPTPTPTPGPAPAPTPCPCPTPTPCPCPCPCPC)-3'
分子量 formula_weight	5353.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	D,F

TCTTTGAATCCTTCCCCC

Entity 3 polymer

描述 description	DNA polymerase IV
分子量 formula_weight	40257.9 kDa
EC 编号 ec_number	2.7.7.7
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B

MIVLFVDFDYFYAQVEEVLNPSLKGKPVVVCVFSGRFEDSGAVATANYEARKFGVKAGIPIVEAKKILPNAVYLPMRKEVYQQVSSRIMNLLREYSEKIEIASIDEAYLDISDKVRDYREAYNLGLEIKNKILEKEKITVTVGISKNKVFAKIAADMAKPNGIKVIDDEEVKRLIRELDIADVPGIGNITAEKLKKLGINKLVDTLSIEFDKLKGMIGEAKAKYLISLARDEYNEPIRTRVRKSIGRIVTMKRNSRNLEEIKPYLFRAIEESYYKLDKRIPKAIHVVAVTEDLDIVSRGRTFPHGISKETAYSESVKLLQKILEEDERKIRRIGVRFSKFIEAIGLDKFFDT

来源 Source

来源生物 organism	Sulfolobus solfataricus
NCBI 分类编号 ncbi_taxonomy_id	2287
宿主生物 host_organism	Escherichia coli

Entity 4 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 5 non-polymer

描述 description	SODIUM ION
分子量 formula_weight	23.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 6 non-polymer

描述 description	1,2-ETHANEDIOL
分子量 formula_weight	62.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 8 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	735

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1rysa1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.240 — Lesion bypass DNA polymerase (Y-family), little finger domain
超家族 Superfamily superfamily	d.240.1 — Lesion bypass DNA polymerase (Y-family), little finger domain
家族 Family family	d.240.1.1 — Lesion bypass DNA polymerase (Y-family), little finger domain

结构域编号 domain_id	d1rysa2
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.7 — Lesion bypass DNA polymerase (Y-family), catalytic domain

结构域编号 domain_id	d1rysb1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.240 — Lesion bypass DNA polymerase (Y-family), little finger domain
超家族 Superfamily superfamily	d.240.1 — Lesion bypass DNA polymerase (Y-family), little finger domain
家族 Family family	d.240.1.1 — Lesion bypass DNA polymerase (Y-family), little finger domain

结构域编号 domain_id	d1rysb2
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.7 — Lesion bypass DNA polymerase (Y-family), catalytic domain

CATH v4.4 (8 domains)

结构域编号 domain_id	1rysA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1170 — MutS, DNA mismatch repair protein, domain I
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1rysA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

结构域编号 domain_id	1rysA03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	150 — DNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

结构域编号 domain_id	1rysA04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1490 — Dna Ligase; domain 1
同源超家族 H-superfamily homologous superfamily	100 — DNA polymerase, Y-family, little finger domain

结构域编号 domain_id	1rysB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1170 — MutS, DNA mismatch repair protein, domain I
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1rysB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

结构域编号 domain_id	1rysB03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	150 — DNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

结构域编号 domain_id	1rysB04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1490 — Dna Ligase; domain 1
同源超家族 H-superfamily homologous superfamily	100 — DNA polymerase, Y-family, little finger domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	98.732 Å
晶胞边长 b length_b	102.290 Å
晶胞边长 c length_c	106.069 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.030 Å
最低分辨率 resolution_low	19.900 Å
R 因子 r_factor	0.2210
R_work r_work	0.2210
R_free r_free	0.2560

fit	/app/data/saxs_computation/ry/1rys/1rys.fit
pddf	/app/data/pr_computation/ry/1rys/1rys.pr.out
profile	/app/data/saxs_computation/ry/1rys/1rys.dat
