SAXSdb — 1s16

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1s16
沉积日期 deposition_date	2004-01-05
结构标题 title	Crystal Structure of E. coli Topoisomerase IV ParE 43kDa subunit complexed with ADPNP
关键词 keywords	two-domain protein complexed with ADPNP, Isomerase; ISOMERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	28.83 Å
回转半径 Rg (电子) rg_electron	27.97 Å
零角强度 I(0) i0	124617000.00
分子量 molecular_weight	84926.0 kDa
排除体积 excluded_volume	104920 Å³
包络体积 envelope_volume	129800 Å³
水化壳体积 shell_volume	37753 Å³
包络直径 envelope_diameter	90.6 Å
壳层 Rg shell_rg	36.18 Å
包络 Rg envelope_rg	27.90 Å
形状 Rg shape_rg	27.97 Å
总 Rg total_rg	28.71 Å
总原子数 total_atoms	5964
残基数 n_residues	760
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	87.2 Å
Rg (实空间) rg_real	28.67 Å
Rg 误差 (实空间) rg_real_error	0.53 Å
I(0) (实空间) i0_real	1.2460e+08
I(0) 误差 (实空间) i0_real_error	1.7970e+06
Rg (倒空间) rg_reciprocal	28.74 Å
I(0) (倒空间) i0_reciprocal	124600000.0000
解质量估计 total_estimate	0.7178
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	38.0 Å
偏度 Skewness skewness	0.090
峰度 Kurtosis kurtosis	-0.614
角度范围 angular_range	— – 0.2750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	28830000.0000
实空间数据点数 n_real_points	56
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.963; Stabil: 1.000; Sysdev: 0.156; Positv: 1.000; Valcen: 0.995; Smooth: 0.978

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Topoisomerase IV subunit B
分子量 formula_weight	43378.2 kDa
EC 编号 ec_number	5.99.1.-
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	6211

MTQTYNADAIEVLTGLEPVRRRPGMYTDTTRPNHLGQEVIDNSVDEALAGHAKRVDVILHADQSLEVIDDGRGMPVDIHPEEGVPAVELILCRLHAGGKFSNKNYQFSGGLHGVGISVVNALSKRVEVNVRRDGQVYNIAFENGEKVQDLQVVGTCGKRNTGTSVHFWPDETFFDSPRFSVSRLTHVLKAKAVLCPGVEITFKDEINNTEQRWCYQDGLNDYLAEAVNGLPTLPEKPFIGNFAGDTEAVDWALLWLPEGGELLTESYVNLIPTMQGGTHVNGLRQGLLDAMREFCEYRNILPRGVKLSAEDIWDRCAYVLSVKMQDPQFAGQTKERLSSRQCAAFVSGVVKDAFILWLNQNVQAAELLAEMAISSAQRRMRAAKKVVRKK

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
分子量 formula_weight	506.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	247

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1s16a1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.14 — Ribosomal protein S5 domain 2-like
超家族 Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
家族 Family family	d.14.1.3 — DNA gyrase/MutL, second domain

结构域编号 domain_id	d1s16a2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.122 — ATPase domain of HSP90 chaperone/DNA topoisomerase II/histidine kinase
超家族 Superfamily superfamily	d.122.1 — ATPase domain of HSP90 chaperone/DNA topoisomerase II/histidine kinase
家族 Family family	d.122.1.2 — DNA gyrase/MutL, N-terminal domain

结构域编号 domain_id	d1s16b1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.14 — Ribosomal protein S5 domain 2-like
超家族 Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
家族 Family family	d.14.1.3 — DNA gyrase/MutL, second domain

结构域编号 domain_id	d1s16b2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.122 — ATPase domain of HSP90 chaperone/DNA topoisomerase II/histidine kinase
超家族 Superfamily superfamily	d.122.1 — ATPase domain of HSP90 chaperone/DNA topoisomerase II/histidine kinase
家族 Family family	d.122.1.2 — DNA gyrase/MutL, N-terminal domain

CATH v4.4 (4 domains)

结构域编号 domain_id	1s16A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	565 — Heat Shock Protein 90
同源超家族 H-superfamily homologous superfamily	10 — Histidine kinase-like ATPase, C-terminal domain

结构域编号 domain_id	1s16A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	230 — Ribosomal Protein S5; domain 2
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1s16B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	565 — Heat Shock Protein 90
同源超家族 H-superfamily homologous superfamily	10 — Histidine kinase-like ATPase, C-terminal domain

结构域编号 domain_id	1s16B02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	230 — Ribosomal Protein S5; domain 2
同源超家族 H-superfamily homologous superfamily	10 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	94.900 Å
晶胞边长 b length_b	120.800 Å
晶胞边长 c length_c	136.800 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.100 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2244
R_work r_work	0.2244
R_free r_free	0.2405

fit	/app/data/saxs_computation/s1/1s16/1s16.fit
pddf	/app/data/pr_computation/s1/1s16/1s16.pr.out
profile	/app/data/saxs_computation/s1/1s16/1s16.dat

Crystal Structure of E. coli Topoisomerase IV ParE 43kDa subunit complexed with ADPNP

SAXS 散射曲线 SAXS Profile

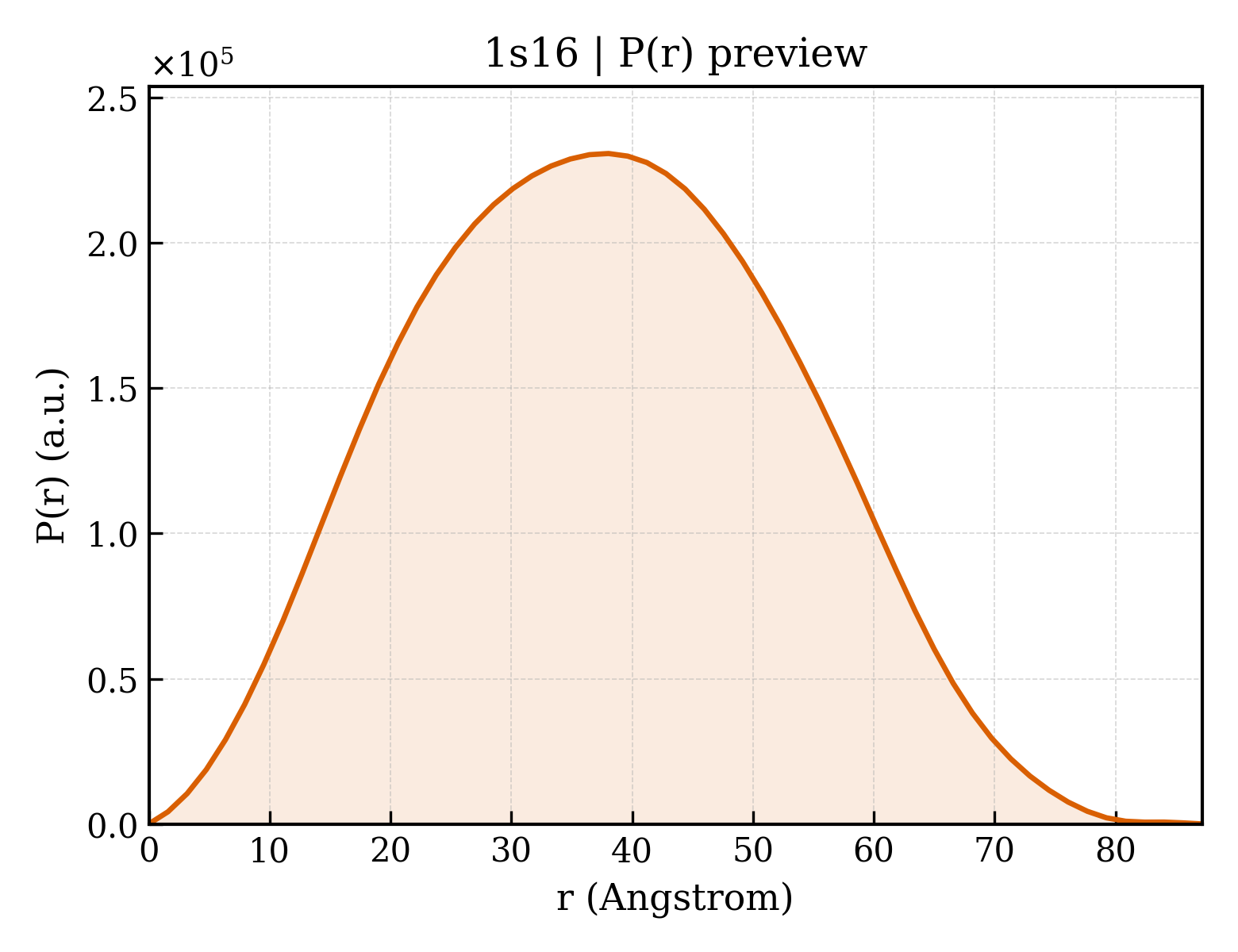

P(r) 距离分布 P(r) Distribution
