SAXSdb — 1s3t

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1s3t
沉积日期 deposition_date	2004-01-14
结构标题 title	BORATE INHIBITED BACILLUS PASTEURII UREASE CRYSTAL STRUCTURE
关键词 keywords	UREASE, BACILLUS PASTEURII, NICKEL, METALLOENZYME, borate, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	30.03 Å
回转半径 Rg (电子) rg_electron	29.31 Å
零角强度 I(0) i0	118665000.00
分子量 molecular_weight	85076.0 kDa
排除体积 excluded_volume	106020 Å³
包络体积 envelope_volume	127000 Å³
水化壳体积 shell_volume	36555 Å³
包络直径 envelope_diameter	107.8 Å
壳层 Rg shell_rg	36.07 Å
包络 Rg envelope_rg	29.64 Å
形状 Rg shape_rg	29.32 Å
总 Rg total_rg	29.88 Å
总原子数 total_atoms	5970
残基数 n_residues	790
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	103.0 Å
Rg (实空间) rg_real	30.06 Å
Rg 误差 (实空间) rg_real_error	0.81 Å
I(0) (实空间) i0_real	1.1870e+08
I(0) 误差 (实空间) i0_real_error	1.8690e+06
Rg (倒空间) rg_reciprocal	30.05 Å
I(0) (倒空间) i0_reciprocal	118700000.0000
解质量估计 total_estimate	0.8781
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	35.0 Å
偏度 Skewness skewness	0.380
峰度 Kurtosis kurtosis	-0.273
角度范围 angular_range	— – 0.2650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	37830000.0000
实空间数据点数 n_real_points	54
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.828; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.964; Smooth: 0.965

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	Urease gamma subunit
分子量 formula_weight	11205.0 kDa
EC 编号 ec_number	3.5.1.5
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	6376

MHLNPAEKEKLQIFLASELLLRRKARGLKLNYPEAVAIITSFIMEGARDGKTVAMLMEEGKHVLTRDDVMEGVPEMIDDIQAEATFPDGTKLVTVHNPIS

Entity 2 polymer

描述 description	Urease beta subunit
分子量 formula_weight	13975.5 kDa
EC 编号 ec_number	3.5.1.5
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MSNNNYIVPGEYRVAEGEIEINAGREKTTIRVSNTGDRPIQVGSHIHFVEVNKELLFDRAEGIGRRLNIPSGTAARFEPGEEMEVELTELGGNREVFGISDLTNGSVDNKELILQRAKELGYKGVE

Entity 3 polymer

描述 description	Urease alpha subunit
分子量 formula_weight	61646.8 kDa
EC 编号 ec_number	3.5.1.5
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MKINRQQYAESYGPTVGDEVRLADTDLWIEVEKDYTTYGDEVNFGGGKVLREGMGENGTYTRTENVLDLLLTNALILDYTGIYKADIGVKDGYIVGIGKGGNPDIMDGVTPNMIVGTATEVIAAEGKIVTAGGIDTHVHFINPDQVDVALANGITTLFGGGTGPAEGSKATTVTPGPWNIEKMLKSTEGLPINVGILGKGHGSSIAPIMEQIDAGAAGLKIHEDWGATPASIDRSLTVADEADVQVAIHSDTLNEAGFLEDTLRAINGRVIHSFHVEGAGGGHAPDIMAMAGHPNVLPSSTNPTRPFTVNTIDEHLDMLMVCHHLKQNIPEDVAFADSRIRPETIAAEDILHDLGIISMMSTDALAMGRAGEMVLRTWQTADKMKKQRGPLAEEKNGSDNFRLKRYVSKYTINPAIAQGIAHEVGSIEEGKFADLVLWEPKFFGVKADRVIKGGIIAYAQIGDPSASIPTPQPVMGRRMYGTVGDLIHDTNITFMSKSSIQQGVPAKLGLKRRIGTVKNCRNIGKKDMKWNDVTTDIDINPETYEVKVDGEVLTCEPVKELPMAQRYFLF

Entity 4 non-polymer

描述 description	NICKEL (II) ION
分子量 formula_weight	58.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 6 non-polymer

描述 description	BORIC ACID
分子量 formula_weight	61.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	406

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1s3ta_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.8 — Urease, gamma-subunit
超家族 Superfamily superfamily	d.8.1 — Urease, gamma-subunit
家族 Family family	d.8.1.1 — Urease, gamma-subunit

结构域编号 domain_id	d1s3tb_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.85 — beta-clip
超家族 Superfamily superfamily	b.85.3 — Urease, beta-subunit
家族 Family family	b.85.3.1 — Urease, beta-subunit

结构域编号 domain_id	d1s3tc1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.92 — Composite domain of metallo-dependent hydrolases
超家族 Superfamily superfamily	b.92.1 — Composite domain of metallo-dependent hydrolases
家族 Family family	b.92.1.1 — alpha-Subunit of urease

结构域编号 domain_id	d1s3tc2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.9 — Metallo-dependent hydrolases
家族 Family family	c.1.9.2 — alpha-subunit of urease, catalytic domain

CATH v4.4 (4 domains)

结构域编号 domain_id	1s3tA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	280 — Urease; subunit A
同源超家族 H-superfamily homologous superfamily	10 — Urease, gamma-like subunit

结构域编号 domain_id	1s3tB00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	150 — Urease, subunit B
同源超家族 H-superfamily homologous superfamily	10 — Urease, beta subunit

结构域编号 domain_id	1s3tC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	40 — Urease, subunit C; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Urease, subunit C, domain 1

结构域编号 domain_id	1s3tC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	140 — Metal-dependent hydrolases

▶

7. 引用文献 (6)

Molecular Details of Urease Inhibition by Boric Acid: Insights into the Catalytic Mechanism.

J.Am.Chem.Soc. (2004)

PMID: 15038715 · DOI: 10.1021/ja049618p PRIMARY

Structure-Based Rationalization of Urease Inhibition by Phosphate: Novel Insights Into the Enzyme Mechanism

J.Biol.Inorg.Chem. (2001)

DOI: 10.1007/s007750100254

The Complex of Bacillus Pasteurii Urease with Acetohydroxamate Anion from X-Ray Data at 1.55 A Resolution

J.Biol.Inorg.Chem. (2000)

DOI: 10.1007/s007750050014

;A New Proposal for Urease Mechanism Based on the Crystal Structures of the Native and Inhibited Enzyme from Bacillus Pasteurii: Why Urea Hydrolysis Costs Two Nickels ;

Structure (1999)

DOI: 10.1016/S0969-2126(99)80026-4

The Complex of Bacillus Pasteurii Urease with Beta-Mercaptoethanol from X-Ray Data at 1.65 A Resolution

J.Biol.Inorg.Chem. (1998)

DOI: 10.1007/s007750050231

;Crystallization and Preliminary High-Resolution X-Ray Diffraction Analysis of Native and Beta-Mercaptoethanol-Inhibited Urease from Bacillus Pasteurii ;

Acta Crystallogr.,Sect.D (1998)

DOI: 10.1107/S0907444997013085

▶

晶胞边长 a length_a	130.906 Å
晶胞边长 b length_b	130.906 Å
晶胞边长 c length_c	189.366 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 63 2 2
空间群编号 int_tables_number	182
晶系 crystal_system	—

分辨率 resolution	2.100 Å
最低分辨率 resolution_low	24.770 Å
R 因子 r_factor	0.1781
R_work r_work	0.1775
R_free r_free	0.2046

fit	/app/data/saxs_computation/s3/1s3t/1s3t.fit
pddf	/app/data/pr_computation/s3/1s3t/1s3t.pr.out
profile	/app/data/saxs_computation/s3/1s3t/1s3t.dat

BORATE INHIBITED BACILLUS PASTEURII UREASE CRYSTAL STRUCTURE

SAXS 散射曲线 SAXS Profile

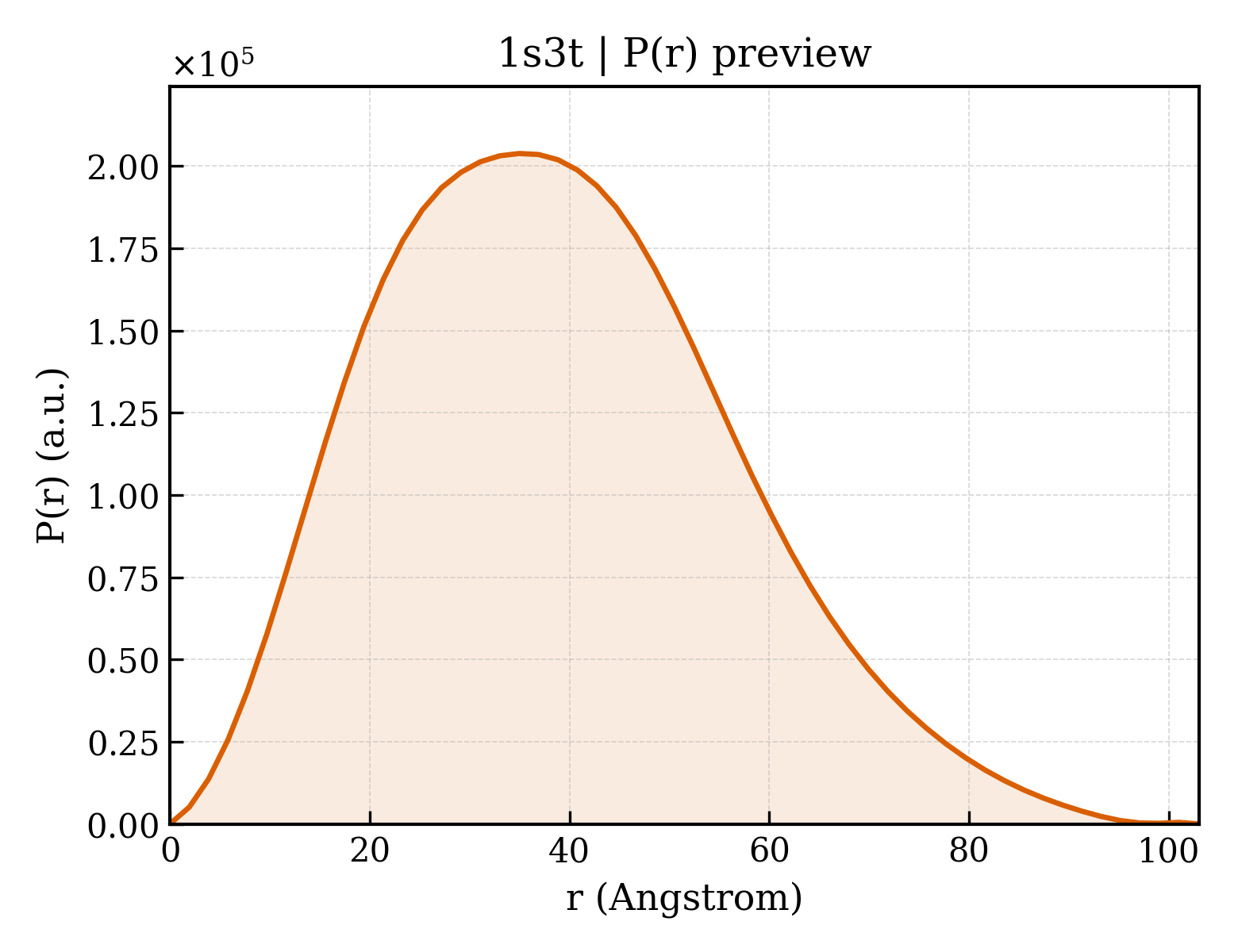

P(r) 距离分布 P(r) Distribution
