SAXSdb — 1s70

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1s70
沉积日期 deposition_date	2004-01-28
结构标题 title	Complex between protein ser/thr phosphatase-1 (delta) and the myosin phosphatase targeting subunit 1 (MYPT1)
关键词 keywords	myosin phosphatase, MYPT1, PP1, myosin regulation, deposphorylation, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	28.30 Å
回转半径 Rg (电子) rg_electron	27.47 Å
零角强度 I(0) i0	77094600.00
分子量 molecular_weight	67798.0 kDa
排除体积 excluded_volume	84369 Å³
包络体积 envelope_volume	104150 Å³
水化壳体积 shell_volume	31604 Å³
包络直径 envelope_diameter	94.2 Å
壳层 Rg shell_rg	34.79 Å
包络 Rg envelope_rg	27.56 Å
形状 Rg shape_rg	27.45 Å
总 Rg total_rg	28.29 Å
总原子数 total_atoms	4755
残基数 n_residues	600
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	88.4 Å
Rg (实空间) rg_real	28.24 Å
Rg 误差 (实空间) rg_real_error	0.55 Å
I(0) (实空间) i0_real	7.7090e+07
I(0) 误差 (实空间) i0_real_error	1.0780e+06
Rg (倒空间) rg_reciprocal	28.26 Å
I(0) (倒空间) i0_reciprocal	77100000.0000
解质量估计 total_estimate	0.9095
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	31.6 Å
偏度 Skewness skewness	0.235
峰度 Kurtosis kurtosis	-0.543
角度范围 angular_range	— – 0.2800 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	14730000.0000
实空间数据点数 n_real_points	57
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.958; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.948

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Serine/threonine protein phosphatase PP1-beta (or delta) catalytic subunit
分子量 formula_weight	37498.1 kDa
EC 编号 ec_number	3.1.3.16
突变 mutation	additional AGH residues at the N-terminus
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	4982

AGHMADGELNVDSLITRLLEVRGCRPGKIVQMTEAEVRGLCIKSREIFLSQPILLELEAPLKICGDIHGQYTDLLRLFEYGGFPPEANYLFLGDYVDRGKQSLETICLLLAYKIKYPENFFLLRGNHECASINRIYGFYDECKRRFNIKLWKTFTDCFNCLPIAAIVDEKIFCCHGGLSPDLQSMEQIRRIMRPTDVPDTGLLCDLLWSDPDKDVQGWGENDRGVSFTFGADVVSKFLNRHDLDLICRAHQVVEDGYEFFAKRQLVTLFSAPNYCGEFDNAGGMMSVDETLMCSFQILKPSEKKAKYQYGGLNSGRPVTPPRTANPPKKR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	130 kDa myosin-binding subunit of smooth muscle myosin phophatase (M130)
分子量 formula_weight	33363.4 kDa
EC 编号 ec_number	3.1.3.53
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MKMADAKQKRNEQLKRWIGSETDLEPPVVKRKKTKVKFDDGAVFLAACSSGDTEEVLRLLERGADINYANVDGLTALHQACIDDNVDMVKFLVENGANINQPDNEGWIPLHAAASCGYLDIAEYLISQGAHVGAVNSEGDTPLDIAEEEAMEELLQNEVNRQGVDIEAARKEEERIMLRDARQWLNSGHINDVRHAKSGGTALHVAAAKGYTEVLKLLIQARYDVNIKDYDGWTPLHAAAHWGKEEACRILVENLCDMEAVNKVGQTAFDVADEDILGYLEELQKKQNLLHSEKREKKS

来源 Source

来源生物 organism	Gallus gallus
通用名 common_name	chicken
NCBI 分类编号 ncbi_taxonomy_id	9031
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	MANGANESE (II) ION
分子量 formula_weight	54.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	TRIETHYLENE GLYCOL
分子量 formula_weight	150.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	227

▼

6. 折叠分类 (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1s70a_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.159 — Metallo-dependent phosphatases
超家族 Superfamily superfamily	d.159.1 — Metallo-dependent phosphatases
家族 Family family	d.159.1.3 — Protein serine/threonine phosphatase

结构域编号 domain_id	d1s70b_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.211 — beta-hairpin-alpha-hairpin repeat
超家族 Superfamily superfamily	d.211.1 — Ankyrin repeat
家族 Family family	d.211.1.1 — Ankyrin repeat

CATH v4.4 (3 domains)

结构域编号 domain_id	1s70A00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	21 — Purple Acid Phosphatase; chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Metallo-dependent phosphatases

结构域编号 domain_id	1s70B01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	25 — Alpha Horseshoe
拓扑 Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
同源超家族 H-superfamily homologous superfamily	20 — Ankyrin repeat-containing domain

结构域编号 domain_id	1s70B02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	25 — Alpha Horseshoe
拓扑 Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
同源超家族 H-superfamily homologous superfamily	20 — Ankyrin repeat-containing domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	75.188 Å
晶胞边长 b length_b	75.188 Å
晶胞边长 c length_c	241.753 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 43 21 2
空间群编号 int_tables_number	96
晶系 crystal_system	—

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	48.670 Å
R 因子 r_factor	0.2230
R_work r_work	0.2230
R_free r_free	0.2930

fit	/app/data/saxs_computation/s7/1s70/1s70.fit
pddf	/app/data/pr_computation/s7/1s70/1s70.pr.out
profile	/app/data/saxs_computation/s7/1s70/1s70.dat

Complex between protein ser/thr phosphatase-1 (delta) and the myosin phosphatase targeting subunit 1 (MYPT1)

SAXS 散射曲线 SAXS Profile

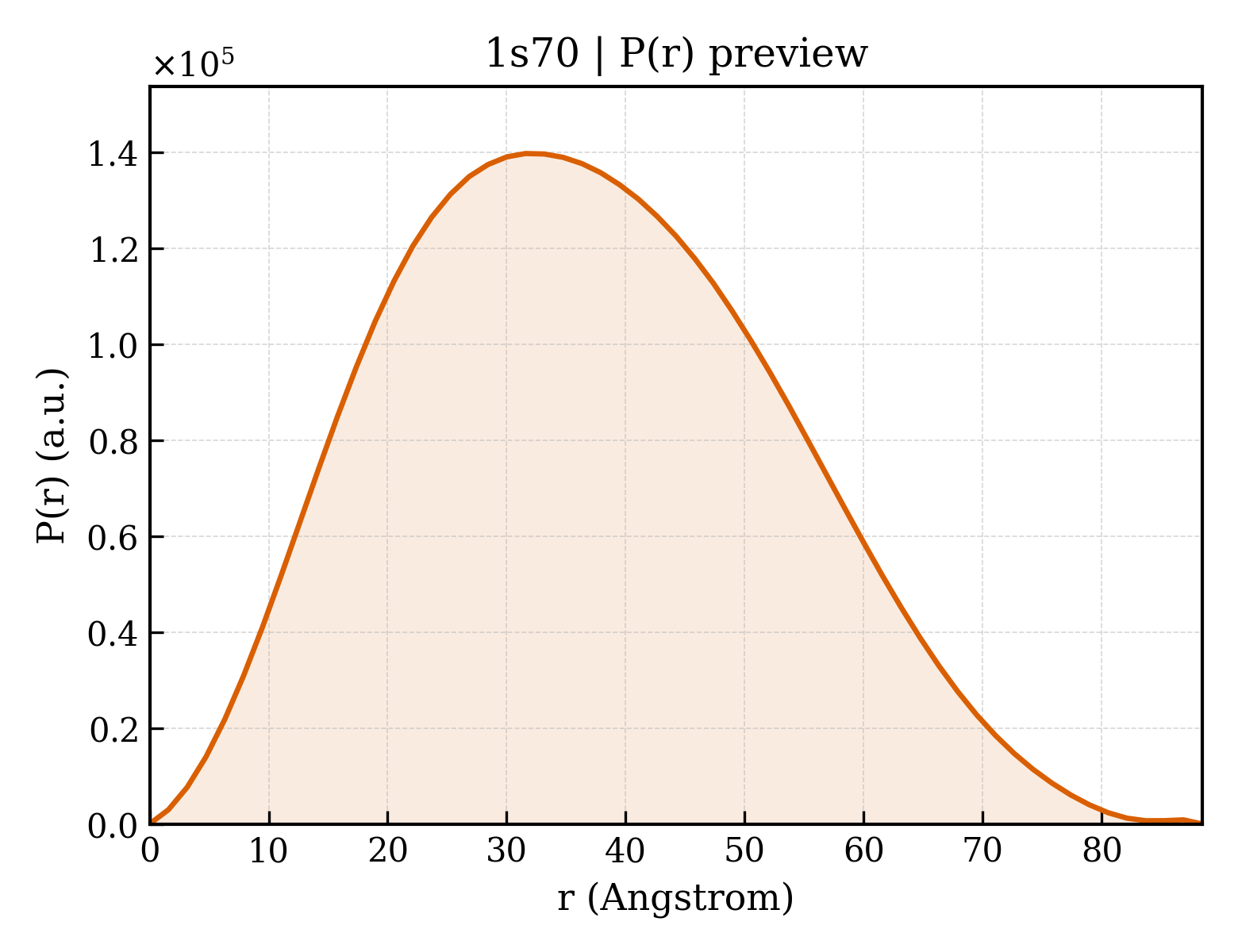

P(r) 距离分布 P(r) Distribution
