Crystal structure analysis of the 2-enoyl-CoA hydratase 2 domain of human peroxisomal multifunctional enzyme type 2

Method: X-RAY DIFFRACTION D_max: 225.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

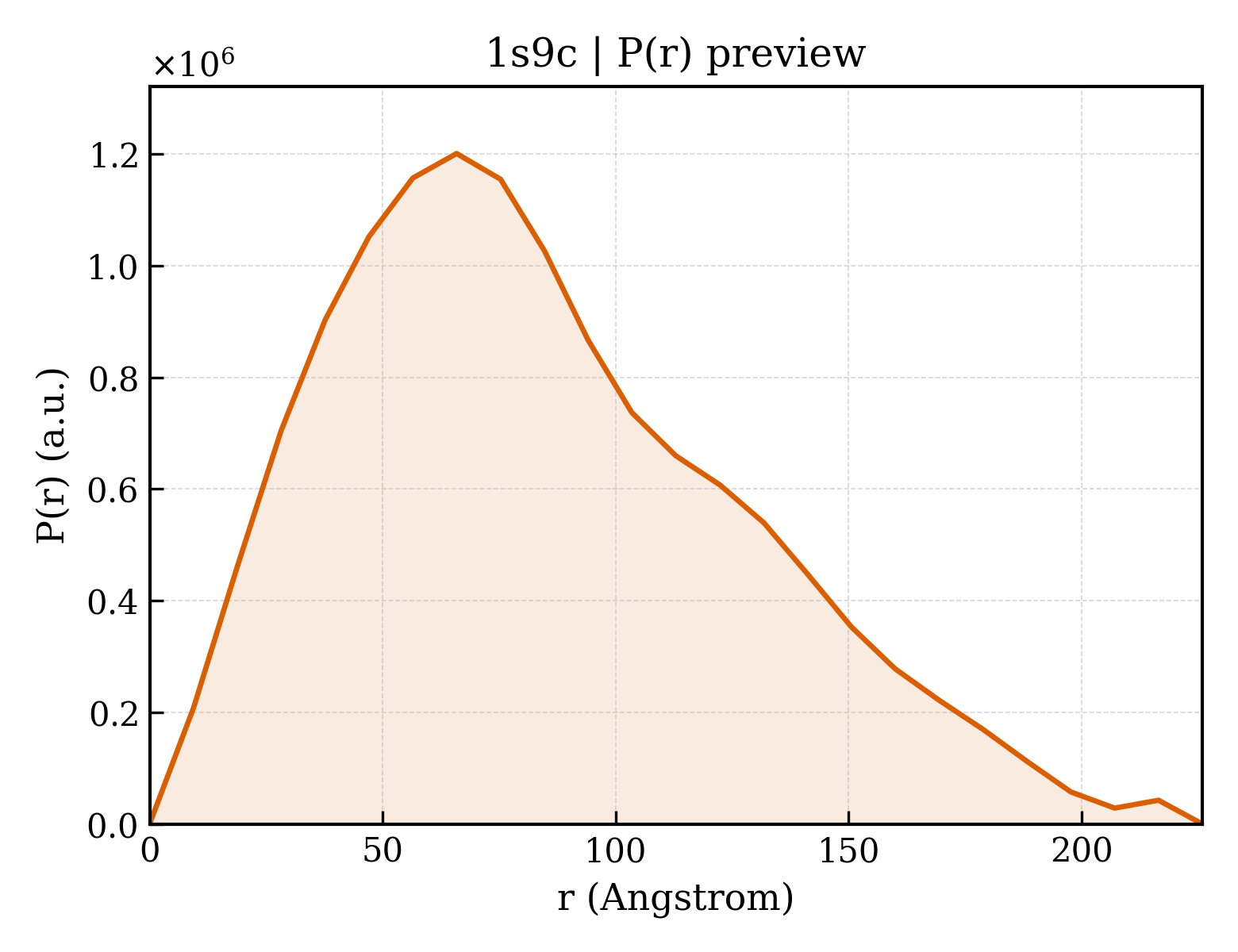

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1s9c
沉积日期 deposition_date	2004-02-04
结构标题 title	Crystal structure analysis of the 2-enoyl-CoA hydratase 2 domain of human peroxisomal multifunctional enzyme type 2
关键词 keywords	HOT-DOG FOLD, HYDRATASE 2 MOTIF, MULTIFUNCTIONAL, LYASE; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	65.54 Å
回转半径 Rg (电子) rg_electron	66.62 Å
零角强度 I(0) i0	1536210000.00
分子量 molecular_weight	344930.0 kDa
排除体积 excluded_volume	437800 Å³
包络体积 envelope_volume	675020 Å³
水化壳体积 shell_volume	90108 Å³
包络直径 envelope_diameter	238.6 Å
壳层 Rg shell_rg	60.98 Å
包络 Rg envelope_rg	64.74 Å
形状 Rg shape_rg	66.61 Å
总 Rg total_rg	66.54 Å
总原子数 total_atoms	24344
残基数 n_residues	3128
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	225.9 Å
Rg (实空间) rg_real	66.50 Å
Rg 误差 (实空间) rg_real_error	2.55 Å
I(0) (实空间) i0_real	1.5360e+09
I(0) 误差 (实空间) i0_real_error	3.5880e+07
Rg (倒空间) rg_reciprocal	64.68 Å
I(0) (倒空间) i0_reciprocal	1531000000.0000
解质量估计 total_estimate	0.8157
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	65.9 Å
偏度 Skewness skewness	0.568
峰度 Kurtosis kurtosis	-0.227
角度范围 angular_range	— – 0.1200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	47790000.0000
实空间数据点数 n_real_points	25
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.796; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.936; Smooth: 0.280

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

▼

6. 折叠分类 (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

结构域编号 domain_id	d1s9ca1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9ca2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9cb1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9cb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9cc1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9cc2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9cd1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9cd2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9ce1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9ce2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9cf1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9cf2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9cg1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9cg2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9ch1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9ch2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9ci1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9ci2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9cj1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9cj2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9ck1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9ck2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9cl1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

结构域编号 domain_id	d1s9cl2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
超家族 Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
家族 Family family	d.38.1.4 — MaoC-like

CATH v4.4 (24 domains)

结构域编号 domain_id	1s9cA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cE02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cF02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cG01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cG02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cH01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cH02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cI01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cI02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cJ01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cJ02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cK01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cK02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cL01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

结构域编号 domain_id	1s9cL02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	129 — Thiol Ester Dehydrase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Hotdog Thioesterase

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	98.295 Å
晶胞边长 b length_b	105.431 Å
晶胞边长 c length_c	206.944 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	103.37 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	3.000 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	—
R_work r_work	0.2285
R_free r_free	0.2646

描述 description	Peroxisomal multifunctional enzyme type 2
分子量 formula_weight	32236.0 kDa
EC 编号 ec_number	4.2.1.-
突变 mutation	S318M, T319A, I559V, T615L
来源方法 src_method	man
拷贝数 entity_count	12

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L
原子数 atom_count	24524

Crystal structure analysis of the 2-enoyl-CoA hydratase 2 domain of human peroxisomal multifunctional enzyme type 2

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

5. 实体与聚合体信息 (2)

Entity 1 polymer

聚合体 Polymer

来源 Source

Entity 2 water

6. 折叠分类 (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

CATH v4.4 (24 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	180

fit	/app/data/saxs_computation/s9/1s9c/1s9c.fit
pddf	/app/data/pr_computation/s9/1s9c/1s9c.pr.out
profile	/app/data/saxs_computation/s9/1s9c/1s9c.dat
