1. Protein Identity and Related Structures Protein Identity & Related Structures

Enoyl-CoA hydratase 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 618–736	Non-standard monomer：Yes (specific site not provided by mmCIF)	TRT FRAGMENT OF TRITON X-100 × 1 SO4 SULFATE ION × 2 CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.6；278 K；well solution 2.3M ammonium sulphate, 100 mM citric acid pH 5.6 and 200 mM NaCl	Resolution 1.52 Å R-free 0.239

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8AF3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1IKT LIGANDED STEROL CARRIER PROTEIN TYPE 2 (SCP-2) LIKE DOMAIN OF HUMAN MULTIFUNCTIONAL ENZYME TYPE 2 (MFE-2) Deposited 2001-05-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 618–736（119 aa） Fragment：C-terminal domain, Residues 618-736	Not recorded	SO4 SULFATE ION × 2 OXN OXTOXYNOL-10 × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；ammonium sulfate, sodium chloride, Triton X-100, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.75 Å R-free 0.214
1S9C Crystal structure analysis of the 2-enoyl-CoA hydratase 2 domain of human peroxisomal multifunctional enzyme type 2 Deposited 2004-02-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 318–615（298 aa） Fragment：2-enoyl-coenzyme A hydratase 2 domain Chain B 318–615（298 aa） Fragment：2-enoyl-coenzyme A hydratase 2 domain	Mutation：S318M, T319A, I559V, T615L Mutation：S318M, T319A, I559V, T615L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；295 K；PEG 10000, HEPES, MnCl2, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.00 Å R-free 0.265
1S9C Crystal structure analysis of the 2-enoyl-CoA hydratase 2 domain of human peroxisomal multifunctional enzyme type 2 Deposited 2004-02-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 318–615（298 aa） Fragment：2-enoyl-coenzyme A hydratase 2 domain Chain D 318–615（298 aa） Fragment：2-enoyl-coenzyme A hydratase 2 domain	Mutation：S318M, T319A, I559V, T615L Mutation：S318M, T319A, I559V, T615L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；295 K；PEG 10000, HEPES, MnCl2, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.00 Å R-free 0.265
1S9C Crystal structure analysis of the 2-enoyl-CoA hydratase 2 domain of human peroxisomal multifunctional enzyme type 2 Deposited 2004-02-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 318–615（298 aa） Fragment：2-enoyl-coenzyme A hydratase 2 domain Chain F 318–615（298 aa） Fragment：2-enoyl-coenzyme A hydratase 2 domain	Mutation：S318M, T319A, I559V, T615L Mutation：S318M, T319A, I559V, T615L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；295 K；PEG 10000, HEPES, MnCl2, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.00 Å R-free 0.265
1S9C Crystal structure analysis of the 2-enoyl-CoA hydratase 2 domain of human peroxisomal multifunctional enzyme type 2 Deposited 2004-02-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain G 318–615（298 aa） Fragment：2-enoyl-coenzyme A hydratase 2 domain Chain H 318–615（298 aa） Fragment：2-enoyl-coenzyme A hydratase 2 domain	Mutation：S318M, T319A, I559V, T615L Mutation：S318M, T319A, I559V, T615L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；295 K；PEG 10000, HEPES, MnCl2, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.00 Å R-free 0.265
1S9C Crystal structure analysis of the 2-enoyl-CoA hydratase 2 domain of human peroxisomal multifunctional enzyme type 2 Deposited 2004-02-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain I 318–615（298 aa） Fragment：2-enoyl-coenzyme A hydratase 2 domain Chain J 318–615（298 aa） Fragment：2-enoyl-coenzyme A hydratase 2 domain	Mutation：S318M, T319A, I559V, T615L Mutation：S318M, T319A, I559V, T615L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；295 K；PEG 10000, HEPES, MnCl2, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.00 Å R-free 0.265
1S9C Crystal structure analysis of the 2-enoyl-CoA hydratase 2 domain of human peroxisomal multifunctional enzyme type 2 Deposited 2004-02-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain K 318–615（298 aa） Fragment：2-enoyl-coenzyme A hydratase 2 domain Chain L 318–615（298 aa） Fragment：2-enoyl-coenzyme A hydratase 2 domain	Mutation：S318M, T319A, I559V, T615L Mutation：S318M, T319A, I559V, T615L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；295 K；PEG 10000, HEPES, MnCl2, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.00 Å R-free 0.265
1ZBQ Crystal Structure Of Human 17-Beta-Hydroxysteroid Dehydrogenase Type 4 In Complex With NAD Deposited 2005-04-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–304（304 aa） Fragment：N-terminal SHORT CHAIN DEHYDROGENASE DOMAIN Chain B 1–304（304 aa） Fragment：N-terminal SHORT CHAIN DEHYDROGENASE DOMAIN	Not recorded	NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.2M Lithium Sulphate monohydrate, 0.1M TRIS hydrochloride pH8.5, 30% w/v polyethylene glycol 4000, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.19 Å R-free 0.236
1ZBQ Crystal Structure Of Human 17-Beta-Hydroxysteroid Dehydrogenase Type 4 In Complex With NAD Deposited 2005-04-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–304（304 aa） Fragment：N-terminal SHORT CHAIN DEHYDROGENASE DOMAIN Chain D 1–304（304 aa） Fragment：N-terminal SHORT CHAIN DEHYDROGENASE DOMAIN	Not recorded	NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.2M Lithium Sulphate monohydrate, 0.1M TRIS hydrochloride pH8.5, 30% w/v polyethylene glycol 4000, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.19 Å R-free 0.236
1ZBQ Crystal Structure Of Human 17-Beta-Hydroxysteroid Dehydrogenase Type 4 In Complex With NAD Deposited 2005-04-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 1–304（304 aa） Fragment：N-terminal SHORT CHAIN DEHYDROGENASE DOMAIN Chain F 1–304（304 aa） Fragment：N-terminal SHORT CHAIN DEHYDROGENASE DOMAIN	Not recorded	NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.2M Lithium Sulphate monohydrate, 0.1M TRIS hydrochloride pH8.5, 30% w/v polyethylene glycol 4000, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.19 Å R-free 0.236
6Z1W Crystal structure of human steroid carrier protein SL (SCP-2L) mutant A100C Deposited 2020-05-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 643–761（119 aa）	Mutation：A100C	OXN OXTOXYNOL-10 × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；277 K；2.2 M ammonium sulfate, 0.2 M NaCl and 0.1 M citric acid	Resolution 2.48 Å R-free 0.268
6Z1X Crystal structure of human steroid carrier protein SL (SCP-2L) mutant V83C Deposited 2020-05-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 643–761（119 aa）	Mutation：V83C	OXN OXTOXYNOL-10 × 2 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；277 K；2.2 M ammonium sulfate, 0.2 M NaCl and 0.1 M citric acid	Resolution 2.09 Å R-free 0.237
8AF2 Human Sterol Carrier Protein with unnatural amino acid 2,2'-bipyridine alanine incorporated at position 111 Deposited 2022-07-15	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 618–736（119 aa）	Mutation：;2,2'-bipyridine alanine incorporated at position 111 ; Non-standard monomer：Yes (specific site not provided by mmCIF)	TRT FRAGMENT OF TRITON X-100 × 2 SO4 SULFATE ION × 1 CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；281 K；well solution 2.3M ammonium sulphate, 100 mM citric acid pH 5.6 and 200 mM NaCl	Resolution 2.51 Å R-free 0.300
8AF2 Human Sterol Carrier Protein with unnatural amino acid 2,2'-bipyridine alanine incorporated at position 111 Deposited 2022-07-15	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 618–736（119 aa）	Mutation：;2,2'-bipyridine alanine incorporated at position 111 ; Non-standard monomer：Yes (specific site not provided by mmCIF)	TRT FRAGMENT OF TRITON X-100 × 1 SO4 SULFATE ION × 1 CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；281 K；well solution 2.3M ammonium sulphate, 100 mM citric acid pH 5.6 and 200 mM NaCl	Resolution 2.51 Å R-free 0.300

6 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DHB4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–120； UniProt 618–736

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8af3
Deposition date deposition_date	2022-07-15
Structure title title	Sterol carrier protein Artifical metalloenzyme incorporating Q111C mutation coupled to 2,2'-bipyridine
Keywords keywords	de novo protein, artificial metalloenzyme, bipyridine adduct, METAL BINDING PROTEIN; METAL BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.98 Å
Radius of gyration Rg (electron density) rg_electron	13.34 Å
Forward intensity I(0) i0	3475040.00
Molecular weight molecular_weight	13526.0 kDa
Excluded volume excluded_volume	17187 Å³
Envelope volume envelope_volume	19123 Å³
Hydration-shell volume shell_volume	12067 Å³
Envelope diameter envelope_diameter	44.0 Å
Shell Rg shell_rg	19.21 Å
Envelope Rg envelope_rg	13.53 Å
Shape Rg shape_rg	13.29 Å
Total Rg total_rg	14.83 Å
Total atoms total_atoms	1766
Residues n_residues	115
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	46.0 Å
Rg (real space) rg_real	14.83 Å
Rg uncertainty (real space) rg_real_error	0.28 Å
I(0) (real space) i0_real	3.4750e+06
I(0) uncertainty (real space) i0_real_error	4.0740e+04
Rg (reciprocal space) rg_reciprocal	14.84 Å
I(0) (reciprocal space) i0_reciprocal	3475000.0000
Solution quality estimate total_estimate	0.8862
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.0 Å
Skewness Skewness skewness	-0.042
Kurtosis Kurtosis kurtosis	-0.409
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	691000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.850; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.993

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Enoyl-CoA hydratase 2
Molecular weight formula_weight	13407.7 kDa
EC 编号 ec_number	4.2.1.107,4.2.1.119
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1810

MEGGKLQSTFVFEEIGRRLKDIGPEVVKKVNAVFEWHITKGGNIGAKWTIDLKSGSGKVYQGPAKGAADTTIILSDEDFMEVVLGKLDPQKAFFSGRLKARGNIMLSQKLCMILKDYAKL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FRAGMENT OF TRITON X-100
Molecular weight formula_weight	352.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	COPPER (II) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	44

▶

8. Citations (1)

▶

Unit-cell length a length_a	35.160 Å
Unit-cell length b length_b	51.050 Å
Unit-cell length c length_c	63.060 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.520 Å
Low-resolution limit resolution_low	39.680 Å
R factor r_factor	0.2272
R_work r_work	0.2266
R_free r_free	0.2389

fit	/app/data/saxs_computation/af/8af3/8af3.fit
pddf	/app/data/pr_computation/af/8af3/8af3.pr.out
profile	/app/data/saxs_computation/af/8af3/8af3.dat

Sterol carrier protein Artifical metalloenzyme incorporating Q111C mutation coupled to 2,2'-bipyridine

1. Protein Identity and Related Structures Protein Identity & Related Structures

Enoyl-CoA hydratase 2

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

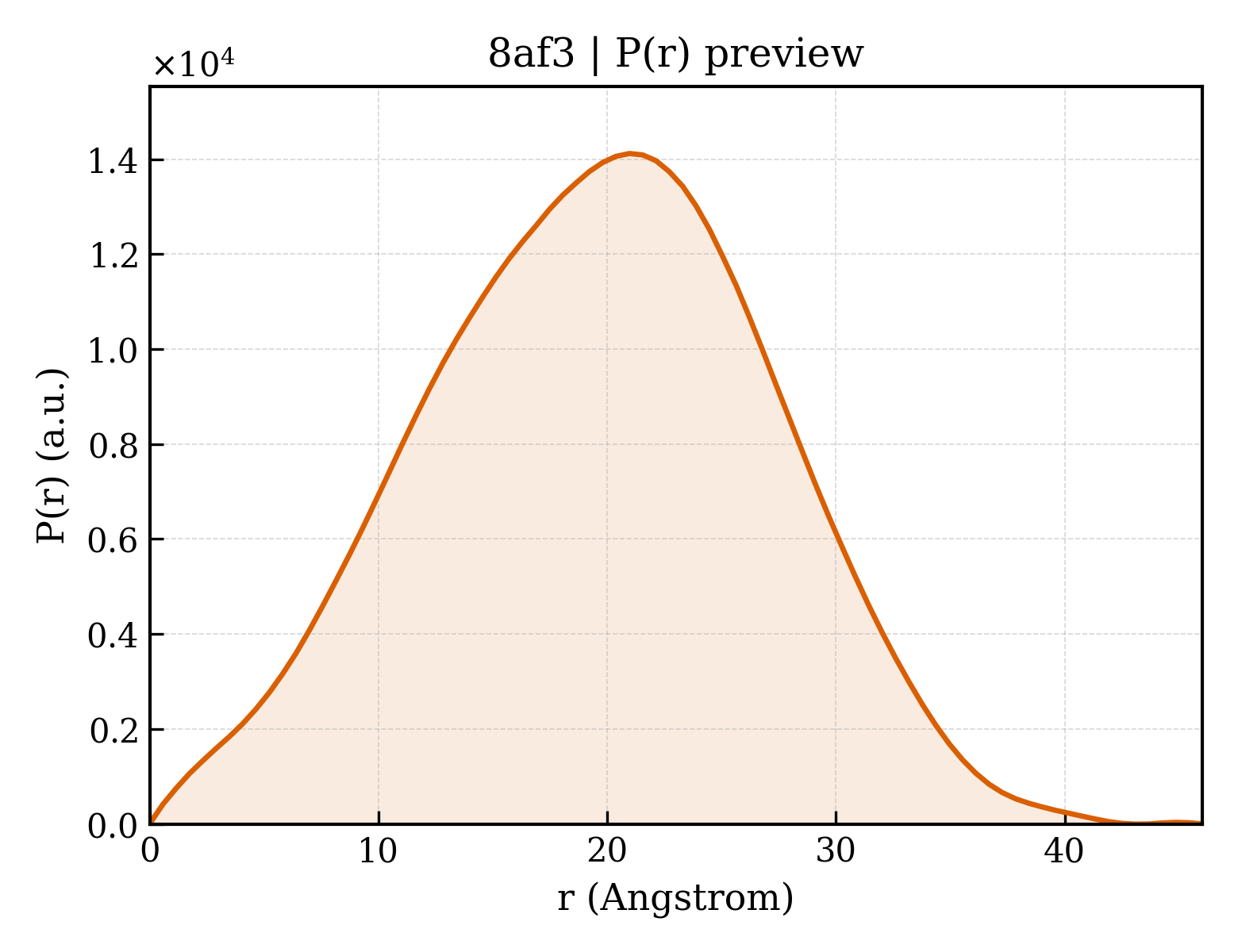

P(r) Distance Distribution P(r) Distribution
