SAXSdb — 1sax

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Methicillin resistance regulatory protein mecI

Staphylococcus aureus subsp. aureus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 2 DNA 2	5'-d(GCTCCGATATTACAGTTGTAATTTT)-3' × 1 5'-d(CAAAATTACAACTGTAATATCGGAG)-3' × 1 POTASSIUM ION × 1 water × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MECI_STAAU
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–123； UniProt 1–123 Author chain B； PDBConstruct 1–123； UniProt 1–123

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1sax
Deposition date deposition_date	2004-02-09
Structure title title	Three-dimensional structure of s.aureus methicillin-resistance regulating transcriptional repressor meci in complex with 25-bp ds-DNA
Keywords keywords	winged helix-turn-helix, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1sax__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

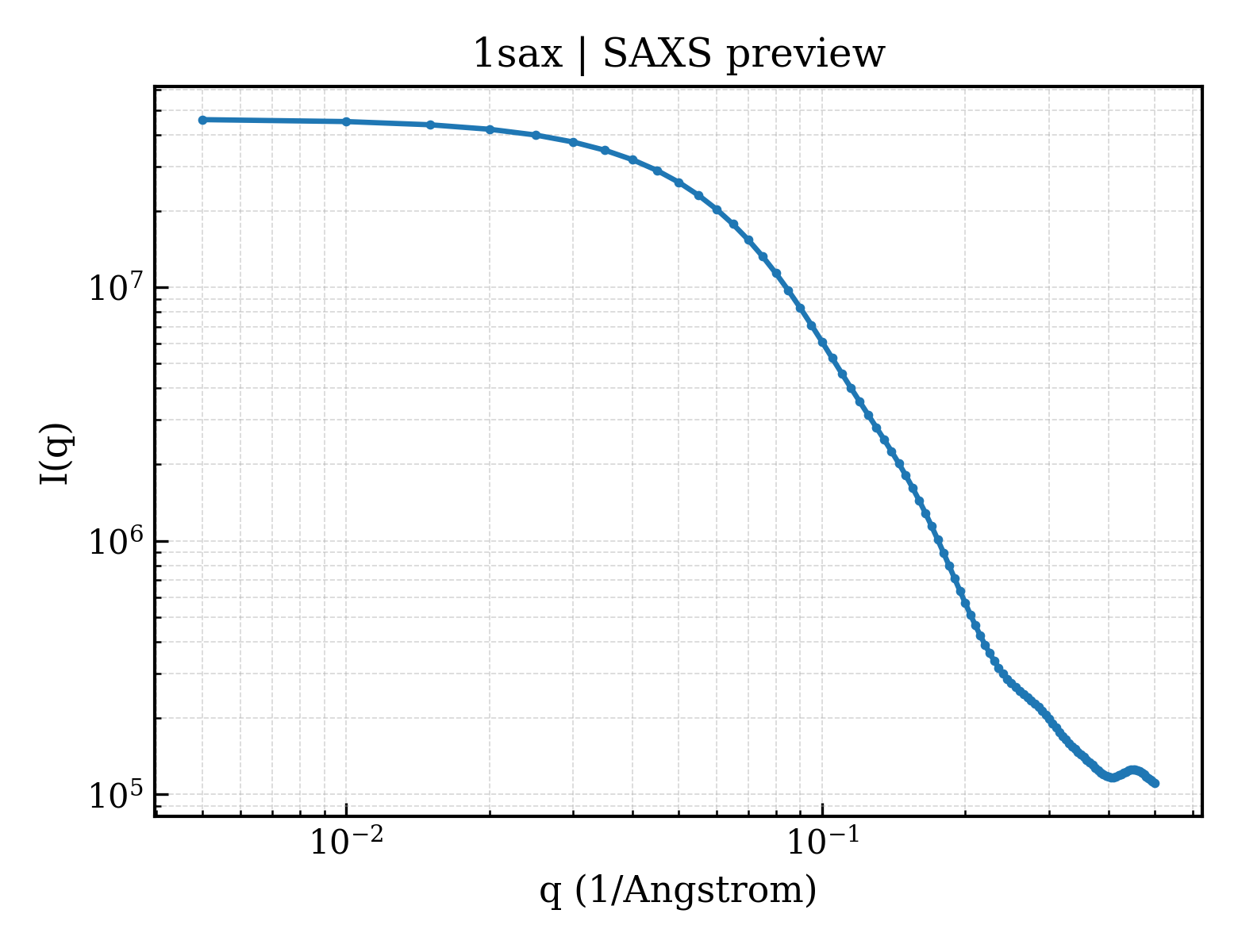

1sax__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1sax__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.36 Å
Rg (electron density)	25.10 Å
Total Rg	25.84 Å
Atom count	3052
Residues	290
Excluded volume	51640 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1sax__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	5'-d(GCTCCGATATTACAGTTGTAATTTT)-3'
Molecular weight formula_weight	7654.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C
Atom count atom_count	3089

GCTCCGATATTACAGTTGTAATTTT

Entity 2 Entity 2 polymer

Description description	5'-d(CAAAATTACAACTGTAATATCGGAG)-3'
Molecular weight formula_weight	7699.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D

CAAAATTACAACTGTAATATCGGAG

Entity 3 Entity 3 polymer

Description description	Methicillin resistance regulatory protein mecI
Molecular weight formula_weight	14812.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B

MDNKTYEISSAEWEVMNIIWMKKYASANNIIEEIQMQKDWSPKTIRTLITRLYKKGFIDRKKDNKIFQYYSLVEESDIKYKTSKNFINKVYKGGFNSLVLNFVEKEDLSQDEIEELRNILNKK

Source Source

Source organism organism	Staphylococcus aureus subsp. aureus
NCBI taxonomy ID ncbi_taxonomy_id	158879
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	37

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1saxa_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.39 — Penicillinase repressor

Domain ID domain_id	d1saxb_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.39 — Penicillinase repressor

CATH v4.4 (4 domains)

Domain ID domain_id	1saxA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	1saxA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	4040 — Penicillinase repressor fold
Homologous superfamily homologous superfamily	10 — Penicillinase repressor domain

Domain ID domain_id	1saxB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	1saxB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	4040 — Penicillinase repressor fold
Homologous superfamily homologous superfamily	10 — Penicillinase repressor domain

▶

Unit-cell length a length_a	133.600 Å
Unit-cell length b length_b	133.600 Å
Unit-cell length c length_c	54.700 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	39.700 Å
R factor r_factor	0.2162
R_work r_work	0.2120
R_free r_free	0.2760

Three-dimensional structure of s.aureus methicillin-resistance regulating transcriptional repressor meci in complex with 25-bp ds-DNA
