SAXSdb — 1sb7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

tRNA pseudouridine synthase D

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	GLYCEROL × 6 PHOSPHATE ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRUD_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–368； UniProt 1–349 Author chain B； PDBConstruct 1–368； UniProt 1–349

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1sb7
Deposition date deposition_date	2004-02-10
Structure title title	Crystal structure of the E.coli pseudouridine synthase TruD
Keywords keywords	pseudouridine synthase, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1sb7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1sb7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

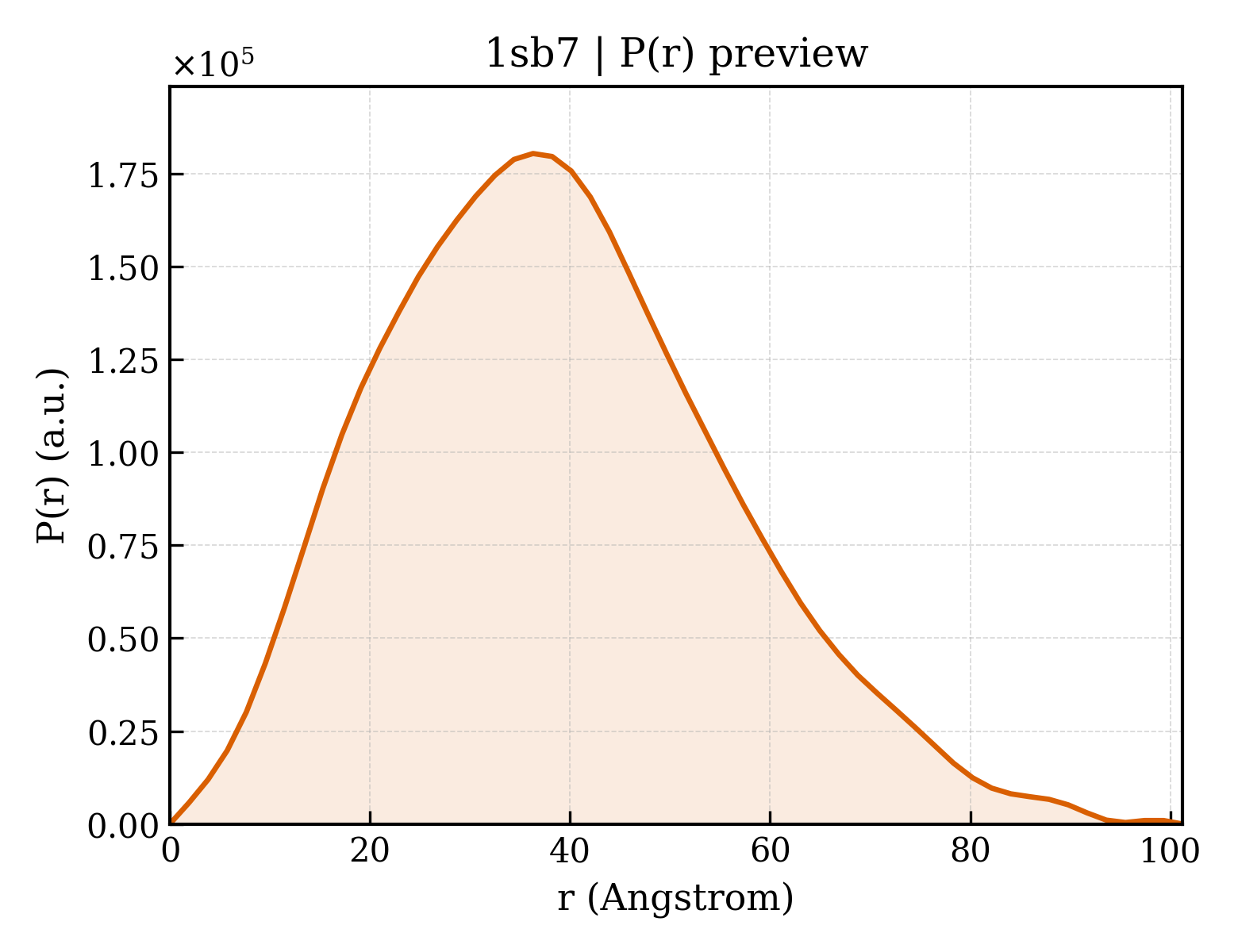

1sb7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.79 Å
Rg (electron density)	29.23 Å
Total Rg	29.84 Å
Atom count	5379
Residues	678
Excluded volume	95553 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1sb7__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	tRNA pseudouridine synthase D
Molecular weight formula_weight	41368.1 kDa
EC 编号 ec_number	4.2.1.70
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5723

GSSHHHHHHSSGLVPRGSHMIEFDNLTYLHGKPQGTGLLKANPEDFVVVEDLGFEPDGEGEHILVRILKNGCNTRFVADALAKFLKIHAREVSFAGQKDKHAVTEQWLCARVPGKEMPDLSAFQLEGCQVLEYARHKRKLRLGALKGNAFTLVLREVSNRDDVEQRLIDICVKGVPNYFGAQRFGIGGSNLQGAQRWAQTNTPVRDRNKRSFWLSAARSALFNQIVAERLKKADVNQVVDGDALQLAGRGSWFVATTEELAELQRRVNDKELMITAALPGSGEWGTQREALAFEQAAVAAETELQALLVREKVEAARRAMLLYPQQLSWNWWDDVTVEIRFWLPAGSFATSVVRELINTTGDYAHIAE

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	258

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1sb7a1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.265 — Pseudouridine synthase
Superfamily Superfamily superfamily	d.265.1 — Pseudouridine synthase
Family Family family	d.265.1.4 — tRNA pseudouridine synthase TruD

Domain ID domain_id	d1sb7a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1sb7b1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.265 — Pseudouridine synthase
Superfamily Superfamily superfamily	d.265.1 — Pseudouridine synthase
Family Family family	d.265.1.4 — tRNA pseudouridine synthase TruD

Domain ID domain_id	d1sb7b2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (4 domains)

Domain ID domain_id	1sb7A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2350 — Pseudouridine synthase
Homologous superfamily homologous superfamily	20 — TruD, catalytic domain

Domain ID domain_id	1sb7A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2340 — Pseudouridine synthase
Homologous superfamily homologous superfamily	10 — TruD, insertion domain

Domain ID domain_id	1sb7B01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2350 — Pseudouridine synthase
Homologous superfamily homologous superfamily	20 — TruD, catalytic domain

Domain ID domain_id	1sb7B02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2340 — Pseudouridine synthase
Homologous superfamily homologous superfamily	10 — TruD, insertion domain

▶

Unit-cell length a length_a	63.665 Å
Unit-cell length b length_b	108.780 Å
Unit-cell length c length_c	111.855 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	27.690 Å
R factor r_factor	0.2160
R_work r_work	0.2160
R_free r_free	0.2540
