SAXSdb — 1sc5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RNA polymerase sigma factor FliA

Aquifex aeolicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	anti-sigma factor FlgM × 1 （O66683）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O67268_AQUAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–239； UniProt 1–236

anti-sigma factor FlgM

Aquifex aeolicus

UniProt O66683

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	RNA polymerase sigma factor FliA × 1 （O67268）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O66683_AQUAE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–88； UniProt 1–88

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1sc5
Deposition date deposition_date	2004-02-11
Structure title title	Sigma-28(FliA)/FlgM complex
Keywords keywords	RNA POLYMERASE SIGMA FACTOR, ANTI-SIGMA FACTOR, TRANSCRIPTION, FLAGELLAR GENE REGULATION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1sc5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1sc5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

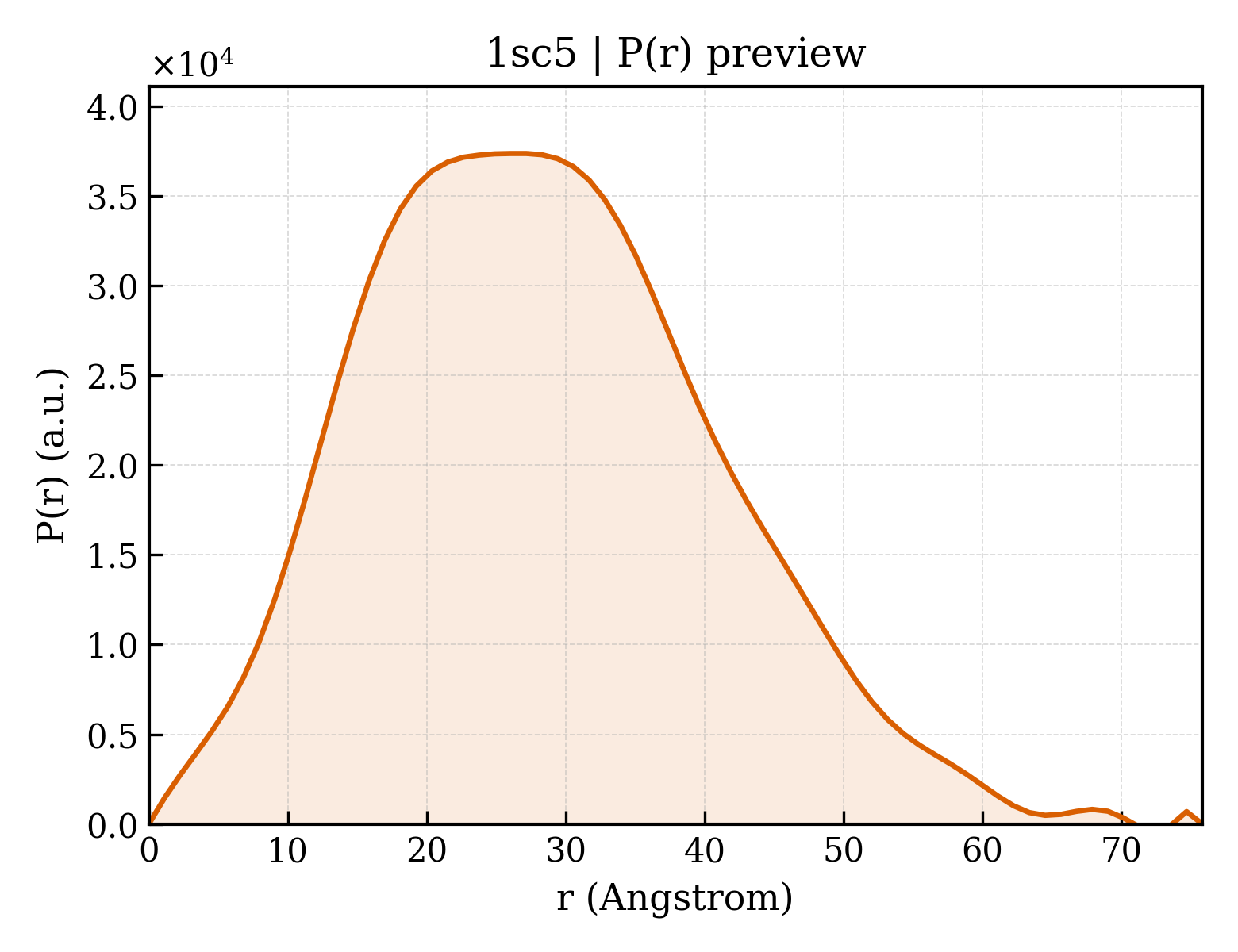

1sc5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.80 Å
Rg (electron density)	20.74 Å
Total Rg	21.59 Å
Atom count	2122
Residues	300
Excluded volume	37672 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1sc5__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	RNA polymerase sigma factor FliA
Molecular weight formula_weight	27735.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2122

GSHMKNPYSNQIEREELILKYLPLVKAIATNIKKHLPEDVDIRDLISYGVIGLIKAVDNLSTENPKRAEAYIKLRIKGAIYDYLRSLDFGSRQVREKERRIKEVVEKLKEKLGREPTDEEVAKELGISTEELFKTLDKINFSYILSLEEVFRDFARDYSELIPSSTNVEEEVIKRELTEKVKEAVSKLPEREKLVIQLIFYEELPAKEVAKILETSVSRVSQLKAKALERLREMLSNPL

Source Source

Source organism organism	Aquifex aeolicus
NCBI taxonomy ID ncbi_taxonomy_id	63363
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	anti-sigma factor FlgM
Molecular weight formula_weight	10257.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MVNRIELSRLIGLLLETEKRKNTEQKESGTNKIEDKVTLSKIAQELSKNDVEEKDLEKKVKELKEKIEKGEYEVSDEKVVKGLIEFFT

Source Source

Source organism organism	Aquifex aeolicus
NCBI taxonomy ID ncbi_taxonomy_id	63363
Host organism host_organism	Escherichia coli

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1sc5a1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.13 — Sigma3 and sigma4 domains of RNA polymerase sigma factors
Family Family family	a.4.13.1 — Sigma3 domain

Domain ID domain_id	d1sc5a2
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.13 — Sigma3 and sigma4 domains of RNA polymerase sigma factors
Family Family family	a.4.13.2 — Sigma4 domain

Domain ID domain_id	d1sc5a3
Class class	a — All alpha proteins
Fold Fold fold	a.177 — Sigma2 domain of RNA polymerase sigma factors
Superfamily Superfamily superfamily	a.177.1 — Sigma2 domain of RNA polymerase sigma factors
Family Family family	a.177.1.1 — Sigma2 domain of RNA polymerase sigma factors

Domain ID domain_id	d1sc5b_
Class class	a — All alpha proteins
Fold Fold fold	a.137 — Non-globular all-alpha subunits of globular proteins
Superfamily Superfamily superfamily	a.137.11 — Anti-sigma factor FlgM
Family Family family	a.137.11.1 — Anti-sigma factor FlgM

CATH v4.4 (4 domains)

Domain ID domain_id	1sc5A01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1740 — Rna Polymerase Sigma Factor; Chain: A
Homologous superfamily homologous superfamily	10 — RNA polymerase sigma factor, region 2, helix turn helix motif

Domain ID domain_id	1sc5A02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	160 — PhyR, sigma-like (SL) domain

Domain ID domain_id	1sc5B01
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	140 — Helix Hairpins
Homologous superfamily homologous superfamily	150 —

Domain ID domain_id	1sc5B02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	140 — Helix Hairpins
Homologous superfamily homologous superfamily	30 — Anti-sigma-28 factor FlgM

▶

Unit-cell length a length_a	118.117 Å
Unit-cell length b length_b	118.117 Å
Unit-cell length c length_c	87.401 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	3.260 Å
Low-resolution limit resolution_low	19.920 Å
R factor r_factor	0.2410
R_work r_work	0.2410
R_free r_free	0.2710
