Gallus gallus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | No other associated polymer | Consistent with protein count |
| UniProt name | EPHB2_CHICK |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–75； UniProt 924–998 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1sgg |
| Deposition date deposition_date | 1999-01-08 |
| Structure title title | THE SOLUTION STRUCTURE OF SAM DOMAIN FROM THE RECEPTOR TYROSINE KINASE EPHB2, NMR, 10 STRUCTURES |
| Keywords keywords | RECEPTOR OLIGOMERIZATION, EPH RECEPTORS, TYROSINE PHOSPHORYLATION, SIGNAL TRANSDUCTION, TYROSINE-PROTEIN KINASE; TYROSINE-PROTEIN KINASE |
| Experimental Method method | SOLUTION NMR |

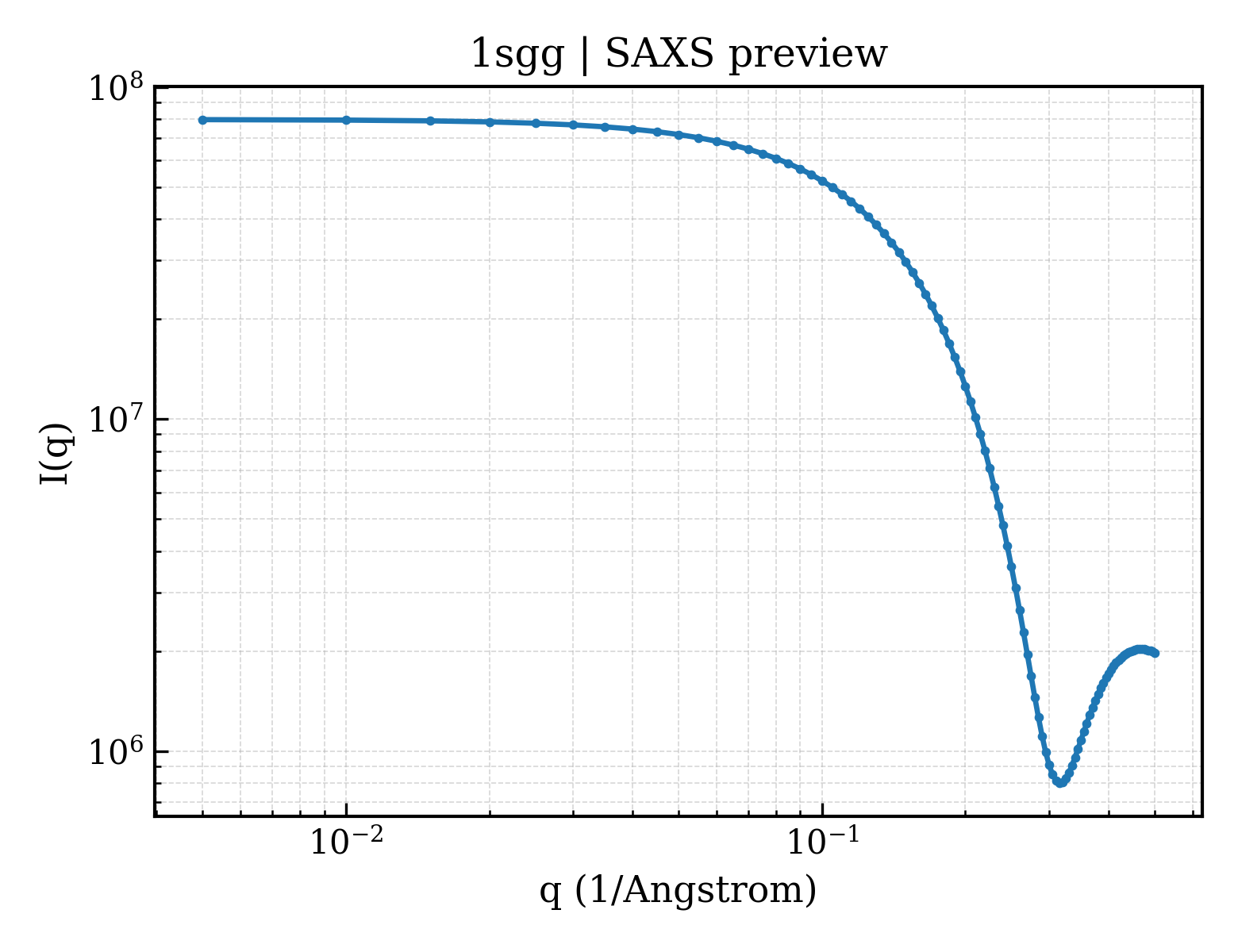

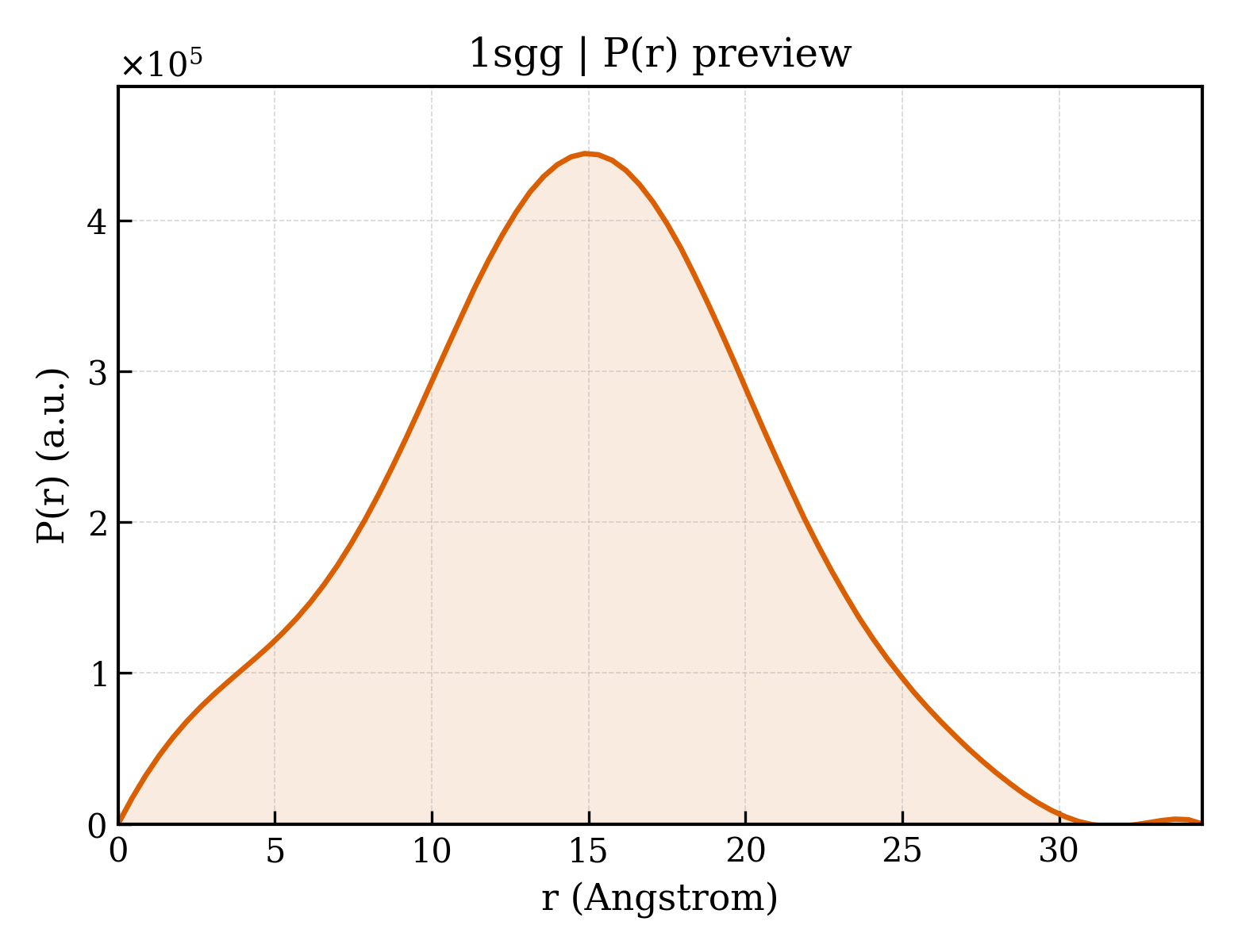

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 12.49 Å |
| Rg (electron density) | 10.82 Å |
| Total Rg | 12.37 Å |
| Atom count | 1061 |
| Residues | 67 |
| Excluded volume | 9529 ų |
| Maximum q | 0.500 Å⁻¹ |
| Assembly | Model | Structure unit | Oligomeric description | Status | CRYSOL | Actions |
|---|---|---|---|---|---|---|
| 1 | 1 | 1sgg__assembly_1__model_1 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 2 | 1sgg__assembly_1__model_2 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 3 | 1sgg__assembly_1__model_3 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 4 | 1sgg__assembly_1__model_4 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 5 | 1sgg__assembly_1__model_5 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 6 | 1sgg__assembly_1__model_6 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 7 | 1sgg__assembly_1__model_7 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 8 | 1sgg__assembly_1__model_8 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 9 | 1sgg__assembly_1__model_9 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 10 | 1sgg__assembly_1__model_10 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| Domain ID domain_id | d1sgga_ |
| Class class | a — All alpha proteins |
| Fold Fold fold | a.60 — SAM domain-like |
| Superfamily Superfamily superfamily | a.60.1 — SAM/Pointed domain |
| Family Family family | a.60.1.2 — SAM (sterile alpha motif) domain |
| Domain ID domain_id | 1sggA00 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 10 — Orthogonal Bundle |
| Topology topology | 150 — DNA polymerase; domain 1 |
| Homologous superfamily homologous superfamily | 50 — Transcription Factor, Ets-1 |
