SAXSdb — 1sh4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cytochrome b5

Bos taurus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 7–88	Fragment：residues 3-84 Mutation：V45H	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	SOLUTION NMR NMR measurement conditions：pH 7；293 K；Ionic strength (raw mmCIF value) 25mM PHOSPHATE BUFFER；Pressure 1 NMR sample composition：3.0mM \| 90% H2O/10% D2O NMR sample composition：3.0mM \| 100% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1SH4	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CYO BOVINE CYTOCHROME B(5) Deposited 1994-08-03	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 5–97（93 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.50 Å
1EHB CRYSTAL STRUCTURE OF RECOMBINANT TRYPSIN-SOLUBILIZED FRAGMENT OF CYTOCHROME B5 Deposited 2000-02-20	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 8–89（82 aa） Fragment：TRYPSIN-SOLUBILIZED FRAGMENT	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；phosphate buffer, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.248
1ES1 CRYSTAL STRUCTURE OF VAL61HIS MUTANT OF TRYPSIN-SOLUBILIZED FRAGMENT OF CYTOCHROME B5 Deposited 2000-04-07	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 8–89（82 aa） Fragment：TRYPSIN-SOLUBILIZED FRAGMENT	Mutation：VAL61HIS	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；phosphate buffer, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.244
1F03 SOLUTION STRUCTURE OF OXIDIZED BOVINE MICROSOMAL CYTOCHROME B5 MUTANT (E44A, E48A, E56A, D60A) AND ITS INTERACTION WITH CYTOCHROME C Deposited 2000-05-14	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 7–88（82 aa）	Mutation：E44A, E48A, E56A, D60A	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	SOLUTION NMR NMR measurement conditions pH 7；303 K；Ionic strength (raw mmCIF value) 10 mM；Pressure 1 NMR sample composition 6 mM cytochrome b5 mutant 1H \| 10 mM phosphate buffer, 90% H2O, 10% D2O NMR sample composition 6 mM cytochrome b5 mutant 1H \| 10 mM phosphate buffer, D2O	Resolution not provided
1F04 SOLUTION STRUCTURE OF OXIDIZED BOVINE MICROSOMAL CYTOCHROME B5 MUTANT (E44A, E48A, E56A, D60A) AND ITS INTERACTION WITH CYTOCHROME C Deposited 2000-05-14	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 7–88（82 aa）	Mutation：E44A, E48A, E56A, D60A	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	SOLUTION NMR NMR measurement conditions pH 7；303 K；Ionic strength (raw mmCIF value) 10 mM；Pressure 1 NMR sample composition 6 mM cytochrome b5 mutant 1H \| 10 mM phosphate buffer , 90% H2O, 10% D2O NMR sample composition 6 mM cytochrome b5 mutant 1H \| 10 mM phosphate buffer, D2O	Resolution not provided
1HKO NMR structure of bovine cytochrome b5 Deposited 2003-03-10	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–104（104 aa） Fragment：HEME BINDING DOMAIN, RESIDUES 1-104	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	SOLUTION NMR NMR measurement conditions pH 7；300 K	Resolution not provided
1I5U SOLUTION STRUCTURE OF CYTOCHROME B5 TRIPLE MUTANT (E48A/E56A/D60A) Deposited 2001-02-28	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 8–89（82 aa） Fragment：SOLUBLE DOMAIN (RESIDUES 8-89)	Mutation：E48A/E56A/D60A	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	SOLUTION NMR NMR measurement conditions pH 7；303 K；Pressure 1 NMR measurement conditions pH 7；303 K；Pressure 1 NMR measurement conditions pH 7；303 K；Pressure 1 NMR measurement conditions pH 7；303 K；Pressure 1 NMR sample composition 4mM cytochrome b5 triple mutant(E48A/E56A/D60A) \| 90% H2O/10% D2O	Resolution not provided
1J0Q Solution Structure of Oxidized Bovine Microsomal Cytochrome b5 mutant V61H Deposited 2002-11-20	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 7–88（82 aa） Fragment：Trypsin-Solubilized Fragment	Mutation：V61H	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	SOLUTION NMR NMR measurement conditions pH 7；293 K；Pressure ambient NMR sample composition 2.9mM enzyme, pH 7.0, 25mM phosphate buffer \| 90% H2O/10% D2O	Resolution not provided
1LQX Crystal structure of V45E mutant of cytochrome b5 Deposited 2002-05-14	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 7–88（82 aa） Fragment：trypsin-solubilized fragment of cytochrome b5	Mutation：V45E	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；293 K；PHOSPHATE BUFFER, pH 7.5, VAPOR DIFFUSION, temperature 293.0K	Resolution 1.80 Å R-free 0.222
1LR6 Crystal structure of V45Y mutant of cytochrome b5 Deposited 2002-05-15	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 7–88（82 aa） Fragment：trypsin-solubilized fragment of cytochrome b5	Mutation：V45Y	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PHOSPHATE BUFFER, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.90 Å R-free 0.236
1M20 Crystal Structure of F35Y Mutant of Trypsin-solubilized Fragment of Cytochrome b5 Deposited 2002-06-20	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 7–88（82 aa） Fragment：trypsin-solubilized fragment	Mutation：F35Y	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；phosphate buffer, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.80 Å R-free 0.227
1M2I Crystal structure of E44A/E56A mutant of cytochrome b5 Deposited 2002-06-24	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 7–88（82 aa） Fragment：trypsin-solubilized fragment of cytochrome b5	Mutation：E44A, E56A	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；PHOSPHATE BUFFER, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.80 Å R-free 0.232
1M2M Crystal structure of E44A/E48A/E56A/D60A mutant of cytochrome b5 Deposited 2002-06-24	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 7–88（82 aa） Fragment：trypsin-solubilized fragment of cytochrome b5	Mutation：E44A, E48A, E56A, D60A	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PHOSPHATE BUFFER, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.80 Å R-free 0.238
1M59 Crystal Structure of P40V Mutant of Trypsin-solubilized Fragment of Cytochrome b5 Deposited 2002-07-09	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 7–88（82 aa） Fragment：trypsin-solubilized fragment	Mutation：P40V	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；phosphate buffer, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.227
1NX7 Solution Structure of Oxidized Bovine Microsomal Cytochrome B5 Deposited 2003-02-10	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 7–88（82 aa） Fragment：RESIDUES 3-84	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	SOLUTION NMR NMR measurement conditions pH 7；300 K；Ionic strength (raw mmCIF value) 25mM Phosphate buffer；Pressure 1 NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 25mM Phosphate buffer；Pressure 1 NMR sample composition 3.0mM \| 90% H2O/10% D2O NMR sample composition 3.0mM \| 100% D2O	Resolution not provided
1U9M Crystal structure of F58W mutant of cytochrome b5 Deposited 2004-08-10	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 7–88（82 aa） Fragment：trypsin-solubilized fragment	Mutation：F58W	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；phosphate buffer, dioxane, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.266
1U9M Crystal structure of F58W mutant of cytochrome b5 Deposited 2004-08-10	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 7–88（82 aa） Fragment：trypsin-solubilized fragment	Mutation：F58W	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；phosphate buffer, dioxane, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.266
1U9M Crystal structure of F58W mutant of cytochrome b5 Deposited 2004-08-10	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 7–88（82 aa） Fragment：trypsin-solubilized fragment	Mutation：F58W	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；phosphate buffer, dioxane, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.266
1U9M Crystal structure of F58W mutant of cytochrome b5 Deposited 2004-08-10	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 7–88（82 aa） Fragment：trypsin-solubilized fragment	Mutation：F58W	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；phosphate buffer, dioxane, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.266
1U9M Crystal structure of F58W mutant of cytochrome b5 Deposited 2004-08-10	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 7–88（82 aa） Fragment：trypsin-solubilized fragment	Mutation：F58W	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；phosphate buffer, dioxane, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.266
1U9M Crystal structure of F58W mutant of cytochrome b5 Deposited 2004-08-10	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 7–88（82 aa） Fragment：trypsin-solubilized fragment	Mutation：F58W	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；phosphate buffer, dioxane, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.266
1U9U Crystal structure of F58Y mutant of cytochrome b5 Deposited 2004-08-11	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 7–88（82 aa） Fragment：Trypsin-solubilized fragment	Mutation：F58Y	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；phosphate buffer, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.86 Å R-free 0.215
3OZZ Structure of a cytochrome b5 core-swap mutant Deposited 2010-09-27	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 8–89（82 aa） Fragment：N-TERMINAL HEME-BINDING DOMAIN (unp residues 8-89)	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；277 K；30% PEG8000, 0.2M MgAc, 0.1M Pipes, pH 7.0, VAPOR DIFFUSION, temperature 277K	Resolution 1.70 Å R-free 0.229
4HIN 2.4A Resolution Structure of Bovine Cytochrome b5 (S71L) Deposited 2012-10-11	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 8–89（82 aa）	Mutation：S71L	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；293 K；20% (w/v) PEG 8000, 100 mM Tris, 200 mM MgCl2, 10 mM CuCl2, pH 8.5, vapor diffusion, temperature 293K	Resolution 2.40 Å R-free 0.245
4HIN 2.4A Resolution Structure of Bovine Cytochrome b5 (S71L) Deposited 2012-10-11	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 8–89（82 aa）	Mutation：S71L	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；293 K；20% (w/v) PEG 8000, 100 mM Tris, 200 mM MgCl2, 10 mM CuCl2, pH 8.5, vapor diffusion, temperature 293K	Resolution 2.40 Å R-free 0.245
4HIN 2.4A Resolution Structure of Bovine Cytochrome b5 (S71L) Deposited 2012-10-11	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 8–89（82 aa）	Mutation：S71L	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；293 K；20% (w/v) PEG 8000, 100 mM Tris, 200 mM MgCl2, 10 mM CuCl2, pH 8.5, vapor diffusion, temperature 293K	Resolution 2.40 Å R-free 0.245
4HIN 2.4A Resolution Structure of Bovine Cytochrome b5 (S71L) Deposited 2012-10-11	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 8–89（82 aa）	Mutation：S71L	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；293 K；20% (w/v) PEG 8000, 100 mM Tris, 200 mM MgCl2, 10 mM CuCl2, pH 8.5, vapor diffusion, temperature 293K	Resolution 2.40 Å R-free 0.245

19 other PDB entries and 27 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CYB5_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–82； UniProt 7–88

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1sh4
Deposition date deposition_date	2004-02-25
Structure title title	Solution structure of oxidized bovine microsomal cytochrome B5 Mutant V45H
Keywords keywords	FIVE HELIX, FIVE SHEET, HEME RING, ELECTRON TRANSPORT; ELECTRON TRANSPORT
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	12.35 Å
Radius of gyration Rg (electron density) rg_electron	12.11 Å
Forward intensity I(0) i0	1290360000.00
Molecular weight molecular_weight	302400.0 kDa
Excluded volume excluded_volume	375160 Å³
Envelope volume envelope_volume	17902 Å³
Hydration-shell volume shell_volume	11489 Å³
Envelope diameter envelope_diameter	41.6 Å
Shell Rg shell_rg	18.98 Å
Envelope Rg envelope_rg	13.48 Å
Shape Rg shape_rg	12.08 Å
Total Rg total_rg	12.30 Å
Total atoms total_atoms	38130
Residues n_residues	2460
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	36.8 Å
Rg (real space) rg_real	12.26 Å
Rg uncertainty (real space) rg_real_error	0.22 Å
I(0) (real space) i0_real	1.2900e+09
I(0) uncertainty (real space) i0_real_error	1.2420e+07
Rg (reciprocal space) rg_reciprocal	12.26 Å
I(0) (reciprocal space) i0_reciprocal	1290000000.0000
Solution quality estimate total_estimate	0.9076
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	15.4 Å
Skewness Skewness skewness	0.067
Kurtosis Kurtosis kurtosis	-0.461
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	114600.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.946; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.970

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1sh4a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.120 — Cytochrome b5-like heme/steroid binding domain
Superfamily Superfamily superfamily	d.120.1 — Cytochrome b5-like heme/steroid binding domain
Family Family family	d.120.1.1 — Cytochrome b5

CATH v4.4 (1 domains)

Domain ID domain_id	1sh4A00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	120 — Flavocytochrome B2; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Cytochrome b5-like heme/steroid binding domain

▶

8. Citations (1)

▶

Description description	Cytochrome b5
Molecular weight formula_weight	9514.4 kDa
Mutation mutation	V45H
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	38130

来源生物 organism	Bos taurus
通用名 common_name	cattle
NCBI Class编号 ncbi_taxonomy_id	9913
宿主生物 host_organism	Escherichia coli

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	1

fit	/app/data/saxs_computation/sh/1sh4/1sh4.fit
pddf	/app/data/pr_computation/sh/1sh4/1sh4.pr.out
profile	/app/data/saxs_computation/sh/1sh4/1sh4.dat

Solution structure of oxidized bovine microsomal cytochrome B5 Mutant V45H

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cytochrome b5

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

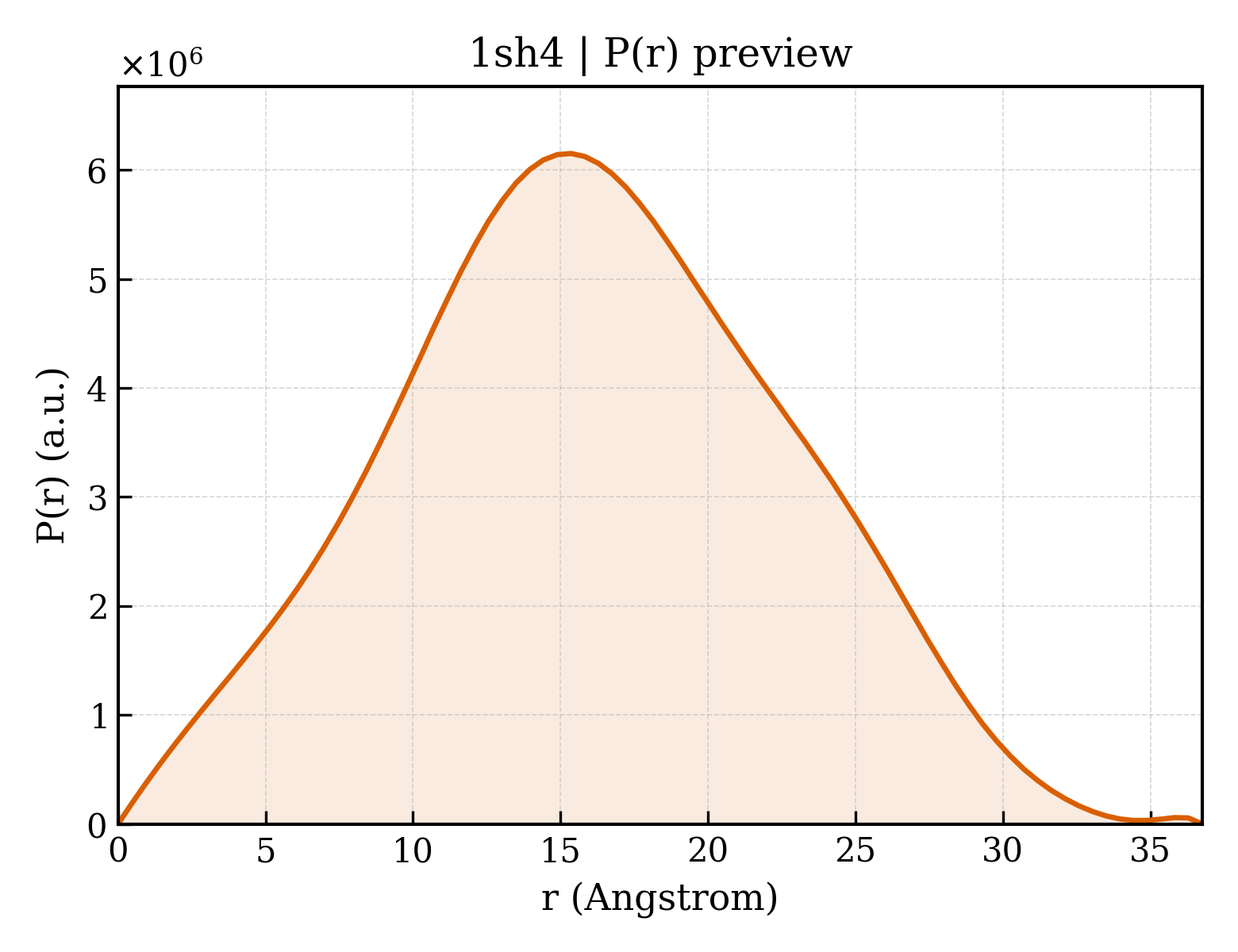

P(r) Distance Distribution P(r) Distribution
