1shs

SMALL HEAT SHOCK PROTEIN FROM METHANOCOCCUS JANNASCHII

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SMALL HEAT SHOCK PROTEIN

Methanocaldococcus jannaschii

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 24	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HSPS_METJA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–147； UniProt 1–147 Author chain B； PDBConstruct 1–147； UniProt 1–147 Author chain C； PDBConstruct 1–147； UniProt 1–147 Author chain D； PDBConstruct 1–147； UniProt 1–147 Author chain E； PDBConstruct 1–147； UniProt 1–147 Author chain F； PDBConstruct 1–147； UniProt 1–147 Author chain G； PDBConstruct 1–147； UniProt 1–147 Author chain H； PDBConstruct 1–147； UniProt 1–147

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1shs
Deposition date deposition_date	1998-07-30
Structure title title	SMALL HEAT SHOCK PROTEIN FROM METHANOCOCCUS JANNASCHII
Keywords keywords	;HEAT SHOCK PROTEIN, CHAPERONE, BETA-SANDWICH, Structural Genomics, PSI, Protein Structure Initiative, Berkeley Structural Genomics Center, BSGC ;; HEAT SHOCK PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1shs__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1shs__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

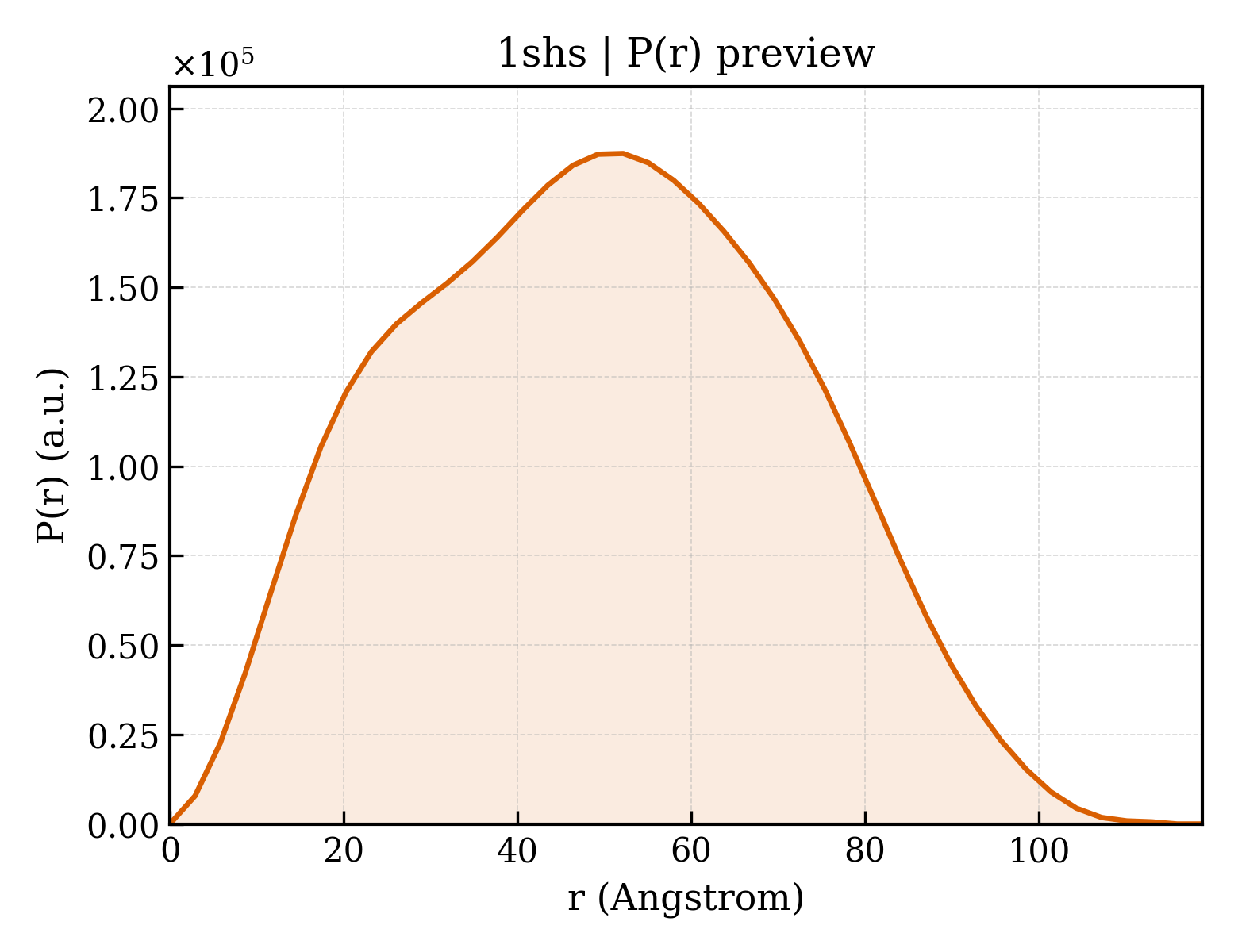

1shs__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	49.98 Å
Rg (electron density)	48.47 Å
Total Rg	48.92 Å
Atom count	21432
Residues	2760
Excluded volume	388390 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1shs__assembly_1__model_1`	24-meric （24）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1shsa_
Class class	b — All beta proteins
Fold Fold fold	b.15 — HSP20-like chaperones
Superfamily Superfamily superfamily	b.15.1 — HSP20-like chaperones
Family Family family	b.15.1.1 — HSP20

Domain ID domain_id	d1shsb_
Class class	b — All beta proteins
Fold Fold fold	b.15 — HSP20-like chaperones
Superfamily Superfamily superfamily	b.15.1 — HSP20-like chaperones
Family Family family	b.15.1.1 — HSP20

Domain ID domain_id	d1shsc_
Class class	b — All beta proteins
Fold Fold fold	b.15 — HSP20-like chaperones
Superfamily Superfamily superfamily	b.15.1 — HSP20-like chaperones
Family Family family	b.15.1.1 — HSP20

Domain ID domain_id	d1shsd_
Class class	b — All beta proteins
Fold Fold fold	b.15 — HSP20-like chaperones
Superfamily Superfamily superfamily	b.15.1 — HSP20-like chaperones
Family Family family	b.15.1.1 — HSP20

Domain ID domain_id	d1shse_
Class class	b — All beta proteins
Fold Fold fold	b.15 — HSP20-like chaperones
Superfamily Superfamily superfamily	b.15.1 — HSP20-like chaperones
Family Family family	b.15.1.1 — HSP20

Domain ID domain_id	d1shsf_
Class class	b — All beta proteins
Fold Fold fold	b.15 — HSP20-like chaperones
Superfamily Superfamily superfamily	b.15.1 — HSP20-like chaperones
Family Family family	b.15.1.1 — HSP20

Domain ID domain_id	d1shsg_
Class class	b — All beta proteins
Fold Fold fold	b.15 — HSP20-like chaperones
Superfamily Superfamily superfamily	b.15.1 — HSP20-like chaperones
Family Family family	b.15.1.1 — HSP20

Domain ID domain_id	d1shsh_
Class class	b — All beta proteins
Fold Fold fold	b.15 — HSP20-like chaperones
Superfamily Superfamily superfamily	b.15.1 — HSP20-like chaperones
Family Family family	b.15.1.1 — HSP20

CATH v4.4 (8 domains)

Domain ID domain_id	1shsA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	790 —

Domain ID domain_id	1shsB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	790 —

Domain ID domain_id	1shsC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	790 —

Domain ID domain_id	1shsD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	790 —

Domain ID domain_id	1shsE00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	790 —

Domain ID domain_id	1shsF00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	790 —

Domain ID domain_id	1shsG00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	790 —

Domain ID domain_id	1shsH00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	790 —

▶

Unit-cell length a length_a	171.440 Å
Unit-cell length b length_b	171.440 Å
Unit-cell length c length_c	101.980 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	72

Space group space_group	H 3
Space-group number int_tables_number	146
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.2160
R_work r_work	0.2160
R_free r_free	0.2510

Description description	SMALL HEAT SHOCK PROTEIN
Molecular weight formula_weight	16470.0 kDa
Source method src_method	man
Copy count entity_count	8

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	7144

SMALL HEAT SHOCK PROTEIN FROM METHANOCOCCUS JANNASCHII

1. Protein Identity and Related Structures Protein Identity & Related Structures

SMALL HEAT SHOCK PROTEIN

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1shs__assembly_1__model_1

1shs__assembly_1__model_1 | I(q)

1shs__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

CATH v4.4 (8 domains)

7. Citations (3)

Source organism organism	Methanocaldococcus jannaschii
NCBI taxonomy ID ncbi_taxonomy_id	2190
Host organism host_organism	Escherichia coli BL21(DE3)
