SAXSdb — 1si8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Catalase

Enterococcus faecalis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	SULFATE ION × 8 CHLORIDE ION × 2 PROTOPORPHYRIN IX CONTAINING FE × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q834P5_ENTFA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–478； UniProt 1–478 Author chain B； PDBConstruct 1–478； UniProt 1–478 Author chain C； PDBConstruct 1–478； UniProt 1–478 Author chain D； PDBConstruct 1–478； UniProt 1–478

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1si8
Deposition date deposition_date	2004-02-28
Structure title title	Crystal structure of E. faecalis catalase
Keywords keywords	N-terminal arm; anti-parallel beta-barrel; wrapping region; C-terminal helical region; tetramer; heme group, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1si8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

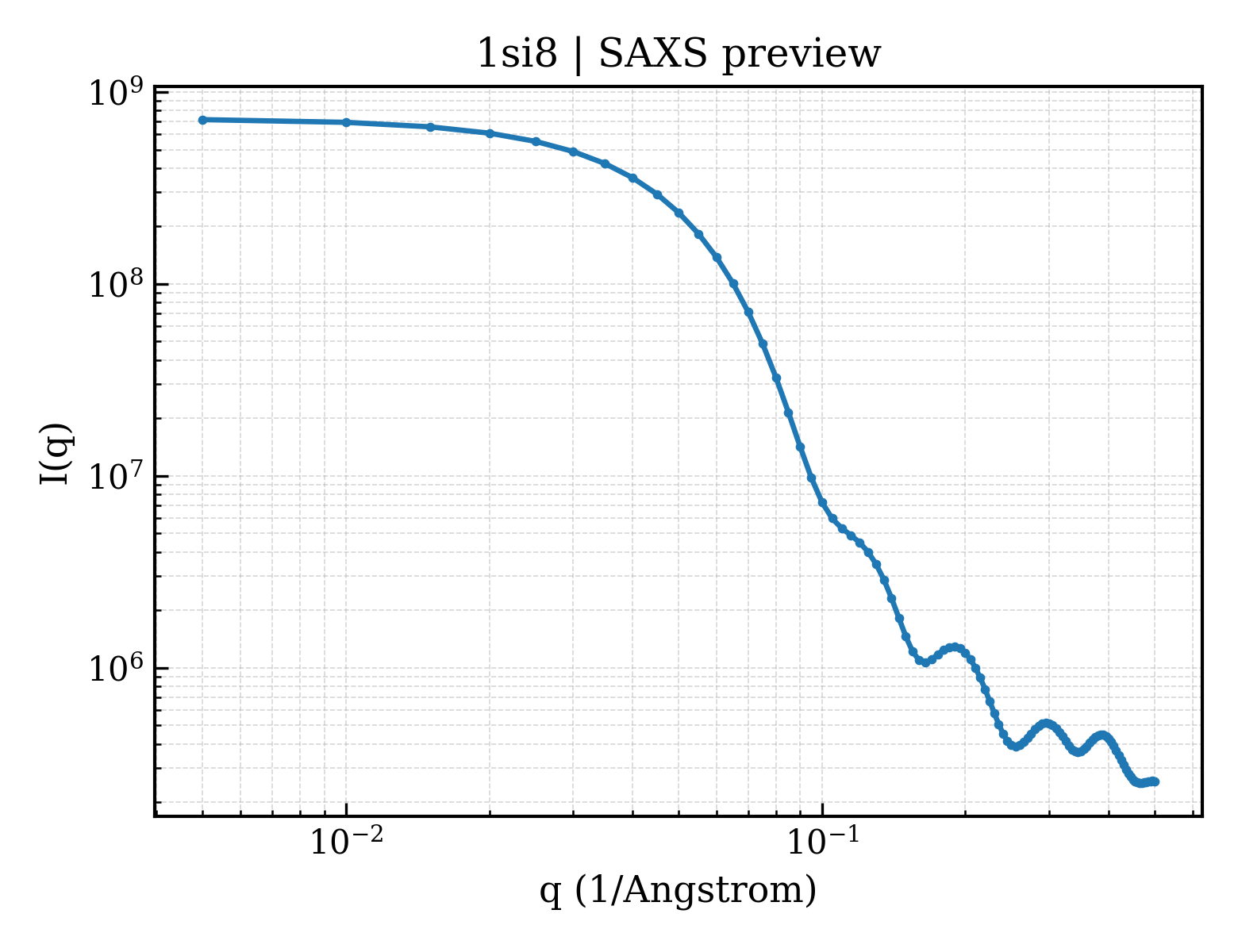

1si8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1si8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.07 Å
Rg (electron density)	35.45 Å
Total Rg	36.12 Å
Atom count	15314
Residues	1896
Excluded volume	268990 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1si8__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Catalase
Molecular weight formula_weight	54677.7 kDa
EC 编号 ec_number	1.11.1.6
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	16509

MKNQHLTTSQGSPVGDNQNSLTAGEFGPVLIQDVHLLEKLAHFNRERVPERVVHAKGAGAHGIFKVSQSMAQYTKADFLSEVGKETPLFARFSTVAGELGSSDTLRDPRGFALKFYTDEGNYDLVGNNTPIFFIRDAIKFPDFIHSQKRNPRTHLKSPEAVWDFWSHSPESLHQVTILMSDRGIPLSFRHMHGFGSHTFKWVNAAGEVFFVKYHFKTNQGIKNLESQLAEEIAGKNPDFHIEDLHNAIENQEFPSWTLSVQIIPYADALTMKETLFDVTKTVSQKEYPLIEVGTMTLNRNPENYFAEVEQVTFSPGNFVPGIEASPDKLLQGRLFAYGDAHRHRVGANSHQLPINQAKAPVNNYQKDGNMRFNNGNSEINYEPNSYTETPKEDPTAKISSFEVEGNVGNYSYNQDHFTQANALYNLLPSEEKENLINNIAASLGQVKNQEIIARQIDLFTRVNPEYGARVAQAIKQQAHHHHHH

Source Source

Source organism organism	Enterococcus faecalis
NCBI taxonomy ID ncbi_taxonomy_id	226185
Host organism host_organism	Bacillus subtilis

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1195

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1si8a_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.5 — Heme-dependent catalase-like
Superfamily Superfamily superfamily	e.5.1 — Heme-dependent catalase-like
Family Family family	e.5.1.1 — Heme-dependent catalases

Domain ID domain_id	d1si8b_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.5 — Heme-dependent catalase-like
Superfamily Superfamily superfamily	e.5.1 — Heme-dependent catalase-like
Family Family family	e.5.1.1 — Heme-dependent catalases

Domain ID domain_id	d1si8c_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.5 — Heme-dependent catalase-like
Superfamily Superfamily superfamily	e.5.1 — Heme-dependent catalase-like
Family Family family	e.5.1.1 — Heme-dependent catalases

Domain ID domain_id	d1si8d_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.5 — Heme-dependent catalase-like
Superfamily Superfamily superfamily	e.5.1 — Heme-dependent catalase-like
Family Family family	e.5.1.1 — Heme-dependent catalases

CATH v4.4 (4 domains)

Domain ID domain_id	1si8A00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	180 — Catalase HpII, Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Catalase core domain

Domain ID domain_id	1si8B00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	180 — Catalase HpII, Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Catalase core domain

Domain ID domain_id	1si8C00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	180 — Catalase HpII, Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Catalase core domain

Domain ID domain_id	1si8D00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	180 — Catalase HpII, Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Catalase core domain

▶

Unit-cell length a length_a	236.860 Å
Unit-cell length b length_b	236.860 Å
Unit-cell length c length_c	198.070 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	H 3
Space-group number int_tables_number	146
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2020
R_work r_work	0.2020
R_free r_free	0.2180
