1sof

Crystal structure of the azotobacter vinelandii bacterioferritin at 2.6 A resolution

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Bacterioferritin

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 24	FE (II) ION × 48 MAGNESIUM ION × 30 BARIUM ION × 6 PROTOPORPHYRIN IX CONTAINING FE × 12 water × 24	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BFR_AZOVI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–156； UniProt 1–156 Author chain B； PDBConstruct 1–156； UniProt 1–156 Author chain C； PDBConstruct 1–156； UniProt 1–156 Author chain D； PDBConstruct 1–156； UniProt 1–156 Author chain E； PDBConstruct 1–156； UniProt 1–156 Author chain F； PDBConstruct 1–156； UniProt 1–156 Author chain G； PDBConstruct 1–156； UniProt 1–156 Author chain H； PDBConstruct 1–156； UniProt 1–156

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1sof
Deposition date deposition_date	2004-03-14
Structure title title	Crystal structure of the azotobacter vinelandii bacterioferritin at 2.6 A resolution
Keywords keywords	BACTERIOFERRITIN, ACTIVE AS 24-MER, FOUR-HELIX BUNDLE, ELECTRON TRANSPORT; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1sof__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1sof__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

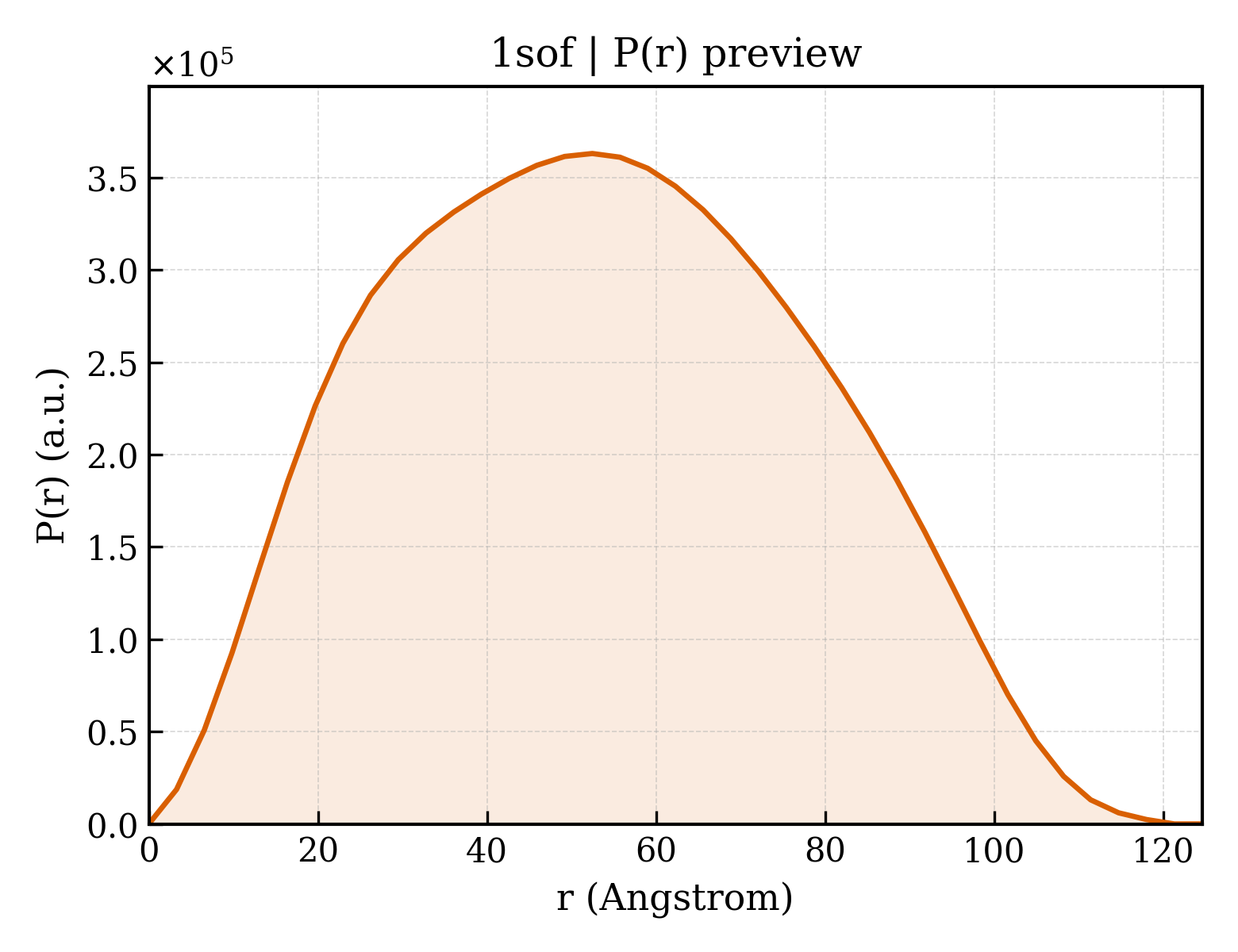

1sof__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	52.36 Å
Rg (electron density)	51.82 Å
Total Rg	52.23 Å
Atom count	30864
Residues	3720
Excluded volume	554330 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1sof__assembly_1__model_1`	24-meric （24）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Bacterioferritin
Molecular weight formula_weight	18127.7 kDa
Source method src_method	nat
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	10498

MKGDKIVIQHLNKILGNELIAINQYFLHARMYEDWGLEKLGKHEYHESIDEMKHADKLIKRILFLEGLPNLQELGKLLIGEHTKEMLECDLKLEQAGLPDLKAAIAYCESVGDYASRELLEDILESEEDHIDWLETQLDLIDKIGLENYLQSQMDE

Entity 2 Entity 2 non-polymer

Description description	FE (II) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	16

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	10

Entity 4 Entity 4 non-polymer

Description description	BARIUM ION
Molecular weight formula_weight	137.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	210

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1sofa1
Class class	a — All alpha proteins
Fold Fold fold	a.25 — Ferritin-like
Superfamily Superfamily superfamily	a.25.1 — Ferritin-like
Family Family family	a.25.1.1 — Ferritin

Domain ID domain_id	d1sofb_
Class class	a — All alpha proteins
Fold Fold fold	a.25 — Ferritin-like
Superfamily Superfamily superfamily	a.25.1 — Ferritin-like
Family Family family	a.25.1.1 — Ferritin

Domain ID domain_id	d1sofc_
Class class	a — All alpha proteins
Fold Fold fold	a.25 — Ferritin-like
Superfamily Superfamily superfamily	a.25.1 — Ferritin-like
Family Family family	a.25.1.1 — Ferritin

Domain ID domain_id	d1sofd_
Class class	a — All alpha proteins
Fold Fold fold	a.25 — Ferritin-like
Superfamily Superfamily superfamily	a.25.1 — Ferritin-like
Family Family family	a.25.1.1 — Ferritin

Domain ID domain_id	d1sofe_
Class class	a — All alpha proteins
Fold Fold fold	a.25 — Ferritin-like
Superfamily Superfamily superfamily	a.25.1 — Ferritin-like
Family Family family	a.25.1.1 — Ferritin

Domain ID domain_id	d1soff_
Class class	a — All alpha proteins
Fold Fold fold	a.25 — Ferritin-like
Superfamily Superfamily superfamily	a.25.1 — Ferritin-like
Family Family family	a.25.1.1 — Ferritin

Domain ID domain_id	d1sofg_
Class class	a — All alpha proteins
Fold Fold fold	a.25 — Ferritin-like
Superfamily Superfamily superfamily	a.25.1 — Ferritin-like
Family Family family	a.25.1.1 — Ferritin

Domain ID domain_id	d1sofh_
Class class	a — All alpha proteins
Fold Fold fold	a.25 — Ferritin-like
Superfamily Superfamily superfamily	a.25.1 — Ferritin-like
Family Family family	a.25.1.1 — Ferritin

CATH v4.4 (8 domains)

Domain ID domain_id	1sofA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	10 — Ferritin, core subunit, four-helix bundle

Domain ID domain_id	1sofB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	10 — Ferritin, core subunit, four-helix bundle

Domain ID domain_id	1sofC00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	10 — Ferritin, core subunit, four-helix bundle

Domain ID domain_id	1sofD00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	10 — Ferritin, core subunit, four-helix bundle

Domain ID domain_id	1sofE00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	10 — Ferritin, core subunit, four-helix bundle

Domain ID domain_id	1sofF00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	10 — Ferritin, core subunit, four-helix bundle

Domain ID domain_id	1sofG00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	10 — Ferritin, core subunit, four-helix bundle

Domain ID domain_id	1sofH00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	10 — Ferritin, core subunit, four-helix bundle

▶

Unit-cell length a length_a	124.965 Å
Unit-cell length b length_b	124.965 Å
Unit-cell length c length_c	287.406 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	72

Space group space_group	H 3
Space-group number int_tables_number	146
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	25.320 Å
R factor r_factor	0.1960
R_work r_work	0.1960
R_free r_free	0.2460
