Drosophila melanogaster
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | Q9VR51_DROME |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–304； UniProt 1–304 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1sqh |
| Deposition date deposition_date | 2004-03-18 |
| Structure title title | X-RAY STRUCTURE OF DROSOPHILA MALONOGASTER PROTEIN Q9VR51 NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET FR87. |
| Keywords keywords | structural genomics, PSI, Protein Structure Initiative, Northeast Structural Genomics Consortium, NESG, UNKNOWN FUNCTION; STRUCTURAL GENOMICS, UNKNOWN FUNCTION |
| Experimental Method method | X-RAY DIFFRACTION |

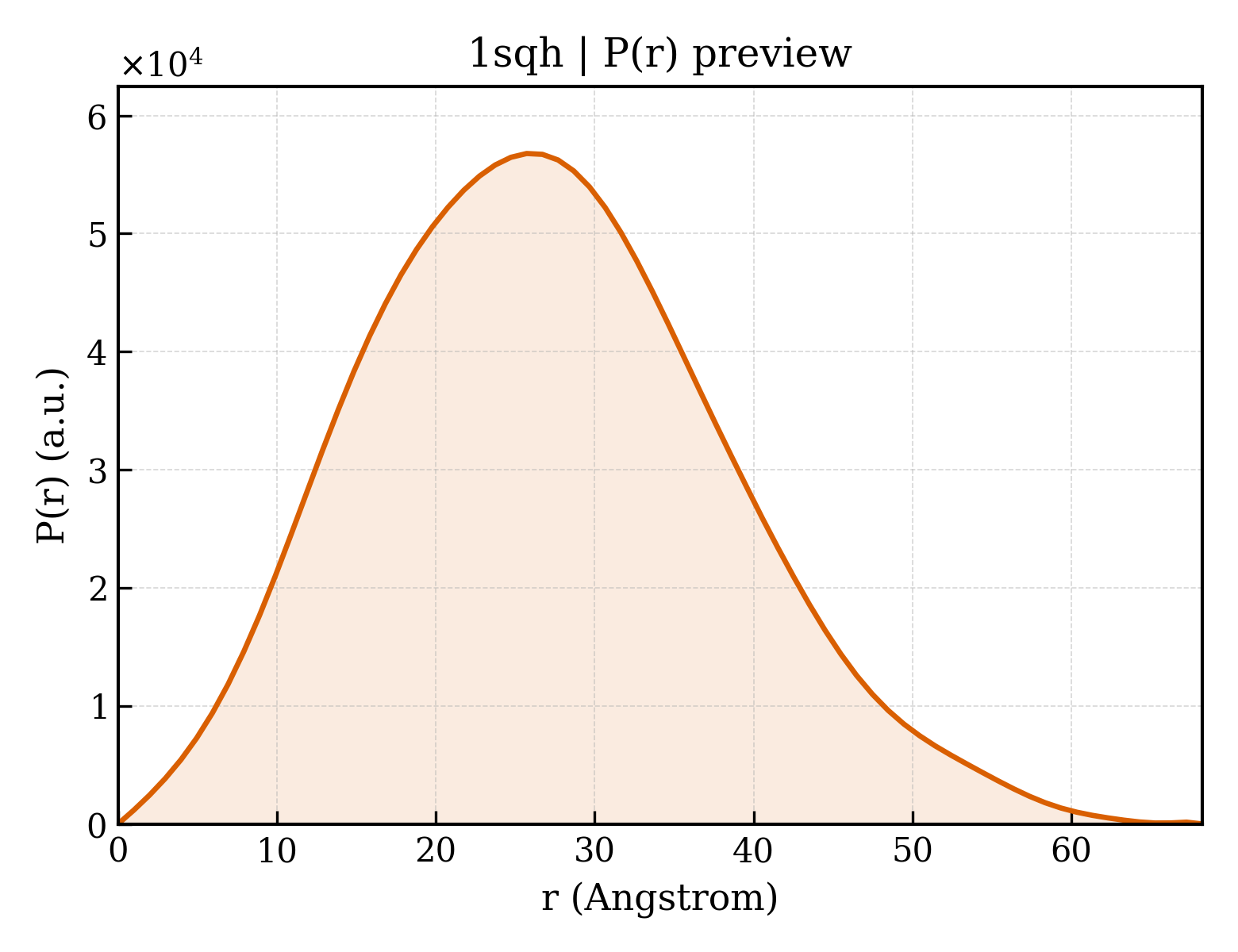

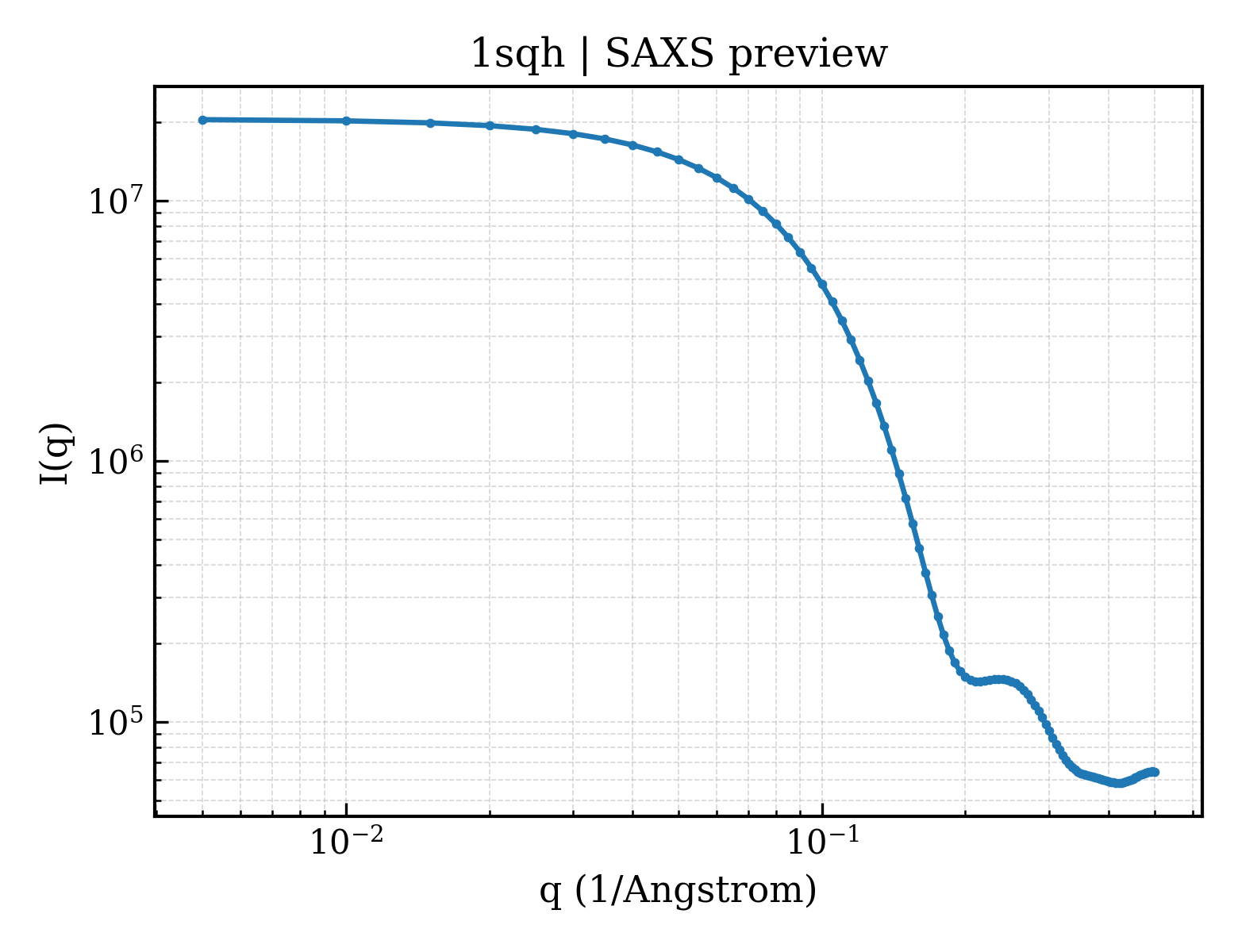

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 20.66 Å |
| Rg (electron density) | 19.52 Å |
| Total Rg | 20.44 Å |
| Atom count | 2405 |
| Residues | 293 |
| Excluded volume | 42766 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1sqha_ |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.108 — Acyl-CoA N-acyltransferases (Nat) |
| Superfamily Superfamily superfamily | d.108.1 — Acyl-CoA N-acyltransferases (Nat) |
| Family Family family | d.108.1.5 — Hypothetical protein cg14615-pa |
| Domain ID domain_id | 1sqhA01 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 630 — Aminopeptidase |
| Homologous superfamily homologous superfamily | 30 — Gcn5-related N-acetyltransferase (GNAT) |
| Domain ID domain_id | 1sqhA02 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 630 — Aminopeptidase |
| Homologous superfamily homologous superfamily | 30 — Gcn5-related N-acetyltransferase (GNAT) |
