1stz
Crystal structure of a hypothetical protein at 2.2 A resolution
SAXS 散射曲线 SAXS Profile

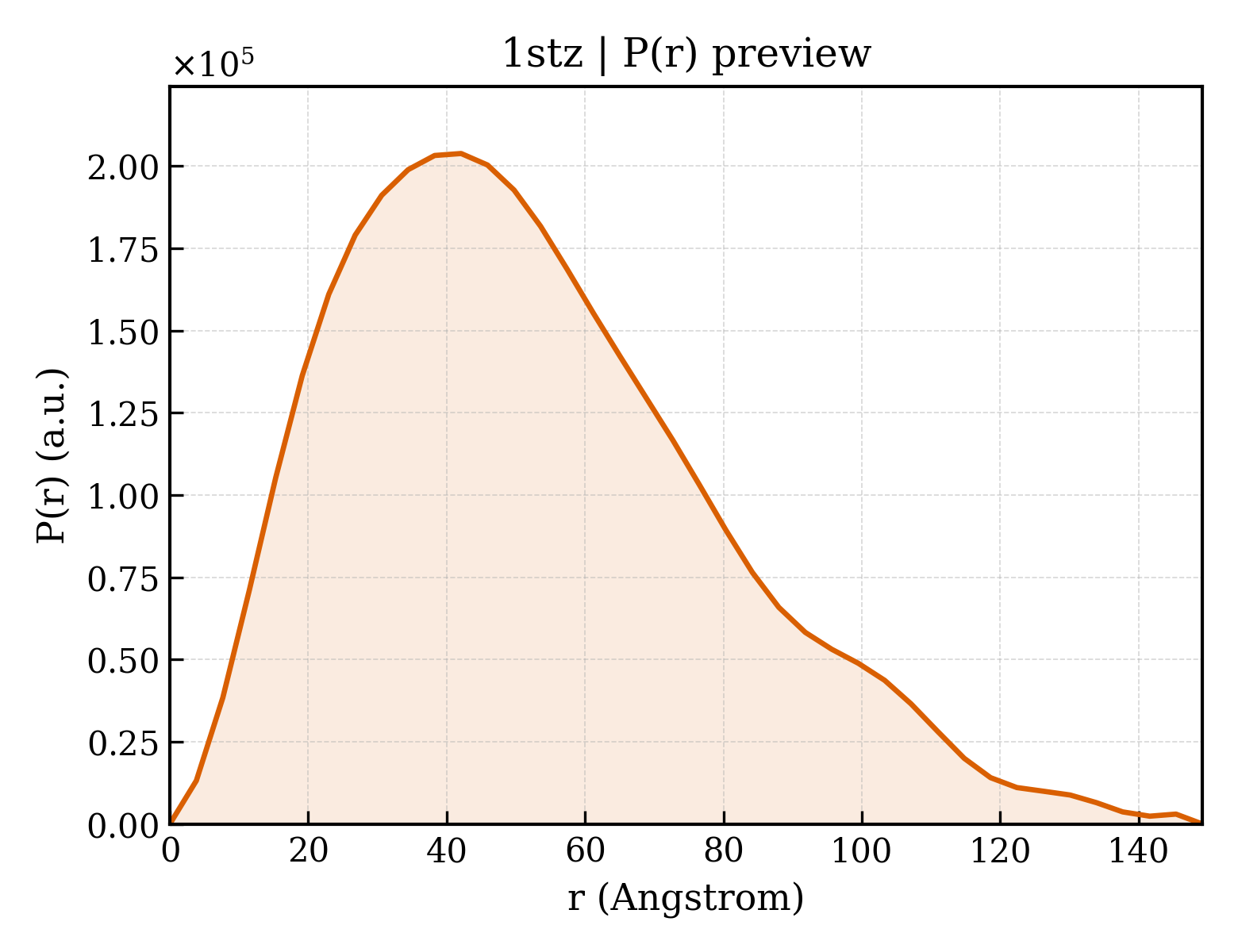

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1stz |
| 沉积日期 deposition_date | 2004-03-25 |
| 结构标题 title | Crystal structure of a hypothetical protein at 2.2 A resolution |
| 关键词 keywords | ;Hrca, circe element, Structural Genomics, BSGC structure funded by NIH, Protein Structure Initiative, PSI, Berkeley Structural Genomics Center, TRANSCRIPTION ;; TRANSCRIPTION |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 41.00 Å |
| 回转半径 Rg (电子) rg_electron | 40.99 Å |
| 零角强度 I(0) i0 | 166858000.00 |
| 分子量 molecular_weight | 109420.0 kDa |
| 排除体积 excluded_volume | 139450 ų |
| 包络体积 envelope_volume | 191320 ų |
| 水化壳体积 shell_volume | 43202 ų |
| 包络直径 envelope_diameter | 157.4 Å |
| 壳层 Rg shell_rg | 41.11 Å |
| 包络 Rg envelope_rg | 41.31 Å |
| 形状 Rg shape_rg | 40.96 Å |
| 总 Rg total_rg | 41.10 Å |
| 总原子数 total_atoms | 7716 |
| 残基数 n_residues | 945 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 149.2 Å |
| Rg (实空间) rg_real | 41.43 Å |
| Rg 误差 (实空间) rg_real_error | 1.72 Å |
| I(0) (实空间) i0_real | 1.6690e+08 |
| I(0) 误差 (实空间) i0_real_error | 3.3620e+06 |
| Rg (倒空间) rg_reciprocal | 41.01 Å |
| I(0) (倒空间) i0_reciprocal | 166800000.0000 |
| 解质量估计 total_estimate | 0.7969 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 42.1 Å |
| 偏度 Skewness skewness | 0.642 |
| 峰度 Kurtosis kurtosis | 0.018 |
| 角度范围 angular_range | — – 0.1950 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 17040000.0000 |
| 实空间数据点数 n_real_points | 40 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.668; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.576; Smooth: 0.778 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 15 domains
SCOP 2.08 (6 domains)
| 结构域编号 domain_id | d1stza1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.4 — DNA/RNA-binding 3-helical bundle |
| 超家族 Superfamily superfamily | a.4.5 — 'Winged helix' DNA-binding domain |
| 家族 Family family | a.4.5.51 — Heat-inducible transcription repressor HrcA, N-terminal domain |
| 结构域编号 domain_id | d1stza2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.110 — Profilin-like |
| 超家族 Superfamily superfamily | d.110.2 — GAF domain-like |
| 家族 Family family | d.110.2.3 — HrcA C-terminal domain-like |
| 结构域编号 domain_id | d1stzb1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.4 — DNA/RNA-binding 3-helical bundle |
| 超家族 Superfamily superfamily | a.4.5 — 'Winged helix' DNA-binding domain |
| 家族 Family family | a.4.5.51 — Heat-inducible transcription repressor HrcA, N-terminal domain |
| 结构域编号 domain_id | d1stzb2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.110 — Profilin-like |
| 超家族 Superfamily superfamily | d.110.2 — GAF domain-like |
| 家族 Family family | d.110.2.3 — HrcA C-terminal domain-like |
| 结构域编号 domain_id | d1stzc1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.4 — DNA/RNA-binding 3-helical bundle |
| 超家族 Superfamily superfamily | a.4.5 — 'Winged helix' DNA-binding domain |
| 家族 Family family | a.4.5.51 — Heat-inducible transcription repressor HrcA, N-terminal domain |
| 结构域编号 domain_id | d1stzc2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.110 — Profilin-like |
| 超家族 Superfamily superfamily | d.110.2 — GAF domain-like |
| 家族 Family family | d.110.2.3 — HrcA C-terminal domain-like |
CATH v4.4 (9 domains)
| 结构域编号 domain_id | 1stzA01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 10 — Arc Repressor Mutant, subunit A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain |
| 结构域编号 domain_id | 1stzA02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 450 — Beta-Lactamase |
| 同源超家族 H-superfamily homologous superfamily | 40 — GAF domain |
| 结构域编号 domain_id | 1stzA03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 390 — Enolase-like; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 60 — Heat-inducible transcription repressor hrca homolog; domain 3 |
| 结构域编号 domain_id | 1stzB01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 10 — Arc Repressor Mutant, subunit A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain |
| 结构域编号 domain_id | 1stzB02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 450 — Beta-Lactamase |
| 同源超家族 H-superfamily homologous superfamily | 40 — GAF domain |
| 结构域编号 domain_id | 1stzB03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 390 — Enolase-like; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 60 — Heat-inducible transcription repressor hrca homolog; domain 3 |
| 结构域编号 domain_id | 1stzC01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 10 — Arc Repressor Mutant, subunit A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain |
| 结构域编号 domain_id | 1stzC02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 450 — Beta-Lactamase |
| 同源超家族 H-superfamily homologous superfamily | 40 — GAF domain |
| 结构域编号 domain_id | 1stzC03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 390 — Enolase-like; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 60 — Heat-inducible transcription repressor hrca homolog; domain 3 |
