SAXSdb — 1sum

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Phosphate transport system protein phoU homolog 2

Thermotoga maritima

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	FE (III) ION × 7 NICKEL (II) ION × 1 CALCIUM ION × 1 PHOSPHITE ION × 2 water × 1	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	FE (III) ION × 14 NICKEL (II) ION × 2 CALCIUM ION × 2 PHOSPHITE ION × 4 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHOU2_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–235； UniProt 1–235

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1sum
Deposition date deposition_date	2004-03-26
Structure title title	Crystal structure of a hypothetical protein at 2.0 A resolution
Keywords keywords	;PhoU, ABC transport, pst, Structural Genomics, Berkeley Structural Genomics Center, BSGC, structure funded by NIH, Protein Structure Initiative, PSI, TRANSPORT PROTEIN ;; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1sum__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1sum__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

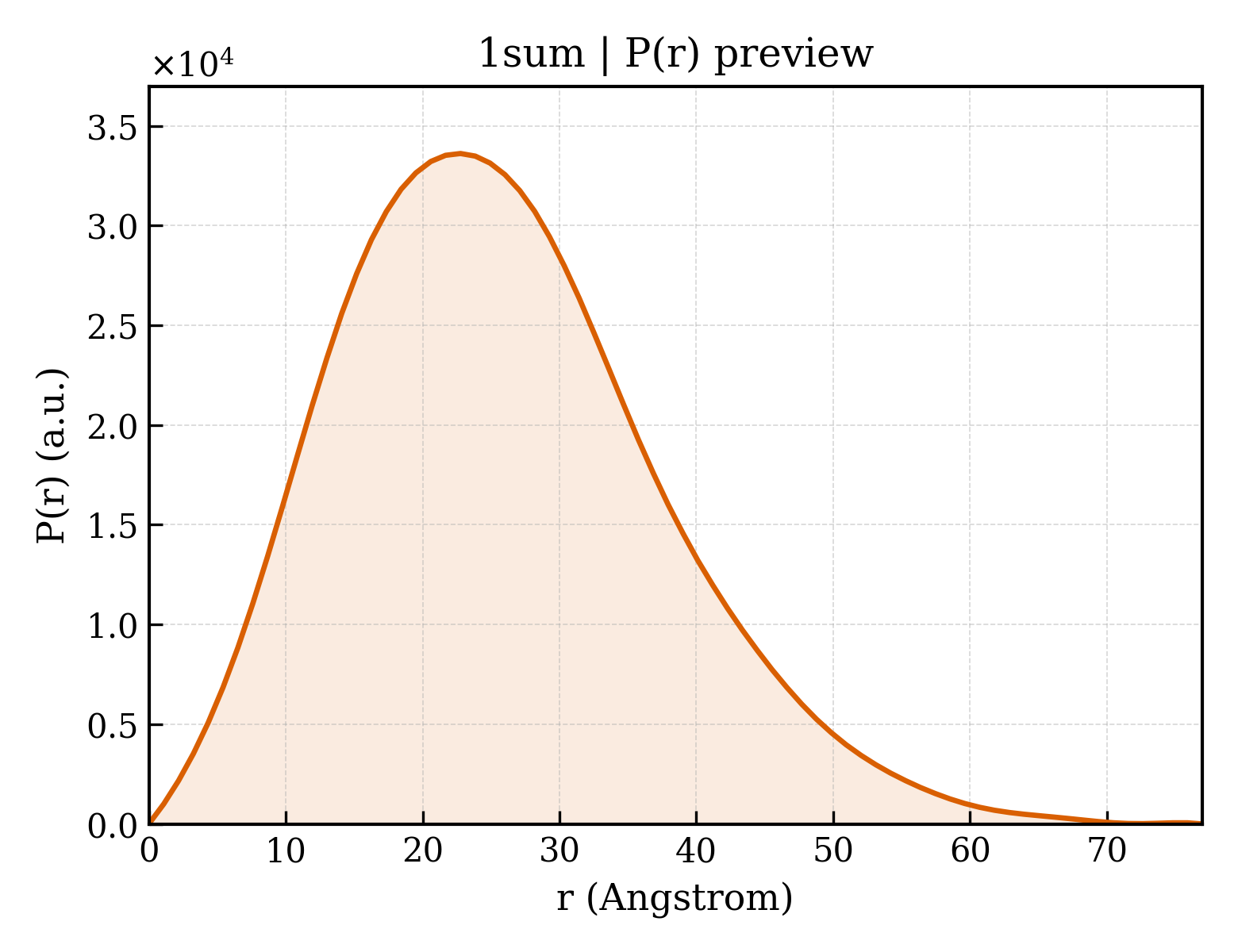

1sum__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.81 Å
Rg (electron density)	19.46 Å
Total Rg	20.19 Å
Atom count	1820
Residues	225
Excluded volume	33073 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1sum__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1sum__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Phosphate transport system protein phoU homolog 2
Molecular weight formula_weight	26851.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	1898

MNRLLNEKVEEFKKGVLKAGWFIEKMFRNSISSLVERNESLAREVIADEEVVDQMEVEIQEKAMEVLGLFSPIGKPLLTVTAGIRVAELIENIADKCHDIAKNVLELMEEPPLKPLEDIPAMANQTSEMLKFALRMFADVNVEKSFEVCRMDSKVDDLYEKVREELLLYMMESPKYVKRALLLLEIAGNIEIIADYATNIVEVSVYMVQGEAYKCYHDELLLFKKSGGVLFESSD

Source Source

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	2336
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FE (III) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 3 Entity 3 non-polymer

Description description	NICKEL (II) ION
Molecular weight formula_weight	58.7 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	PHOSPHITE ION
Molecular weight formula_weight	79.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	78

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1sumb_
Class class	a — All alpha proteins
Fold Fold fold	a.7 — Spectrin repeat-like
Superfamily Superfamily superfamily	a.7.12 — PhoU-like
Family Family family	a.7.12.1 — PhoU-like

CATH v4.4 (2 domains)

Domain ID domain_id	1sumB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	220 — Phosphate transport system protein phou homolog 2; domain 2

Domain ID domain_id	1sumB02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	220 — Phosphate transport system protein phou homolog 2; domain 2

▶

Unit-cell length a length_a	90.677 Å
Unit-cell length b length_b	90.677 Å
Unit-cell length c length_c	45.255 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2199
R_work r_work	0.2166
R_free r_free	0.2549

Crystal structure of a hypothetical protein at 2.0 A resolution
