1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1sus
沉积日期 deposition_date	2004-03-26
结构标题 title	Crystal structure of alfalfa feruoyl coenzyme A 3-O-methyltransferase
关键词 keywords	ROSSMANN FOLD, PROTEIN-COFACTOR-SUBSTRATE COMPLEX, O-METHYLTRANSFERASE, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	46.27 Å
回转半径 Rg (电子) rg_electron	47.80 Å
零角强度 I(0) i0	158648000.00
分子量 molecular_weight	105100.0 kDa
排除体积 excluded_volume	132800 Å³
包络体积 envelope_volume	197200 Å³
水化壳体积 shell_volume	41889 Å³
包络直径 envelope_diameter	171.4 Å
壳层 Rg shell_rg	40.81 Å
包络 Rg envelope_rg	47.80 Å
形状 Rg shape_rg	47.81 Å
总 Rg total_rg	47.35 Å
总原子数 total_atoms	7381
残基数 n_residues	908
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	160.7 Å
Rg (实空间) rg_real	47.39 Å
Rg 误差 (实空间) rg_real_error	1.95 Å
I(0) (实空间) i0_real	1.5860e+08
I(0) 误差 (实空间) i0_real_error	3.1410e+06
Rg (倒空间) rg_reciprocal	46.28 Å
I(0) (倒空间) i0_reciprocal	158400000.0000
解质量估计 total_estimate	0.6391
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	28.4 Å
偏度 Skewness skewness	0.709
峰度 Kurtosis kurtosis	-0.120
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	11650000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.307; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.378; Smooth: 0.005

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Caffeoyl-CoA O-methyltransferase
分子量 formula_weight	28036.2 kDa
EC 编号 ec_number	2.1.1.104
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	7447

MATNEDQKQTESGRHQEVGHKSLLQSDALYQYILETSVFPREHEAMKELREVTAKHPWNIMTTSADEGQFLSMLLKLINAKNTMEIGVYTGYSLLATALAIPEDGKILAMDINKENYELGLPVIKKAGVDHKIDFREGPALPVLDEMIKDEKNHGSYDFIFVDADKDNYLNYHKRLIDLVKVGGVIGYDNTLWNGSVVAPPDAPLRKYVRYYRDFVLELNKALAVDPRIEICMLPVGDGITICRRIK

来源 Source

来源生物 organism	Medicago sativa
NCBI 分类编号 ncbi_taxonomy_id	3879
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	S-ADENOSYL-L-HOMOCYSTEINE
分子量 formula_weight	384.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	SINAPOYL COENZYME A
分子量 formula_weight	971.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	66

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1susa_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
超家族 Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
家族 Family family	c.66.1.1 — COMT-like

结构域编号 domain_id	d1susb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
超家族 Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
家族 Family family	c.66.1.1 — COMT-like

结构域编号 domain_id	d1susc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
超家族 Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
家族 Family family	c.66.1.1 — COMT-like

结构域编号 domain_id	d1susd_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
超家族 Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
家族 Family family	c.66.1.1 — COMT-like

CATH v4.4 (4 domains)

结构域编号 domain_id	1susA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

结构域编号 domain_id	1susB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

结构域编号 domain_id	1susC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

结构域编号 domain_id	1susD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	60.854 Å
晶胞边长 b length_b	136.486 Å
晶胞边长 c length_c	332.778 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	32

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	25.000 Å
R 因子 r_factor	—
R_work r_work	0.2450
R_free r_free	0.2890

fit	/app/data/saxs_computation/su/1sus/1sus.fit
pddf	/app/data/pr_computation/su/1sus/1sus.pr.out
profile	/app/data/saxs_computation/su/1sus/1sus.dat

Crystal structure of alfalfa feruoyl coenzyme A 3-O-methyltransferase

SAXS 散射曲线 SAXS Profile

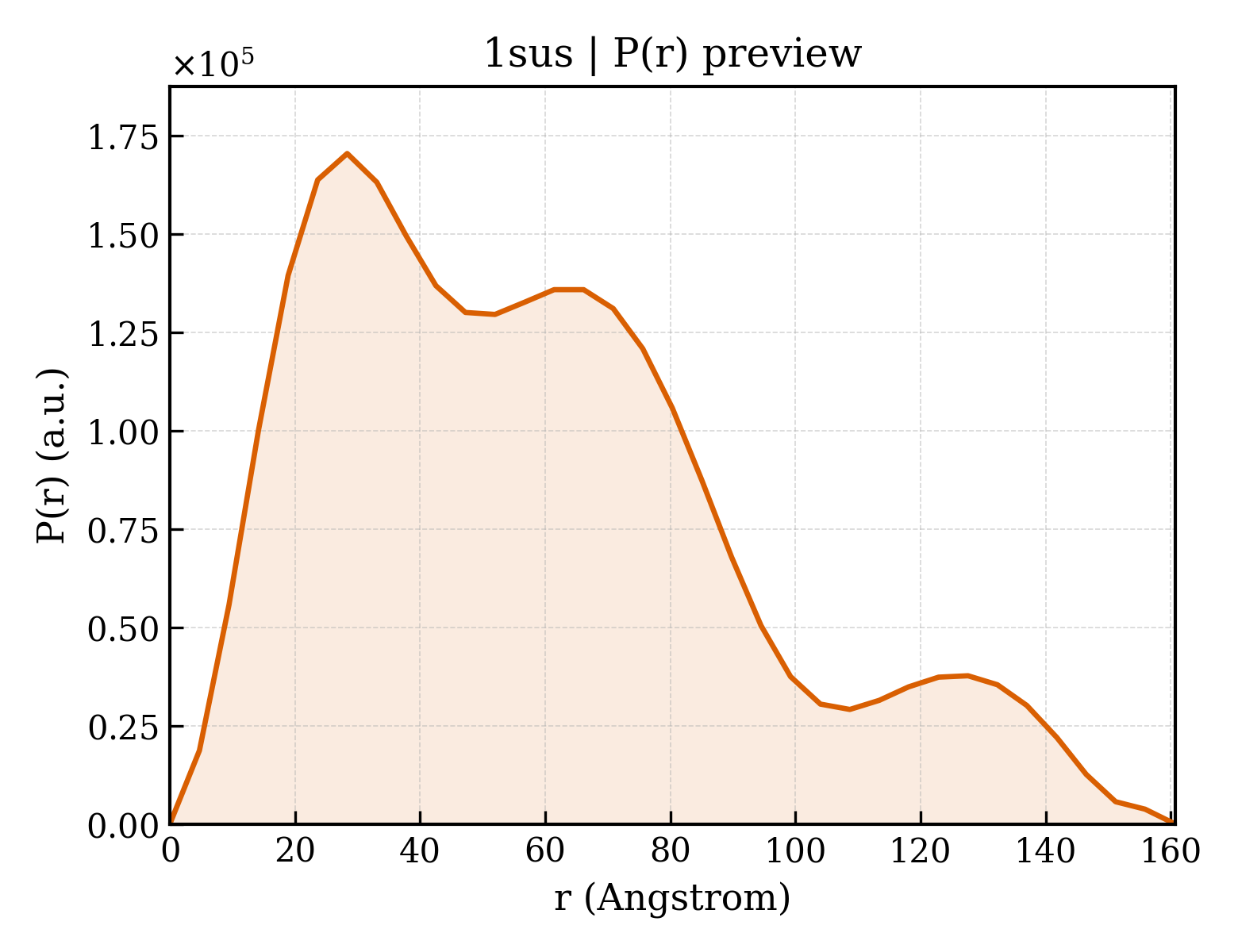

P(r) 距离分布 P(r) Distribution
