1sv1
NMR structure of the ThKaiA180C-CIIABD complex (25-structure ensemble)

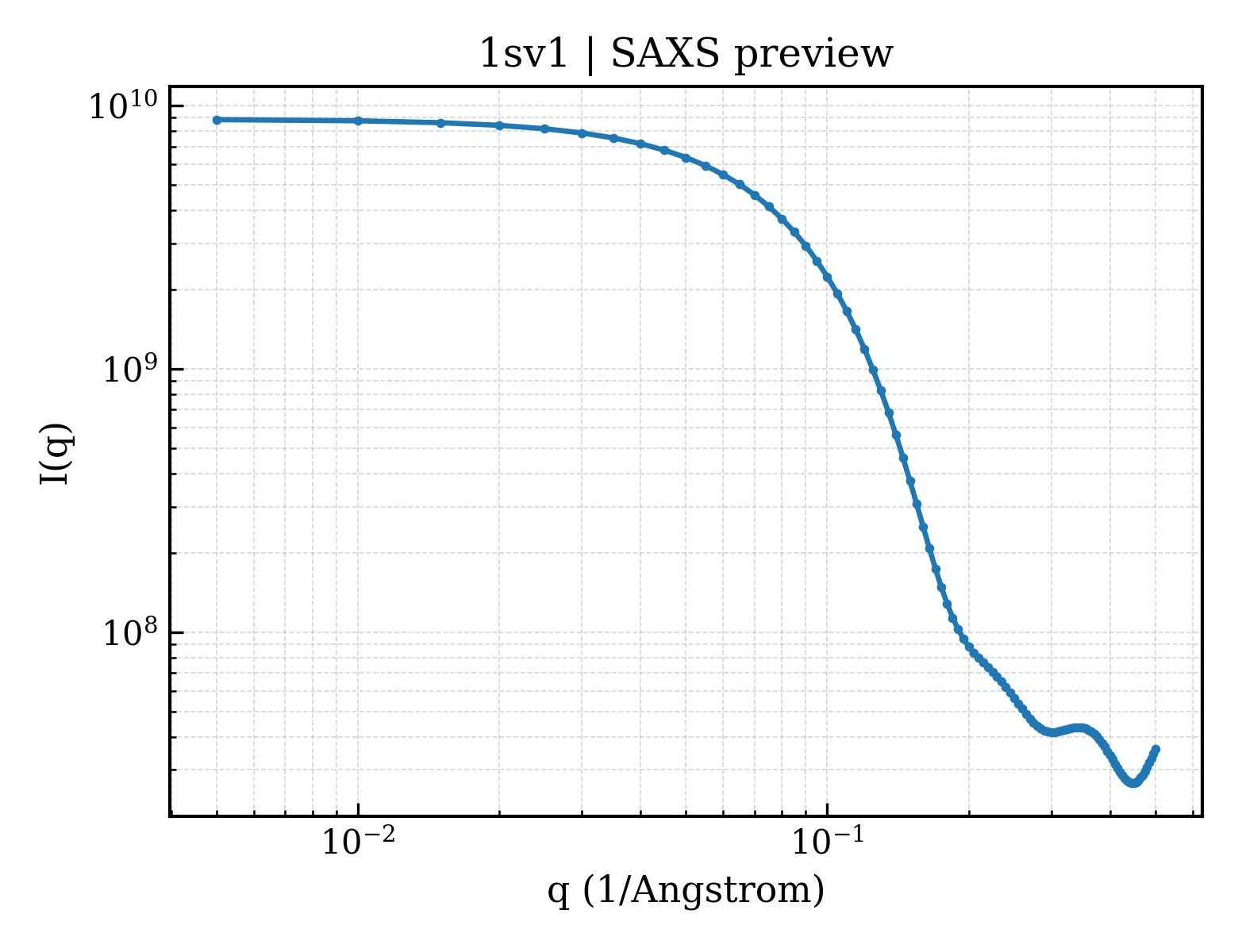

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1sv1 |
| 沉积日期 deposition_date | 2004-03-26 |
| 结构标题 title | NMR structure of the ThKaiA180C-CIIABD complex (25-structure ensemble) |
| 关键词 keywords | X-class Four Helix Bundle, Protein-peptide complex, Circadian Clock Protein; CIRCADIAN CLOCK PROTEIN |
| 实验方法 method | SOLUTION NMR |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 20.02 Å |
| 回转半径 Rg (电子) rg_electron | 19.43 Å |
| 零角强度 I(0) i0 | 8874640000.00 |
| 分子量 molecular_weight | 809890.0 kDa |
| 排除体积 excluded_volume | 1017800 ų |
| 包络体积 envelope_volume | 81519 ų |
| 水化壳体积 shell_volume | 28572 ų |
| 包络直径 envelope_diameter | 79.4 Å |
| 壳层 Rg shell_rg | 31.18 Å |
| 包络 Rg envelope_rg | 23.87 Å |
| 形状 Rg shape_rg | 19.38 Å |
| 总 Rg total_rg | 19.71 Å |
| 总原子数 total_atoms | 114900 |
| 残基数 n_residues | 7050 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 71.9 Å |
| Rg (实空间) rg_real | 19.94 Å |
| Rg 误差 (实空间) rg_real_error | 0.62 Å |
| I(0) (实空间) i0_real | 8.8750e+09 |
| I(0) 误差 (实空间) i0_real_error | 1.1920e+08 |
| Rg (倒空间) rg_reciprocal | 19.96 Å |
| I(0) (倒空间) i0_reciprocal | 8875000000.0000 |
| 解质量估计 total_estimate | 0.7695 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 3 |
| 主峰位置 r_peak_primary | 24.6 Å |
| 偏度 Skewness skewness | 0.247 |
| 峰度 Kurtosis kurtosis | -0.283 |
| 角度范围 angular_range | — – 0.3950 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 3575000.0000 |
| 实空间数据点数 n_real_points | 71 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.670; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 6 domains
SCOP 2.08 (4 domains)
| 结构域编号 domain_id | d1sv1a1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.186 — KaiA/RbsU domain |
| 超家族 Superfamily superfamily | a.186.1 — KaiA/RbsU domain |
| 家族 Family family | a.186.1.1 — Circadian clock protein KaiA, C-terminal domain |
| 结构域编号 domain_id | d1sv1a2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1sv1b1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.186 — KaiA/RbsU domain |
| 超家族 Superfamily superfamily | a.186.1 — KaiA/RbsU domain |
| 家族 Family family | a.186.1.1 — Circadian clock protein KaiA, C-terminal domain |
| 结构域编号 domain_id | d1sv1b2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 1sv1A00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 1240 — Methyltransferase, Methionine Synthase (B12-binding Domains); Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 30 — KaiA/RbsU domain |
| 结构域编号 domain_id | 1sv1B00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 1240 — Methyltransferase, Methionine Synthase (B12-binding Domains); Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 30 — KaiA/RbsU domain |
