1t03

HIV-1 reverse transcriptase crosslinked to tenofovir terminated template-primer (complex P)

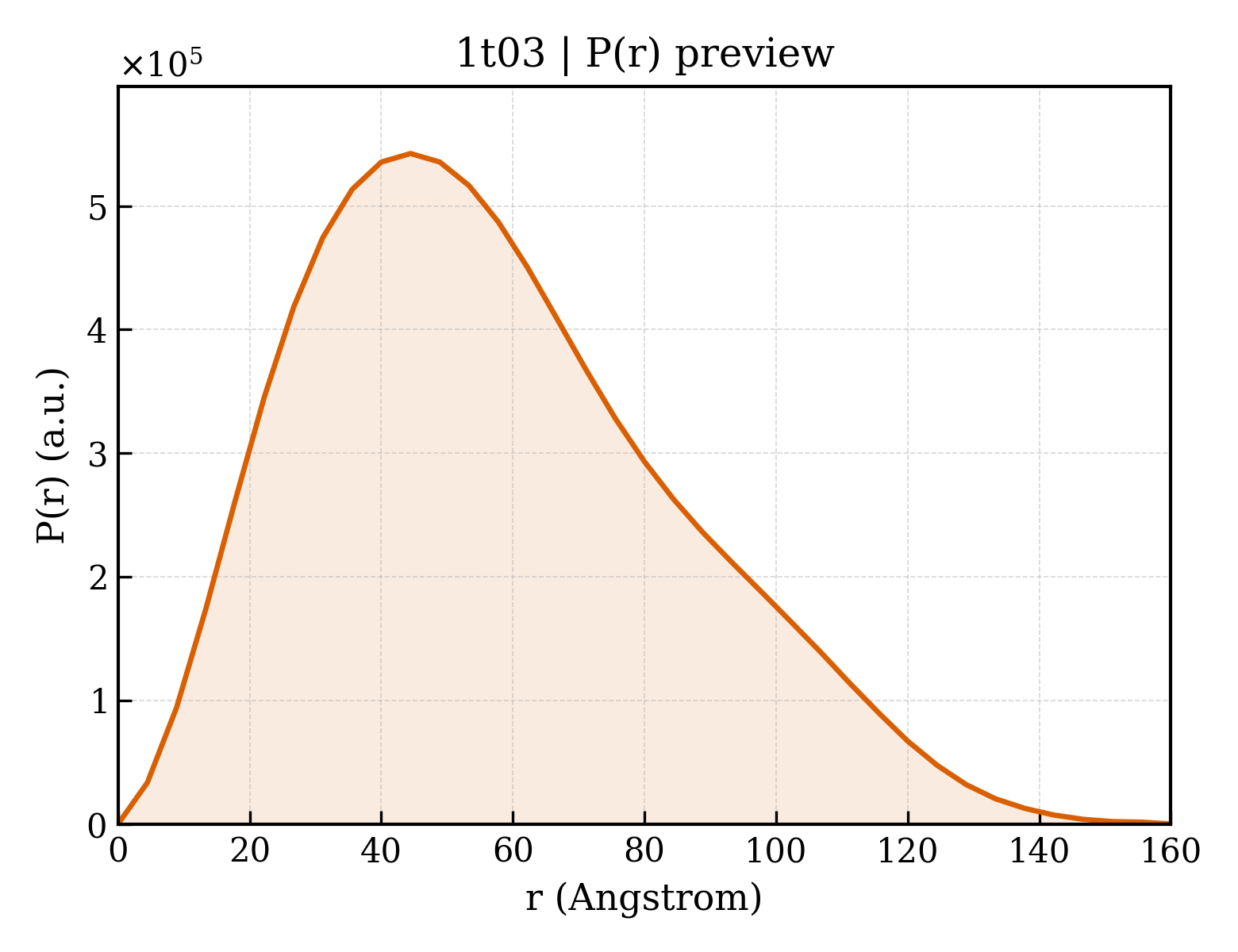

Method: X-RAY DIFFRACTION Dmax: 160.0 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

POL polyprotein

Human immunodeficiency virus 1

UniProt P03366

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 4 DNA 2 PDB declaration: hexameric（6） Consistent with all polymer counts Chain A； UniProt 168–725 Chain B； UniProt 168–596 Fragment：Reverse transcriptase, p66 subunit Mutation：Q258C, C280S Fragment：Reverse transcriptase, p51 subunit Mutation：C280S Synthetic oligonucleotide template × 1 Synthetic oligonucleotide primer × 1 monoclonal antibody light chain × 1 monoclonal antibody heavy chain × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；100 mM cacodylate, 33% ammonium sulfate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K Resolution 3.10 Å R-free 0.295

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1T03 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1AJV HIV-1 PROTEASE IN COMPLEX WITH THE CYCLIC SULFAMIDE INHIBITOR AHA006 Deposited 1997-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa）
Chain B 69–167（99 aa）
Not recorded NMB 2,7-DIBENZYL-1,1-DIOXO-3,6-BIS-PHENOXYMETHYL-[1,2,7]THIADIAZEPANE-4,5-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；277 K；CRYSTALLIZATION WAS PERFORMED BY VAPOR DIFFUSION. PROTEASE (2 MG/ML) AND INHIBITOR (40 MM IN DMSO) WAS MIXED IN A RATIO OF 1:1 AND SUBJECTED TO COCRYSTALLIZATION. DROPS CONSISTING OF 5 MICROLITERS OF THE PROTEASE-INHIBITOR MIXTURE PLUS 5 MICROLITERS OF THE CRYSTALLIZATION BUFFER (50 MM MES PH 5.5, 0.4 M NACL AND 0.02% (W/V) NAN3) WERE EQUILIBRATED AGAINST THE SAME BUFFER AT 4 DEGREES C., vapor diffusion, temperature 277K
Resolution 2.00 Å R-free 0.247
1AJX HIV-1 PROTEASE IN COMPLEX WITH THE CYCLIC UREA INHIBITOR AHA001 Deposited 1997-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa）
Chain B 69–167（99 aa）
Not recorded AH1 AHA001 × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；277 K；CRYSTALLIZATION WAS PERFORMED BY VAPOR DIFFUSION. PROTEASE (2 MG/ML) AND INHIBITOR (40 MM IN DMSO) WAS MIXED IN A RATIO OF 1:1 AND SUBJECTED TO COCRYSTALLIZATION. DROPS CONSISTING OF 5 MICROLITERS OF THE PROTEASE-INHIBITOR MIXTURE PLUS 5 MICROLITERS OF THE CRYSTALLIZATION BUFFER (50 MM MES PH 5.5, 0.4 M NACL AND 0.02% (W/V) NAN3) WERE EQUILIBRATED AGAINST THE SAME BUFFER AT 4 DEGREES C., vapor diffusion, temperature 277K
Resolution 2.00 Å R-free 0.237
1AXA ACTIVE-SITE MOBILITY IN HUMAN IMMUNODEFICIENCY VIRUS TYPE 1 PROTEASE AS DEMONSTRATED BY CRYSTAL STRUCTURE OF A28S MUTANT Deposited 1997-10-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa）
Chain B 69–167（99 aa）
Mutation：A28S Mutation：A28S U0E N-[[1-[N-ACETAMIDYL]-[1-CYCLOHEXYLMETHYL-2-HYDROXY-4-ISOPROPYL]-BUT-4-YL]-CARBONYL]-GLUTAMINYL-ARGINYL-AMIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；pH 6.8
Resolution 2.00 Å
1BQM HIV-1 RT/HBY 097 Deposited 1998-08-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 599–1154（556 aa）
Chain B 599–1028（430 aa）
Mutation：C280S Mutation：C280S HBY (S)-4-ISOPROPOXYCARBONYL-6-METHOXY-3-METHYLTHIOMETHYL-3,4-DIHYDROQUINOXALIN-2(1H)-THIONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；pH 6.8
Resolution 3.10 Å R-free 0.362
1BQN TYR 188 LEU HIV-1 RT/HBY 097 Deposited 1998-08-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 599–1156（558 aa）
Chain B 599–1028（430 aa）
Mutation：Y188L, C280S Mutation：Y188L, C280S HBY (S)-4-ISOPROPOXYCARBONYL-6-METHOXY-3-METHYLTHIOMETHYL-3,4-DIHYDROQUINOXALIN-2(1H)-THIONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；pH 6.8
Resolution 3.30 Å R-free 0.362
1D4H HIV-1 Protease in complex with the inhibitor BEA435 Deposited 1999-10-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa）
Chain B 69–167（99 aa）
Not recorded BEH 2,5-DIBENZYLOXY-3,4-DIHYDROXY-HEXANEDIOIC ACID BENZYLAMIDE (2-HYDROXY-INDAN-1-YL)-AMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；sodium chloride, MES, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.81 Å R-free 0.231
1D4I HIV-1 protease in complex with the inhibitor BEA425 Deposited 1999-10-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa）
Chain B 69–167（99 aa）
Not recorded BEG 2,5-DIBENZYLOXY-3-HYDROXY-HEXANEDIOIC ACID BIS-[(2-HYDROXY-INDAN-1-YL)-AMIDE] × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；sodium chloride, MES, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.81 Å R-free 0.228
1D4J HIV-1 protease in complex with the inhibitor MSL370 Deposited 1999-10-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa）
Chain B 69–167（99 aa）
Not recorded MSC 2,5-DIBENZYLOXY-3,4-DIHYDROXY-HEXANEDIOIC ACID 2-CHLORO-6-FLUORO-BENZYLAMIDE (2-HYDROXY-INDAN-1- YL)-AMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；sodium chloride, MES, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.81 Å R-free 0.229
1DLO HUMAN IMMUNODEFICIENCY VIRUS TYPE 1 Deposited 1996-04-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 599–1154（556 aa）
Chain B 599–1025（427 aa）
Mutation：C280S Mutation：C280S No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.70 Å R-free 0.336
1DW6 Structural and kinetic analysis of drug resistant mutants of HIV-1 protease Deposited 2000-01-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 501–599（99 aa）
Chain D 501–599（99 aa）
Mutation：Q7K, L33I, L63I, C67A, L90M, C95A Mutation：Q7K, L33I, L63I, C67A, L90M, C95A 0Q4 N-[(2R)-2-({N~5~-[amino(iminio)methyl]-L-ornithyl-L-valyl}amino)-4-methylpentyl]-L-phenylalanyl-L-alpha-glutamyl-L-alanyl-L-norleucinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；CITRATE/PHOSPHATE BUFFER 0.05M, DTT 10MM, DMSO 10%, SATURATED AMMONIUM SULPHAT25-50%, PROTEIN 2-5 MG/MLE , VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.88 Å R-free 0.249
1EBK Structural and kinetic analysis of drug resistant mutants of HIV-1 protease Deposited 2000-01-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 69–167（99 aa） Fragment：FRAGMENT 69-167
Chain D 69–167（99 aa） Fragment：FRAGMENT 69-167
Mutation：Q7K, R8Q, L33I, L63I, C67A, C95A Mutation：Q7K, R8Q, L33I, L63I, C67A, C95A 0Q4 N-[(2R)-2-({N~5~-[amino(iminio)methyl]-L-ornithyl-L-valyl}amino)-4-methylpentyl]-L-phenylalanyl-L-alpha-glutamyl-L-alanyl-L-norleucinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；CITRATE/PHOSPHATE BUFFER 0.05M, DTT 10MM, DMSO 10%, SATURATED AMMONIUM SULPHATE (25-50%), PROTEIN 2-5 MG/ML, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.06 Å R-free 0.306
1EBK Structural and kinetic analysis of drug resistant mutants of HIV-1 protease Deposited 2000-01-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain E 69–167（99 aa） Fragment：FRAGMENT 69-167
Chain F 69–167（99 aa） Fragment：FRAGMENT 69-167
Mutation：Q7K, R8Q, L33I, L63I, C67A, C95A Mutation：Q7K, R8Q, L33I, L63I, C67A, C95A 0Q4 N-[(2R)-2-({N~5~-[amino(iminio)methyl]-L-ornithyl-L-valyl}amino)-4-methylpentyl]-L-phenylalanyl-L-alpha-glutamyl-L-alanyl-L-norleucinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；CITRATE/PHOSPHATE BUFFER 0.05M, DTT 10MM, DMSO 10%, SATURATED AMMONIUM SULPHATE (25-50%), PROTEIN 2-5 MG/ML, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.06 Å R-free 0.306
1EBW HIV-1 protease in complex with the inhibitor BEA322 Deposited 2000-01-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa） Fragment：FRAGMENT 69-167
Chain B 69–167（99 aa） Fragment：FRAGMENT 69-167
Not recorded BEI N,N-[2,5-O-[DIBENZYL]-GLUCARYL]-DI-[ISOLEUCYL-AMIDO-METHANE] × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；0.4 M Sodium chloride, 0.05 M MES, 0.02 % (W/V) sodium azide, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.81 Å R-free 0.219
1EBY HIV-1 protease in complex with the inhibitor BEA369 Deposited 2000-01-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa） Fragment：FRAGMENT 69-167
Chain B 69–167（99 aa） Fragment：FRAGMENT 69-167
Not recorded BEB N,N-[2,5-O-DIBENZYL-GLUCARYL]-DI-[1-AMINO-INDAN-2-OL] × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；0.4 M Sodium chloride, 0.05 M MES, 0.02 % (W/V) sodium azide, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.29 Å R-free 0.205
1EBZ HIV-1 protease in complex with the inhibitor BEA388 Deposited 2000-01-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa） Fragment：FRAGMENT 69-167
Chain B 69–167（99 aa） Fragment：FRAGMENT 69-167
Not recorded BEC [5-(2-HYDROXY-INDAN-1-YLCARBAMOYL)-3,4-DIHYDROXY-2,5-[DIBENZYL-OXY]-PENTANOYL]-VALINYL-AMIDO-METHANE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；0.4 M Sodium chloride, 0.05 M MES, 0.02 % (W/V) sodium azide, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.01 Å R-free 0.208
1EC0 HIV-1 protease in complex with the inhibitor bea403 Deposited 2000-01-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa） Fragment：FRAGMENT 69-167
Chain B 69–167（99 aa） Fragment：FRAGMENT 69-167
Not recorded BED N,N-[2,5-O-DI-2-FLUORO-BENZYL-GLUCARYL]-DI-[1-AMINO-INDAN-2-OL] × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；0.4 M Sodium chloride, 0.05 M MES, 0.02 % (W/V) sodium azide, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.79 Å R-free 0.222
1EC1 HIV-1 protease in complex with the inhibitor BEA409 Deposited 2000-01-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa） Fragment：FRAGMENT 69-167
Chain B 69–167（99 aa） Fragment：FRAGMENT 69-167
Not recorded BEE N,N-[2,5-O-[DI-4-THIOPHEN-3-YL-BENZYL]-GLUCARYL]-DI-[VALYL-AMIDO-METHANE] × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；0.4 M Sodium chloride, 0.05 M MES, 0.02 % (W/V) sodium azide, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.10 Å R-free 0.236
1EC2 HIV-1 protease in complex with the inhibitor BEA428 Deposited 2000-01-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa） Fragment：FRAGMENT 69-167
Chain B 69–167（99 aa） Fragment：FRAGMENT 69-167
Not recorded BEJ N,N-[2,5-O-[DI-4-PYRIDIN-3-YL-BENZYL]-GLUCARYL]-DI-[VALYL-AMIDO-METHANE] × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；0.4 M Sodium chloride, 0.05 M MES, 0.02 % (W/V) sodium azide, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.00 Å R-free 0.245
1EC3 HIV-1 protease in complex with the inhibitor MSA367 Deposited 2000-01-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa） Fragment：FRAGMENT 69-167
Chain B 69–167（99 aa） Fragment：FRAGMENT 69-167
Not recorded MS3 N,N-[2,5-O-DIBENZYL-GLUCARYL]-DI-[VALINYL-AMINOMETHANYL-PYRIDINE] × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；0.4 M Sodium chloride, 0.05 M MES, 0.02% (W/V) sodium azide, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.80 Å R-free 0.260
1EET HIV-1 REVERSE TRANSCRIPTASE IN COMPLEX WITH THE INHIBITOR MSC204 Deposited 2000-02-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 599–1155（557 aa） Fragment：RESIDUES 1-557
Chain B 599–1025（427 aa） Fragment：RESIDUES 1001-1427
Mutation：E478Q BFU 1-(5-BROMO-PYRIDIN-2-YL)-3-[2-(6-FLUORO-2-HYDROXY-3-PROPIONYL-PHENYL)-CYCLOPROPYL]-UREA × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；294 K；Ammonium Sulfate, Potassium chloride, HEPES, Magnesium Chloride , pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 2.73 Å R-free 0.271
1EET HIV-1 REVERSE TRANSCRIPTASE IN COMPLEX WITH THE INHIBITOR MSC204 Deposited 2000-02-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 599–1155（557 aa） Fragment：RESIDUES 1-557
Chain B 599–1025（427 aa） Fragment：RESIDUES 1001-1427
Mutation：E478Q BFU 1-(5-BROMO-PYRIDIN-2-YL)-3-[2-(6-FLUORO-2-HYDROXY-3-PROPIONYL-PHENYL)-CYCLOPROPYL]-UREA × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；294 K；Ammonium Sulfate, Potassium chloride, HEPES, Magnesium Chloride , pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 2.73 Å R-free 0.271
1HBV A CHECK ON RATIONAL DRUG DESIGN. CRYSTAL STRUCTURE OF A COMPLEX OF HIV-1 PROTEASE WITH A NOVEL GAMMA-TURN MIMETIC Deposited 1995-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa）
Chain B 69–167（99 aa）
Not recorded GAN 2-[3-BENZYL-5-(1-ALANYL-AMINOETHYL)-2,3,6,7-TETRAHYDRO-1H-AZEPIN-1-YL]-1-OXOPROPYL-VALINYL-VALINE-METHYLESTER × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.30 Å
1HEF The crystal structures at 2.2 angstroms resolution of hydroxyethylene-based inhibitors bound to human immunodeficiency virus type 1 protease show that the inhibitors are present in two distinct orientations Deposited 1992-09-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 69–167（99 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.20 Å
1HEG The crystal structures at 2.2 angstroms resolution of hydroxyethylene-based inhibitors bound to human immunodeficiency virus type 1 protease show that the inhibitors are present in two distinct orientations Deposited 1992-09-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain E 69–167（99 aa）
Not recorded PSI methyl N-{(4S,5S)-5-[(L-alanyl-L-alanyl)amino]-4-hydroxy-6-phenylhexanoyl}-L-valyl-L-valinate × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.20 Å
1HIH COMPARATIVE ANALYSIS OF THE X-RAY STRUCTURES OF HIV-1 AND HIV-2 PROTEASES IN COMPLEX WITH CGP 53820, A NOVEL PSEUDOSYMMETRIC INHIBITOR Deposited 1995-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa）
Chain B 69–167（99 aa）
Not recorded BME BETA-MERCAPTOETHANOL × 2 C20 ACETYL-NH-VAL-CYCLOHEXYL-CH2[NCH2CHOH]CH2-BENZYL-VAL-NH-ACETYL × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.20 Å
1HMV THE STRUCTURE OF UNLIGANDED REVERSE TRANSCRIPTASE FROM THE HUMAN IMMUNODEFICIENCY VIRUS TYPE 1 Deposited 1994-12-15 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 168–727（560 aa）
Chain B 168–607（440 aa）
Not recorded MG MAGNESIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.20 Å R-free 0.297
1HMV THE STRUCTURE OF UNLIGANDED REVERSE TRANSCRIPTASE FROM THE HUMAN IMMUNODEFICIENCY VIRUS TYPE 1 Deposited 1994-12-15 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 168–727（560 aa）
Chain D 168–607（440 aa）
Not recorded MG MAGNESIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.20 Å R-free 0.297
1HMV THE STRUCTURE OF UNLIGANDED REVERSE TRANSCRIPTASE FROM THE HUMAN IMMUNODEFICIENCY VIRUS TYPE 1 Deposited 1994-12-15 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain E 168–727（560 aa）
Chain F 168–607（440 aa）
Not recorded MG MAGNESIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.20 Å R-free 0.297
1HMV THE STRUCTURE OF UNLIGANDED REVERSE TRANSCRIPTASE FROM THE HUMAN IMMUNODEFICIENCY VIRUS TYPE 1 Deposited 1994-12-15 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain G 168–727（560 aa）
Chain H 168–607（440 aa）
Not recorded MG MAGNESIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.20 Å R-free 0.297
1HNI STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE IN A COMPLEX WITH THE NONNUCLEOSIDE INHIBITOR ALPHA-APA R 95845 AT 2.8 ANGSTROMS RESOLUTION Deposited 1995-02-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 599–1156（558 aa）
Not recorded AAA (2-ACETYL-5-METHYLANILINO)(2,6-DIBROMOPHENYL)ACETAMIDE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.80 Å
1HNV STRUCTURE OF HIV-1 RT(SLASH)TIBO R 86183 COMPLEX REVEALS SIMILARITY IN THE BINDING OF DIVERSE NONNUCLEOSIDE INHIBITORS Deposited 1995-03-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 599–1156（558 aa）
Chain B 599–1025（427 aa）
Not recorded TBO 5-CHLORO-8-METHYL-7-(3-METHYL-BUT-2-ENYL)-6,7,8,9-TETRAHYDRO-2H-2,7,9A-TRIAZA-BENZO[CD]AZULENE-1-THIONE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.00 Å R-free 0.356
1HOS INHIBITION OF HUMAN IMMUNODEFICIENCY VIRUS-1 PROTEASE BY A C2-SYMMETRIC PHOSPHINATE SYNTHESIS AND CRYSTALLOGRAPHIC ANALYSIS Deposited 1993-04-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa）
Chain B 69–167（99 aa）
Not recorded PHP (2-PHENYL-1-CARBOBENZYL-OXYVALYL-AMINO)-ETHYL-PHOSPHINIC ACID × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.30 Å
1HPS RATIONAL DESIGN, SYNTHESIS AND CRYSTALLOGRAPHIC ANALYSIS OF A HYDROXYETHYLENE-BASED HIV-1 PROTEASE INHIBITOR CONTAINING A HETEROCYCLIC P1'-P2' AMIDE BOND ISOSTERE Deposited 1994-05-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa）
Chain B 69–167（99 aa）
Not recorded RUN 2-[(1R,3S,4S)-1-BENZYL-4-[N-(BENZYLOXYCARBONYL)-L-VALYL]AMINO-3-PHENYLPENTYL]-4(5)-(2-METHYLPROPIONYL)IMIDAZOLE × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.30 Å
1HPZ HUMAN IMMUNODEFICIENCY VIRUS TYPE 1 Deposited 2000-12-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 599–1158（560 aa） Fragment：P66 SUBUNIT
Chain B 599–1028（430 aa） Fragment：P51 SUBUNIT
Mutation：K103N, C280S Mutation：K103N, C280S AAP ALPHA-(2,6-DICHLOROPHENYL)-ALPHA-(2-ACETYL-5-METHYLANILINO)ACETAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；Bis-Tris.propane, ammoniun sulfate, glycerol, PEG 8000, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.343
1HQE HUMAN IMMUNODEFICIENCY VIRUS TYPE 1 Deposited 2000-12-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 168–727（560 aa） Fragment：P66 SUBUNIT
Chain B 168–597（430 aa） Fragment：P51 SUBUNIT
Mutation：K103N, C280S Mutation：K103N, C280S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；Bis-Tris.propane, ammoniun sulfate, glycerol, PEG 8000, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.70 Å R-free 0.331
1HQU HUMAN IMMUNODEFICIENCY VIRUS TYPE 1 Deposited 2000-12-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 168–727（560 aa） Fragment：P66 SUBUNIT
Chain B 168–597（430 aa） Fragment：P51 SUBUNIT
Mutation：K103N, C280S Mutation：K103N, C280S HBY (S)-4-ISOPROPOXYCARBONYL-6-METHOXY-3-METHYLTHIOMETHYL-3,4-DIHYDROQUINOXALIN-2(1H)-THIONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；BIS-TRIS.PROPANE, AMMONIUN SULFATE, GLYCEROL, PEG 8000, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.70 Å R-free 0.345
1HRH CRYSTAL STRUCTURE OF THE RIBONUCLEASE H DOMAIN OF HIV-1 REVERSE TRANSCRIPTASE Deposited 1991-03-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 594–729（136 aa）
Chain B 594–729（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.40 Å
1HTE X-RAY CRYSTALLOGRAPHIC STUDIES OF A SERIES OF PENICILLIN-DERIVED ASYMMETRIC INHIBITORS OF HIV-1 PROTEASE Deposited 1994-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 69–167（99 aa）
Chain B 69–167（99 aa）
Not recorded G23 (2R,4S)-2-[(R)-BENZYLCARBAMOYL-PHENYLACETYL-METHYL]-5,5-DIMETHYL-THIAZOLIDINE-4-CARBOXYLIC ACID × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.80 Å
1HTF X-RAY CRYSTALLOGRAPHIC STUDIES OF A SERIES OF PENICILLIN-DERIVED ASYMMETRIC INHIBITORS OF HIV-1 PROTEASE Deposited 1994-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa）
Chain B 69–167（99 aa）
Not recorded G26 2-(BENZYLCARBAMOYL-PHENYLACETYLAMINO-METHYL)-5,5-DIMETHYL-THIAZOLIDINE-4-CARBOXYLIC ACID (HYDROXYMETHYL-2-PHENYLETHYL)AMIDE × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.20 Å
1HTG X-RAY CRYSTALLOGRAPHIC STUDIES OF A SERIES OF PENICILLIN-DERIVED ASYMMETRIC INHIBITORS OF HIV-1 PROTEASE Deposited 1994-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa）
Chain B 69–167（99 aa）
Not recorded G37 2-(BENZYLCARBAMOYL-PHENYLACETYLAMINO-METHYL)-5,5-DIMETHYL-THIAZOLIDINE-4-CARBOXYLIC ACID 3-[(1H-BENZIMIDAZOL-2-YLMETHYLCARBAMOYL)-1-BENZYL-2-HYDROXYPROPYL]-AMIDE × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.00 Å
1HVK INFLUENCE OF STEREOCHEMISTRY ON ACTIVITY AND BINDING MODES FOR C2 SYMMETRY-BASED DIOL INHIBITORS OF HIV-1 PROTEASE Deposited 1994-01-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa）
Chain B 69–167（99 aa）
Not recorded A79 N-{1-BENZYL-(2S,3S)-2,3-DIHYDROXY-4-[3-METHYL-2-(3-METHYL-3-PYRIDIN-2-YLMETHYL-UREIDO)-BUTYRYLAMINO]-5-PHENYL-PENTYL}-3-METHYL-2-(3-METHYL-3-PYRIDIN-2-YLMETHYL-UREIDO)-BUTYRAMIDE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.80 Å
1HVU HUMAN IMMUNODEFICIENCY VIRUS TYPE 1 REVERSE TRANSCRIPTASE COMPLEXED WITH A 33-BASE NUCLEOTIDE RNA PSEUDOKNOT Deposited 1998-06-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 599–1152（554 aa）
Chain B 603–1025（423 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 4.75 Å R-free 0.413
1HVU HUMAN IMMUNODEFICIENCY VIRUS TYPE 1 REVERSE TRANSCRIPTASE COMPLEXED WITH A 33-BASE NUCLEOTIDE RNA PSEUDOKNOT Deposited 1998-06-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain D 599–1152（554 aa）
Chain E 603–1025（423 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 4.75 Å R-free 0.413
1HVU HUMAN IMMUNODEFICIENCY VIRUS TYPE 1 REVERSE TRANSCRIPTASE COMPLEXED WITH A 33-BASE NUCLEOTIDE RNA PSEUDOKNOT Deposited 1998-06-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein–RNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain G 599–1152（554 aa）
Chain H 603–1025（423 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 4.75 Å R-free 0.413
1HVU HUMAN IMMUNODEFICIENCY VIRUS TYPE 1 REVERSE TRANSCRIPTASE COMPLEXED WITH A 33-BASE NUCLEOTIDE RNA PSEUDOKNOT Deposited 1998-06-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein–RNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain J 599–1152（554 aa）
Chain K 603–1025（423 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 4.75 Å R-free 0.413
1HYS CRYSTAL STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE IN COMPLEX WITH A POLYPURINE TRACT RNA:DNA Deposited 2001-01-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: hexameric
Chain A 168–720（553 aa） Fragment：P66
Chain B 168–592（425 aa） Fragment：P51
Mutation：C280S Mutation：C280S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；297 K；ammonium sulfate, cacodylate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 3.00 Å R-free 0.316
1IKV K103N Mutant HIV-1 Reverse Transcriptase in Complex with Efivarenz Deposited 2001-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 168–727（560 aa）
Chain B 168–594（427 aa）
Mutation：K103N, E478Q Mutation：K103N EFZ (-)-6-CHLORO-4-CYCLOPROPYLETHYNYL-4-TRIFLUOROMETHYL-1,4-DIHYDRO-2H-3,1-BENZOXAZIN-2-ONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；295 K；ammonium sulphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 3.00 Å R-free 0.294
1IKV K103N Mutant HIV-1 Reverse Transcriptase in Complex with Efivarenz Deposited 2001-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 168–727（560 aa）
Chain B 168–594（427 aa）
Mutation：K103N, E478Q Mutation：K103N EFZ (-)-6-CHLORO-4-CYCLOPROPYLETHYNYL-4-TRIFLUOROMETHYL-1,4-DIHYDRO-2H-3,1-BENZOXAZIN-2-ONE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；295 K；ammonium sulphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 3.00 Å R-free 0.294
1IKW Wild Type HIV-1 Reverse Transcriptase in Complex with Efavirenz Deposited 2001-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 168–727（560 aa）
Chain B 168–594（427 aa）
Mutation：E478Q EFZ (-)-6-CHLORO-4-CYCLOPROPYLETHYNYL-4-TRIFLUOROMETHYL-1,4-DIHYDRO-2H-3,1-BENZOXAZIN-2-ONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；295 K；ammonium sulphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 3.00 Å R-free 0.272
1IKW Wild Type HIV-1 Reverse Transcriptase in Complex with Efavirenz Deposited 2001-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 168–727（560 aa）
Chain B 168–594（427 aa）
Mutation：E478Q EFZ (-)-6-CHLORO-4-CYCLOPROPYLETHYNYL-4-TRIFLUOROMETHYL-1,4-DIHYDRO-2H-3,1-BENZOXAZIN-2-ONE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；295 K；ammonium sulphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 3.00 Å R-free 0.272
1IKX K103N Mutant HIV-1 Reverse Transcriptase in Complex with the Inhibitor PNU142721 Deposited 2001-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 168–727（560 aa）
Chain B 168–594（427 aa）
Mutation：K103N, E478Q Mutation：K1103N PNU 6-CHLORO-2-(1-FURO[2,3-C]PYRIDIN-5-YL-ETHYLSULFANYL)-PYRIMIDIN-4-YLAMINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；295 K；Ammonium sulphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.80 Å R-free 0.274
1IKX K103N Mutant HIV-1 Reverse Transcriptase in Complex with the Inhibitor PNU142721 Deposited 2001-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 168–727（560 aa）
Chain B 168–594（427 aa）
Mutation：K103N, E478Q Mutation：K1103N PNU 6-CHLORO-2-(1-FURO[2,3-C]PYRIDIN-5-YL-ETHYLSULFANYL)-PYRIMIDIN-4-YLAMINE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；295 K；Ammonium sulphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.80 Å R-free 0.274
1IKY HIV-1 Reverse Transcriptase in Complex with the Inhibitor MSC194 Deposited 2001-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 168–727（560 aa）
Chain B 168–594（427 aa）
Mutation：K103N, E478Q Mutation：K1103N MSD 1-[2-(3-ACETYL-2-HYDROXY-6-METHOXY-PHENYL)-CYCLOPROPYL]-3-(5-CYANO-PYRIDIN-2-YL)-THIOUREA × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；294 K；Ammonium Sulphate, Potassium chloride, HEPES, Magnesium Chloride, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.00 Å R-free 0.273
1IKY HIV-1 Reverse Transcriptase in Complex with the Inhibitor MSC194 Deposited 2001-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 168–727（560 aa）
Chain B 168–594（427 aa）
Mutation：K103N, E478Q Mutation：K1103N MSD 1-[2-(3-ACETYL-2-HYDROXY-6-METHOXY-PHENYL)-CYCLOPROPYL]-3-(5-CYANO-PYRIDIN-2-YL)-THIOUREA × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；294 K；Ammonium Sulphate, Potassium chloride, HEPES, Magnesium Chloride, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.00 Å R-free 0.273
1J5O CRYSTAL STRUCTURE OF MET184ILE MUTANT OF HIV-1 REVERSE TRANSCRIPTASE IN COMPLEX WITH DOUBLE STRANDED DNA TEMPLATE-PRIMER Deposited 2002-05-24 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain A 168–725（558 aa）
Chain B 168–597（430 aa）
Mutation：M184I,C280S Mutation：M184I,C280S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；30 % SATURATED AMMONIUM SULFATE, 100 MM CACODYLATE PH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.50 Å R-free 0.338
1MER HIV-1 MUTANT (I84V) PROTEASE COMPLEXED WITH DMP450 Deposited 1997-04-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 57–155（99 aa）
Chain B 57–155（99 aa）
Mutation：I84V Mutation：I84V DMQ [4-R-(-4-ALPHA,5-ALPHA,6-BETA,7-BETA)]-HEXAHYDRO-5,6-BIS(HYDROXY)-1,3-BIS([(3-AMINO)PHENYL]METHYL)-4,7-BIS(PHENYLMETHYL)-2H-1,3-DIAZEPINONE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.90 Å
1MES HIV-1 MUTANT (I84V) PROTEASE COMPLEXED WITH DMP323 Deposited 1997-04-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 57–155（99 aa）
Chain B 57–155（99 aa）
Mutation：I84V Mutation：I84V DMP [4-R-(-4-ALPHA,5-ALPHA,6-BETA,7-BETA)]-HEXAHYDRO-5,6-BIS(HYDROXY)-[1,3-BIS([4-HYDROXYMETHYL-PHENYL]METHYL)-4,7-BIS(PHEN YLMETHYL)]-2H-1,3-DIAZEPINONE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.90 Å
1MET HIV-1 MUTANT (V82F) PROTEASE COMPLEXED WITH DMP323 Deposited 1997-04-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 57–155（99 aa）
Chain B 57–155（99 aa）
Mutation：V82F Mutation：V82F DMP [4-R-(-4-ALPHA,5-ALPHA,6-BETA,7-BETA)]-HEXAHYDRO-5,6-BIS(HYDROXY)-[1,3-BIS([4-HYDROXYMETHYL-PHENYL]METHYL)-4,7-BIS(PHEN YLMETHYL)]-2H-1,3-DIAZEPINONE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.90 Å
1MEU HIV-1 MUTANT (V82F, I84V) PROTEASE COMPLEXED WITH DMP323 Deposited 1997-04-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 57–155（99 aa）
Chain B 57–155（99 aa）
Mutation：V82F, I84V Mutation：V82F, I84V DMP [4-R-(-4-ALPHA,5-ALPHA,6-BETA,7-BETA)]-HEXAHYDRO-5,6-BIS(HYDROXY)-[1,3-BIS([4-HYDROXYMETHYL-PHENYL]METHYL)-4,7-BIS(PHEN YLMETHYL)]-2H-1,3-DIAZEPINONE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.90 Å R-free 0.193
1N5Y HIV-1 Reverse Transcriptase Crosslinked to Post-Translocation AZTMP-Terminated DNA (Complex P) Deposited 2002-11-07 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain A 168–725（558 aa）
Chain B 168–597（430 aa）
Mutation：Q258C, C280S Mutation：C280S MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；cacodylate, SAS, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.10 Å R-free 0.285
1N6Q HIV-1 Reverse Transcriptase Crosslinked to pre-translocation AZTMP-terminated DNA (complex N) Deposited 2002-11-11 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain A 168–725（558 aa）
Chain B 168–597（430 aa）
Mutation：C280S, Q258C Mutation：C280C MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；ammonium sulfate, cacodylate , pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.284
1QE1 CRYSTAL STRUCTURE OF 3TC-RESISTANT M184I MUTANT OF HIV-1 REVERSE TRANSCRIPTASE Deposited 1999-07-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 168–725（558 aa） Fragment：SUBUNIT A (P66), RESIDUES 168-725
Chain B 168–594（427 aa） Fragment：SUBUNIT B (P51), RESIDUES 168-594
Mutation：M184I,C280S Mutation：M184I,C280S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；PEG 8000, GLYCEROL, BIS-TRIS, AMMONIUM SULFATE, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.85 Å R-free 0.346
1QMC C-terminal DNA-binding domain of HIV-1 integrase, NMR, 42 structures Deposited 1999-09-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 947–997（51 aa） Fragment：C-TERMINAL DNA-BINDING DOMAIN
Chain B 947–997（51 aa） Fragment：C-TERMINAL DNA-BINDING DOMAIN
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 4.7；298 K
Resolution not provided
1R0A Crystal structure of HIV-1 reverse transcriptase covalently tethered to DNA template-primer solved to 2.8 angstroms Deposited 2003-09-19 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain A 168–725（558 aa） Fragment：HIV-1 RT
Chain B 168–596（429 aa） Fragment：HIV-1 RT
Not recorded GOL GLYCEROL × 2 MG MAGNESIUM ION × 1 GLC alpha-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；100 mM cacodylatic acid pH, 5.6; 33% ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.272
1RDH CRYSTALLOGRAPHIC ANALYSES OF AN ACTIVE HIV-1 RIBONUCLEASE H DOMAIN SHOW STRUCTURAL FEATURES THAT DISTINGUISH IT FROM THE INACTIVE FORM Deposited 1993-03-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 594–727（134 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.80 Å
1RDH CRYSTALLOGRAPHIC ANALYSES OF AN ACTIVE HIV-1 RIBONUCLEASE H DOMAIN SHOW STRUCTURAL FEATURES THAT DISTINGUISH IT FROM THE INACTIVE FORM Deposited 1993-03-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 594–727（134 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.80 Å
1RTD STRUCTURE OF A CATALYTIC COMPLEX OF HIV-1 REVERSE TRANSCRIPTASE: IMPLICATIONS FOR NUCLEOSIDE ANALOG DRUG RESISTANCE Deposited 1998-08-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain A 168–721（554 aa） Fragment：P61
Mutation：P1K, Q258C, E478Q MG MAGNESIUM ION × 4 TTP THYMIDINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；pH 6.5
Resolution 3.20 Å R-free 0.298
1RTD STRUCTURE OF A CATALYTIC COMPLEX OF HIV-1 REVERSE TRANSCRIPTASE: IMPLICATIONS FOR NUCLEOSIDE ANALOG DRUG RESISTANCE Deposited 1998-08-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain C 168–721（554 aa） Fragment：P61
Mutation：P1K, Q258C, E478Q MG MAGNESIUM ION × 2 TTP THYMIDINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；pH 6.5
Resolution 3.20 Å R-free 0.298
1S6P CRYSTAL STRUCTURE OF HUMAN IMMUNODEFICIENCY VIRUS TYPE 1 REVERSE TRANSCRIPTASE (RT) IN COMPLEX WITH JANSSEN-R100943 Deposited 2004-01-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 168–727（560 aa） Fragment：P66 SUBUNIT
Chain B 168–597（430 aa） Fragment：P51 SUBUNIT
Mutation：YES Mutation：YES MG MAGNESIUM ION × 1 IET 1-(4-CYANO-PHENYL)-3-[2-(2,6-DICHLORO-PHENYL)-1-IMINO-ETHYL]-THIOUREA × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；pH 6.80
Resolution 2.90 Å R-free 0.312
1S6Q CRYSTAL STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) IN COMPLEX WITH JANSSEN-R147681 Deposited 2004-01-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 168–727（560 aa） Fragment：P66 SUBUNIT
Chain B 168–597（430 aa） Fragment：P51 SUBUNIT
Mutation：YES Mutation：YES TPB 4-[4-(2,4,6-TRIMETHYL-PHENYLAMINO)-PYRIMIDIN-2-YLAMINO]-BENZONITRILE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；pH 6.80
Resolution 3.00 Å R-free 0.294
1S9E CRYSTAL STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) IN COMPLEX WITH JANSSEN-R129385 Deposited 2004-02-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 168–727（560 aa） Fragment：P66 SUBUNIT
Chain B 168–597（430 aa） Fragment：P51 SUBUNIT
Mutation：YES Mutation：YES ADB 4-[4-AMINO-6-(2,6-DICHLORO-PHENOXY)-[1,3,5]TRIAZIN-2-YLAMINO]-BENZONITRILE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；300 K；PEG 8000, ammonium sulfate, glycerol, pH 6.80, VAPOR DIFFUSION, HANGING DROP, temperature 300K
Resolution 2.60 Å R-free 0.316
1S9G CRYSTAL STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) IN COMPLEX WITH JANSSEN-R120394. Deposited 2004-02-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 168–727（560 aa） Fragment：P66 SUBUNIT
Chain B 168–597（430 aa） Fragment：P51 SUBUNIT
Mutation：YES Mutation：YES ABZ 4-[4-AMINO-6-(5-CHLORO-1H-INDOL-4-YLMETHYL)-[1,3,5]TRIAZIN-2-YLAMINO]-BENZONITRILE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；280 K；PEG 8000, Ammonium Sulfate, Glycerol, Tris, pH 6.80, VAPOR DIFFUSION, HANGING DROP, temperature 280K
Resolution 2.80 Å R-free 0.312
1SBG AN ORALLY-BIOAVAILABLE HIV-1 PROTEASE INHIBITOR CONTAINING AN IMIDAZOLE-DERIVED PEPTIDE BOND REPLACEMENT. CRYSTALLOGRAPHIC AND PHARMACOKINETIC ANALYSIS Deposited 1994-05-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 24–122（99 aa）
Chain B 24–122（99 aa）
Not recorded IM1 (2R,4S,5S,1'S)-2-PHENYLMETHYL-4-HYDROXY-5-(TERT-BUTOXYCARBONYL)AMINO-6-PHENYL HEXANOYL-N-(1'-IMIDAZO-2-YL)-2'-METHYLPROPANAMIDE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.30 Å
1SUQ CRYSTAL STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) IN COMPLEX WITH JANSSEN-R185545 Deposited 2004-03-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 168–727（560 aa） Fragment：P66 SUBUNIT
Chain B 168–597（430 aa） Fragment：P51 SUBUNIT
Mutation：L31V, C280S Mutation：C280S MG MAGNESIUM ION × 1 185 (6-[4-(AMINOMETHYL)-2,6-DIMETHYLPHENOXY]-2-{[4-(AMINOMETHYL)PHENYL]AMINO}-5-BROMOPYRIMIDIN-4-YL)METHANOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；pH 6.80
Resolution 3.00 Å R-free 0.325
1SV5 CRYSTAL STRUCTURE OF K103N MUTANT HIV-1 REVERSE TRANSCRIPTASE (RT) IN COMPLEX WITH JANSSEN-R165335 Deposited 2004-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 168–727（560 aa） Fragment：P66 SUBUNIT
Chain B 168–597（430 aa） Fragment：P51 SUBUNIT
Mutation：K103N,C280S Mutation：K103N,C280S 65B 4-({6-AMINO-5-BROMO-2-[(4-CYANOPHENYL)AMINO]PYRIMIDIN-4-YL}OXY)-3,5-DIMETHYLBENZONITRILE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；pH 6.80
Resolution 2.90 Å R-free 0.326
1T05 HIV-1 reverse transcriptase crosslinked to template-primer with tenofovir-diphosphate bound as the incoming nucleotide substrate Deposited 2004-04-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain A 168–725（558 aa） Fragment：HIV-1 reverse transcriptase p66 subunit
Mutation：Q258C, C280S MG MAGNESIUM ION × 2 TNV [2-(6-AMINO-9H-PURIN-9-YL)-1-METHYLETHOXY]METHYL-TRIPHOSPHATE × 1 GOL GLYCEROL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；277 K；50 mM MES, pH 6.4, 100 mM ammonium sulfate, 5% sucrose, 5% glycerol, 10% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.292
1TV6 HIV-1 Reverse Transcriptase Complexed with CP-94,707 Deposited 2004-06-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 168–727（560 aa）
Chain B 168–607（440 aa）
Not recorded CP9 3-[4-(2-METHYL-IMIDAZO[4,5-C]PYRIDIN-1-YL)BENZYL]-3H-BENZOTHIAZOL-2-ONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；50 mM bis-Tris-propane, 100 mM ammonium sulfate, 0.2% (w/v) beta-octylglucoside, 10% (v/v) glycerol, 14% (w/v) PEG-8000, pH 7.0
Resolution 2.80 Å R-free 0.312
1TVR HIV-1 RT/9-CL TIBO Deposited 1996-04-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 599–1156（558 aa）
Chain B 599–1025（427 aa）
Mutation：C280S Mutation：C280S TB9 4-CHLORO-8-METHYL-7-(3-METHYL-BUT-2-ENYL)-6,7,8,9-TETRAHYDRO-2H-2,7,9A-TRIAZA-BENZO[CD]AZULENE-1-THIONE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.00 Å
1UWB TYR 181 CYS HIV-1 RT/8-CL TIBO Deposited 1996-11-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 599–1156（558 aa）
Chain B 599–1025（427 aa）
Mutation：Y181C, C280S Mutation：Y181C, C280S TBO 5-CHLORO-8-METHYL-7-(3-METHYL-BUT-2-ENYL)-6,7,8,9-TETRAHYDRO-2H-2,7,9A-TRIAZA-BENZO[CD]AZULENE-1-THIONE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.20 Å R-free 0.360
1W5V HIV-1 protease in complex with fluoro substituted diol-based C2- symmetric inhibitor Deposited 2004-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 58–167（110 aa） Fragment：RESIDUES 58-167
Chain B 58–167（110 aa） Fragment：RESIDUES 58-167
Not recorded BE3 N,N-[2,5-O-DI-3-FLUORO-BENZYL-GLUCARYL]-DI-[1-AMINO-INDAN-2-OL] × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.80 Å R-free 0.215
1W5W HIV-1 protease in complex with fluoro substituted diol-based C2- symmetric inhibitor Deposited 2004-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 58–167（110 aa） Fragment：RESIDUES 58-167
Chain B 58–167（110 aa） Fragment：RESIDUES 58-167
Not recorded BE4 (2R,3R,4R,5R)-2,5-BIS[(2,4-DIFLUOROBENZYL)OXY]-3,4-DIHYDROXY-N,N'-BIS[(1R,2S)-2-HYDROXY-2,3-DIHYDRO-1H-INDEN-1-YL]HEXAN EDIAMIDE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.80 Å R-free 0.213
1W5X HIV-1 protease in complex with fluoro substituted diol-based C2- symmetric inhibitor Deposited 2004-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 58–167（110 aa） Fragment：RESIDUES 58-167
Chain B 58–167（110 aa） Fragment：RESIDUES 58-167
Not recorded BE5 (2R,3R,4R,5R)-2,5-BIS[(2,3-DIFLUOROBENZYL)OXY]-3,4-DIHYDROXY-N,N'-BIS[(1S,2R)-2-HYDROXY-2,3-DIHYDRO-1H-INDEN-1-YL]HEXAN EDIAMIDE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.90 Å R-free 0.216
1W5Y HIV-1 protease in complex with fluoro substituted diol-based C2- symmetric inhibitor Deposited 2004-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 58–167（110 aa） Fragment：RESIDUES 58-167
Chain B 58–167（110 aa） Fragment：RESIDUES 58-167
Not recorded BE6 (2R,3R,4R,5R)-2,5-BIS[(2,5-DIFLUOROBENZYL)OXY]-3,4-DIHYDROXY-N,N'-BIS[(1S,2R)-2-HYDROXY-2,3-DIHYDRO-1H-INDEN-1-YL]HEXANEDIAMIDE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.90 Å R-free 0.218
2AQU Structure of HIV-1 protease bound to atazanavir Deposited 2005-08-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa） Fragment：HIV-1 Protease, residues 69-167
Chain B 69–167（99 aa） Fragment：HIV-1 Protease, residues 69-167
Not recorded DR7 (3S,8S,9S,12S)-3,12-BIS(1,1-DIMETHYLETHYL)-8-HYDROXY-4,11-DIOXO-9-(PHENYLMETHYL)-6-[[4-(2-PYRIDINYL)PHENYL]METHYL]-2,5, 6,10,13-PENTAAZATETRADECANEDIOIC ACID DIMETHYL ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 6.5；298 K；0.17M Ammonium Sulfate, 0.085M Sodium Cacodylate, 25.5% PEG 8000, 15% v/v Glycerol anhydrous, pH 6.5, EVAPORATION, temperature 298 K
Resolution 2.00 Å R-free 0.238
2B5J Crystal structure of HIV-1 reverse transcriptase (RT) in complex with JANSSEN-R165481 Deposited 2005-09-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 599–1158（560 aa） Fragment：RESIDUES 599-1158
Chain B 599–1028（430 aa） Fragment：RESIDUES 599-1028
Mutation：C447S Mutation：C447S MN MANGANESE (II) ION × 1 3AC (2E)-3-{3-[(5-ETHYL-3-IODO-6-METHYL-2-OXO-1,2-DIHYDROPYRIDIN-4-YL)OXY]PHENYL}ACRYLONITRILE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.8；277 K；PEG8000, AMMINIUM SULPHATE, SODIUM CHLORIDE, Manganese Chloride, pH 6.8, VAPOR DIFFUSION, temperature 277K
Resolution 2.90 Å R-free 0.304
2B6A Crystal structure of HIV-1 reverse transcriptase (RT) in complex with THR-50 Deposited 2005-09-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 599–1158（560 aa） Fragment：RESIDUES 599-1158
Chain B 599–1028（430 aa） Fragment：RESIDUES 599-1028
Mutation：C280S Mutation：C280S T50 1-(2,6-DIFLUOROBENZYL)-2-(2,6-DIFLUOROPHENYL)-4-METHYL-1H-BENZIMIDAZOLE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.8；296 K；PEG8000, AMMINIUM SULPHATE, SODIUM CHLORIDE, pH 6.8, VAPOR DIFFUSION, temperature 296K
Resolution 2.65 Å R-free 0.277
2BAN Crystal structure of HIV-1 reverse transcriptase (RT) in complex with JANSSEN-R157208 Deposited 2005-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 599–1158（560 aa） Fragment：RESIDUES 599-1158
Chain B 599–1028（430 aa） Fragment：RESIDUES 599-1028
Mutation：C447S Mutation：C447S MN MANGANESE (II) ION × 1 357 5-ETHYL-3-[(2-METHOXYETHYL)METHYLAMINO]-6-METHYL-4-(3-METHYLBENZYL)PYRIDIN-2(1H)-ONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；PEG8000, AMMINIUM SULPHATE, SODIUM, CHLORID, MANGANESE CHLORIDE, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.95 Å R-free 0.305
2BE2 Crystal structure of HIV-1 reverse transcriptase (RT) in complex with R221239 Deposited 2005-10-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 599–1158（560 aa） Fragment：residues 599-1158
Chain B 599–1028（430 aa） Fragment：residues 599-1028
Mutation：C447S Mutation：C447S GOL GLYCEROL × 2 MN MANGANESE (II) ION × 1 R22 4-(3,5-DIMETHYLPHENOXY)-5-(FURAN-2-YLMETHYLSULFANYLMETHYL)-3-IODO-6-METHYLPYRIDIN-2(1H)-ONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；277 K；50mM bisTris Propane, 100mM Ammonium Sulfate, 12% PEG 8000, 10% Glycerol, pH 6.8, temperature 277K, VAPOR DIFFUSION, HANGING DROP, pH 6.80
Resolution 2.43 Å R-free 0.265
2HB3 Wild-type HIV-1 Protease in complex with potent inhibitor GRL06579 Deposited 2006-06-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 500–598（99 aa） Fragment：residues 500-598
Chain B 500–598（99 aa） Fragment：residues 500-598
Mutation：Q7K, L33I, L63I, C67A,C95A Mutation：Q7K, L33I, L63I, C67A,C95A CL CHLORIDE ION × 3 NA SODIUM ION × 2 GRL (3AS,5R,6AR)-HEXAHYDRO-2H-CYCLOPENTA[B]FURAN-5-YL (2S,3S)-3-HYDROXY-4-(4-(HYDROXYMETHYL)-N-ISOBUTYLPHENYLSULFONAMIDO)-1-PHENYLBUTAN-2-YLCARBAMATE × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；295 K；reservior contained 0.1M NaOAc buffer (pH=4.2) and 1.4M NaCl, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.35 Å R-free 0.192
2HMI HIV-1 REVERSE TRANSCRIPTASE/FRAGMENT OF FAB 28/DNA COMPLEX Deposited 1998-04-10 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain A 599–1156（558 aa）
Chain B 599–1028（430 aa）
Mutation：C280S Mutation：C280S No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.80 Å R-free 0.352
2I5J Crystal structure of HIV-1 reverse transcriptase (RT) in complex with DHBNH, an RNASE H inhibitor Deposited 2006-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 599–1150（552 aa） Fragment：residues 599-1150
Chain B 599–1027（429 aa） Fragment：residues 599-1027
Mutation：C280S Mutation：C280S GLC alpha-D-glucopyranose × 3 K05 (E)-3,4-DIHYDROXY-N'-[(2-METHOXYNAPHTHALEN-1-YL)METHYLENE]BENZOHYDRAZIDE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；277 K；50 mM Imidazole pH 6.4, 100 mM Ammonium Sulfate, 15 mM Magnesium Sulfate, 0.6 mM DHBNH, 4% Glucose, 10.5% PEG 8000, 2 mM NaN3, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.15 Å R-free 0.269
2IAJ Crystal Structure of K103N/Y181C Mutant HIV-1 Reverse Transcriptase (RT) in Complex with ATP Deposited 2006-09-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 599–1158（560 aa） Fragment：p66
Chain B 599–1045（447 aa） Fragment：p51
Mutation：K103N, Y181C, C280S Mutation：K103N, Y181C, C280S MN MANGANESE (II) ION × 3 NA SODIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；PEG 8000, Bis_Tris propane, ammonium sulfate, glycerol, MnCL2, ATP, VAPOR DIFFUSION, HANGING DROP, temperature 277K, pH 6.8
Resolution 2.50 Å R-free 0.284
2IC3 Crystal Structure of K103N/Y181C Mutant HIV-1 Reverse Transcriptase (RT) in Complex with Nonnucleoside Inhibitor HBY 097 Deposited 2006-09-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 599–1158（560 aa） Fragment：p66
Chain B 599–1045（447 aa） Fragment：p51
Mutation：C280S Mutation：C280S MN MANGANESE (II) ION × 1 HBY (S)-4-ISOPROPOXYCARBONYL-6-METHOXY-3-METHYLTHIOMETHYL-3,4-DIHYDROQUINOXALIN-2(1H)-THIONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；PEG 8000, BIS_TRIS PROPANE, AMMONIUM SULFATE, GLYCEROL, MNCL2, HBY 097, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.310
2UXZ Two-Carbon-Elongated HIV-1 Protease Inhibitors with a Tertiary- Alcohol-Containing Transition-State Mimic Deposited 2007-04-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：RESIDUES 501-599
Chain B 501–599（99 aa） Fragment：RESIDUES 501-599
Not recorded HI1 METHYL [(1S)-1-({2-[(4R)-4-BENZYL-4-HYDROXY-5-{[(1S,2R)-2-HYDROXY-2,3-DIHYDRO-1H-INDEN-1-YL]AMINO}-5-OXOPENTYL]-2-(4-BROMOBENZYL)HYDRAZINO}CARBONYL)-2,2-DIMETHYLPROPYL]CARBAMATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5；0.7 M NACL, 100 MM MES PH5.0
Resolution 1.75 Å R-free 0.213
2UY0 Two-Carbon-Elongated HIV-1 Protease Inhibitors with a Tertiary- Alcohol-Containing Transition-State Mimic Deposited 2007-04-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：RESIDUES 501-599
Chain B 501–599（99 aa） Fragment：RESIDUES 501-599
Not recorded HV1 METHYL [(1S)-1-({2-[(4R)-4-BENZYL-4-HYDROXY-5-{[(1S,2R)-2-HYDROXY-2,3-DIHYDRO-1H-INDEN-1-YL]AMINO}-5-OXOPENTANOYL]-2-(4-BROMOBENZYL)HYDRAZINO}CARBONYL)-2,2-DIMETHYLPROPYL]CARBAMATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5；0.7 M NACL, 100 MM MES PH 5.0
Resolution 1.76 Å R-free 0.220
2VG5 Crystal structures of HIV-1 reverse transcriptase complexes with thiocarbamate non-nucleoside inhibitors Deposited 2007-11-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1156（557 aa） Fragment：GAG-POL POLYPROTEIN P66 SUBUNIT, RESIDUES 600-1156
Chain B 600–1027（428 aa） Fragment：GAG-POL POLYPROTEIN P51 SUBUNIT, RESIDUES 600-1027
Not recorded NNC O-[2-(1,3-dioxo-1,3-dihydro-2H-isoindol-2-yl)ethyl] (4-chlorophenyl)thiocarbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.80 Å R-free 0.297
2VG6 Crystal structures of HIV-1 reverse transcriptase complexes with thiocarbamate non-nucleoside inhibitors Deposited 2007-11-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1156（557 aa） Fragment：GAG-POL POLYPROTEIN P66 SUBUNIT, RESIDUES 600-1156
Chain B 600–1027（428 aa） Fragment：GAG-POL POLYPROTEIN P51 SUBUNIT, RESIDUES 600-1027
Not recorded NNB O-[2-(1,3-dioxo-1,3-dihydro-2H-isoindol-2-yl)ethyl] (4-bromophenyl)thiocarbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.01 Å R-free 0.335
2VG7 Crystal structures of HIV-1 reverse transcriptase complexes with thiocarbamate non-nucleoside inhibitors Deposited 2007-11-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1156（557 aa） Fragment：GAG-POL POLYPROTEIN P66 SUBUNIT, RESIDUES 600-1156
Chain B 600–1027（428 aa） Fragment：GAG-POL POLYPROTEIN P51 SUBUNIT, RESIDUES 600-1027
Not recorded NNI O-[2-(1,3-dioxo-1,3-dihydro-2H-isoindol-2-yl)ethyl] (4-iodophenyl)thiocarbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.82 Å R-free 0.333
2WKZ HIV-1 Protease Inhibitors Containing a Tertiary Alcohol in the Transition-State Mimic with Improved Cell-Based Antiviral Activity Deposited 2009-06-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：RESIDUES 501-599
Chain B 501–599（99 aa） Fragment：RESIDUES 501-599
Not recorded 5AH METHYL [(1S)-1-({2-[(3S)-3-BENZYL-3-HYDROXY-4-{[(1S,2R)-2-HYDROXY-2,3-DIHYDRO-1H-INDEN-1-YL]AMINO}-4-OXOBUTYL]-2-(4-PYRIDIN-2-YLBENZYL)HYDRAZINO}CARBONYL)-2,2-DIMETHYLPROPYL]CARBAMATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5；PROTEASE 2 MG/ML PRECIPITANT 0.7 M NACL, 100 MM MES PH 5.5
Resolution 1.70 Å R-free 0.252
2WL0 HIV-1 Protease Inhibitors Containing a Tertiary Alcohol in the Transition-State Mimic with Improved Cell-Based Antiviral Activity Deposited 2009-06-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：RESIDUES 501-599
Chain B 501–599（99 aa） Fragment：RESIDUES 501-599
Mutation：YES Mutation：YES 5AH METHYL [(1S)-1-({2-[(3S)-3-BENZYL-3-HYDROXY-4-{[(1S,2R)-2-HYDROXY-2,3-DIHYDRO-1H-INDEN-1-YL]AMINO}-4-OXOBUTYL]-2-(4-PYRIDIN-2-YLBENZYL)HYDRAZINO}CARBONYL)-2,2-DIMETHYLPROPYL]CARBAMATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.5；2 MG/ML PROTEASE, 0.7 M NACL, 100 MM MES PH5.5
Resolution 1.90 Å R-free 0.244
2X4U Crystal structure of MHC CLass I HLA-A2.1 bound to HIV-1 Peptide RT468-476 Deposited 2010-02-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 908–916（9 aa） Fragment：REVERSE TRANSCRIPTASE, RESIDUES 908-916
Not recorded GOL GLYCEROL × 5 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 3 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；100 MM MES PH 5.5, 20% PEG 1500. CRYSTALS WERE FROZEN IN 100 MM MES, 30% PEG 1500, 10% GLYCEROL
Resolution 2.10 Å R-free 0.234
2X4U Crystal structure of MHC CLass I HLA-A2.1 bound to HIV-1 Peptide RT468-476 Deposited 2010-02-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 908–916（9 aa） Fragment：REVERSE TRANSCRIPTASE, RESIDUES 908-916
Not recorded GOL GLYCEROL × 4 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；100 MM MES PH 5.5, 20% PEG 1500. CRYSTALS WERE FROZEN IN 100 MM MES, 30% PEG 1500, 10% GLYCEROL
Resolution 2.10 Å R-free 0.234
2XYE HIV-1 Inhibitors with a Tertiary-Alcohol-containing Transition-State Mimic and various P2 and P1 prime Substituents Deposited 2010-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Mutation：YES Mutation：YES CXG METHYL N-[(2S)-1-[2-[(4R)-5-[[(2S)-3,3-DIMETHYL-1-METHYLAMINO-1-OXO-BUTAN-2-YL]AMINO]-4-HYDROXY-5-OXO-4-(PHENYLMETHYL)PENTYL]-2-[(4-PHENYLPHENYL)METHYL]HYDRAZINYL]-3,3-DIMETHYL-1-OXO-BUTAN-2-YL]CARBAMATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5；PROTEASE 2MG/ML. PRECIPITANT 0.7M NACL, 100MM MES PH5.5
Resolution 2.00 Å R-free 0.257
2XYF HIV-1 Inhibitors with a Tertiary-Alcohol-containing Transition-State Mimic and various P2 and P1 prime Substituents Deposited 2010-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Mutation：YES Mutation：YES G40 METHYL N-[(2S)-1-[2-[(4R)-5-[[(2S)-3,3-DIMETHYL-1-METHYLAMINO-1-OXO-BUTAN-2-YL]AMINO]-4-HYDROXY-5-OXO-4-(PHENYLMETHYL)PENTYL]-2-[(4-THIOPHEN-3-YLPHENYL)METHYL]HYDRAZINYL]-3,3-DIMETHYL-1-OXO-BUTAN-2-YL]CARBAMATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5；PROTEASE 2 MG/ML PRECIPITANT 0.7 M NACL, 100 MM MES PH 5.5
Resolution 1.80 Å R-free 0.250
2YKM Crystal structure of HIV-1 Reverse Transcriptase (RT) in complex with a Difluoromethylbenzoxazole (DFMB) Pyrimidine Thioether derivative, a non-nucleoside RT inhibitor (NNRTI) Deposited 2011-05-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1156（557 aa） Fragment：RESIDUES 600-1156
Chain B 600–1027（428 aa） Fragment：RESIDUES 600-1027
Mutation：YES YKN 2-[DIFLUORO-[(4-METHYL-PYRIMIDINYL)-THIO]METHYL]-BENZOXAZOLE × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.90 Å R-free 0.290
2YKN Crystal structure of HIV-1 Reverse Transcriptase (RT) in complex with a Difluoromethylbenzoxazole (DFMB) Pyrimidine Thioether derivative, a non-nucleoside RT inhibitor (NNRTI) Deposited 2011-05-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1156（557 aa） Fragment：RESIDUES 600-1156
Chain B 600–1027（428 aa） Fragment：RESIDUES 600-1027
Mutation：YES YKN 2-[DIFLUORO-[(4-METHYL-PYRIMIDINYL)-THIO]METHYL]-BENZOXAZOLE × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.12 Å R-free 0.279
2ZD1 Crystal Structure of HIV-1 Reverse Transcriptase (RT) in Complex with TMC278 (Rilpivirine), A Non-nucleoside RT Inhibitor Deposited 2007-11-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：P66
Chain B 600–1027（428 aa） Fragment：P51
Mutation：C280S, K172A, K173A Mutation：C280S SO4 SULFATE ION × 1 T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；PEG 8000, ammonium sulfate, MgCl2, imidazole, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.80 Å R-free 0.248
2ZE2 Crystal structure of L100I/K103N mutant HIV-1 reverse transcriptase (RT) in complex with TMC278 (rilpivirine), a non-nucleoside RT inhibitor Deposited 2007-12-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：P66
Chain B 600–1027（428 aa） Fragment：P51
Mutation：L100I, K103N, K172A, K173A, C280S Mutation：C280S T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；PEG 8000, AMMONIUM SULFATE, MGCL2, IMIDAZOLE, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.90 Å R-free 0.299
3BGR Crystal structure of K103N/Y181C mutant HIV-1 reverse transcriptase (RT) in complex with TMC278 (Rilpivirine), a non-nucleoside RT inhibitor Deposited 2007-11-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：P66
Chain B 600–1027（428 aa） Fragment：P51
Mutation：K103N, K172A, K173A, Y181C, C280S Mutation：C280S T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；PEG 8000, AMMONIUM SULFATE, MGCL2, IMIDAZOLE, pH 6.80, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.10 Å R-free 0.269
3DLK Crystal Structure of an engineered form of the HIV-1 Reverse Transcriptase, RT69A Deposited 2008-06-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 599–1153（555 aa） Fragment：p66 (UNP residues 599 to 1153)
Chain B 605–1027（423 aa） Fragment：p51 (UNP residues 605 to 1027)
Mutation：K172A, K173A, C258Q SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；279.15 K；vapor diffusion, temperature 279.15K
Resolution 1.85 Å R-free 0.250
3HVT STRUCTURAL BASIS OF ASYMMETRY IN THE HUMAN IMMUNODEFICIENCY VIRUS TYPE 1 REVERSE TRANSCRIPTASE HETERODIMER Deposited 1994-07-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 599–1154（556 aa）
Chain B 599–1026（428 aa）
Not recorded NVP 11-CYCLOPROPYL-5,11-DIHYDRO-4-METHYL-6H-DIPYRIDO[3,2-B:2',3'-E][1,4]DIAZEPIN-6-ONE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.90 Å
3IG1 HIV-1 Reverse Transcriptase with the Inhibitor beta-Thujaplicinol Bound at the RNase H Active Site Deposited 2009-07-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66 subunit, residues 600-1154
Chain B 600–1027（428 aa） Fragment：p51 subunit, residues 600-1027
Mutation：F759S, C879S Mutation：C879S JTH 2,7-dihydroxy-4-(propan-2-yl)cyclohepta-2,4,6-trien-1-one × 1 MN MANGANESE (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；277 K；50 mM Bicine pH 8.2, 45 mM Ammonium Sulfate, 15 mM Manganese Sulfate, 10 mM Spermine, 5 mM Taurine, 2% PEG 400, 10% PEG 8000 Combined with equal volume of: 10 mM Tris pH 8.0, 75 mM NaCl, 3.5% DMSO, 0.86 mM b-Thujaplicinol, 0.17 mM Reverse Transcriptase, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.255
3IRX Crystal Structure of HIV-1 reverse transcriptase (RT) in complex with the Non-nucleoside RT Inhibitor (E)-S-Methyl 5-(1-(3,7-Dimethyl-2-oxo-2,3-dihydrobenzo[d]oxazol-5-yl)-5-(5-methyl-1,3,4-oxadiazol-2-yl)pent-1-enyl)-2-methoxy-3-methylbenzothioate. Deposited 2009-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K771A, K772A Mutation：C879S UDR (E)-S-Methyl 5-(1-(3,7-Dimethyl-2-oxo-2,3-dihydrobenzo[d]oxazol-5-yl)-5-(5-methyl-1,3,4-oxadiazol-2-yl)pent-1-enyl)-2-methoxy-3-methy lbenzothioate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；277 K；50 mM immidazole pH 6.4, 10% PEG 8000, 100 mM ammonium sulfate, 10 mM spermine and 30 mM magnesium sulfate. , VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.289
3IS9 Crystal structure of the HIV-1 reverse transcriptase (RT) in complex with the alkenyldiarylmethane (ADAM) Non-nucleoside RT Inhibitor dimethyl 3,3'-(6-methoxy-6-oxohex-1-ene-1,1-diyl)bis(5-cyano-6-methoxybenzoate). Deposited 2009-08-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K771A, K772A Mutation：C879S AC7 dimethyl 3,3'-(6-methoxy-6-oxohex-1-ene-1,1-diyl)bis(5-cyano-6-methoxybenzoate) × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.4；277 K；11% PEG8000, 15 mM MgSO4, 10 mM Spermine, 100 mM Ammonium sulphate, 50 mM imidazole pH 6.4., temperature 277K
Resolution 2.55 Å R-free 0.282
3ISN Crystal structure of HIV-1 RT bound to A 6-vinylpyrimidine inhibitor Deposited 2009-08-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 600–1159（560 aa）
Chain D 600–1026（427 aa）
Not recorded EDM 6-ethenyl-N,N-dimethyl-2-(methylsulfonyl)pyrimidin-4-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；100mM Bis-Tris , 25% PEG 3350, 200mM ammonium sulfate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.50 Å R-free 0.281
3ITH Crystal structure of the HIV-1 reverse transcriptase bound to a 6-vinylpyrimidine inhibitor Deposited 2009-08-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1159（560 aa）
Chain B 600–1026（427 aa）
Not recorded EDM 6-ethenyl-N,N-dimethyl-2-(methylsulfonyl)pyrimidin-4-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；25% PEG 3350, 100mM Hepes, 200mM ammonium acetate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.80 Å R-free 0.270
3ITH Crystal structure of the HIV-1 reverse transcriptase bound to a 6-vinylpyrimidine inhibitor Deposited 2009-08-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 600–1159（560 aa）
Chain D 600–1026（427 aa）
Not recorded EDM 6-ethenyl-N,N-dimethyl-2-(methylsulfonyl)pyrimidin-4-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；25% PEG 3350, 100mM Hepes, 200mM ammonium acetate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.80 Å R-free 0.270
3JSM K65R mutant HIV-1 reverse transcriptase cross-linked to DS-DNA and complexed with tenofovir-diphosphate as the incoming nucleotide substrate Deposited 2009-09-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1157（558 aa）
Chain B 600–1028（429 aa）
Mutation：K65R, Q258C, C280S Mutation：C280S TNV [2-(6-AMINO-9H-PURIN-9-YL)-1-METHYLETHOXY]METHYL-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；277 K；10% PEG 8000, 100 MM AMMONIUM SULFATE, 20 MM MGCL2, 5% GLYCEROL, 5% SUCROSE, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.285
3JYT K65R mutant HIV-1 reverse transcriptase cross-linked to DS-DNA and complexed with DATP as the incoming nucleotide substrate Deposited 2009-09-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1157（558 aa）
Chain B 600–1028（429 aa）
Mutation：K65R, Q258C, C280S Mutation：C280S DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 SO4 SULFATE ION × 2 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；277 K；10% PEG 8000, 100 MM AMMONIUM SULFATE, 20 MM MGCL2, 5% GLYCEROL, 5% SUCROSE, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.30 Å R-free 0.287
3K2P HIV-1 Reverse Transcriptase Isolated RnaseH Domain with the Inhibitor beta-thujaplicinol Bound at the Active Site Deposited 2009-09-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1026–1159（134 aa）
Not recorded MN MANGANESE (II) ION × 2 JTH 2,7-dihydroxy-4-(propan-2-yl)cyclohepta-2,4,6-trien-1-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；295 K；0.2M Formate pH 7.0, 10% PEG 3350, 10mM MnCl2, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.04 Å R-free 0.241
3K2P HIV-1 Reverse Transcriptase Isolated RnaseH Domain with the Inhibitor beta-thujaplicinol Bound at the Active Site Deposited 2009-09-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1026–1159（134 aa）
Not recorded MN MANGANESE (II) ION × 2 JTH 2,7-dihydroxy-4-(propan-2-yl)cyclohepta-2,4,6-trien-1-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；295 K；0.2M Formate pH 7.0, 10% PEG 3350, 10mM MnCl2, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.04 Å R-free 0.241
3K2P HIV-1 Reverse Transcriptase Isolated RnaseH Domain with the Inhibitor beta-thujaplicinol Bound at the Active Site Deposited 2009-09-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1026–1159（134 aa）
Chain B 1026–1159（134 aa）
Not recorded MN MANGANESE (II) ION × 4 JTH 2,7-dihydroxy-4-(propan-2-yl)cyclohepta-2,4,6-trien-1-one × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；295 K；0.2M Formate pH 7.0, 10% PEG 3350, 10mM MnCl2, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.04 Å R-free 0.241
3K4V New crystal form of HIV-1 Protease/Saquinavir structure reveals carbamylation of N-terminal proline Deposited 2009-10-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Mutation：Q7K L33I L63I C67A C95A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：Q7K L33I L63I C67A C95A Non-standard monomer：Yes (specific site not provided by mmCIF) DMS DIMETHYL SULFOXIDE × 2 ROC (2S)-N-[(2S,3R)-4-[(2S,3S,4aS,8aS)-3-(tert-butylcarbamoyl)-3,4,4a,5,6,7,8,8a-octahydro-1H-isoquinolin-2-yl]-3-hydroxy-1 -phenyl-butan-2-yl]-2-(quinolin-2-ylcarbonylamino)butanediamide × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；AMMONIUM SULFATE, DMSO, SODIUM CITRATE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.39 Å R-free 0.227
3K4V New crystal form of HIV-1 Protease/Saquinavir structure reveals carbamylation of N-terminal proline Deposited 2009-10-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 501–599（99 aa）
Chain D 501–599（99 aa）
Mutation：Q7K L33I L63I C67A C95A Mutation：Q7K L33I L63I C67A C95A DMS DIMETHYL SULFOXIDE × 2 ROC (2S)-N-[(2S,3R)-4-[(2S,3S,4aS,8aS)-3-(tert-butylcarbamoyl)-3,4,4a,5,6,7,8,8a-octahydro-1H-isoquinolin-2-yl]-3-hydroxy-1 -phenyl-butan-2-yl]-2-(quinolin-2-ylcarbonylamino)butanediamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；AMMONIUM SULFATE, DMSO, SODIUM CITRATE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.39 Å R-free 0.227
3KLE Crystal structure of AZT-resistant HIV-1 Reverse Transcriptase crosslinked to a DSDNA with a bound excision product, AZTPPPPA Deposited 2009-11-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1159（560 aa）
Chain B 600–1027（428 aa）
Mutation：M41L, D67N, K70R, T215Y, K219Q, Q258C, C280S Mutation：C280S MG MAGNESIUM ION × 2 ZP4 [[[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-dihydroxy-oxolan-2-yl]methoxy-hydroxy-phosphoryl]oxy-hydroxy-phosphoryl]oxy-hydroxy-phosphoryl] [(2S,3S,5R)-3-azido-5-(5-methyl-2,4-dioxo-pyrimidin-1-yl)oxolan-2-yl]methyl hydrogen phosphate × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；50 MM BIS-TRIS PROPANE PH 6.8, 10-11% PEG8000, 0.3 M (NH4)2SO4, 5% GLYCEROL, 5% SUCROSE, 20 MM MGCL2, 5 MM SPERMIDINE, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277.0K
Resolution 3.20 Å R-free 0.308
3KLE Crystal structure of AZT-resistant HIV-1 Reverse Transcriptase crosslinked to a DSDNA with a bound excision product, AZTPPPPA Deposited 2009-11-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain E 600–1159（560 aa）
Chain F 600–1027（428 aa）
Mutation：M41L, D67N, K70R, T215Y, K219Q, Q258C, C280S Mutation：C280S MG MAGNESIUM ION × 2 ZP4 [[[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-dihydroxy-oxolan-2-yl]methoxy-hydroxy-phosphoryl]oxy-hydroxy-phosphoryl]oxy-hydroxy-phosphoryl] [(2S,3S,5R)-3-azido-5-(5-methyl-2,4-dioxo-pyrimidin-1-yl)oxolan-2-yl]methyl hydrogen phosphate × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；50 MM BIS-TRIS PROPANE PH 6.8, 10-11% PEG8000, 0.3 M (NH4)2SO4, 5% GLYCEROL, 5% SUCROSE, 20 MM MGCL2, 5 MM SPERMIDINE, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277.0K
Resolution 3.20 Å R-free 0.308
3KLE Crystal structure of AZT-resistant HIV-1 Reverse Transcriptase crosslinked to a DSDNA with a bound excision product, AZTPPPPA Deposited 2009-11-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain I 600–1159（560 aa）
Chain J 600–1027（428 aa）
Mutation：M41L, D67N, K70R, T215Y, K219Q, Q258C, C280S Mutation：C280S MG MAGNESIUM ION × 2 ZP4 [[[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-dihydroxy-oxolan-2-yl]methoxy-hydroxy-phosphoryl]oxy-hydroxy-phosphoryl]oxy-hydroxy-phosphoryl] [(2S,3S,5R)-3-azido-5-(5-methyl-2,4-dioxo-pyrimidin-1-yl)oxolan-2-yl]methyl hydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；50 MM BIS-TRIS PROPANE PH 6.8, 10-11% PEG8000, 0.3 M (NH4)2SO4, 5% GLYCEROL, 5% SUCROSE, 20 MM MGCL2, 5 MM SPERMIDINE, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277.0K
Resolution 3.20 Å R-free 0.308
3KLE Crystal structure of AZT-resistant HIV-1 Reverse Transcriptase crosslinked to a DSDNA with a bound excision product, AZTPPPPA Deposited 2009-11-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain M 600–1159（560 aa）
Chain N 600–1027（428 aa）
Mutation：M41L, D67N, K70R, T215Y, K219Q, Q258C, C280S Mutation：C280S MG MAGNESIUM ION × 2 ZP4 [[[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-dihydroxy-oxolan-2-yl]methoxy-hydroxy-phosphoryl]oxy-hydroxy-phosphoryl]oxy-hydroxy-phosphoryl] [(2S,3S,5R)-3-azido-5-(5-methyl-2,4-dioxo-pyrimidin-1-yl)oxolan-2-yl]methyl hydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；50 MM BIS-TRIS PROPANE PH 6.8, 10-11% PEG8000, 0.3 M (NH4)2SO4, 5% GLYCEROL, 5% SUCROSE, 20 MM MGCL2, 5 MM SPERMIDINE, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277.0K
Resolution 3.20 Å R-free 0.308
3KLF Crystal structure of wild-type HIV-1 Reverse Transcriptase crosslinked to a DSDNA with a bound excision product, AZTPPPPA Deposited 2009-11-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, Q258C Mutation：C280S MG MAGNESIUM ION × 2 ZP4 [[[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-dihydroxy-oxolan-2-yl]methoxy-hydroxy-phosphoryl]oxy-hydroxy-phosphoryl]oxy-hydroxy-phosphoryl] [(2S,3S,5R)-3-azido-5-(5-methyl-2,4-dioxo-pyrimidin-1-yl)oxolan-2-yl]methyl hydrogen phosphate × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；50 MM BIS-TRIS PROPANE PH6.4, 10-11% PEG8000, 0.3 M (NH4)2SO4, 5% GLYCEROL, 5% SUCROSE, 20 MM MGCL2, AND 5 MM SPERMIDINE, PH 6.8, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277.0K
Resolution 3.15 Å R-free 0.288
3KLF Crystal structure of wild-type HIV-1 Reverse Transcriptase crosslinked to a DSDNA with a bound excision product, AZTPPPPA Deposited 2009-11-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain E 600–1154（555 aa）
Chain F 600–1027（428 aa）
Mutation：C280S, Q258C Mutation：C280S MG MAGNESIUM ION × 2 ZP4 [[[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-dihydroxy-oxolan-2-yl]methoxy-hydroxy-phosphoryl]oxy-hydroxy-phosphoryl]oxy-hydroxy-phosphoryl] [(2S,3S,5R)-3-azido-5-(5-methyl-2,4-dioxo-pyrimidin-1-yl)oxolan-2-yl]methyl hydrogen phosphate × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；50 MM BIS-TRIS PROPANE PH6.4, 10-11% PEG8000, 0.3 M (NH4)2SO4, 5% GLYCEROL, 5% SUCROSE, 20 MM MGCL2, AND 5 MM SPERMIDINE, PH 6.8, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277.0K
Resolution 3.15 Å R-free 0.288
3KLF Crystal structure of wild-type HIV-1 Reverse Transcriptase crosslinked to a DSDNA with a bound excision product, AZTPPPPA Deposited 2009-11-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain I 600–1154（555 aa）
Chain J 600–1027（428 aa）
Mutation：C280S, Q258C Mutation：C280S MG MAGNESIUM ION × 2 ZP4 [[[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-dihydroxy-oxolan-2-yl]methoxy-hydroxy-phosphoryl]oxy-hydroxy-phosphoryl]oxy-hydroxy-phosphoryl] [(2S,3S,5R)-3-azido-5-(5-methyl-2,4-dioxo-pyrimidin-1-yl)oxolan-2-yl]methyl hydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；50 MM BIS-TRIS PROPANE PH6.4, 10-11% PEG8000, 0.3 M (NH4)2SO4, 5% GLYCEROL, 5% SUCROSE, 20 MM MGCL2, AND 5 MM SPERMIDINE, PH 6.8, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277.0K
Resolution 3.15 Å R-free 0.288
3KLF Crystal structure of wild-type HIV-1 Reverse Transcriptase crosslinked to a DSDNA with a bound excision product, AZTPPPPA Deposited 2009-11-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain M 600–1154（555 aa）
Chain N 600–1027（428 aa）
Mutation：C280S, Q258C Mutation：C280S MG MAGNESIUM ION × 2 ZP4 [[[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-dihydroxy-oxolan-2-yl]methoxy-hydroxy-phosphoryl]oxy-hydroxy-phosphoryl]oxy-hydroxy-phosphoryl] [(2S,3S,5R)-3-azido-5-(5-methyl-2,4-dioxo-pyrimidin-1-yl)oxolan-2-yl]methyl hydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；50 MM BIS-TRIS PROPANE PH6.4, 10-11% PEG8000, 0.3 M (NH4)2SO4, 5% GLYCEROL, 5% SUCROSE, 20 MM MGCL2, AND 5 MM SPERMIDINE, PH 6.8, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277.0K
Resolution 3.15 Å R-free 0.288
3KLG Crystal structure of AZT-resistant HIV-1 Reverse Transcriptase crosslinked to pre-translocation AZTMP-Terminated DNA (COMPLEX N) Deposited 2009-11-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1159（560 aa）
Chain B 600–1027（428 aa）
Mutation：M41L, D67N, K70R, T215Y, K219Q, Q258C, C280S Mutation：C280S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.4；50 MM BIS-TRIS PROPANE PH 5.6, 10% PEG8000, 0.3 M (NH4)2SO4, 5% GLYCEROL, 5% SUCROSE, 20 MM MGCL2, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277.0K
Resolution 3.65 Å R-free 0.350
3KLG Crystal structure of AZT-resistant HIV-1 Reverse Transcriptase crosslinked to pre-translocation AZTMP-Terminated DNA (COMPLEX N) Deposited 2009-11-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain E 600–1159（560 aa）
Chain F 600–1027（428 aa）
Mutation：M41L, D67N, K70R, T215Y, K219Q, Q258C, C280S Mutation：C280S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.4；50 MM BIS-TRIS PROPANE PH 5.6, 10% PEG8000, 0.3 M (NH4)2SO4, 5% GLYCEROL, 5% SUCROSE, 20 MM MGCL2, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277.0K
Resolution 3.65 Å R-free 0.350
3KLH Crystal structure of AZT-Resistant HIV-1 Reverse Transcriptase crosslinked to post-translocation AZTMP-Terminated DNA (COMPLEX P) Deposited 2009-11-07 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain A 600–1161（562 aa）
Chain B 600–1027（428 aa）
Mutation：M41L, D67N, K70R, T215Y, K219Q, C280S, Q258C Mutation：C280S MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；100 MM CACODYLATE PH 6.0, 31-34% SATURATED AMMONIUM SULFATE, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277.0K
Resolution 2.90 Å R-free 0.294
3KLI Crystal structure of unliganded AZT-resistant HIV-1 Reverse Transcriptase Deposited 2009-11-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1159（560 aa）
Chain B 600–1027（428 aa）
Mutation：M41L, D67N, K70R, T215Y, K219Q, Q258C, C280S Mutation：C280S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；50 MM BIS-TRIS PROPANE, 10% PEG8000, 0.3 M (NH4)2SO4, 5% GLYCEROL, 5% SUCROSE, 20 MM MGCL2, PH 6.8, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277.0K
Resolution 2.65 Å R-free 0.294
3NDT HIV-1 Protease Saquinavir:Ritonavir 1:1 complex structure Deposited 2010-06-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–99（99 aa）
Chain B 1–99（99 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) ROC (2S)-N-[(2S,3R)-4-[(2S,3S,4aS,8aS)-3-(tert-butylcarbamoyl)-3,4,4a,5,6,7,8,8a-octahydro-1H-isoquinolin-2-yl]-3-hydroxy-1 -phenyl-butan-2-yl]-2-(quinolin-2-ylcarbonylamino)butanediamide × 1 CL CHLORIDE ION × 6 DMS DIMETHYL SULFOXIDE × 2 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；AMMONIUM SULFATE, DMSO, SODIUM CITRATE, pH 6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.72 Å R-free 0.229
3NDT HIV-1 Protease Saquinavir:Ritonavir 1:1 complex structure Deposited 2010-06-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–99（99 aa）
Chain D 1–99（99 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) ROC (2S)-N-[(2S,3R)-4-[(2S,3S,4aS,8aS)-3-(tert-butylcarbamoyl)-3,4,4a,5,6,7,8,8a-octahydro-1H-isoquinolin-2-yl]-3-hydroxy-1 -phenyl-butan-2-yl]-2-(quinolin-2-ylcarbonylamino)butanediamide × 1 CL CHLORIDE ION × 1 DMS DIMETHYL SULFOXIDE × 2 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；AMMONIUM SULFATE, DMSO, SODIUM CITRATE, pH 6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.72 Å R-free 0.229
3NU3 Wild Type HIV-1 Protease with Antiviral Drug Amprenavir Deposited 2010-07-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：residues 501-599
Chain B 501–599（99 aa） Fragment：residues 501-599
Mutation：Q7K, L33I, L63I, C67A, C95A Mutation：Q7K, L33I, L63I, C67A, C95A NA SODIUM ION × 1 CL CHLORIDE ION × 3 478 {3-[(4-AMINO-BENZENESULFONYL)-ISOBUTYL-AMINO]-1-BENZYL-2-HYDROXY-PROPYL}-CARBAMIC ACID TETRAHYDRO-FURAN-3-YL ESTER × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；Crystal was grown by the hanging-drop vapor-diffusion method at room temperature, from a 2.2 mg/ml protein solution at pH 5.6 with 0.1M MES and 0.6-0.8M sodium chloride. The inhibitor was mixed with protease in a ratio 5:1, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.02 Å R-free 0.142
3NU4 Crystal Structure of HIV-1 Protease Mutant V32I with Antiviral Drug Amprenavir Deposited 2010-07-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：residues 501-599
Chain B 501–599（99 aa） Fragment：residues 501-599
Mutation：Q7K, V32I, L33I, L63I, C67A, C95A Mutation：Q7K, V32I, L33I, L63I, C67A, C95A NA SODIUM ION × 1 CL CHLORIDE ION × 3 478 {3-[(4-AMINO-BENZENESULFONYL)-ISOBUTYL-AMINO]-1-BENZYL-2-HYDROXY-PROPYL}-CARBAMIC ACID TETRAHYDRO-FURAN-3-YL ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；298 K；The vapour diffusion, hanging drop method is applied. Amprenvir was dissolved in DMSO. Protein concentration is 2.2 mg/ml. The ratio of inhibitor to protein is 5:1 in 0.1 M sodium acetate buffer (ph=5.4), with 0.4M NaCl, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.20 Å R-free 0.200
3NU5 Crystal Structure of HIV-1 Protease Mutant I50V with Antiviral Drug Amprenavir Deposited 2010-07-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：residues 501-599
Chain B 501–599（99 aa） Fragment：residues 501-599
Mutation：Q7K, L33I, I50V, L63I, C67A, C95A Mutation：Q7K, L33I, I50V, L63I, C67A, C95A NA SODIUM ION × 3 CL CHLORIDE ION × 7 ACT ACETATE ION × 2 478 {3-[(4-AMINO-BENZENESULFONYL)-ISOBUTYL-AMINO]-1-BENZYL-2-HYDROXY-PROPYL}-CARBAMIC ACID TETRAHYDRO-FURAN-3-YL ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；298 K；Crystal was grown by the hanging-drop vapor-diffusion method at room temperature, from a 3.5 mg/ml protein solution at pH 5.4 with 1M NaCl, 0.2M NaOAc. The inhibitor was mixed with protease in a ratio 10:1, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.29 Å R-free 0.193
3NU6 Crystal Structure of HIV-1 Protease Mutant I54M with Antiviral Drug Amprenavir Deposited 2010-07-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：residues 501-599
Chain B 501–599（99 aa） Fragment：residues 501-599
Mutation：Q7K, L33I, I54M, L63I, C67A, C95A Mutation：Q7K, L33I, I54M, L63I, C67A, C95A CL CHLORIDE ION × 3 NA SODIUM ION × 1 ACT ACETATE ION × 2 478 {3-[(4-AMINO-BENZENESULFONYL)-ISOBUTYL-AMINO]-1-BENZYL-2-HYDROXY-PROPYL}-CARBAMIC ACID TETRAHYDRO-FURAN-3-YL ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；Crystal was grown by the hanging-drop vapor-diffusion method at room temperature, from a 2.2 mg/ml protein solution at pH 4.6 with 0.1M sodium acetate, 0.67M sodium chloride. The inhibitor was mixed with protease in a ratio 5:1 , VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.16 Å R-free 0.188
3NU9 Crystal Structure of HIV-1 Protease Mutant I84V with Antiviral Drug Amprenavir Deposited 2010-07-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：residues 501-599
Chain B 501–599（99 aa） Fragment：residues 501-599
Mutation：Q7K, L33I, L63I, C67A, I84V, C95A Mutation：Q7K, L33I, L63I, C67A, I84V, C95A 478 {3-[(4-AMINO-BENZENESULFONYL)-ISOBUTYL-AMINO]-1-BENZYL-2-HYDROXY-PROPYL}-CARBAMIC ACID TETRAHYDRO-FURAN-3-YL ESTER × 1 IOD IODIDE ION × 30 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；298 K；Crystal was grown by the hanging-drop vapor-diffusion method at room temperature, from a 2.2 mg/ml protein solution at pH 4.0 with 0.13M NaI, 0.1M NaOAc. The inhibitor was mixed with protease in a ratio 5:1 , VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.85 Å R-free 0.236
3NUJ Crystal Structure of HIV-1 Protease Mutant I54V with Antiviral Drug Amprenavir Deposited 2010-07-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：residues 501-599
Chain B 501–599（99 aa） Fragment：residues 501-599
Mutation：Q7K, L33I, I54V, L63I, C67A, C95A Mutation：Q7K, L33I, I54V, L63I, C67A, C95A IOD IODIDE ION × 19 478 {3-[(4-AMINO-BENZENESULFONYL)-ISOBUTYL-AMINO]-1-BENZYL-2-HYDROXY-PROPYL}-CARBAMIC ACID TETRAHYDRO-FURAN-3-YL ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；298 K；Crystal was grown by the hanging-drop vapor-diffusion method at room temperature, from a 2.2 mg/ml protein solution at pH 5.4 with 0.13M NaCl, 0.1M NaOAc. The inhibitor was mixed with protease in a ratio 5:1, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.50 Å R-free 0.197
3NUO Crystal Structure of HIV-1 Protease Mutant L90M with Antiviral Drug Amprenavir Deposited 2010-07-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：residues 501-599
Chain B 501–599（99 aa） Fragment：residues 501-599
Mutation：Q7K, L33I, L63I, C67A, L90M, C95A Mutation：Q7K, L33I, L63I, C67A, L90M, C95A IOD IODIDE ION × 19 478 {3-[(4-AMINO-BENZENESULFONYL)-ISOBUTYL-AMINO]-1-BENZYL-2-HYDROXY-PROPYL}-CARBAMIC ACID TETRAHYDRO-FURAN-3-YL ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；298 K；Crystal was grown by the hanging-drop vapor-diffusion method at room temperature, from a 3.7 mg/ml protein solution at pH 4.8 with 0.2M NaI, 0.1M NaOAc. The inhibitor was mixed with protease in a ratio 5:1 , VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.35 Å R-free 0.199
3OK9 Crystal structure of wild-type HIV-1 protease with new oxatricyclic designed inhibitor GRL-0519A Deposited 2010-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：residues 501-599
Chain B 501–599（99 aa） Fragment：residues 501-599
Mutation：Q507K, L533I, L563I, C567A, C595A Mutation：Q507K, L533I, L563I, C567A, C595A G52 (3R,3aS,3bR,6aS,7aS)-octahydrodifuro[2,3-b:3',2'-d]furan-3-yl [(1S,2R)-1-benzyl-2-hydroxy-3-{[(4-methoxyphenyl)sulfonyl](2-methylpropyl)amino}propyl]carbamate × 1 NA SODIUM ION × 2 CL CHLORIDE ION × 6 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.4；298 K；1.18 M NaCl, 0.1 M Acetate, pH 4.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.27 Å R-free 0.189
3QAA HIV-1 wild type protease with a substituted bis-Tetrahydrofuran inhibitor, GRL-044-10A Deposited 2011-01-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：residues 501-599
Chain B 501–599（99 aa） Fragment：residues 501-599
Mutation：Q7K, L33I, L63I, C67A, C95A Mutation：Q7K, L33I, L63I, C67A, C95A G04 (3R,3aS,4R,6aR)-4-methoxyhexahydrofuro[2,3-b]furan-3-yl [(2S,3R)-3-hydroxy-4-{[(4-methoxyphenyl)sulfonyl](2-methylpropyl)amino}-1-phenylbutan-2-yl]carbamate × 1 NA SODIUM ION × 1 CL CHLORIDE ION × 2 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；pH 5.5, 0.1 M Sodium Citrate, 1.2 M Sodium Chloride, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.40 Å R-free 0.230
3QLH HIV-1 Reverse Transcriptase in Complex with Manicol at the RNase H Active Site and TMC278 (Rilpivirine) at the NNRTI Binding Pocket Deposited 2011-02-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1153（554 aa） Fragment：P66 (UNP residues 600-1153)
Chain B 605–1027（423 aa） Fragment：P51 (UNP residues 605-1027)
Not recorded MNK (2S)-5,7-dihydroxy-9-methyl-2-(prop-1-en-2-yl)-1,2,3,4-tetrahydro-6H-benzo[7]annulen-6-one × 1 T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 MN MANGANESE (II) ION × 2 DMS DIMETHYL SULFOXIDE × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；277 K；Protein solution (20 mg/mL in 9.2 mM Tris pH 8.0, 68.7 mM NaCl, 3.6 mM manganese sulfate, 0.7 mM TCEP, 0.9 mM Manicol, 0.7 mM TMC278, 0.27% BOG, 7% DMSO) Mother Liquor (50 mM HEPES pH 7.5, 100 mM ammonium sulfate, 15 m manganese sulfate, 10 mM spermine, 5 mM TCEP, 11% PEG8000) Cryoprotectant (50 mM HEPES pH 7.5, 50 mM NaCl, 100 mM ammonium sulfate, 15 mM manganese sulfate, 10 mM spermine, 0.69 mM Manicol, 0.34 mM TMC278, 15% PEG8000, 5% PEG400, 10% DMSO, 11% ethylene glycol, 6.5% trimethylamine N-oxide), flash-cooled in LN2, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.70 Å R-free 0.251
3QO9 Crystal structure of HIV-1 Reverse Transcriptase (RT) in complex with TSAO-T, a non-nucleoside RT inhibitor (NNRTI) Deposited 2011-02-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：F160S, C280S Mutation：C280S QO9 1-[(5R,6R,8R,9R)-4-amino-9-{[tert-butyl(dimethyl)silyl]oxy}-6-({[tert-butyl(dimethyl)silyl]oxy}methyl)-2,2-dioxido-1,7-dioxa-2-thiaspiro[4.4]non-3-en-8-yl]-5-methylpyrimidine-2,4(1H,3H)-dione × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 6.8；279 K；PEG8000, 50mM imidazole pH 6.8 and 0.1M ammonium sulfate, EVAPORATION, temperature 279K
Resolution 2.60 Å R-free 0.286
3TLH STRUCTURAL STUDIES OF HIV AND FIV PROTEASES COMPLEXED WITHAN EFFICIENT INHIBITOR OF FIV PR Deposited 1998-12-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 69–167（99 aa）
Not recorded 3TL benzyl [(1S,4S,7S,8R,9R,10S,13S,16S)-7,10-dibenzyl-8,9-dihydroxy-1,16-dimethyl-4,13-bis(1-methylethyl)-2,5,12,15,18-pentaoxo-20-phenyl-19-oxa-3,6,11,14,17-pentaazaicos-1-yl]carbamate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.4；SAMPLE: 3.0MG/ML HIVPR IN 25MM NAACETATE WITH 1MM EDTA AND 10MM DTT AT PH 5.5. WELL SOLUTION: 1.3M AMMONIUM SULFATE IN SODIUM ACETATE BUFFER AT PH 5.3 MIXING SAMPLE AND WELL SOLLUTION 1:1, pH 5.4
Resolution 2.00 Å R-free 0.281
3V4I Crystal structure of HIV-1 reverse transcriptase (RT) with DNA and AZTTP Deposited 2011-12-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa） Fragment：UNP Residues 600-1153
Chain B 600–1027（428 aa） Fragment：UNP Residues 600-1027
Mutation：D498N MG MAGNESIUM ION × 1 AZT 3'-AZIDO-3'-DEOXYTHYMIDINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 6.8；277 K；PEG 8000, AMMONIUM SULFATE, MGCL2, GLYCEROL, SUCROSE, pH 7.2, EVAPORATION, temperature 277K
Resolution 2.80 Å R-free 0.262
3V4I Crystal structure of HIV-1 reverse transcriptase (RT) with DNA and AZTTP Deposited 2011-12-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa） Fragment：UNP Residues 600-1153
Chain D 600–1027（428 aa） Fragment：UNP Residues 600-1027
Mutation：D498N MG MAGNESIUM ION × 1 AZT 3'-AZIDO-3'-DEOXYTHYMIDINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 6.8；277 K；PEG 8000, AMMONIUM SULFATE, MGCL2, GLYCEROL, SUCROSE, pH 7.2, EVAPORATION, temperature 277K
Resolution 2.80 Å R-free 0.262
3V6D Crystal structure of HIV-1 reverse transcriptase (RT) cross-linked with AZT-terminated DNA Deposited 2011-12-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa） Fragment：UNP Residues 600-1153
Chain B 600–1027（428 aa） Fragment：UNP Residues 600-1027
Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.8；277 K；PEG 8000, ammonium sulfate, sucrose, glycerol, magnesium chloride, pH 6.8, VAPOR DIFFUSION, temperature 277K
Resolution 2.70 Å R-free 0.268
3V6D Crystal structure of HIV-1 reverse transcriptase (RT) cross-linked with AZT-terminated DNA Deposited 2011-12-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa） Fragment：UNP Residues 600-1153
Chain D 600–1027（428 aa） Fragment：UNP Residues 600-1027
Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.8；277 K；PEG 8000, ammonium sulfate, sucrose, glycerol, magnesium chloride, pH 6.8, VAPOR DIFFUSION, temperature 277K
Resolution 2.70 Å R-free 0.268
3V81 Crystal structure of HIV-1 reverse transcriptase (RT) with DNA and the nonnucleoside inhibitor nevirapine Deposited 2011-12-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa） Fragment：UNP Residues 600-1153
Chain B 600–1027（428 aa） Fragment：UNP Residues 600-1027
Mutation：Q258C, C280S, D498N NVP 11-CYCLOPROPYL-5,11-DIHYDRO-4-METHYL-6H-DIPYRIDO[3,2-B:2',3'-E][1,4]DIAZEPIN-6-ONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.8；277 K；PEG 8000, ammonium sulfate, sucrose, glycerol, magnesium chloride, Bis-Tris propane , pH 6.8, VAPOR DIFFUSION, temperature 277K
Resolution 2.85 Å R-free 0.298
3V81 Crystal structure of HIV-1 reverse transcriptase (RT) with DNA and the nonnucleoside inhibitor nevirapine Deposited 2011-12-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa） Fragment：UNP Residues 600-1153
Chain D 600–1027（428 aa） Fragment：UNP Residues 600-1027
Mutation：Q258C, C280S, D498N NVP 11-CYCLOPROPYL-5,11-DIHYDRO-4-METHYL-6H-DIPYRIDO[3,2-B:2',3'-E][1,4]DIAZEPIN-6-ONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.8；277 K；PEG 8000, ammonium sulfate, sucrose, glycerol, magnesium chloride, Bis-Tris propane , pH 6.8, VAPOR DIFFUSION, temperature 277K
Resolution 2.85 Å R-free 0.298
3ZPS Design and Synthesis of P1-P3 Macrocyclic Tertiary Alcohol Comprising HIV-1 Protease Inhibitors Deposited 2013-03-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Not recorded CL CHLORIDE ION × 3 EQM methyl N-[(2S)-1-[2-[(4-bromophenyl)methyl]-2-[(4R)-5-[[(2S)-3,3-dimethyl-1-oxidanylidene-1-(prop-2-enylamino)butan-2-yl]amino]-4-oxidanyl-5-oxidanylidene-4-(phenylmethyl)pentyl]hydrazinyl]-3,3-dimethyl-1-oxidanylidene-butan-2-yl]carbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.55 Å R-free 0.210
3ZPT Design and Synthesis of P1-P3 Macrocyclic Tertiary Alcohol Comprising HIV-1 Protease Inhibitors Deposited 2013-03-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Not recorded CL CHLORIDE ION × 3 M8Y methyl N-[(2S)-1-[2-[(4-bromophenyl)methyl]-2-[3-[(3Z,8S,11R)-11-oxidanyl-7,10-bis(oxidanylidene)-8-propan-2-yl-6,9-diazabicyclo[11.2.2]heptadeca-1(16),3,13(17),14-tetraen-11-yl]propyl]hydrazinyl]-3,3-dimethyl-1-oxidanylidene-butan-2-yl]carbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.54 Å R-free 0.242
3ZPU Design and Synthesis of P1-P3 Macrocyclic Tertiary Alcohol Comprising HIV-1 Protease Inhibitors Deposited 2013-03-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Not recorded CL CHLORIDE ION × 3 M8B methyl N-[(2S)-1-[2-[(4-bromophenyl)methyl]-2-[3-[(3Z,8S,11R)-8-tert-butyl-11-oxidanyl-7,10-bis(oxidanylidene)-6,9-diazabicyclo[11.2.2]heptadeca-1(15),3,13,16-tetraen-11-yl]propyl]hydrazinyl]-3,3-dimethyl-1-oxidanylidene-butan-2-yl]carbamate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.7 M NACL, 100 MM MES PH5.0
Resolution 1.80 Å R-free 0.224
4COE Macrocyclic Transition-State Mimicking HIV-1 Protease Inhibitors Encompassing a Tertiary Alcohol Deposited 2014-01-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：ASPARTYL PROTEASE
Chain B 501–599（99 aa） Fragment：ASPARTYL PROTEASE
Mutation：YES Mutation：YES CL CHLORIDE ION × 3 M17 methyl {(2S)-1-[2-(biphenyl-4-ylmethyl)-2-{(4R)-4-hydroxy-5-{[(2S)-3-methyl-1-oxo-1-(prop-2-en-1-ylamino)butan-2-yl]amino}-5-oxo-4-[4-(prop-2-en-1-yl)benzyl]pentyl}hydrazinyl]-3,3-dimethyl-1-oxobutan-2-yl}carbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.45 Å R-free 0.261
4CP7 Macrocyclic Transition-State Mimicking HIV-1 Protease Inhibitors Encompassing a Tertiary Alcohol Deposited 2014-01-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Mutation：YES Mutation：YES CL CHLORIDE ION × 3 9MW methyl [(2S)-1-(2-{(4R)-4-hydroxy-5-{[(2S)-3-methyl-1-oxo-1-(prop-2-en-1-ylamino)butan-2-yl]amino}-5-oxo-4-[4-(prop-2-en-1-yl)benzyl]pentyl}-2-[4-(pyridin-4-yl)benzyl]hydrazinyl)-3,3-dimethyl-1-oxobutan-2-yl]carbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.80 Å R-free 0.206
4CPQ Macrocyclic Transition-State Mimicking HIV-1 Protease Inhibitors Encompassing a Tertiary Alcohol Deposited 2014-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Mutation：YES Mutation：YES CL CHLORIDE ION × 3 9MW methyl [(2S)-1-(2-{(4R)-4-hydroxy-5-{[(2S)-3-methyl-1-oxo-1-(prop-2-en-1-ylamino)butan-2-yl]amino}-5-oxo-4-[4-(prop-2-en-1-yl)benzyl]pentyl}-2-[4-(pyridin-4-yl)benzyl]hydrazinyl)-3,3-dimethyl-1-oxobutan-2-yl]carbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.35 Å R-free 0.273
4CPR Macrocyclic Transition-State Mimicking HIV-1 Protease Inhibitors Encompassing a Tertiary Alcohol Deposited 2014-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Mutation：YES Mutation：YES CL CHLORIDE ION × 3 378 methyl ~{N}-[(2~{S})-3,3-dimethyl-1-[2-[(4~{R})-5-[[(2~{S})-3-methyl-1-oxidanylidene-1-(prop-2-enylamino)butan-2-yl]amino]-4-oxidanyl-5-oxidanylidene-4-[(4-prop-2-enylphenyl)methyl]pentyl]-2-[(4-thiophen-2-ylphenyl)methyl]hydrazinyl]-1-oxidanylidene-butan-2-yl]carbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.80 Å R-free 0.212
4CPS Macrocyclic Transition-State Mimicking HIV-1 Protease Inhibitors Encompassing a Tertiary Alcohol Deposited 2014-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Mutation：YES Mutation：YES CL CHLORIDE ION × 3 1T8 methyl [(2S)-1-(2-{3-[(3R,6S,10Z)-3-hydroxy-4,7-dioxo-6-(propan-2-yl)-5,8-diazabicyclo[11.2.2]heptadeca-1(15),10,13,16-tetraen-3-yl]propyl}-2-[4-(pyridin-3-yl)benzyl]hydrazinyl)-3,3-dimethyl-1-oxobutan-2-yl]carbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.55 Å R-free 0.202
4CPT Macrocyclic Transition-State Mimicking HIV-1 Protease Inhibitors Encompassing a Tertiary Alcohol Deposited 2014-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Mutation：YES Mutation：YES CL CHLORIDE ION × 3 1T8 methyl [(2S)-1-(2-{3-[(3R,6S,10Z)-3-hydroxy-4,7-dioxo-6-(propan-2-yl)-5,8-diazabicyclo[11.2.2]heptadeca-1(15),10,13,16-tetraen-3-yl]propyl}-2-[4-(pyridin-3-yl)benzyl]hydrazinyl)-3,3-dimethyl-1-oxobutan-2-yl]carbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.70 Å R-free 0.203
4CPU Macrocyclic Transition-State Mimicking HIV-1 Protease Inhibitors Encompassing a Tertiary Alcohol Deposited 2014-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Mutation：YES Mutation：YES CL CHLORIDE ION × 3 V78 methyl N-[(2S)-1-[2-[[4-[(3S)-3,4-dihydrothiophen-3-yl]phenyl]methyl]-2-[3-[(3Z,8S,11R)-11-oxidanyl-7,10-bis(oxidanylidene)-8-propan-2-yl-6,9-diazabicyclo[11.2.2]heptadeca-1(16),3,13(17),14-tetraen-11-yl]propyl]hydrazinyl]-3,3-dimethyl-1-oxidanylidene-butan-2-yl]carbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.82 Å R-free 0.317
4CPW Macrocyclic Transition-State Mimicking HIV-1 Protease Inhibitors Encompassing a Tertiary Alcohol Deposited 2014-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Mutation：YES Mutation：YES CL CHLORIDE ION × 3 V78 methyl N-[(2S)-1-[2-[[4-[(3S)-3,4-dihydrothiophen-3-yl]phenyl]methyl]-2-[3-[(3Z,8S,11R)-11-oxidanyl-7,10-bis(oxidanylidene)-8-propan-2-yl-6,9-diazabicyclo[11.2.2]heptadeca-1(16),3,13(17),14-tetraen-11-yl]propyl]hydrazinyl]-3,3-dimethyl-1-oxidanylidene-butan-2-yl]carbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.70 Å R-free 0.197
4CPX Macrocyclic Transition-State Mimicking HIV-1 Protease Inhibitors Encompassing a Tertiary Alcohol Deposited 2014-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Mutation：YES Mutation：YES CL CHLORIDE ION × 3 J3W methyl ~{N}-[(2~{S})-3,3-dimethyl-1-[2-[3-[(3~{R},6~{S},10~{Z})-3-oxidanyl-4,7-bis(oxidanylidene)-6-propan-2-yl-5,8-diazabicyclo[11.2.2]heptadeca-1(16),10,13(17),14-tetraen-3-yl]propyl]-2-[(4-thiophen-2-ylphenyl)methyl]hydrazinyl]-1-oxidanylidene-butan-2-yl]carbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.85 Å R-free 0.335
4DG1 Crystal structure of HIV-1 reverse transcriptase (RT) with polymorphism mutation K172A and K173A Deposited 2012-01-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1148（549 aa）
Chain B 600–1026（427 aa）
Mutation：K172A, K173A, C280S Mutation：C280S MG MAGNESIUM ION × 4 EDO 1,2-ETHANEDIOL × 14 GOL GLYCEROL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；277 K；50 mM bis-tris, 100 mM ammonium sulfate, 10% glycerol, 12% PEG 8000, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.15 Å R-free 0.247
4G1Q Crystal structure of HIV-1 reverse transcriptase (RT) in complex with Rilpivirine (TMC278, Edurant), a non-nucleoside rt-inhibiting drug Deposited 2012-07-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：P66, UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：P51, UNP residues 600-1027
Mutation：K172A, K173A, C280S Mutation：C280S T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 SO4 SULFATE ION × 6 EDO 1,2-ETHANEDIOL × 5 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；277 K；PEG 8000, AMMONIUM SULFATE, MGCL2,IMIDAZOLE, pH 6.8, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.51 Å R-free 0.193
4H4M Crystal Structure of HIV-1 Reverse Transcriptase in Complex with (E)-3-(3-chloro-5-(4-chloro-2-(2-(2,4-dioxo-3,4- dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)phenyl)acrylonitrile (JLJ494), a Non-nucleoside Inhibitor Deposited 2012-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：HIV-1 Reverse Transcriptase, p66 Subunit
Chain B 600–1027（428 aa） Fragment：HIV-1 Reverse Transcriptase, p55 Subunit
Mutation：C280S, K172A, K173A Mutation：C280S 494 (2E)-3-(3-chloro-5-{4-chloro-2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}phenyl)prop-2-enenitrile × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；20% (w/v) PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, 5 mM spermine-HCl, 50 mM HEPES pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.85 Å R-free 0.273
4H4O Crystal Structure of HIV-1 Reverse Transcriptase (RT) in Complex with (E)-3-(3-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)- 4-fluorophenoxy)-5-fluorophenyl)acrylonitrile (JLJ506), A Non-nucleoside inhibitor Deposited 2012-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：HIV-1 Reverse Transcriptase, p66 Subunit
Chain B 600–1027（428 aa） Fragment：HIV-1 Reverse Transcriptase, p51 Subunit
Mutation：C280S, K172A, K173A Mutation：C280S 506 (2E)-3-(3-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]-4-fluorophenoxy}-5-fluorophenyl)prop-2-enenitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；20% (w/v) PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, 5 mM spermine-HCl, 50 mM HEPES pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.90 Å R-free 0.265
4I2P Crystal structure of HIV-1 reverse transcriptase in complex with rilpivirine (TMC278) based analogue Deposited 2012-11-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66 (UNP Residues 600-1154)
Chain B 600–1027（428 aa） Fragment：p51 (UNP Residues 600-1077)
Mutation：C879S, K771A, K772A Mutation：C879S G73 (2E)-3-[4-({6-[(4-methoxyphenyl)amino]-7H-purin-2-yl}amino)-3,5-dimethylphenyl]prop-2-enenitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；301 K；50 mM imidazole pH 6.6, 100 mM ammonium sulfate, 15 mM manganese sulfate, 10 mM spermine, 5 mM TCEP, 11% (w/w) PEG 8000, and 5% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 301K
Resolution 2.30 Å R-free 0.260
4I2Q Crystal structure of K103N/Y181C mutant of HIV-1 reverse transcriptase in complex with rilpivirine (TMC278) analogue Deposited 2012-11-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66 (UNP Residues 600-1154)
Chain B 600–1027（428 aa） Fragment：p51 (UNP Residues 600-1077)
Mutation：K702N, K771A, K772A, Y780C, C879S Mutation：C879S 1BT (2E)-3-(4-{[6-(1,3-benzothiazol-5-ylamino)-9H-purin-2-yl]amino}-3,5-dimethylphenyl)prop-2-enenitrile × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.70 Å R-free 0.277
4ICL HIV-1 reverse transcriptase with bound fragment at the incoming dNTP binding site Deposited 2012-12-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：P66 (unp residues 600-1154)
Chain B 600–1027（428 aa） Fragment：P51 (unp residues 600-1027)
Mutation：K771A, K772A, C879S Mutation：C879S T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 MG MAGNESIUM ION × 1 DMS DIMETHYL SULFOXIDE × 11 14N 4-(4-methylpiperazin-1-yl)benzoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；11% PEG 8000, 4% PEG 400, 50 MM IMIDAZOLE, 10 MM SPERMINE, 15 MM MGSO4, 100 MM AMMONIUM SULFATE, AND 5 MM TRIS(2-CARBOXYETHYL)PHOSPHINE, PH 6.7, VAPOR DIFFUSION, TEMPERATURE 277.0K , VAPOR DIFFUSION, HANGING DROP
Resolution 1.80 Å R-free 0.199
4ID5 HIV-1 reverse transcriptase with bound fragment at the RNase H primer grip site Deposited 2012-12-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：P66 (unp residues 600-1154)
Chain B 600–1027（428 aa） Fragment：P51 (unp residues 600-1027)
Mutation：K771A, K772A, C879S Mutation：C879S T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 DMS DIMETHYL SULFOXIDE × 17 1FF 1-methyl-5-phenyl-1H-pyrazole-4-carboxylic acid × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.7；pH 6.7
Resolution 1.95 Å R-free 0.209
4IDK HIV-1 reverse transcriptase with bound fragment at the 428 site Deposited 2012-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：P66 (unp residues 600-1154)
Chain B 600–1027（428 aa） Fragment：P51 (unp residues 600-1027)
Mutation：K771A, K772A, C879S Mutation：C879S T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 1FE N-(2-oxo-2,3-dihydro-1H-benzimidazol-5-yl)glycinamide × 1 MG MAGNESIUM ION × 1 DMS DIMETHYL SULFOXIDE × 16 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；277 K；11% PEG 8000, 4% PEG 400, 50 MM IMIDAZOLE, 10 MM SPERMINE, 15 MM MGSO4, 100 MM AMMONIUM SULFATE,AND 5 MM TRIS(2-CARBOXYETHYL)PHOSPHINE, PH 6.7, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.10 Å R-free 0.225
4IFV Detecting Allosteric Sites of HIV-1 Reverse Transcriptase by X-Ray Crystallographic Fragment Screening Deposited 2012-12-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：P66 (unp residues 600-1154)
Chain B 600–1027（428 aa） Fragment：P51 (unp residues 600-1027)
Mutation：K771A, K772A, C879S Mutation：C879S T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 FMQ [1-(4-fluorophenyl)-5-methyl-1H-pyrazol-4-yl]methanol × 2 DMS DIMETHYL SULFOXIDE × 11 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；277 K；11% PEG 8000, 4% PEG 400, 50 MM IMIDAZOLE, 10 MM SPERMINE, 15 MM MGSO4, 100 MM AMMONIUM SULFATE, AND 5 MM TRIS(2-CARBOXYETHYL)PHOSPHINE, PH 6.7, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.05 Å R-free 0.219
4IFY HIV-1 reverse transcriptase with bound fragment at the Knuckles site Deposited 2012-12-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：P66 (unp residues 600-1154)
Chain B 600–1027（428 aa） Fragment：P51 (unp residues 600-1027)
Mutation：K771A, K772A, C879S Mutation：C879S T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 MG MAGNESIUM ION × 1 DMS DIMETHYL SULFOXIDE × 16 1FD 1-[4-(trifluoromethoxy)phenyl]methanamine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；277 K；11% PEG 8000, 4% PEG 400, 50 MM IMIDAZOLE, 10 MM SPERMINE, 15 MM MGSO4, 100 MM AMMONIUM SULFATE, AND 5 MM TRIS(2-CARBOXYETHYL)PHOSPHINE, PH 6.7, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.10 Å R-free 0.213
4IG0 HIV-1 reverse transcriptase with bound fragment at the 507 site Deposited 2012-12-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：P66 (unp residues 600-1154)
Chain B 600–1027（428 aa） Fragment：P51 (unp residues 600-1027)
Mutation：K771A, K772A, C879S Mutation：C879S 1FG 2-({[2-(3,4-dihydroquinolin-1(2H)-yl)-2-oxoethyl](methyl)amino}methyl)quinazolin-4(1H)-one × 2 DMS DIMETHYL SULFOXIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；277 K；11% PEG 8000, 4% PEG 400, 50 MM IMIDAZOLE, 10 MM SPERMINE, 15 MM MGSO4, 100 MM AMMONIUM SULFATE,AND 5 MM TRIS(2-CARBOXYETHYL)PHOSPHINE, PH 6.7, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.50 Å R-free 0.243
4IG3 HIV-1 reverse transcriptase with bound fragment near Knuckles site Deposited 2012-12-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：P66 (unp residues 600-1154)
Chain B 600–1027（428 aa） Fragment：P51 (unp residues 600-1027)
Mutation：K771A, K772A, C879S Mutation：C879S T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 DMS DIMETHYL SULFOXIDE × 15 J94 (5S)-6,6-dimethyl-5-[(6R)-8-oxo-6,8-dihydrofuro[3,4-e][1,3]benzodioxol-6-yl]-5,6,7,8-tetrahydro[1,3]dioxolo[4,5-g]isoquinolin-6-ium × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；277 K；11% PEG 8000, 4% PEG 400, 50 MM IMIDAZOLE, 10 MM SPERMINE, 15 MM MGSO4, 100 MM AMMONIUM SULFATE, AND 5 MM TRIS(2-CARBOXYETHYL)PHOSPHINE, PH 6.7, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.95 Å R-free 0.203
4KFB HIV-1 reverse transcriptase with bound fragment at NNRTI adjacent site Deposited 2013-04-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66
Chain B 604–1027（424 aa） Fragment：p51 RT
Mutation：K172A, K173A, C280S Mutation：C280S 1QP ethyl pyrazolo[1,5-a]pyridine-3-carboxylate × 1 DMS DIMETHYL SULFOXIDE × 10 T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；11% PEG 8000, 4% PEG 400, 50 MM IMIDAZOLE, 10 MM SPERMINE, 15 MM MGSO4, 100 MM AMMONIUM SULFATE, AND 5 MM TRIS(2-CARBOXYETHYL)PHOSPHINE, pH 6.7, VAPOR DIFFUSION, HANGING DROP
Resolution 1.85 Å R-free 0.214
4KKO Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 4-((4-methoxy-6-(2-morpholinoethoxy)-1,3,5-triazin-2-yl)amino)-2-((3-methylbut-2-en-1-yl)oxy)benzonitrile (JLJ513), a non-nucleoside inhibitor Deposited 2013-05-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66 subunit, UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：p51 subunit, UNP residues 600-1027
Mutation：C280S, K172A, K173A Mutation：C280S 1RE 4-({4-methoxy-6-[2-(morpholin-4-yl)ethoxy]-1,3,5-triazin-2-yl}amino)-2-(3-methylbutoxy)benzonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；17.5% (w/v) PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, 5 mM spermine, and 50 mM citric acid pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.89 Å R-free 0.289
4KO0 CRYSTAL STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) IN COMPLEX WITH an anilinylpyrimidine derivative (JLJ-135) Deposited 2013-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66
Chain B 600–1027（428 aa） Fragment：p51
Mutation：K172A, K173A, C280S Mutation：C280S JLJ 4-[(4-methoxypyrimidin-2-yl)amino]-2-[(3-methylbut-2-en-1-yl)oxy]benzonitrile × 1 SO4 SULFATE ION × 2 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.8；277 K；PEG 8000, AMMONIUM SULFATE, MGCL2, IMIDAZOLE , pH 6.8, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.95 Å R-free 0.275
4LSL Crystal Structure of HIV-1 Reverse Transcriptase in Complex with (E)-3-(3-(4-chloro-2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)phenyl)acrylonitrile (JLJ476), a non-nucleoside inhibitor Deposited 2013-07-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66 subunit, UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：p51 subunit, UNP residues 600-1027
Mutation：C280S, K172A, K173A Mutation：C280S 1YQ (2E)-3-(3-{4-chloro-2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}phenyl)prop-2-enenitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；15% (w/v) PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, 5 mM spermine, and 50 mM citric acid pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.69 Å R-free 0.270
4LSN Crystal Structure of HIV-1 Reverse Transcriptase in Complex with (E)-3-(3-bromo-5-(4-chloro-2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)phenyl)acrylonitrile (JLJ518), a non-nucleoside inhibitor Deposited 2013-07-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66 subunit, UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：p51 subunit, UNP residues 600-1027
Mutation：C280S, K172A, K173A Mutation：C280S 1YR (2E)-3-(3-bromo-5-{4-chloro-2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}phenyl)prop-2-enenitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；15% (w/v) PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, 5 mM spermine, and 50 mM citric acid pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.10 Å R-free 0.301
4MFB Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 8-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)indolizine-2-carbonitrile (JLJ555), a non-nucleoside inhibitor Deposited 2013-08-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：HIV-1 reverse transcriptase, p66 subunit (chain A)
Chain B 600–1027（428 aa） Fragment：HIV-1 reverse transcriptase, p51 subunit (chain B)
Mutation：C280S, K172A, K173A Mutation：C280S 29T 8-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}indolizine-2-carbonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；12.5% (w/v) PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, 5 mM spermine, and 50 mM MES pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.88 Å R-free 0.269
4O44 Crystal Structure of HIV-1 Reverse Transcriptase in complex with 4-((4-(mesitylamino)-6-(3-morpholinopropoxy)-1,3,5-triazin-2-yl)amino)benzonitrile (JLJ529), a non-nucleoside inhibitor Deposited 2013-12-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66 subunit, UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：p51 subunit, UNP residues 600-1027
Mutation：C280S, K172A, K173A Mutation：C280S 2RS 4-({4-[3-(morpholin-4-yl)propoxy]-6-[(2,4,6-trimethylphenyl)amino]-1,3,5-triazin-2-yl}amino)benzonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；20.0% (w/v) PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, 5 mM spermine-HCl, and 50 mM citric acid pH 5.5 or 50 mM HEPES pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.89 Å R-free 0.290
4O4G Crystal Structure of HIV-1 Reverse Transcriptase in complex with 4-((4-(mesitylamino)-1,3,5-triazin-2-yl)amino)benzonitrile (JLJ527), a non-nucleoside inhibitor Deposited 2013-12-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66 subunit, UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：p51 subunit, UNP residues 600-1027
Mutation：C280S, K172A, K173A Mutation：C280S 2RT 4-({4-[(2,4,6-trimethylphenyl)amino]-1,3,5-triazin-2-yl}amino)benzonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；20.0% (w/v) PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, 5 mM spermine-HCl, and 50 mM citric acid pH 5.5 or 50 mM HEPES pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.71 Å R-free 0.299
4OJR Crystal Structure of the HIV-1 Integrase catalytic domain with GSK1264 Deposited 2014-01-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1209–1371（163 aa） Fragment：UNP residues 1209-1371
Mutation：F185K 2SQ (2S)-tert-butoxy[4-(8-fluoro-5-methyl-3,4-dihydro-2H-chromen-6-yl)-2-methyl-1-oxo-1,2-dihydroisoquinolin-3-yl]ethanoic acid × 2 CAC CACODYLATE ION × 4 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；7% Peg 8K, 0.2M Ammonium Sulfate, 0.1M sodiium cacodylate pH 6.5, 5mM MgCl2, 5mM MnCl2, 5mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.82 Å R-free 0.201
4PQU Crystal structure of HIV-1 Reverse Transcriptase in complex with RNA/DNA and dATP Deposited 2014-03-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa） Fragment：UNP residues 600-1153
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：Q258C,C280S,D498N Mutation：C280S DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 EDO 1,2-ETHANEDIOL × 1 SO4 SULFATE ION × 5 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；PEG8000, Bis-tris propane, magnesium chloride, ammonium sulfate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.51 Å R-free 0.266
4PQU Crystal structure of HIV-1 Reverse Transcriptase in complex with RNA/DNA and dATP Deposited 2014-03-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa） Fragment：UNP residues 600-1153
Chain D 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：Q258C,C280S,D498N Mutation：C280S DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；PEG8000, Bis-tris propane, magnesium chloride, ammonium sulfate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.51 Å R-free 0.266
4PUO Crystal structure of HIV-1 reverse transcriptase in complex with RNA/DNA and Nevirapine Deposited 2014-03-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa） Fragment：UNP residues 600-1153
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：Q258C, C280S, D498N Mutation：C280S NVP 11-CYCLOPROPYL-5,11-DIHYDRO-4-METHYL-6H-DIPYRIDO[3,2-B:2',3'-E][1,4]DIAZEPIN-6-ONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；277 K；9-11% PEG8000, 100 mM ammonium sulfate, 5% glycerol, 5% sucrose, 20 mM magnesium chloride, pH 7.2, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.90 Å R-free 0.285
4PUO Crystal structure of HIV-1 reverse transcriptase in complex with RNA/DNA and Nevirapine Deposited 2014-03-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa） Fragment：UNP residues 600-1153
Chain D 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：Q258C, C280S, D498N Mutation：C280S NVP 11-CYCLOPROPYL-5,11-DIHYDRO-4-METHYL-6H-DIPYRIDO[3,2-B:2',3'-E][1,4]DIAZEPIN-6-ONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；277 K；9-11% PEG8000, 100 mM ammonium sulfate, 5% glycerol, 5% sucrose, 20 mM magnesium chloride, pH 7.2, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.90 Å R-free 0.285
4PWD Crystal structure of HIV-1 reverse transcriptase in complex with bulge-RNA/DNA and Nevirapine Deposited 2014-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa） Fragment：UNP residues 600-1153
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：Q258C, C280S, D498N Mutation：C280S NVP 11-CYCLOPROPYL-5,11-DIHYDRO-4-METHYL-6H-DIPYRIDO[3,2-B:2',3'-E][1,4]DIAZEPIN-6-ONE × 1 CA CALCIUM ION × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；277 K；9-11% PEG8000, 100 mM ammonium sulfate, 5% glycerol, 5% sucrose, 20 mM magnesium chloride, pH 7.2-7.4, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.00 Å R-free 0.291
4PWD Crystal structure of HIV-1 reverse transcriptase in complex with bulge-RNA/DNA and Nevirapine Deposited 2014-03-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa） Fragment：UNP residues 600-1153
Chain D 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：Q258C, C280S, D498N Mutation：C280S NVP 11-CYCLOPROPYL-5,11-DIHYDRO-4-METHYL-6H-DIPYRIDO[3,2-B:2',3'-E][1,4]DIAZEPIN-6-ONE × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；277 K；9-11% PEG8000, 100 mM ammonium sulfate, 5% glycerol, 5% sucrose, 20 mM magnesium chloride, pH 7.2-7.4, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.00 Å R-free 0.291
4Q0B Crystal structure of HIV-1 reverse transcriptase in complex with gap-RNA/DNA and Nevirapine Deposited 2014-04-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: pentameric
Chain A 600–1153（554 aa） Fragment：UNP residues 600-1153
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：Q258C, C280S, D498N Mutation：C280S NVP 11-CYCLOPROPYL-5,11-DIHYDRO-4-METHYL-6H-DIPYRIDO[3,2-B:2',3'-E][1,4]DIAZEPIN-6-ONE × 1 MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；277 K；9-11% PEG8000, 100 mM ammonium sulfate, 5% glycerol, 5% sucrose, 20 mm magnesium chloride, pH 7.2, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.30 Å R-free 0.317
4Q0B Crystal structure of HIV-1 reverse transcriptase in complex with gap-RNA/DNA and Nevirapine Deposited 2014-04-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: pentameric
Chain C 600–1153（554 aa） Fragment：UNP residues 600-1153
Chain D 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：Q258C, C280S, D498N Mutation：C280S NVP 11-CYCLOPROPYL-5,11-DIHYDRO-4-METHYL-6H-DIPYRIDO[3,2-B:2',3'-E][1,4]DIAZEPIN-6-ONE × 1 MN MANGANESE (II) ION × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；277 K；9-11% PEG8000, 100 mM ammonium sulfate, 5% glycerol, 5% sucrose, 20 mm magnesium chloride, pH 7.2, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.30 Å R-free 0.317
4QAG Structure of a dihydroxycoumarin active-site inhibitor in complex with the RNASE H domain of HIV-1 reverse transcriptase Deposited 2014-05-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1024–1156（133 aa） Fragment：UNP residues 1024-1156
Not recorded MN MANGANESE (II) ION × 2 F95 (7,8-dihydroxy-2-oxo-2H-chromen-4-yl)acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；293 K；100 mM Bicine pH 8.2, 10 mM Manganese Sulfate, 1 mM Sodium Azide, 9% PEG 3350, combined with equal volume of 10 mM Tris pH 8.0, 75 mM NaCl, 20 mg/mL (1.34 mM) RNase H, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.71 Å R-free 0.190
4QAG Structure of a dihydroxycoumarin active-site inhibitor in complex with the RNASE H domain of HIV-1 reverse transcriptase Deposited 2014-05-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1024–1156（133 aa） Fragment：UNP residues 1024-1156
Not recorded MN MANGANESE (II) ION × 2 F95 (7,8-dihydroxy-2-oxo-2H-chromen-4-yl)acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；293 K；100 mM Bicine pH 8.2, 10 mM Manganese Sulfate, 1 mM Sodium Azide, 9% PEG 3350, combined with equal volume of 10 mM Tris pH 8.0, 75 mM NaCl, 20 mg/mL (1.34 mM) RNase H, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.71 Å R-free 0.190
4QAG Structure of a dihydroxycoumarin active-site inhibitor in complex with the RNASE H domain of HIV-1 reverse transcriptase Deposited 2014-05-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1024–1156（133 aa） Fragment：UNP residues 1024-1156
Chain B 1024–1156（133 aa） Fragment：UNP residues 1024-1156
Not recorded MN MANGANESE (II) ION × 4 F95 (7,8-dihydroxy-2-oxo-2H-chromen-4-yl)acetic acid × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；293 K；100 mM Bicine pH 8.2, 10 mM Manganese Sulfate, 1 mM Sodium Azide, 9% PEG 3350, combined with equal volume of 10 mM Tris pH 8.0, 75 mM NaCl, 20 mg/mL (1.34 mM) RNase H, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.71 Å R-free 0.190
4R5P Crystal structure of HIV-1 reverse transcriptase (RT) with DNA and a nucleoside triphosphate mimic alpha-carboxy nucleoside phosphonate inhibitor Deposited 2014-08-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa） Fragment：UNP residues 600-1153
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：Q258C, C280S, D498N Mutation：C280S MG MAGNESIUM ION × 3 3JY [(1R)-2-methoxy-1-{[(1S,3R)-3-(5-methyl-2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)cyclopentyl]oxy}-2-oxoethyl]phosphonic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；277 K；10% PEG8000, 100 mM ammonium sulfate, 5% w/v sucrose, 5% w/v glycerol, 20 mM magnesium chloride, 50 mM Bis-Tris propane, pH 7.2, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.89 Å R-free 0.251
4R5P Crystal structure of HIV-1 reverse transcriptase (RT) with DNA and a nucleoside triphosphate mimic alpha-carboxy nucleoside phosphonate inhibitor Deposited 2014-08-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa） Fragment：UNP residues 600-1153
Chain D 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：Q258C, C280S, D498N Mutation：C280S MG MAGNESIUM ION × 3 3JY [(1R)-2-methoxy-1-{[(1S,3R)-3-(5-methyl-2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)cyclopentyl]oxy}-2-oxoethyl]phosphonic acid × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；277 K；10% PEG8000, 100 mM ammonium sulfate, 5% w/v sucrose, 5% w/v glycerol, 20 mM magnesium chloride, 50 mM Bis-Tris propane, pH 7.2, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.89 Å R-free 0.251
4RW4 Crystal Structure of HIV-1 Reverse Transcriptase (K103N,Y181C) variant in complex with (E)-3-(3-chloro-5-(4-chloro-2-(2-(2,4-dioxo-3,4- dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)phenyl)acrylonitrile (JLJ494), a Non-nucleoside Inhibitor Deposited 2014-12-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K103N, K172A, K173A, Y181C, C280S Mutation：C280S 494 (2E)-3-(3-chloro-5-{4-chloro-2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}phenyl)prop-2-enenitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；16-20% (w/v) PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, 5 mM spermine, and 50 mM citric acid (pH 7.0), VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.67 Å R-free 0.278
4RW6 Crystal Structure of HIV-1 Reverse Transcriptase (Y181C) variant in complex with (E)-3-(3-chloro-5-(4-chloro-2-(2-(2,4-dioxo-3,4- dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)phenyl)acrylonitrile (JLJ494), a Non-nucleoside Inhibitor Deposited 2014-12-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, Y181C, C280S Mutation：C280S 494 (2E)-3-(3-chloro-5-{4-chloro-2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}phenyl)prop-2-enenitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；16-20% (w/v) PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, 5 mM spermine, and 50 mM citric acid pH 6.0-6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.63 Å R-free 0.280
4RW7 Crystal Structure of HIV-1 Reverse Transcriptase (K103N, Y181C) variant in complex with (E)-3-(3-chloro-5-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)phenyl)acrylonitrile (JLJ532), a non-nucleoside inhibitor Deposited 2014-12-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K103N, K172A, K173A, Y181C, C280S Mutation：C280S 3X6 (2E)-3-(3-chloro-5-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}phenyl)prop-2-enenitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；18% (w/v) PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, 5 mM spermine, and 50 mM citric acid, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.01 Å R-free 0.266
4RW8 Crystal Structure of HIV-1 Reverse Transcriptase in complex with (E)-3-(3-chloro-5-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)phenyl)acrylonitrile (JLJ532), a non-nucleoside inhibitor' Deposited 2014-12-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S 3X6 (2E)-3-(3-chloro-5-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}phenyl)prop-2-enenitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；18% (w/v) PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, 5 mM spermine, and 50 mM citric acid, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.88 Å R-free 0.282
4RW9 Crystal Structure of HIV-1 Reverse Transcriptase (Y181C) variant in complex with (E)-3-(3-chloro-5-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)phenyl)acrylonitrile (JLJ532), a non-nucleoside inhibitor Deposited 2014-12-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, Y181C, C280S Mutation：C280S 3X6 (2E)-3-(3-chloro-5-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}phenyl)prop-2-enenitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；16-20% (w/v) PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, 5 mM spermine, and 50 mM citric acid pH 6.0 , VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.99 Å R-free 0.280
4U8W HIV-1 wild Type protease with GRL-050-10A (a Gem-difluoro-bis-Tetrahydrofuran as P2-Ligand) Deposited 2014-08-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：UNP residues 501-599
Chain B 501–599（99 aa） Fragment：UNP residues 501-599
Mutation：Q7K, L33I, L63I, C67A, C95A Mutation：Q7K, L33I, L63I, C67A, C95A G10 (3R,3aS,6aS)-4,4-difluorohexahydrofuro[2,3-b]furan-3-yl [(2S,3R)-4-{[(4-aminophenyl)sulfonyl](2-methylpropyl)amino}-3-hydroxy-1-phenylbutan-2-yl]carbamate × 1 NA SODIUM ION × 1 CL CHLORIDE ION × 3 ACT ACETATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；298 K；1M NaCl, 0.1 M Na Acetate, pH 4.8
Resolution 1.30 Å R-free 0.188
4WE1 Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 5-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-2-naphthonitrile (JLJ600) Deposited 2014-09-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：C280S, K172A, K173A Mutation：C280S 3LQ 5-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}naphthalene-2-carbonitrile × 1 MG MAGNESIUM ION × 2 SO4 SULFATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；18% w/v PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, 50 mM Imidazole (pH 6.5), and 5 mM spermine-HCl
Resolution 2.49 Å R-free 0.287
4YE3 Crystal Structure of Multidrug Resistant HIV-1 Protease Clinical Isolate PR20 with Inhibitor GRL-4410A Deposited 2015-02-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Mutation：Q7K,L10F,I13V,I15V,D30N,V32I,L33F,E35D,M36I,S37N,I47V,I54L,Q58E,I62V,L63P,C67A,C95A,A71V,I84V,N88D,L89T,L90M Mutation：Q7K,L10F,I13V,I15V,D30N,V32I,L33F,E35D,M36I,S37N,I47V,I54L,Q58E,I62V,L63P,C67A,C95A,A71V,I84V,N88D,L89T,L90M Y1 YTTRIUM ION × 4 CL CHLORIDE ION × 5 GOL GLYCEROL × 2 G04 (3R,3aS,4R,6aR)-4-methoxyhexahydrofuro[2,3-b]furan-3-yl [(2S,3R)-3-hydroxy-4-{[(4-methoxyphenyl)sulfonyl](2-methylpropyl)amino}-1-phenylbutan-2-yl]carbamate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；1.2M Sodium Chloride, 0.1M Sodium Acetate pH 5.5, 0.01M Yittrium Chloride
Resolution 1.35 Å R-free 0.200
4YHQ Crystal structure of multidrug resistant clinical isolate PR20 with GRL-5010A Deposited 2015-02-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Mutation：Q7K,L10F,I13V,I15V,D30N,V32I,L33F,E35D,M36I,S37N,I47V,I54L,Q58E,I62V,L63P,C67A,A71V,I84V,N88D,L89T,L90M,C95A Mutation：Q7K,L10F,I13V,I15V,D30N,V32I,L33F,E35D,M36I,S37N,I47V,I54L,Q58E,I62V,L63P,C67A,A71V,I84V,N88D,L89T,L90M,C95A G10 (3R,3aS,6aS)-4,4-difluorohexahydrofuro[2,3-b]furan-3-yl [(2S,3R)-4-{[(4-aminophenyl)sulfonyl](2-methylpropyl)amino}-3-hydroxy-1-phenylbutan-2-yl]carbamate × 1 Y1 YTTRIUM ION × 4 CL CHLORIDE ION × 5 NA SODIUM ION × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；1.15M sodium chloride, 0.1M sodium acetate pH 5.5 and 0.01M Yittrium chloride
Resolution 1.30 Å R-free 0.210
4ZIP HIV-1 wild Type protease with GRL-0648A (a isophthalamide-derived P2-Ligand) Deposited 2015-04-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Mutation：Q7K, L33I, L63I, C67A, C95A Mutation：Q7K, L33I, L63I, C67A, C95A NA SODIUM ION × 3 CL CHLORIDE ION × 3 GOL GLYCEROL × 1 G64 N-[(2,5-dimethyl-1,3-oxazol-4-yl)methyl]-N'-[(2S,3R)-3-hydroxy-4-{[(4-methoxyphenyl)sulfonyl](2-methylpropyl)amino}-1-phenylbutan-2-yl]-N,5-dimethylbenzene-1,3-dicarboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；298 K；0.95 M NaCl, 0.1 M Sodium Acetate, pH 5
Resolution 1.11 Å R-free 0.154
4ZLS HIV-1 wild Type protease with GRL-096-13A (a Boc-derivative P2-Ligand, 3,-5-dimethylbiphenyl P1-Ligand) Deposited 2015-05-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Mutation：Q7K, L33I, L63I, C67A, C95A Mutation：Q7K, L33I, L63I, C67A, C95A NA SODIUM ION × 1 CL CHLORIDE ION × 3 G61 tert-butyl [(2S,3R)-1-(3',5'-dimethoxybiphenyl-3-yl)-3-hydroxy-4-{[(4-methoxyphenyl)sulfonyl](2-methylpropyl)amino}butan-2-yl]carbamate × 1 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；298 K；1.4M NaCl, 0.1 M Na Acetate, pH 4.8
Resolution 1.53 Å R-free 0.251
5AGZ Disubstituted bis-THF moieties as new P2 ligands in non-peptidal HIV- 1 Protease Inhibitors (II) Deposited 2015-02-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：ASPARTYL PROTEASE, RESIDUES 501-599
Chain B 501–599（99 aa） Fragment：ASPARTYL PROTEASE, RESIDUES 501-599
Mutation：YES Mutation：YES CL CHLORIDE ION × 3 QHA (3R,3aS,4R,6aR)-4-[(2-fluoroprop-2-en-1-yl)oxy]hexahydrofuro[2,3-b]furan-3-yl {(2S,3R)-3-hydroxy-4-[{[2-(methylamino)-1,3-benzoxazol-6-yl]sulfonyl}(2-methylpropyl)amino]-1-phenylbutan-2-yl}carbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.20 Å R-free 0.221
5AH6 Disubstituted bis-THF moieties as new P2 ligands in non-peptidal HIV- 1 Protease Inhibitors (II) Deposited 2015-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：ASPARTYL PROTEASE, RESIDUES 501-599
Chain B 501–599（99 aa） Fragment：ASPARTYL PROTEASE, RESIDUES 501-599
Mutation：YES Mutation：YES CL CHLORIDE ION × 3 C7U (3R,3aS,4R,6aS)-4-chlorohexahydrofuro[2,3-b]furan-3-yl {(2S,3R)-3-hydroxy-4-[{[2-(methylamino)-1,3-benzoxazol-6-yl]sulfonyl}(2-methylpropyl)amino]-1-phenylbutan-2-yl}carbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.50 Å R-free 0.225
5AH7 Disubstituted bis-THF moieties as new P2 ligands in non-peptidal HIV- 1 Protease Inhibitors (II) Deposited 2015-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：ASPARTYL PROTEASE, RESIDUES 501-599
Chain B 501–599（99 aa） Fragment：ASPARTYL PROTEASE, RESIDUES 501-599
Mutation：YES Mutation：YES CL CHLORIDE ION × 3 C7J (3R,3aS,4R,6aS)-4-chlorohexahydrofuro[2,3-b]furan-3-yl [(2S,3R)-4-{[(4-aminophenyl)sulfonyl](2-methylpropyl)amino}-3-hydroxy-1-phenylbutan-2-yl]carbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.55 Å R-free 0.238
5AH8 Disubstituted bis-THF moieties as new P2 ligands in non-peptidal HIV- 1 Protease Inhibitors (II) Deposited 2015-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：ASPARTYL PROTEASE, RESIDUES 501-599
Chain B 501–599（99 aa） Fragment：ASPARTYL PROTEASE, RESIDUES 501-599
Mutation：YES Mutation：YES CL CHLORIDE ION × 3 C7W (3R,3aS,4R,6aR)-4-(3,3,3-trifluoropropoxy)hexahydrofuro[2,3-b]furan-3-yl {(2S,3R)-3-hydroxy-4-[{[2-(methylamino)-1,3-benzoxazol-6-yl]sulfonyl}(2-methylpropyl)amino]-1-phenylbutan-2-yl}carbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.26 Å R-free 0.221
5AH9 Disubstituted bis-THF moieties as new P2 ligands in non-peptidal HIV- 1 Protease Inhibitors (II) Deposited 2015-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：ASPARTYL PROTEASE, RESIDUES 501-599
Chain B 501–599（99 aa） Fragment：ASPARTYL PROTEASE, RESIDUES 501-599
Mutation：YES Mutation：YES CL CHLORIDE ION × 3 C7L (3R,3aS,4R,6aR)-4-(2-methoxyethoxy)hexahydrofuro[2,3-b]furan-3-yl [(2S,3R)-4-{[(4-aminophenyl)sulfonyl](2-methylpropyl)amino}-3-hydroxy-1-phenylbutan-2-yl]carbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.44 Å R-free 0.215
5AHA Disubstituted bis-THF moieties as new P2 ligands in non-peptidal HIV- 1 Protease Inhibitors (II) Deposited 2015-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：ASPARTYL PROTEASE, RESIDUES 501-599
Chain B 501–599（99 aa） Fragment：ASPARTYL PROTEASE, RESIDUES 501-599
Mutation：YES Mutation：YES CL CHLORIDE ION × 3 ZLP (3R,3aS,4R,6aR)-4-(2-methoxyethoxy)hexahydrofuro[2,3-b]furan-3-yl {(2S,3R)-3-hydroxy-4-[{[(2Z)-2-(methylimino)-2,3-dihydro-1,3-benzoxazol-6-yl]sulfonyl}(2-methylpropyl)amino]-1-phenylbutan-2-yl}carbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.35 Å R-free 0.225
5AHB Disubstituted bis-THF moieties as new P2 ligands in non-peptidal HIV- 1 Protease Inhibitors (II) Deposited 2015-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：ASPARTYL PROTEASE, RESIDUES 501-599
Chain B 501–599（99 aa） Fragment：ASPARTYL PROTEASE, RESIDUES 501-599
Mutation：YES Mutation：YES CL CHLORIDE ION × 3 J5L (3R,3aS,4R,6aR)-4-[2-(methylamino)-2-oxoethoxy]hexahydrofuro[2,3-b]furan-3-yl {(2S,3R)-3-hydroxy-4-[{[(2Z)-2-(methylimino)-2,3-dihydro-1,3-benzoxazol-6-yl]sulfonyl}(2-methylpropyl)amino]-1-phenylbutan-2-yl}carbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.50 Å R-free 0.220
5AHC Disubstituted bis-THF moieties as new P2 ligands in non-peptidal HIV- 1 Protease Inhibitors (II) Deposited 2015-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa） Fragment：ASPARTYL PROTEASE, RESIDUES 501-599
Chain B 501–599（99 aa） Fragment：ASPARTYL PROTEASE, RESIDUES 501-599
Mutation：YES Mutation：YES CL CHLORIDE ION × 3 VXL (3R,3aS,4R,6aR)-4-[2-(methylamino)-2-oxoethoxy]hexahydrofuro[2,3-b]furan-3-yl [(2S,3R)-3-hydroxy-4-{[(4-methoxyphenyl)sulfonyl](2-methylpropyl)amino}-1-phenylbutan-2-yl]carbamate × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.50 Å R-free 0.229
5BRY HIV-1 wild Type protease with GRL-011-11A (a methylamine bis-Tetrahydrofuran P2-Ligand, sulfonamide isostere derivate) Deposited 2015-06-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Mutation：Q7K, L33I, L63I, C67A, C95A Mutation：Q7K, L33I, L63I, C67A, C95A NA SODIUM ION × 2 CL CHLORIDE ION × 3 4UY (3R,3aS,4R,6aR)-4-(methylamino)hexahydrofuro[2,3-b]furan-3-yl [(2S,3R)-3-hydroxy-4-{[(4-methoxyphenyl)sulfonyl](2-methylpropyl)amino}-1-phenylbutan-2-yl]carbamate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；1.4 M NaCl, 0.1 M sodium Acetate, pH 4.6
Resolution 1.34 Å R-free 0.205
5BS4 HIV-1 wild Type protease with GRL-047-11A (a methylamine bis-Tetrahydrofuran P2-Ligand, 4-amino sulfonamide derivative) Deposited 2015-06-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Mutation：Q7K, L33I, L63I, C67A, C95A Mutation：Q7K, L33I, L63I, C67A, C95A 4UX (3R,3aS,4R,6aR)-4-(methylamino)hexahydrofuro[2,3-b]furan-3-yl [(2S,3R)-4-{[(4-aminophenyl)sulfonyl](2-methylpropyl)amino}-3-hydroxy-1-phenylbutan-2-yl]carbamate × 1 NA SODIUM ION × 1 CL CHLORIDE ION × 2 ACT ACETATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；298 K；1.0M NaCl, 0.1M NaAcetate, pH=5.0
Resolution 1.29 Å R-free 0.210
5C24 Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 7-((4-((4-cyanophenyl)amino)-1,3,5-triazin-2-yl)amino)-6,8-dimethylindolizine-2-carbonitrile (JLJ605), a non-nucleoside inhibitor Deposited 2015-06-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1144（545 aa） Fragment：UNP residues 604-1144
Chain B 604–1027（424 aa） Fragment：UNP residues 604-1027
Mutation：C280S, K172A, K173A Mutation：C280S 4XO 6-({4-[(4-cyanophenyl)amino]-1,3,5-triazin-2-yl}amino)-5,7-dimethylindolizine-2-carbonitrile × 1 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；20% v/v PEG 8000, 50 mM HEPES (pH 7.0),100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine-HCl using hanging drop vaporization
Resolution 2.60 Å R-free 0.258
5C25 Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 6-((4-((4-cyanophenyl)amino)-1,3,5-triazin-2-yl)amino)-5,7-dimethyl-2-naphthonitrile (JLJ639), a Non-nucleoside Inhibitor Deposited 2015-06-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：C280S, K172A, K173A Mutation：C280S 639 6-({4-[(4-cyanophenyl)amino]-1,3,5-triazin-2-yl}amino)-5,7- dimethyl-2-naphthonitrile × 1 SO4 SULFATE ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；14% PEG 8000, 100 mM Ammonium sulfate, 15 mM magnesium sulfate, 5 mM spermine, 15 mM HEPES pH 7.0
Resolution 2.84 Å R-free 0.263
5C42 Crystal Structure of HIV-1 Reverse Transcriptase (K101P) Variant in Complex with 8-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)indolizine-2-carbonitrile (JLJ555), a non-nucleoside inhibitor Deposited 2015-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：K101P, K172A, K173A, C280S Mutation：C280S 29T 8-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}indolizine-2-carbonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；co-crystallization; 15% PEG 8000 (50% (w/v)), in pH 7.0 solution (0.125 M HEPES, 0.0125 M spermine-HCl, 0.04 M magnesium sulfate, 0.04 M ammonium sulfate)
Resolution 3.50 Å R-free 0.282
5CYM HIV-1 reverse transcriptase complexed with 4-iodopyrazole Deposited 2015-07-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 SO4 SULFATE ION × 4 EDO 1,2-ETHANEDIOL × 4 IOD IODIDE ION × 14 PYZ 4-IODOPYRAZOLE × 6 DMS DIMETHYL SULFOXIDE × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.7；277 K；50 mM Imidazole pH 6.6, 10% PEG 8k, 5%PEG400, 100 mM A/S, 15 mM MgSO4, 10 mM Spermine, 5 mM TCEP
Resolution 2.10 Å R-free 0.229
5CYQ HIV-1 reverse transcriptase complexed with 4-bromopyrazole Deposited 2015-07-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 BYZ 4-bromo-1H-pyrazole × 15 DMS DIMETHYL SULFOXIDE × 10 BR BROMIDE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.7；277 K；50 mM Imidazole pH 6.6, 10% PEG 8k, 5% PEG400, 100 mM A/S, 15 mM MgSO4, 10 mM Spermine, 5 mM TCEP
Resolution 2.15 Å R-free 0.224
5D3G Structure of HIV-1 Reverse Transcriptase Bound to a Novel 38-mer Hairpin Template-Primer DNA Aptamer Deposited 2015-08-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S Mutation：C280S SO4 SULFATE ION × 1 GOL GLYCEROL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；278 K；7% PEG 8000, 25 mM BisTris-Propane pH 6.8, 75 mM BisTris-Propane pH 7.4, 50 mM Ammonium Sulfate, 5% glycerol, 5% sucrose
Resolution 2.30 Å R-free 0.225
5D3G Structure of HIV-1 Reverse Transcriptase Bound to a Novel 38-mer Hairpin Template-Primer DNA Aptamer Deposited 2015-08-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain C 600–1154（555 aa）
Chain D 600–1027（428 aa）
Mutation：C280S Mutation：C280S SO4 SULFATE ION × 1 GOL GLYCEROL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；278 K；7% PEG 8000, 25 mM BisTris-Propane pH 6.8, 75 mM BisTris-Propane pH 7.4, 50 mM Ammonium Sulfate, 5% glycerol, 5% sucrose
Resolution 2.30 Å R-free 0.225
5FDL Crystal Structure of K103N/Y181C Mutant HIV-1 Reverse Transcriptase (RT) in Complex with IDX899 Deposited 2015-12-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1156（557 aa）
Chain B 600–1039（440 aa）
Mutation：YES Mutation：YES 5DV methyl (R)-(2-carbamoyl-5-chloro-1H-indol-3-yl)[3-(2-cyanoethyl)-5-methylphenyl]phosphinate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；Protein was concentrated to 14 mg/ml in the presence of 0.5 mM inhibitor A051606P then used in successive crystal micro-seeding experiments to yield protein crystals of 0.3 mm x 0.3 mm x 0.2 mm in 1.4 M Sodium Malonate.
Resolution 3.10 Å R-free 0.299
5HBM Crystal Structure of a Dihydroxycoumarin RNase H Active-Site Inhibitor in Complex with HIV-1 Reverse Transcriptase Deposited 2015-12-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66 domain, residues 600-1153
Chain B 600–1027（428 aa） Fragment：p51 domain, residues 604-1027
Mutation：K172A, K173A, C280S Mutation：C280S NVP 11-CYCLOPROPYL-5,11-DIHYDRO-4-METHYL-6H-DIPYRIDO[3,2-B:2',3'-E][1,4]DIAZEPIN-6-ONE × 1 F95 (7,8-dihydroxy-2-oxo-2H-chromen-4-yl)acetic acid × 1 MN MANGANESE (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；277 K；PEG 8000, (NH4)2SO4, GLYCEROL, BIS TRIS PROPANE
Resolution 3.04 Å R-free 0.274
5HLF STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE In COMPLEX WITH A 38-MER HAIRPIN TEMPLATE-PRIMER DNA APTAMER AND AN ALPHA-CARBOXYPHOSPHONATE INHIBITOR Deposited 2016-01-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：D498N MG MAGNESIUM ION × 2 64A {[(1S,3R)-3-(5-methyl-2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)cyclopentyl]oxy}propanedioic acid × 1 SO4 SULFATE ION × 1 GOL GLYCEROL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；7% PEG 8000, 25 MM BISTRIS-PROPANE PH, 6.8, 75 MM BISTRIS-PROPANE PH 7.4, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 2.95 Å R-free 0.257
5HLF STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE In COMPLEX WITH A 38-MER HAIRPIN TEMPLATE-PRIMER DNA APTAMER AND AN ALPHA-CARBOXYPHOSPHONATE INHIBITOR Deposited 2016-01-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain C 600–1154（555 aa）
Chain D 600–1027（428 aa）
Mutation：D498N MG MAGNESIUM ION × 1 SO4 SULFATE ION × 1 GOL GLYCEROL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；7% PEG 8000, 25 MM BISTRIS-PROPANE PH, 6.8, 75 MM BISTRIS-PROPANE PH 7.4, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 2.95 Å R-free 0.257
5HP1 STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE In COMPLEX WITH A DNA aptamer and FOSCARNET, a Pyrophosphate analog Deposited 2016-01-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Not recorded MG MAGNESIUM ION × 4 PPF PHOSPHONOFORMIC ACID × 1 SO4 SULFATE ION × 1 GOL GLYCEROL × 2 ATM 3'-AZIDO-3'-DEOXYTHYMIDINE-5'-MONOPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；7% PEG 8000, 25mM, BISTRIS-PROPANE, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 2.90 Å R-free 0.273
5HP1 STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE In COMPLEX WITH A DNA aptamer and FOSCARNET, a Pyrophosphate analog Deposited 2016-01-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain C 600–1154（555 aa）
Chain D 600–1027（428 aa）
Not recorded MG MAGNESIUM ION × 4 PPF PHOSPHONOFORMIC ACID × 1 SO4 SULFATE ION × 1 ATM 3'-AZIDO-3'-DEOXYTHYMIDINE-5'-MONOPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；7% PEG 8000, 25mM, BISTRIS-PROPANE, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 2.90 Å R-free 0.273
5HRO STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE In COMPLEX WITH A DNA aptamer and an Alpha-carboxy nucleoside phosphonate inhibitor (alpha-CNP) Deposited 2016-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Not recorded MG MAGNESIUM ION × 3 3JY [(1R)-2-methoxy-1-{[(1S,3R)-3-(5-methyl-2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)cyclopentyl]oxy}-2-oxoethyl]phosphonic acid × 1 SO4 SULFATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；7% PEG 8000, 100 MM BISTRIS-PROPANE, AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 2.75 Å R-free 0.265
5HRO STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE In COMPLEX WITH A DNA aptamer and an Alpha-carboxy nucleoside phosphonate inhibitor (alpha-CNP) Deposited 2016-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain C 600–1154（555 aa）
Chain D 600–1027（428 aa）
Not recorded MG MAGNESIUM ION × 3 3JY [(1R)-2-methoxy-1-{[(1S,3R)-3-(5-methyl-2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)cyclopentyl]oxy}-2-oxoethyl]phosphonic acid × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；7% PEG 8000, 100 MM BISTRIS-PROPANE, AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 2.75 Å R-free 0.265
5I3U STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE N-SITE COMPLEX; CATALYTIC INCORPORATION OF AZTMP to A DNA aptamer in CRYSTAL Deposited 2016-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Not recorded MG MAGNESIUM ION × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；7% PEG 8000, 25 MM BISTRIS-PROPANE PH 6.8, 75 MM BISTRIS-PROPANE PH 7.4, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 3.00 Å R-free 0.254
5I3U STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE N-SITE COMPLEX; CATALYTIC INCORPORATION OF AZTMP to A DNA aptamer in CRYSTAL Deposited 2016-02-11 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain C 600–1154（555 aa）
Chain D 600–1027（428 aa）
Not recorded MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；7% PEG 8000, 25 MM BISTRIS-PROPANE PH 6.8, 75 MM BISTRIS-PROPANE PH 7.4, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 3.00 Å R-free 0.254
5I42 Structure of HIV-1 Reverse Transcriptase in complex with a DNA aptamer, AZTTP, and CA(2+) ion Deposited 2016-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Not recorded CA CALCIUM ION × 1 AZT 3'-AZIDO-3'-DEOXYTHYMIDINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；7% PEG 8000, 25 MM BISTRIS-PROPANE PH 6.8, 75 MM BISTRIS-PROPANE PH 7.4, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 3.30 Å R-free 0.247
5I42 Structure of HIV-1 Reverse Transcriptase in complex with a DNA aptamer, AZTTP, and CA(2+) ion Deposited 2016-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain C 600–1154（555 aa）
Chain D 600–1027（428 aa）
Not recorded CA CALCIUM ION × 1 AZT 3'-AZIDO-3'-DEOXYTHYMIDINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；7% PEG 8000, 25 MM BISTRIS-PROPANE PH 6.8, 75 MM BISTRIS-PROPANE PH 7.4, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 3.30 Å R-free 0.247
5J1E Crystal Structure of a Hydroxypyridone Carboxylic Acid Active-Site RNase H Inhibitor in Complex with HIV Reverse Transcriptase Deposited 2016-03-29 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66 domain, residues 600-1154
Chain B 600–1027（428 aa） Fragment：p51 domain, residues 600-1027
Mutation：C280S Mutation：C280S MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.1；291 K；PEG 3350, SODIUM POTASSIUM PHOSPHATE, ETHYLENE GLYCOL, MES
Resolution 2.90 Å R-free 0.294
5J1E Crystal Structure of a Hydroxypyridone Carboxylic Acid Active-Site RNase H Inhibitor in Complex with HIV Reverse Transcriptase Deposited 2016-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 600–1154（555 aa） Fragment：p66 domain, residues 600-1154
Chain D 600–1027（428 aa） Fragment：p51 domain, residues 600-1027
Mutation：C280S Mutation：C280S MG MAGNESIUM ION × 2 6FT 5-hydroxy-4-oxo-1-[(4'-sulfamoyl[1,1'-biphenyl]-4-yl)methyl]-1,4-dihydropyridine-3-carboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.1；291 K；PEG 3350, SODIUM POTASSIUM PHOSPHATE, ETHYLENE GLYCOL, MES
Resolution 2.90 Å R-free 0.294
5TER Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 5-chloro-7-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-8-methyl-2-naphthonitrile (JLJ651), a Non-nucleoside Inhibitor Deposited 2016-09-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：C280S, K172A, K173A Mutation：C280S 7AY 5-chloro-7-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-8-methyl-2-naphthonitrile × 1 SO4 SULFATE ION × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；50 mM HEPES pH 7.0, 18% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.70 Å R-free 0.267
5TUQ Crystal Structure of a 6-Cyclohexylmethyl-3-hydroxypyrimidine-2,4-dione Inhibitor in Complex with HIV Reverse Transcriptase Deposited 2016-11-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66 domain residues 600-1154
Chain B 600–1027（428 aa） Fragment：p51 domain residues 600-1027
Mutation：C280S Mutation：C280S J63 1-[(benzyloxy)methyl]-6-(cyclohexylmethyl)-3-hydroxy-5-(propan-2-yl)pyrimidine-2,4(1H,3H)-dione × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.1；291 K；PEG 3350, SODIUM POTASSIUM PHOSPHATE, ETHYLENE GLYCOL, MES
Resolution 2.71 Å R-free 0.265
5TW3 Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 5-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)-4-fluorophenoxy)-7-fluoro-2-naphthonitrile (JLJ636), a Non-nucleoside Inhibitor Deposited 2016-11-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, K172A, K173A Mutation：C280S 7N1 5-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]-4-fluorophenoxy}-7-fluoronaphthalene-2-carbonitrile × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；50 mM MES pH 6.0, 18% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.85 Å R-free 0.273
5TXL STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING DATP Deposited 2016-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：Q258C, C280S, D498N Mutation：C280S MG MAGNESIUM ION × 2 DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 SO4 SULFATE ION × 1 EDO 1,2-ETHANEDIOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 8000, AMMONIUM SULFATE, MGCL2, GLYCEROL, SUCROSE
Resolution 2.50 Å R-free 0.225
5TXL STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING DATP Deposited 2016-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Mutation：Q258C, C280S, D498N Mutation：C280S MG MAGNESIUM ION × 2 DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 8000, AMMONIUM SULFATE, MGCL2, GLYCEROL, SUCROSE
Resolution 2.50 Å R-free 0.225
5TXM STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING DDATP Deposited 2016-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：Q258C, C280S, D498N Mutation：C280S MG MAGNESIUM ION × 2 DDS 2',3'-dideoxyadenosine triphosphate × 1 EDO 1,2-ETHANEDIOL × 4 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 8000, AMMONIUM SULFATE, MGCL2, GLYCEROL, SUCROSE,
Resolution 2.70 Å R-free 0.223
5TXM STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING DDATP Deposited 2016-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1154（555 aa）
Chain D 600–1027（428 aa）
Mutation：Q258C, C280S, D498N Mutation：C280S MG MAGNESIUM ION × 2 DDS 2',3'-dideoxyadenosine triphosphate × 1 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 8000, AMMONIUM SULFATE, MGCL2, GLYCEROL, SUCROSE,
Resolution 2.70 Å R-free 0.223
5TXN STRUCTURE OF Q151M MUTANT HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING DATP Deposited 2016-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：Q151M, Q258C, C280S, D498N Mutation：C280S MG MAGNESIUM ION × 2 DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 8000, AMMONIUM SULFATE, MGCL2, GLYCEROL, SUCROSE
Resolution 2.55 Å R-free 0.226
5TXN STRUCTURE OF Q151M MUTANT HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING DATP Deposited 2016-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Mutation：Q151M, Q258C, C280S, D498N Mutation：C280S MG MAGNESIUM ION × 2 DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 EDO 1,2-ETHANEDIOL × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 8000, AMMONIUM SULFATE, MGCL2, GLYCEROL, SUCROSE
Resolution 2.55 Å R-free 0.226
5TXO STRUCTURE OF Q151M complex (A62V, V75I, F77L, F116Y, Q151M) mutant HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING DATP Deposited 2016-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：A62V, V75I, F77L, F116Y, Q151M, Q258C, C280S, D498N Mutation：C280S MG MAGNESIUM ION × 2 DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 EDO 1,2-ETHANEDIOL × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 8000, AMMONIUM SULFATE, MGCL2, GLYCEROL, SUCROSE
Resolution 2.55 Å R-free 0.228
5TXO STRUCTURE OF Q151M complex (A62V, V75I, F77L, F116Y, Q151M) mutant HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING DATP Deposited 2016-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Mutation：A62V, V75I, F77L, F116Y, Q151M, Q258C, C280S, D498N Mutation：C280S MG MAGNESIUM ION × 2 DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 EDO 1,2-ETHANEDIOL × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 8000, AMMONIUM SULFATE, MGCL2, GLYCEROL, SUCROSE
Resolution 2.55 Å R-free 0.228
5TXP STRUCTURE OF Q151M complex (A62V, V75I, F77L, F116Y, Q151M) mutant HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING DDATP Deposited 2016-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：A62V, V75I, F77L, F116Y, Q151M, Q258C, C280S, D498N Mutation：C280S MG MAGNESIUM ION × 2 DDS 2',3'-dideoxyadenosine triphosphate × 1 SO4 SULFATE ION × 1 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 8000, AMMONIUM SULFATE, MGCL2, GLYCEROL, SUCROSE
Resolution 2.70 Å R-free 0.239
5TXP STRUCTURE OF Q151M complex (A62V, V75I, F77L, F116Y, Q151M) mutant HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING DDATP Deposited 2016-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Mutation：A62V, V75I, F77L, F116Y, Q151M, Q258C, C280S, D498N Mutation：C280S MG MAGNESIUM ION × 2 DDS 2',3'-dideoxyadenosine triphosphate × 1 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 8000, AMMONIUM SULFATE, MGCL2, GLYCEROL, SUCROSE
Resolution 2.70 Å R-free 0.239
5UV5 Crystal Structure of a 2-Hydroxyisoquinoline-1,3-dione RNase H Active Site Inhibitor with Multiple Binding Modes to HIV Reverse Transcriptase Deposited 2017-02-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66 domain residues 600-1154
Chain B 600–1027（428 aa） Fragment：p51 domain residues 600-1027
Mutation：C280S Mutation：C280S MN MANGANESE (II) ION × 2 Y55 7-(furan-2-yl)-2-hydroxyisoquinoline-1,3(2H,4H)-dione × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；291 K；PEG 3350, SODIUM POTASSIUM PHOSPHATE, ETHYLENE GLYCOL, TRIS
Resolution 3.00 Å R-free 0.287
5UV5 Crystal Structure of a 2-Hydroxyisoquinoline-1,3-dione RNase H Active Site Inhibitor with Multiple Binding Modes to HIV Reverse Transcriptase Deposited 2017-02-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 600–1154（555 aa） Fragment：p66 domain residues 600-1154
Chain D 600–1027（428 aa） Fragment：p51 domain residues 600-1027
Mutation：C280S Mutation：C280S MN MANGANESE (II) ION × 2 Y55 7-(furan-2-yl)-2-hydroxyisoquinoline-1,3(2H,4H)-dione × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；291 K；PEG 3350, SODIUM POTASSIUM PHOSPHATE, ETHYLENE GLYCOL, TRIS
Resolution 3.00 Å R-free 0.287
5VQQ Crystal Structure of HIV-1 Reverse Transcriptase in Complex with N-(6-cyano-3-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-4-methylnaphthalen-1-yl)-2-fluoro-N-methylacetamide (JLJ683), a Non-nucleoside Inhibitor Deposited 2017-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, K172A, K173A Mutation：C280S 9JP N-(6-cyano-3-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}-4-methylnaphthalen-1-yl)-2-fluoro-N-methylacetamide × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；50 mM imidazole pH 6.5, 20% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.55 Å R-free 0.255
5VQR Crystal Structure of HIV-1 Reverse Transcriptase in Complex with N-(6-cyano-3-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-4-methylnaphthalen-1-yl)-N-methylacrylamide (JLJ684), a Non-nucleoside Inhibitor Deposited 2017-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, K172A, K173A Mutation：C280S 9KG N-(6-cyano-3-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}-4-methylnaphthalen-1-yl)-N-methylprop-2-enamide × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；50 mM imidazole pH 6.8, 14% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.55 Å R-free 0.250
5VQS Crystal Structure of HIV-1 Reverse Transcriptase in Complex with N-(6-cyano-3-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-4-methylnaphthalen-1-yl)acrylamide (JLJ685), a Non-nucleoside Inhibitor Deposited 2017-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, K172A, K173A Mutation：C280S 9KD N-(6-cyano-3-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}-4-methylnaphthalen-1-yl)prop-2-enamide × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；50 mM MES pH 6.0, 14% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.50 Å R-free 0.242
5VQT Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 2-chloro-N-(6-cyano-3-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-4-methylnaphthalen-1-yl)-N-methylacetamide (JLJ686), a Non-nucleoside Inhibitor Deposited 2017-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, K172A, K173A Mutation：C280S 9K7 2-chloro-N-(6-cyano-3-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}-4-methylnaphthalen-1-yl)-N-methylacetamide × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；50 mM imidazole pH 7.0, 16% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.56 Å R-free 0.241
5VQU Crystal Structure of HIV-1 Reverse Transcriptase (Y181C) Variant in Complex with N-(6-cyano-3-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-4-methylnaphthalen-1-yl)-2-fluoro-N-methylacetamide (JLJ683), a Non-nucleoside Inhibitor Deposited 2017-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66
Chain B 600–1027（428 aa） Fragment：p51
Mutation：C280S, K172A, K173A, Y181C Mutation：C280S 9JP N-(6-cyano-3-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}-4-methylnaphthalen-1-yl)-2-fluoro-N-methylacetamide × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；50 mM imidazole pH 6.5, 18% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.60 Å R-free 0.263
5VQV Crystal Structure of HIV-1 Reverse Transcriptase (Y181C) Variant in Complex with N-(6-cyano-3-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-4-methylnaphthalen-1-yl)-N-methylacrylamide (JLJ684), a Non-nucleoside Inhibitor Deposited 2017-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66
Chain B 600–1027（428 aa） Fragment：p51
Mutation：C280S, K172A, K173A, Y181C Mutation：C280S 9J1 N-(6-cyano-3-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}-4-methylnaphthalen-1-yl)-N-methylpropanamide × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；50 mM imidazole pH 6.5, 16% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.58 Å R-free 0.258
5VQW Crystal Structure of HIV-1 Reverse Transcriptase (Y181C) Variant in Complex with N-(6-cyano-3-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-4-methylnaphthalen-1-yl)acrylamide (JLJ685), a Non-nucleoside Inhibitor Deposited 2017-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, K172A, K173A, Y181C Mutation：C280S 9KD N-(6-cyano-3-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}-4-methylnaphthalen-1-yl)prop-2-enamide × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；50 mM HEPES pH 7.0, 16% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.50 Å R-free 0.257
5VQX Crystal Structure of HIV-1 Reverse Transcriptase (Y181C) Variant in Complex with 2-chloro-N-(6-cyano-3-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-4-methylnaphthalen-1-yl)-N-methylacetamide (JLJ686), a Non-nucleoside Inhibitor Deposited 2017-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66
Chain B 600–1027（428 aa） Fragment：p51
Mutation：C280S, K172A, K173A, Y181C Mutation：C280S 9HY N-(6-cyano-3-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}-4-methylnaphthalen-1-yl)-N-methylacetamide × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；50 mM imidazole pH 6.8, 16% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.40 Å R-free 0.262
5VQY Crystal Structure of HIV-1 Reverse Transcriptase (K103N, Y181C) Variant in Complex with N-(6-cyano-3-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-4-methylnaphthalen-1-yl)-N-methylacrylamide (JLJ684), a Non-nucleoside Inhibitor Deposited 2017-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, K172A, K173A, K103N, Y181C Mutation：C280S 9J1 N-(6-cyano-3-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}-4-methylnaphthalen-1-yl)-N-methylpropanamide × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；50 mM imidazole pH 6.8, 16% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.35 Å R-free 0.256
5VQZ Crystal Structure of HIV-1 Reverse Transcriptase (K103N, Y181C) Variant in Complex with 2-chloro-N-(6-cyano-3-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-4-methylnaphthalen-1-yl)-N-methylacetamide (JLJ686), a Non-nucleoside Inhibitor Deposited 2017-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, K172A, K173A, K103N, Y181C Mutation：C280S 9HY N-(6-cyano-3-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}-4-methylnaphthalen-1-yl)-N-methylacetamide × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；50 mM imidazole pH 6.8, 18% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.23 Å R-free 0.259
6AMO STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING D4TTP AT PH 7.0 Deposited 2017-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：I63C, C280S Mutation：C879S MG MAGNESIUM ION × 2 D4T 2',3'-DEHYDRO-2',3'-DEOXY-THYMIDINE 5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；277 K；PEG 8000, NaCl, CHES (N-Cyclohexyl-2-aminoethanesulfonic acid), TRIS (tris(hydroxymethyl)aminomethane), MgCl2, d4T triphosphate
Resolution 2.50 Å R-free 0.217
6AMO STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING D4TTP AT PH 7.0 Deposited 2017-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Mutation：I63C, C280S Mutation：C879S MG MAGNESIUM ION × 2 D4T 2',3'-DEHYDRO-2',3'-DEOXY-THYMIDINE 5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；277 K；PEG 8000, NaCl, CHES (N-Cyclohexyl-2-aminoethanesulfonic acid), TRIS (tris(hydroxymethyl)aminomethane), MgCl2, d4T triphosphate
Resolution 2.50 Å R-free 0.217
6AN2 STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING D4TTP AT PH 7.5 Deposited 2017-08-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, I63C Mutation：C879S MG MAGNESIUM ION × 2 D4T 2',3'-DEHYDRO-2',3'-DEOXY-THYMIDINE 5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；277 K；PEG 8000, NaCl, CHES (N-Cyclohexyl-2-aminoethanesulfonic acid), TRIS, MgCl2, d4T triphosphate
Resolution 2.70 Å R-free 0.216
6AN2 STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING D4TTP AT PH 7.5 Deposited 2017-08-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Mutation：C280S, I63C Mutation：C879S MG MAGNESIUM ION × 2 D4T 2',3'-DEHYDRO-2',3'-DEOXY-THYMIDINE 5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；277 K；PEG 8000, NaCl, CHES (N-Cyclohexyl-2-aminoethanesulfonic acid), TRIS, MgCl2, d4T triphosphate
Resolution 2.70 Å R-free 0.216
6AN8 STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING D4TTP AT PH 8.0 Deposited 2017-08-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, I63C Mutation：C879S MG MAGNESIUM ION × 2 D4T 2',3'-DEHYDRO-2',3'-DEOXY-THYMIDINE 5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；277 K；PEG 8000, NaCl, CHES (N-Cyclohexyl-2-aminoethanesulfonic acid), TRIS, MgCl2, d4T triphosphate
Resolution 2.60 Å R-free 0.217
6AN8 STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING D4TTP AT PH 8.0 Deposited 2017-08-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Mutation：C280S, I63C Mutation：C879S MG MAGNESIUM ION × 2 D4T 2',3'-DEHYDRO-2',3'-DEOXY-THYMIDINE 5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；277 K；PEG 8000, NaCl, CHES (N-Cyclohexyl-2-aminoethanesulfonic acid), TRIS, MgCl2, d4T triphosphate
Resolution 2.60 Å R-free 0.217
6ANQ STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING D4TTP AT PH 8.5 Deposited 2017-08-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, I63C Mutation：C879S MG MAGNESIUM ION × 2 D4T 2',3'-DEHYDRO-2',3'-DEOXY-THYMIDINE 5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；277 K；PEG 8000, NaCl, CHES (N-Cyclohexyl-2-aminoethanesulfonic acid), TRIS, MgCl2, d4T triphosphate
Resolution 2.59 Å R-free 0.219
6ANQ STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING D4TTP AT PH 8.5 Deposited 2017-08-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Mutation：C280S, I63C Mutation：C879S MG MAGNESIUM ION × 2 D4T 2',3'-DEHYDRO-2',3'-DEOXY-THYMIDINE 5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；277 K；PEG 8000, NaCl, CHES (N-Cyclohexyl-2-aminoethanesulfonic acid), TRIS, MgCl2, d4T triphosphate
Resolution 2.59 Å R-free 0.219
6AOC Crystal Structure of an N-Hydroxythienopyrimidine-2,4-dione RNase H Active Site Inhibitor with Multiple Binding Modes to HIV Reverse Transcriptase Deposited 2017-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66 domain residues 168-722
Chain B 600–1027（428 aa） Fragment：p51 domain residues 168-595
Mutation：C280S Mutation：C280S MN MANGANESE (II) ION × 2 ZW2 6-benzyl-3-hydroxythieno[2,3-d]pyrimidine-2,4(1H,3H)-dione × 1 PGE TRIETHYLENE GLYCOL × 5 EDO 1,2-ETHANEDIOL × 33 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；291 K；PEG 3350, SODIUM POTASSIUM PHOSPHATE, ETHYLENE GLYCOL, TRIS
Resolution 1.80 Å R-free 0.226
6AOC Crystal Structure of an N-Hydroxythienopyrimidine-2,4-dione RNase H Active Site Inhibitor with Multiple Binding Modes to HIV Reverse Transcriptase Deposited 2017-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 600–1154（555 aa） Fragment：p66 domain residues 168-722
Chain D 600–1027（428 aa） Fragment：p51 domain residues 168-595
Mutation：C280S Mutation：C280S MN MANGANESE (II) ION × 2 ZW2 6-benzyl-3-hydroxythieno[2,3-d]pyrimidine-2,4(1H,3H)-dione × 1 PGE TRIETHYLENE GLYCOL × 2 EDO 1,2-ETHANEDIOL × 35 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；291 K；PEG 3350, SODIUM POTASSIUM PHOSPHATE, ETHYLENE GLYCOL, TRIS
Resolution 1.80 Å R-free 0.226
6ASW STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING D4TTP AT PH 9.0 Deposited 2017-08-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, I63C Mutation：C879S MG MAGNESIUM ION × 2 D4T 2',3'-DEHYDRO-2',3'-DEOXY-THYMIDINE 5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；277 K；PEG 8000, NaCl, CHES (N-Cyclohexyl-2-aminoethanesulfonic acid), TRIS, MgCl2, d4T triphosphate
Resolution 2.60 Å R-free 0.220
6ASW STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING D4TTP AT PH 9.0 Deposited 2017-08-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Mutation：C280S, I63C Mutation：C879S MG MAGNESIUM ION × 2 D4T 2',3'-DEHYDRO-2',3'-DEOXY-THYMIDINE 5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；277 K；PEG 8000, NaCl, CHES (N-Cyclohexyl-2-aminoethanesulfonic acid), TRIS, MgCl2, d4T triphosphate
Resolution 2.60 Å R-free 0.220
6AVM STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING D4TTP AT PH 9.5 WITH CROSS-LINKING TO SECOND BASE TEMPLATE OVERHANG Deposited 2017-09-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, I63C Mutation：C879S MG MAGNESIUM ION × 2 D4T 2',3'-DEHYDRO-2',3'-DEOXY-THYMIDINE 5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；277 K；PEG 8000, NaCl, CHES (N-Cyclohexyl-2-aminoethanesulfonic acid), TRIS, MgCl2, d4T triphosphate
Resolution 2.50 Å R-free 0.229
6AVM STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING D4TTP AT PH 9.5 WITH CROSS-LINKING TO SECOND BASE TEMPLATE OVERHANG Deposited 2017-09-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Mutation：C280S, I63C Mutation：C879S MG MAGNESIUM ION × 2 D4T 2',3'-DEHYDRO-2',3'-DEOXY-THYMIDINE 5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；277 K；PEG 8000, NaCl, CHES (N-Cyclohexyl-2-aminoethanesulfonic acid), TRIS, MgCl2, d4T triphosphate
Resolution 2.50 Å R-free 0.229
6AVT STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING D4TTP AT PH 9.5 WITH CROSS-LINKING TO FIRST BASE TEMPLATE OVERHANG Deposited 2017-09-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, I63C Mutation：C879S MG MAGNESIUM ION × 2 D4T 2',3'-DEHYDRO-2',3'-DEOXY-THYMIDINE 5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；277 K；PEG 8000, NaCl, CHES (N-Cyclohexyl-2-aminoethanesulfonic acid), TRIS, MgCl2, d4T triphosphate
Resolution 2.60 Å R-free 0.211
6AVT STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE (RT) TERNARY COMPLEX WITH A DOUBLE STRANDED DNA AND AN INCOMING D4TTP AT PH 9.5 WITH CROSS-LINKING TO FIRST BASE TEMPLATE OVERHANG Deposited 2017-09-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Mutation：C280S, I63C Mutation：C879S MG MAGNESIUM ION × 2 D4T 2',3'-DEHYDRO-2',3'-DEOXY-THYMIDINE 5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；277 K；PEG 8000, NaCl, CHES (N-Cyclohexyl-2-aminoethanesulfonic acid), TRIS, MgCl2, d4T triphosphate
Resolution 2.60 Å R-free 0.211
6B19 Architecture of HIV-1 reverse transcriptase initiation complex core Deposited 2017-09-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1159（560 aa） Fragment：UNP residues 600-1159
Chain B 600–1039（440 aa） Fragment：UNP residues 600-1039
Mutation：Q260C, C282S, E480Q Mutation：C282S No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；Beta-OG was added just prior to freezing.
cryo-EM vitrification conditions Cryogen ETHANE；Blotted for 3.5 sec before plunging into liquid ethane.
Resolution 4.50 Å
6C0J Crystal structure of HIV-1 reverse transcriptase in complex with non-nucleoside inhibitor K-5a2 Deposited 2018-01-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S K5A 4-[(4-{[4-(4-cyano-2,6-dimethylphenoxy)thieno[3,2-d]pyrimidin-2-yl]amino}piperidin-1-yl)methyl]benzene-1-sulfonamide × 1 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 7 EDO 1,2-ETHANEDIOL × 23 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；50 mM MES buffer (pH 6.0-6.6), 10% (v/v) polyethylene glycol (PEG) 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 10 mM spermine
Resolution 1.92 Å R-free 0.226
6C0K Crystal structure of HIV-1 K103N mutant reverse transcriptase in complex with non-nucleoside inhibitor K-5a2 Deposited 2018-01-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K103N, K172A, K173A, C280S Mutation：C280S K5A 4-[(4-{[4-(4-cyano-2,6-dimethylphenoxy)thieno[3,2-d]pyrimidin-2-yl]amino}piperidin-1-yl)methyl]benzene-1-sulfonamide × 1 MG MAGNESIUM ION × 1 DMS DIMETHYL SULFOXIDE × 2 SO4 SULFATE ION × 10 EDO 1,2-ETHANEDIOL × 30 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；50 mM MES buffer (pH 6.0-6.6), 10% (v/v) polyethylene glycol (PEG) 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 10 mM spermine
Resolution 1.96 Å R-free 0.219
6C0L Crystal structure of HIV-1 E138K mutant reverse transcriptase in complex with non-nucleoside inhibitor K-5a2 Deposited 2018-01-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：E138K, C280S K5A 4-[(4-{[4-(4-cyano-2,6-dimethylphenoxy)thieno[3,2-d]pyrimidin-2-yl]amino}piperidin-1-yl)methyl]benzene-1-sulfonamide × 1 MG MAGNESIUM ION × 1 NA SODIUM ION × 1 SO4 SULFATE ION × 8 EDO 1,2-ETHANEDIOL × 26 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；50 mM MES buffer (pH 6.0-6.6), 10% (v/v) polyethylene glycol (PEG) 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 10 mM spermine
Resolution 1.95 Å R-free 0.219
6C0N Crystal structure of HIV-1 reverse transcriptase in complex with non-nucleoside inhibitor 25a Deposited 2018-01-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S K5C 4-({4-[(4-{4-[(E)-2-cyanoethenyl]-2,6-dimethylphenoxy}thieno[3,2-d]pyrimidin-2-yl)amino]piperidin-1-yl}methyl)benzene-1-sulfonamide × 1 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 8 EDO 1,2-ETHANEDIOL × 22 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；50 mM MES buffer (pH 6.0-6.6), 10% (v/v) polyethylene glycol (PEG) 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 10 mM spermine
Resolution 2.00 Å R-free 0.222
6C0O Crystal structure of HIV-1 K103N mutant reverse transcriptase in complex with non-nucleoside inhibitor 25a Deposited 2018-01-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K103N, K172A, K173A, C280S Mutation：C280S K5C 4-({4-[(4-{4-[(E)-2-cyanoethenyl]-2,6-dimethylphenoxy}thieno[3,2-d]pyrimidin-2-yl)amino]piperidin-1-yl}methyl)benzene-1-sulfonamide × 1 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 10 EDO 1,2-ETHANEDIOL × 14 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；50 mM MES buffer (pH 6.0-6.6), 10% (v/v) polyethylene glycol (PEG) 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 10 mM spermine
Resolution 1.90 Å R-free 0.209
6C0P Crystal structure of HIV-1 E138K mutant reverse transcriptase in complex with non-nucleoside inhibitor 25a Deposited 2018-01-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：E138K, C280S K5C 4-({4-[(4-{4-[(E)-2-cyanoethenyl]-2,6-dimethylphenoxy}thieno[3,2-d]pyrimidin-2-yl)amino]piperidin-1-yl}methyl)benzene-1-sulfonamide × 1 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 9 EDO 1,2-ETHANEDIOL × 27 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；50 mM MES buffer (pH 6.0-6.6), 10% (v/v) polyethylene glycol (PEG) 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 10 mM spermine
Resolution 2.05 Å R-free 0.215
6C0R Crystal structure of HIV-1 K103N/Y181C mutant reverse transcriptase in complex with non-nucleoside inhibitor 25a Deposited 2018-01-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K103N, K172A, K173A, Y181C, C280S Mutation：C280S K5C 4-({4-[(4-{4-[(E)-2-cyanoethenyl]-2,6-dimethylphenoxy}thieno[3,2-d]pyrimidin-2-yl)amino]piperidin-1-yl}methyl)benzene-1-sulfonamide × 1 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 8 EDO 1,2-ETHANEDIOL × 31 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；50 mM MES buffer (pH 6.0-6.6), 10% (v/v) polyethylene glycol (PEG) 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 10 mM spermine
Resolution 2.05 Å R-free 0.212
6CGF Crystal structure of HIV-1 Y188L mutant reverse transcriptase in complex with non-nucleoside inhibitor K-5a2 Deposited 2018-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66 subunit, residues 600-1154
Chain B 600–1027（428 aa） Fragment：p51 subunit, residues 600-1027
Mutation：K172A, K173A, Y188L, C280S Mutation：C280S K5A 4-[(4-{[4-(4-cyano-2,6-dimethylphenoxy)thieno[3,2-d]pyrimidin-2-yl]amino}piperidin-1-yl)methyl]benzene-1-sulfonamide × 1 MG MAGNESIUM ION × 1 NA SODIUM ION × 1 SO4 SULFATE ION × 7 EDO 1,2-ETHANEDIOL × 23 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；50 mM MES buffer (pH 6.0-6.6), 10% (v/v) polyethylene glycol (PEG) 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 10 mM spermine
Resolution 1.94 Å R-free 0.232
6DTW HIV-1 Reverse Transcriptase Y181C Mutant in complex with JLJ 578 Deposited 2018-06-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C282S, K175A, K174A, Y181C Mutation：C280S H9Y 8-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]-4-fluorophenoxy}-6-fluoroindolizine-2-carbonitrile × 1 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；MES, PEG 8000, spermine, magnesium sulfate, ammonium sulfate, rilpivirine
Resolution 2.74 Å R-free 0.284
6DTX Wildtype HIV-1 Reverse Transcriptase in complex with JLJ 578 Deposited 2018-06-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K175A, K174A, Y181C Mutation：C280S H9Y 8-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]-4-fluorophenoxy}-6-fluoroindolizine-2-carbonitrile × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；PEG 8000, ammonium sulfate, magnesium sulfate, spermine, MES (pH 6), rilpivirine.
Resolution 3.33 Å R-free 0.237
6DUF Crystal structure of HIV-1 reverse transcriptase V106A/F227L mutant in complex with non-nucleoside inhibitor 25a Deposited 2018-06-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：residues 600-1154
Chain B 600–1027（428 aa） Fragment：residues 600-1027
Mutation：V106A, K172A, K173A, F227L, C280S Mutation：C280S K5C 4-({4-[(4-{4-[(E)-2-cyanoethenyl]-2,6-dimethylphenoxy}thieno[3,2-d]pyrimidin-2-yl)amino]piperidin-1-yl}methyl)benzene-1-sulfonamide × 1 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 9 EDO 1,2-ETHANEDIOL × 18 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；50 mM MES buffer (pH 6.0-6.6), 10% (v/v) polyethylene glycol (PEG) 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 10 mM spermine
Resolution 1.96 Å R-free 0.228
6DUG Crystal structure of HIV-1 reverse transcriptase K101P mutant in complex with non-nucleoside inhibitor 25a Deposited 2018-06-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：residues 600-1154
Chain B 600–1027（428 aa） Fragment：residues 600-1027
Mutation：K101P, K172A, K173A, C280S Mutation：C280S K5C 4-({4-[(4-{4-[(E)-2-cyanoethenyl]-2,6-dimethylphenoxy}thieno[3,2-d]pyrimidin-2-yl)amino]piperidin-1-yl}methyl)benzene-1-sulfonamide × 1 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 9 EDO 1,2-ETHANEDIOL × 24 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；50 mM MES buffer (pH 6.0-6.6), 10% (v/v) polyethylene glycol (PEG) 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 10 mM spermine
Resolution 2.23 Å R-free 0.233
6DUH Crystal structure of HIV-1 reverse transcriptase Y181I mutant in complex with non-nucleoside inhibitor 25a Deposited 2018-06-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：residues 168-722
Chain B 600–1027（428 aa） Fragment：residues 600-1027
Mutation：K172A, K173A, Y181I, C280S Mutation：C280S K5C 4-({4-[(4-{4-[(E)-2-cyanoethenyl]-2,6-dimethylphenoxy}thieno[3,2-d]pyrimidin-2-yl)amino]piperidin-1-yl}methyl)benzene-1-sulfonamide × 1 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 8 EDO 1,2-ETHANEDIOL × 28 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；50 mM MES buffer (pH 6.0-6.6), 10% (v/v) polyethylene glycol (PEG) 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 10 mM spermine
Resolution 2.00 Å R-free 0.223
6ECL Crystal Structure of a 1,2,4-Triazole Allosteric RNase H Inhibitor in Complex with HIV Reverse Transcriptase Deposited 2018-08-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa） Fragment：p66 domain
Chain B 600–1027（428 aa） Fragment：p51 domain
Mutation：C879S Mutation：C879S MN MANGANESE (II) ION × 2 T90 1-[4-methoxy-3-[[5-methyl-4-(phenylmethyl)-1,2,4-triazol-3-yl]sulfanylmethyl]phenyl]ethanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；277 K；PEG 3350, SODIUM POTASSIUM PHOSPHATE, BIS TRIS PROPANE
Resolution 2.38 Å R-free 0.229
6ELI Structure of HIV-1 reverse transcriptase (RT) in complex with rilpivirine and an RNase H inhibitor XZ462 Deposited 2017-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Not recorded T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 BA5 methyl 4-azanyl-1-oxidanyl-2-oxidanylidene-1,8-naphthyridine-3-carboxylate × 1 MG MAGNESIUM ION × 2 SO4 SULFATE ION × 2 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；277 K；PEG 8000, AMMONIUM SULFATE, MGCL2, IMIDAZOLE
Resolution 2.20 Å R-free 0.221
6HAK Crystal structure of HIV-1 reverse transcriptase (RT) in complex with a double stranded RNA represents the RT transcription initiation complex prior to nucleotide incorporation Deposited 2018-08-07 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：Q258C, C280S, D498N Mutation：C280S MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 8000, AMMONIUM SULFATE, MGCL2, GLYCEROL, SUCROSE
Resolution 3.95 Å R-free 0.329
6HAK Crystal structure of HIV-1 reverse transcriptase (RT) in complex with a double stranded RNA represents the RT transcription initiation complex prior to nucleotide incorporation Deposited 2018-08-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–RNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Mutation：Q258C, C280S, D498N Mutation：C280S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG 8000, AMMONIUM SULFATE, MGCL2, GLYCEROL, SUCROSE
Resolution 3.95 Å R-free 0.329
6O9E Structure of HIV-1 Reverse Transcriptase in complex with DNA and INDOPY-1 Deposited 2019-03-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, D498N Mutation：C280S SO4 SULFATE ION × 4 NH4 AMMONIUM ION × 1 GOL GLYCEROL × 2 PEG DI(HYDROXYETHYL)ETHER × 2 IY1 5-methyl-1-(4-nitrophenyl)-2-oxo-2,5-dihydro-1H-pyrido[3,2-b]indole-3-carbonitrile × 1 PG4 TETRAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；10-12% PEG 8000, 50 MM BISTRIS-PROPANE PH 7.2, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 2.40 Å R-free 0.242
6O9E Structure of HIV-1 Reverse Transcriptase in complex with DNA and INDOPY-1 Deposited 2019-03-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain C 600–1154（555 aa）
Chain D 600–1027（428 aa）
Mutation：C280S, D498N Mutation：C280S SO4 SULFATE ION × 2 NH4 AMMONIUM ION × 1 GOL GLYCEROL × 1 IY1 5-methyl-1-(4-nitrophenyl)-2-oxo-2,5-dihydro-1H-pyrido[3,2-b]indole-3-carbonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；10-12% PEG 8000, 50 MM BISTRIS-PROPANE PH 7.2, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 2.40 Å R-free 0.242
6OE3 Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 5-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-7-fluoro-2-naphthonitrile (JLJ635), a Non-nucleoside Inhibitor Deposited 2019-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S, C258Q Mutation：C280S M9A 5-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}-7-fluoronaphthalene-2-carbonitrile × 1 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；50 mM MES pH 6.0, 18% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.90 Å R-free 0.273
6OUN Structure of HIV-1 Reverse Transcriptase (RT) in complex with dsDNA and (-)3TC-TP Deposited 2019-05-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1157（558 aa）
Chain B 600–1039（440 aa）
Mutation：C280S, Q258C Mutation：C280S MG MAGNESIUM ION × 2 SO4 SULFATE ION × 3 1RZ Lamivudine Triphosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；3-6% (w/v) PEG 8000, 15 mM magnesium sulfate, and 50 mM MES adjusted at pH 6.0
Resolution 2.66 Å R-free 0.259
6PRF HIV-1 Protease multiple drug resistant clinical isolate mutant PR20 with GRL-14213A Deposited 2019-07-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 501–599（99 aa）
Chain B 501–599（99 aa）
Mutation：Q7K, L10F, I13V, I15V, D30N, V32I, L33F, E35D, M36I, S37N, I47V, I54L, Q58E, I62V, L63P, C67A, A71V, I84V, N88D, L89T, L90M, C95A Mutation：Q7K, L10F, I13V, I15V, D30N, V32I, L33F, E35D, M36I, S37N, I47V, I54L, Q58E, I62V, L63P, C67A, A71V, I84V, N88D, L89T, L90M, C95A Y1 YTTRIUM ION × 9 7OA (3S,3aR,5R,7aS,8S)-hexahydro-4H-3,5-methanofuro[2,3-b]pyran-8-yl [(2S,3R)-4-[{[2-(cyclopropylamino)-1,3-benzothiazol-6-yl]sulfonyl}(2-methylpropyl)amino]-1-(3,5-difluorophenyl)-3-hydroxybutan-2-yl]carbamate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；1.8 M sodium chloride, 0.1 M sodium acetate pH 5.5, 0.01M yittrium chloride
Resolution 1.21 Å R-free 0.190
6UL5 Crystal structure of HIV-1 reverse transcriptase (RT) in complex with 4-[(4-{4-[(E)-2-cyanoethenyl]-2,6-dimethylphenoxy}thieno[3,2-d]pyrimidin-2-yl)amino]-2-fluorobenzonitrile (24b), a non-nucleoside RT inhibitor Deposited 2019-10-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S QAG 4-[(4-{4-[(E)-2-cyanoethenyl]-2,6-dimethylphenoxy}thieno[3,2-d]pyrimidin-2-yl)amino]-2-fluorobenzonitrile × 1 SO4 SULFATE ION × 7 EDO 1,2-ETHANEDIOL × 6 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；277 K；10%(v/v) PEG 8000, 4%(v/v) PEG 400, 100 mM MES pH 6.3, 10 mM spermine, 15 mM MgSO4, 100 mM ammonium sulfate, and 5 mM tris(2-carboxyethyl)phosphine
Resolution 2.23 Å R-free 0.245
6VUG Diabody bound to a Reverse Transcriptase Aptamer Complex Deposited 2020-02-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: pentameric
Chain A 600–1154（555 aa） Fragment：p66 subunit, residues 600-1154
Not recorded SO4 SULFATE ION × 11 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.4 M Ammonium Sulfate 0.1 M HEPES pH 7.8 0.1 M NaCl
Resolution 3.00 Å R-free 0.255
6WAZ +1 extended HIV-1 reverse transcriptase initiation complex core (pre-translocation state) Deposited 2020-03-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1159（560 aa）
Chain B 600–1039（440 aa）
Mutation：Q258C, E478Q No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；Full complex was prepared 5-8 hours before freezing. Beta-OG was added just prior to freezing.
cryo-EM vitrification conditions Cryogen ETHANE；3 microliters applied, 2s pre-blot, 1.5s blot.
Resolution 4.10 Å
6WB0 +3 extended HIV-1 reverse transcriptase initiation complex core (pre-translocation state) Deposited 2020-03-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1159（560 aa）
Chain B 600–1039（440 aa）
Mutation：Q258C, E478Q Mutation：C879S No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；Full complex was prepared 5-8 hours before freezing. Beta-OG was added just prior to freezing.
cryo-EM vitrification conditions Cryogen ETHANE；3 microliters applied, 2s pre-blot, 2.5s blot.
Resolution 4.20 Å
6WB1 +3 extended HIV-1 reverse transcriptase initiation complex core (intermediate state) Deposited 2020-03-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1159（560 aa）
Chain B 600–1039（440 aa）
Mutation：Q258C, E478Q No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；Full complex was prepared 5-8 hours before freezing. Beta-OG was added just prior to freezing.
cryo-EM vitrification conditions Cryogen ETHANE；3 microliters applied, 2s pre-blot, 2.5s blot.
Resolution 4.70 Å
6WB2 +3 extended HIV-1 reverse transcriptase initiation complex core (displaced state) Deposited 2020-03-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1159（560 aa）
Chain B 600–1039（440 aa）
Mutation：Q258C, E478Q Mutation：C879S No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；Full complex was prepared 5-8 hours before freezing. Beta-OG was added just prior to freezing.
cryo-EM vitrification conditions Cryogen ETHANE；3 microliters applied, 2s pre-blot, 2.5s blot.
Resolution 4.50 Å
6X47 Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 7-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-2-naphthonitrile (JLJ649), a Non-nucleoside Inhibitor Deposited 2020-05-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, K172A, K173A Mutation：C280S 7AX 7-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-2-naphthonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；50 mM imidazole pH 6.5, 18% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.77 Å R-free 0.267
6X49 Crystal Structure of HIV-1 Reverse Transcriptase (Y181C) Variant in Complex with 7-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-2-naphthonitrile (JLJ649), a Non-nucleoside Inhibitor Deposited 2020-05-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, K172A, K173A, Y181C Mutation：C280S 7AX 7-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-2-naphthonitrile × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；50 mM imidazole pH 6.5, 18% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.75 Å R-free 0.251
6X4A Crystal Structure of HIV-1 Reverse Transcriptase (Y181C) Variant in Complex with 5-chloro-7-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-8-methyl-2-naphthonitrile (JLJ651), a Non-nucleoside Inhibitor Deposited 2020-05-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, K172A, K173A, Y181C Mutation：C280S 7AY 5-chloro-7-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-8-methyl-2-naphthonitrile × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；50 mM imidazole pH 6.5, 18% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.54 Å R-free 0.269
6X4B Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 7-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-5-fluoro-8-methyl-2-naphthonitrile (JLJ655), a Non-nucleoside Inhibitor Deposited 2020-05-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, K172A, K173A Mutation：C280S UMY 7-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}-5-fluoro-8-methylnaphthalene-2-carbonitrile × 1 SO4 SULFATE ION × 4 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；50 mM imidazole pH 6.5, 18% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.50 Å R-free 0.259
6X4C Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 7-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)-4-fluorophenoxy)-5,8-dimethyl-2-naphthonitrile (JLJ658), a Non-nucleoside Inhibitor Deposited 2020-05-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, K172A, K173A Mutation：C280S UNS 7-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]-4-fluorophenoxy}-5,8-dimethylnaphthalene-2-carbonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；50 mM imidazole pH 6.5, 18% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.86 Å R-free 0.258
6X4D Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 5-(cyclopropylmethyl)-7-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-8-methyl-2-naphthonitrile (JLJ678), a Non-nucleoside Inhibitor Deposited 2020-05-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, K172A, K173A Mutation：C280S UO4 5-(cyclopropylmethyl)-7-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}-8-methylnaphthalene-2-carbonitrile × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；50 mM imidazole pH 6.5, 18% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.65 Å R-free 0.258
6X4E Crystal Structure of HIV-1 Reverse Transcriptase in Complex with methyl 2-(6-cyano-3-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-4-methylnaphthalen-1-yl)acetate (JLJ681), a Non-nucleoside Inhibitor Deposited 2020-05-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, K172A, K173A Mutation：C280S UMV methyl (6-cyano-3-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}-4-methylnaphthalen-1-yl)acetate × 1 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；50 mM imidazole pH 6.5, 18% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.60 Å R-free 0.259
6X4F Crystal Structure of HIV-1 Reverse Transcriptase (Y181C) Variant in Complex with methyl 2-(6-cyano-3-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-4-methylnaphthalen-1-yl)acetate (JLJ681), a Non-nucleoside Inhibitor Deposited 2020-05-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, K172A, K173A, Y181C Mutation：C280S UMV methyl (6-cyano-3-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}-4-methylnaphthalen-1-yl)acetate × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；50 mM imidazole pH 6.5, 18% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.72 Å R-free 0.252
7AHX HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND D-ASPARTATE TENOFOVIR WITH BOUND MANGANESE Deposited 2020-09-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：Q258C, C280S Mutation：C280S MN MANGANESE (II) ION × 2 REK D-Aspartate Tenofovir × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19.5% v/v PEG Smear Broad, 0.2 M (NH4)2SO4, 0.1 M Tris-HCl
Resolution 2.73 Å R-free 0.254
7AHX HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND D-ASPARTATE TENOFOVIR WITH BOUND MANGANESE Deposited 2020-09-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Mutation：Q258C, C280S Mutation：C280S MN MANGANESE (II) ION × 2 REK D-Aspartate Tenofovir × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19.5% v/v PEG Smear Broad, 0.2 M (NH4)2SO4, 0.1 M Tris-HCl
Resolution 2.73 Å R-free 0.254
7AID HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND D-ASPARTATE TENOFOVIR Deposited 2020-09-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：Q258C, C280S Mutation：C280S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19.5% v/v PEG Smear Broad, 0.2 M (NH4)2SO4, 0.1 M Tris-HCl
Resolution 3.15 Å R-free 0.250
7AID HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND D-ASPARTATE TENOFOVIR Deposited 2020-09-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Mutation：Q258C, C280S Mutation：C280S REK D-Aspartate Tenofovir × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19.5% v/v PEG Smear Broad, 0.2 M (NH4)2SO4, 0.1 M Tris-HCl
Resolution 3.15 Å R-free 0.250
7AIF HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND L-GLUTAMATE TENOFOVIR WITH BOUND MANGANESE Deposited 2020-09-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：Q258C, C280S Mutation：C280S MN MANGANESE (II) ION × 2 RE5 L-Glutamate Tenofovir × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19.5% v/v PEG Smear Broad, 0.2 M (NH4)2SO4, 0.1 M Tris-HCl
Resolution 2.75 Å R-free 0.249
7AIF HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND L-GLUTAMATE TENOFOVIR WITH BOUND MANGANESE Deposited 2020-09-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Mutation：Q258C, C280S Mutation：C280S MN MANGANESE (II) ION × 2 RE5 L-Glutamate Tenofovir × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19.5% v/v PEG Smear Broad, 0.2 M (NH4)2SO4, 0.1 M Tris-HCl
Resolution 2.75 Å R-free 0.249
7AIG HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND L-GLUTAMATE TENOFOVIR Deposited 2020-09-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：Q258C, C280S Mutation：C280S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19.5% v/v PEG Smear Broad, 0.2 M (NH4)2SO4, 0.1 M Tris-HCl
Resolution 2.95 Å R-free 0.257
7AIG HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND L-GLUTAMATE TENOFOVIR Deposited 2020-09-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Mutation：Q258C, C280S Mutation：C280S RE5 L-Glutamate Tenofovir × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19.5% v/v PEG Smear Broad, 0.2 M (NH4)2SO4, 0.1 M Tris-HCl
Resolution 2.95 Å R-free 0.257
7AII HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND L-METHIONINE TENOFOVIR WITH BOUND MANGANESE Deposited 2020-09-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：Q258C, C280S Mutation：C280S MN MANGANESE (II) ION × 2 RFE L-Methionine Tenofovir × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19.5% v/v PEG Smear Broad, 0.2 M (NH4)2SO4, 0.1 M Tris-HCl
Resolution 2.62 Å R-free 0.255
7AII HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND L-METHIONINE TENOFOVIR WITH BOUND MANGANESE Deposited 2020-09-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Mutation：Q258C, C280S Mutation：C280S MN MANGANESE (II) ION × 2 RFE L-Methionine Tenofovir × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19.5% v/v PEG Smear Broad, 0.2 M (NH4)2SO4, 0.1 M Tris-HCl
Resolution 2.62 Å R-free 0.255
7AIJ HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND L-METHIONINE TENOFOVIR Deposited 2020-09-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：Q258C, C280S Mutation：C280S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19.5% v/v PEG Smear Broad, 0.2 M (NH4)2SO4, 0.1 M Tris-HCl
Resolution 2.95 Å R-free 0.263
7AIJ HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND L-METHIONINE TENOFOVIR Deposited 2020-09-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Mutation：Q258C, C280S Mutation：C280S RFE L-Methionine Tenofovir × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19.5% v/v PEG Smear Broad, 0.2 M (NH4)2SO4, 0.1 M Tris-HCl
Resolution 2.95 Å R-free 0.263
7KJV Structure of HIV-1 reverse transcriptase initiation complex core Deposited 2020-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1159（560 aa）
Chain B 600–1039（440 aa）
Mutation：Q258C, E478Q MG MAGNESIUM ION × 1 BOG octyl beta-D-glucopyranoside × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7KJW Structure of HIV-1 reverse transcriptase initiation complex core with efavirenz Deposited 2020-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1159（560 aa）
Chain B 600–1039（440 aa）
Mutation：Q258C, E478Q MG MAGNESIUM ION × 1 EFZ (-)-6-CHLORO-4-CYCLOPROPYLETHYNYL-4-TRIFLUOROMETHYL-1,4-DIHYDRO-2H-3,1-BENZOXAZIN-2-ONE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7KJX Structure of HIV-1 reverse transcriptase initiation complex core with nevirapine Deposited 2020-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1159（560 aa）
Chain B 600–1039（440 aa）
Mutation：Q258C, E478Q MG MAGNESIUM ION × 1 NVP 11-CYCLOPROPYL-5,11-DIHYDRO-4-METHYL-6H-DIPYRIDO[3,2-B:2',3'-E][1,4]DIAZEPIN-6-ONE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
7KRC Crystal Structure of HIV-1 Reverse Transcriptase in Complex with (E)-4-(3-chloro-5-(2-cyanovinyl)phenoxy)-3-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenyl sulfurofluoridate (JLJ709) Deposited 2020-11-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Not recorded X2J 4-{3-chloro-5-[(E)-2-cyanoethenyl]phenoxy}-3-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenyl sulfurofluoridate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM imidazole pH 6.5, 18% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.65 Å R-free 0.265
7KRD Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 4-(3-chloro-5-cyanophenoxy)-3-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenyl sulfurofluoridate (JLJ702) Deposited 2020-11-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Not recorded X2S 4-(3-chloro-5-cyanophenoxy)-3-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenyl sulfurofluoridate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM imidazole pH 6.5, 18% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.70 Å R-free 0.268
7KRE Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 4-((6-cyanonaphthalen-1-yl)oxy)-3-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenyl sulfurofluoridate (JLJ704) Deposited 2020-11-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Not recorded X2V 4-[(6-cyanonaphthalen-1-yl)oxy]-3-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenyl sulfurofluoridate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM imidazole pH 6.5, 18% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.73 Å R-free 0.261
7KRF Crystal Structure of HIV-1 Reverse Transcriptase in Complex with (E)-4-(3-(2-cyanovinyl)-5-fluorophenoxy)-3-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenyl sulfurofluoridate (JLJ710) Deposited 2020-11-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Not recorded X2G 4-{3-[(E)-2-cyanoethenyl]-5-fluorophenoxy}-3-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenyl sulfurofluoridate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM imidazole pH 6.5, 18% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.60 Å R-free 0.265
7KWU Crystal Structure of HIV-1 RT in Complex with 16c (K07-15) Deposited 2020-12-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S SO4 SULFATE ION × 6 EDO 1,2-ETHANEDIOL × 5 MG MAGNESIUM ION × 1 K7F 4-[(4-{[4-(4-cyano-2,6-dimethylphenoxy)-5-(pyridin-4-yl)pyrimidin-2-yl]amino}piperidin-1-yl)methyl]benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；10%(v/v) PEG 8000, 4%(v/v) PEG 400, 100 mM MES pH 6.3-6.6, 10 mM spermine, 15 mM MgSO4, 100 mM ammonium sulfate, and 5 mM tris(2-carboxyethyl)phosphine
Resolution 2.02 Å R-free 0.259
7LPW Crystal Structure of HIV-1 RT in Complex with NBD-14189 Deposited 2021-02-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S SO4 SULFATE ION × 4 DMS DIMETHYL SULFOXIDE × 3 YBA ~{N}-[(1~{S})-2-azanyl-1-[4-(hydroxymethyl)-1,3-thiazol-2-yl]ethyl]-5-[3-fluoranyl-4-(trifluoromethyl)phenyl]-1~{H}-pyrrole-2-carboxamide × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；277 K；10% PEG 8,000, 4% PEG 400, 100 mM imidazole pH 6.6,10 mM spermine, 15 mM MgSO4,100 mM (NH4)2SO4, and 5 mM tris(2-carboxyethyl)phosphine(TCEP)
Resolution 2.32 Å R-free 0.248
7LPX Crystal Structure of HIV-1 RT in Complex with NBD-14270 Deposited 2021-02-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S SO4 SULFATE ION × 4 YB7 ~{N}-[(1~{S})-2-azanyl-1-[5-(hydroxymethyl)-1,3-thiazol-2-yl]ethyl]-3-methyl-5-[5-(trifluoromethyl)pyridin-2-yl]-1~{H}-pyrrole-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；277 K；10% PEG 8,000, 4% PEG 400, 100 mM imidazole pH 6.6,10 mM spermine, 15 mM MgSO4,100 mM (NH4)2SO4, and 5 mM tris(2-carboxyethyl)phosphine(TCEP)
Resolution 2.45 Å R-free 0.250
7LQU Crystal Structure of HIV-1 RT in Complex with NBD-14075 Deposited 2021-02-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S YBD ~{N}-[(1~{R})-2-azanyl-1-[5-(hydroxymethyl)-1,3-thiazol-2-yl]ethyl]-5-(4-chloranyl-3-fluoranyl-phenyl)-1~{H}-pyrrole-2-carboxamide × 1 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；277 K；10% PEG 8,000, 4% PEG 400, 100 mM imidazole pH 6.6,10 mM spermine, 15 mM MgSO4,100 mM (NH4)2SO4, and 5 mM tris(2-carboxyethyl)phosphine(TCEP)
Resolution 2.60 Å R-free 0.310
7LRI Structure of HIV-1 Reverse Transcriptase in complex with DNA, dTTP, and CA(2+) ion Deposited 2021-02-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, D498N Mutation：C280S TTP THYMIDINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 1 GOL GLYCEROL × 5 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；10-12% PEG 8000, 50 MM BISTRIS-PROPANE PH 7.2, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 3.05 Å R-free 0.244
7LRI Structure of HIV-1 Reverse Transcriptase in complex with DNA, dTTP, and CA(2+) ion Deposited 2021-02-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain C 600–1154（555 aa）
Chain D 600–1027（428 aa）
Mutation：C280S, D498N Mutation：C280S TTP THYMIDINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；10-12% PEG 8000, 50 MM BISTRIS-PROPANE PH 7.2, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 3.05 Å R-free 0.244
7LRM Structure of HIV-1 Reverse Transcriptase in complex with DNA, dCTP, and CA(2+) ion Deposited 2021-02-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, D498N Mutation：C280S SO4 SULFATE ION × 1 GOL GLYCEROL × 6 DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；10-12% PEG 8000, 50 MM BISTRIS-PROPANE PH 7.2, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 3.14 Å R-free 0.244
7LRM Structure of HIV-1 Reverse Transcriptase in complex with DNA, dCTP, and CA(2+) ion Deposited 2021-02-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain C 600–1154（555 aa）
Chain D 600–1027（428 aa）
Mutation：C280S, D498N Mutation：C280S SO4 SULFATE ION × 1 GOL GLYCEROL × 6 DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；10-12% PEG 8000, 50 MM BISTRIS-PROPANE PH 7.2, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 3.14 Å R-free 0.244
7LRX Structure of HIV-1 Reverse Transcriptase in complex with DNA, L-dCTP, and CA(2+) ion Deposited 2021-02-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, D498N Mutation：C280S SO4 SULFATE ION × 1 1S0 4-amino-1-{2-deoxy-5-O-[(R)-hydroxy{[(S)-hydroxy(phosphonooxy)phosphoryl]oxy}phosphoryl]-beta-L-erythro-pentofuranosyl}pyrimidin-2(1H)-one × 1 CA CALCIUM ION × 1 NH4 AMMONIUM ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；10-12% PEG 8000, 50 MM BISTRIS-PROPANE PH 7.2, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 2.90 Å R-free 0.247
7LRX Structure of HIV-1 Reverse Transcriptase in complex with DNA, L-dCTP, and CA(2+) ion Deposited 2021-02-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain C 600–1154（555 aa）
Chain D 600–1027（428 aa）
Mutation：C280S, D498N Mutation：C280S SO4 SULFATE ION × 1 1S0 4-amino-1-{2-deoxy-5-O-[(R)-hydroxy{[(S)-hydroxy(phosphonooxy)phosphoryl]oxy}phosphoryl]-beta-L-erythro-pentofuranosyl}pyrimidin-2(1H)-one × 1 CA CALCIUM ION × 1 NH4 AMMONIUM ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；10-12% PEG 8000, 50 MM BISTRIS-PROPANE PH 7.2, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 2.90 Å R-free 0.247
7LRY Structure of HIV-1 Reverse Transcriptase in complex with DNA, (-)FTC-TP, and CA(2+) ion Deposited 2021-02-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, D498N Mutation：C280S SO4 SULFATE ION × 2 GOL GLYCEROL × 7 PG4 TETRAETHYLENE GLYCOL × 1 NH4 AMMONIUM ION × 1 CA CALCIUM ION × 1 1RY [[(2R,5S)-5-(4-azanyl-5-fluoranyl-2-oxidanylidene-pyrimidin-1-yl)-1,3-oxathiolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；10-12% PEG 8000, 50 MM BISTRIS-PROPANE PH 7.2, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 2.45 Å R-free 0.222
7LRY Structure of HIV-1 Reverse Transcriptase in complex with DNA, (-)FTC-TP, and CA(2+) ion Deposited 2021-02-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain C 600–1154（555 aa）
Chain D 600–1027（428 aa）
Mutation：C280S, D498N Mutation：C280S SO4 SULFATE ION × 1 GOL GLYCEROL × 5 NH4 AMMONIUM ION × 1 CA CALCIUM ION × 1 1RY [[(2R,5S)-5-(4-azanyl-5-fluoranyl-2-oxidanylidene-pyrimidin-1-yl)-1,3-oxathiolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；10-12% PEG 8000, 50 MM BISTRIS-PROPANE PH 7.2, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 2.45 Å R-free 0.222
7LSK Structure of HIV-1 Reverse Transcriptase in complex with DNA, L-dTTP, and CA(2+) ion Deposited 2021-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, D498N Mutation：C280S CA CALCIUM ION × 1 SO4 SULFATE ION × 1 GOL GLYCEROL × 2 XRF 1-{2-deoxy-5-O-[(S)-hydroxy{[(S)-hydroxy(phosphonooxy)phosphoryl]oxy}phosphoryl]-beta-L-erythro-pentofuranosyl}-5-methylpyrimidine-2,4(1H,3H)-dione × 1 NH4 AMMONIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；10-12% PEG 8000, 50 MM BISTRIS-PROPANE PH 7.2, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 2.70 Å R-free 0.253
7LSK Structure of HIV-1 Reverse Transcriptase in complex with DNA, L-dTTP, and CA(2+) ion Deposited 2021-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain C 600–1154（555 aa）
Chain D 600–1027（428 aa）
Mutation：C280S, D498N Mutation：C280S CA CALCIUM ION × 1 SO4 SULFATE ION × 1 GOL GLYCEROL × 1 XRF 1-{2-deoxy-5-O-[(S)-hydroxy{[(S)-hydroxy(phosphonooxy)phosphoryl]oxy}phosphoryl]-beta-L-erythro-pentofuranosyl}-5-methylpyrimidine-2,4(1H,3H)-dione × 1 NH4 AMMONIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；10-12% PEG 8000, 50 MM BISTRIS-PROPANE PH 7.2, 50 MM AMMONIUM SULFATE, 5% GLYCEROL, 5% SUCROSE
Resolution 2.70 Å R-free 0.253
7OT6 HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND inhibitor RMC-282 Deposited 2021-06-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19.5% V/V PEG SMEAR BROAD, 0.2 M (NH4)2SO4, 0.1 M TRIS-HCL
Resolution 3.20 Å R-free 0.258
7OT6 HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND inhibitor RMC-282 Deposited 2021-06-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Not recorded MG MAGNESIUM ION × 1 1I4 (R)-N-(1-(6-amino-9H-purin-9-yl)propan-2-yl)-N-(2-phosphonoethyl)glycine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19.5% V/V PEG SMEAR BROAD, 0.2 M (NH4)2SO4, 0.1 M TRIS-HCL
Resolution 3.20 Å R-free 0.258
7OTA HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND INHIBITOR RMC-230 Deposited 2021-06-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19% V/V PEG SMEAR BROAD, 0.2 M (NH4)2SO4, 0.1 M TRIS-HCL
Resolution 3.00 Å R-free 0.269
7OTA HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND INHIBITOR RMC-230 Deposited 2021-06-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Not recorded MG MAGNESIUM ION × 1 1I1 ((2-(6-amino-9H-purin-9-yl)ethyl)-L-seryl)phosphoramidic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19% V/V PEG SMEAR BROAD, 0.2 M (NH4)2SO4, 0.1 M TRIS-HCL
Resolution 3.00 Å R-free 0.269
7OTK HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND INHIBITOR RMC-233 Deposited 2021-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19% V/V PEG SMEAR BROAD, 0.2 M (NH4)2SO4, 0.1 M TRIS-HCL
Resolution 2.95 Å R-free 0.271
7OTK HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND INHIBITOR RMC-233 Deposited 2021-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Not recorded MG MAGNESIUM ION × 1 1IA (2~{R})-2-[2-(6-aminopurin-9-yl)ethylamino]-3-phosphono-propanoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19% V/V PEG SMEAR BROAD, 0.2 M (NH4)2SO4, 0.1 M TRIS-HCL
Resolution 2.95 Å R-free 0.271
7OTN HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND INHIBITOR RMC-247 Deposited 2021-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Not recorded MN MANGANESE (II) ION × 1 1IH (S)-2-((2-(6-amino-9H-purin-9-yl)ethyl)amino)-3-phosphonopropanoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19% V/V PEG SMEAR BROAD, 0.2 M (NH4)2SO4, 0.1 M TRIS-HCL
Resolution 3.40 Å R-free 0.254
7OTN HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND INHIBITOR RMC-247 Deposited 2021-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Not recorded MN MANGANESE (II) ION × 1 1IH (S)-2-((2-(6-amino-9H-purin-9-yl)ethyl)amino)-3-phosphonopropanoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19% V/V PEG SMEAR BROAD, 0.2 M (NH4)2SO4, 0.1 M TRIS-HCL
Resolution 3.40 Å R-free 0.254
7OTX HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND INHIBITOR RMC-257 Deposited 2021-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19% V/V PEG SMEAR BROAD, 0.2 M (NH4)2SO4, 0.1 M TRIS-HCL
Resolution 3.45 Å R-free 0.251
7OTX HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND INHIBITOR RMC-257 Deposited 2021-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Not recorded MG MAGNESIUM ION × 1 1IK (S)-2-((3-(6-amino-9H-purin-9-yl)propyl)amino)-3-phosphonopropanoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19% V/V PEG SMEAR BROAD, 0.2 M (NH4)2SO4, 0.1 M TRIS-HCL
Resolution 3.45 Å R-free 0.251
7OTZ HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND INHIBITOR RMC-259 Deposited 2021-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19% V/V PEG SMEAR BROAD, 0.2 M (NH4)2SO4, 0.1 M TRIS-HCL
Resolution 3.10 Å R-free 0.257
7OTZ HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND INHIBITOR RMC-259 Deposited 2021-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Not recorded MG MAGNESIUM ION × 1 1IO (S)-2-(2-(6-amino-9H-purin-9-yl)ethoxy)-3-phosphonopropanoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19% V/V PEG SMEAR BROAD, 0.2 M (NH4)2SO4, 0.1 M TRIS-HCL
Resolution 3.10 Å R-free 0.257
7OUT HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND INHIBITOR RMC-264 Deposited 2021-06-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19% V/V PEG SMEAR BROAD, 0.2 M (NH4)2SO4, 0.1 M TRIS-HCL
Resolution 3.20 Å R-free 0.265
7OUT HIV-1 REVERSE TRANSCRIPTASE COMPLEX WITH DNA AND INHIBITOR RMC-264 Deposited 2021-06-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Not recorded MG MAGNESIUM ION × 1 1KK (S)-2-(3-(6-amino-9H-purin-9-yl)propoxy)-3-phosphonopropanoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16-19% V/V PEG SMEAR BROAD, 0.2 M (NH4)2SO4, 0.1 M TRIS-HCL
Resolution 3.20 Å R-free 0.265
7OXQ Crystal structure of HIV-1 reverse transcriptase with a double stranded DNA in complex with fragment 048 at the transient P-pocket. Deposited 2021-06-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Not recorded CD CADMIUM ION × 9 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；11-12% v/v PEG Smear Broad, 10% w/v sucrose, 50 mM PIPES-NaOH pH 6.5, 0.1 M (NH4)2SO4, 5 mM MgCl2, 5 mM CdCl2
Resolution 3.30 Å R-free 0.296
7OXQ Crystal structure of HIV-1 reverse transcriptase with a double stranded DNA in complex with fragment 048 at the transient P-pocket. Deposited 2021-06-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Not recorded CD CADMIUM ION × 12 2NU 2-(4-bromanylpyrazol-1-yl)-~{N}-cyclopropyl-~{N}-methyl-ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；11-12% v/v PEG Smear Broad, 10% w/v sucrose, 50 mM PIPES-NaOH pH 6.5, 0.1 M (NH4)2SO4, 5 mM MgCl2, 5 mM CdCl2
Resolution 3.30 Å R-free 0.296
7OZ2 Crystal structure of HIV-1 reverse transcriptase with a double stranded DNA showing a transient P-pocket Deposited 2021-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Not recorded CD CADMIUM ION × 16 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；11-12% v/v PEG Smear Broad, 10% w/v sucrose, 50 mM PIPES-NaOH pH 6.5, 0.1 M (NH4)2SO4, 5 mM MgCl2, 5 mM CdCl2
Resolution 2.85 Å R-free 0.257
7OZ2 Crystal structure of HIV-1 reverse transcriptase with a double stranded DNA showing a transient P-pocket Deposited 2021-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Not recorded CD CADMIUM ION × 11 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；11-12% v/v PEG Smear Broad, 10% w/v sucrose, 50 mM PIPES-NaOH pH 6.5, 0.1 M (NH4)2SO4, 5 mM MgCl2, 5 mM CdCl2
Resolution 2.85 Å R-free 0.257
7OZ5 Crystal structure of HIV-1 reverse transcriptase with a double stranded DNA in complex with fragment 166 at the transient P-pocket. Deposited 2021-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Not recorded CD CADMIUM ION × 9 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；11-12% v/v PEG Smear Broad, 10% w/v sucrose, 50 mM PIPES-NaOH pH 6.5, 0.1 M (NH4)2SO4, 5 mM MgCl2, 5 mM CdCl2
Resolution 3.37 Å R-free 0.265
7OZ5 Crystal structure of HIV-1 reverse transcriptase with a double stranded DNA in complex with fragment 166 at the transient P-pocket. Deposited 2021-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Not recorded CD CADMIUM ION × 9 3IR (1~{R},2~{R})-2-phenyl-~{N}-(1,3-thiazol-2-yl)cyclopropane-1-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；11-12% v/v PEG Smear Broad, 10% w/v sucrose, 50 mM PIPES-NaOH pH 6.5, 0.1 M (NH4)2SO4, 5 mM MgCl2, 5 mM CdCl2
Resolution 3.37 Å R-free 0.265
7OZW Cryo-EM structure of HIV-1 reverse transcriptase with a DNA aptamer in complex with fragment 166 at the transient P-pocket Deposited 2021-06-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1153（554 aa） Fragment：P66 subunit
Chain B 600–1027（428 aa） Fragment：P51 subunit
Not recorded 3IR (1~{R},2~{R})-2-phenyl-~{N}-(1,3-thiazol-2-yl)cyclopropane-1-carboxamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.38 Å
7P15 Cryo-EM structure of HIV-1 reverse transcriptase with a DNA aptamer in complex with fragment F04 at the transient P-pocket Deposited 2021-07-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1153（554 aa） Fragment：P66 subunit
Chain B 600–1027（428 aa） Fragment：P51 subunit
Not recorded 4OI (1~{R},2~{R})-~{N}-(1~{H}-pyrazol-4-yl)-2-pyridin-3-yl-cyclopropane-1-carboxamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.58 Å
7SEP Cryo-EM Structure of the RT component of the HIV-1 Pol Polyprotein Deposited 2021-10-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 479–1447（969 aa） Fragment：PR-RT portion, residues 479-1447
Chain B 479–1447（969 aa） Fragment：PR-RT portion, residues 479-1447
Mutation：D131A, L765D, F766D Mutation：D131A, L765D, F766D No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
7SIF Crystal Structure of HLA B*3505 in complex with NPDIVIYQY, an 9-mer epitope from HIV-I Deposited 2021-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 774–782（9 aa） Fragment：UNP residues 774-782
Not recorded PEG DI(HYDROXYETHYL)ETHER × 2 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 BTB 2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；0.1M BIS-TRIS, 25% PEG3350
Resolution 1.73 Å R-free 0.230
7SIG Crystal Structure of HLA B*3501 in complex with NPDIVIYQY, an 9-mer epitope from HIV-I Deposited 2021-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 774–782（9 aa） Fragment：UNP residues 774-782
Not recorded FLC CITRATE ANION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；0.2M Ammonium Acetate, 20% PEG4000
Resolution 1.74 Å R-free 0.216
7SIH Crystal Structure of HLA B*3503 in complex with NPDIVIYQY, an 9-mer epitope from HIV-I Deposited 2021-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 774–782（9 aa） Fragment：UNP residues 774-782
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.1M HEPES, 20% PEG8000
Resolution 1.90 Å R-free 0.232
7SJX Cryo-EM Structure of the PR-RT components of the HIV-1 Pol Polyprotein Deposited 2021-10-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 479–1447（969 aa） Fragment：PR-RT portion, residues 479-1447
Chain B 479–1447（969 aa） Fragment：PR-RT portion, residues 479-1447
Mutation：D131A, L765D, F766D Mutation：D131A, L765D, F766D No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.20 Å
7SNL Disulfide stabilized HIV-1 CA hexamer in complex with capsid inhibitor N-(1-(3-(4-chloro-1-methyl-3-(methylsulfonamido)-1H-indazol-7-yl)-4-oxo-3,4-dihydropyrido[2,3-d]pyrimidin-2-yl)-2-(3,5-difluorophenyl)ethyl)-2-(3-(trifluoromethyl)-4,5,6,7-tetrahydro-1H-indazol-1-yl)acetamide Deposited 2021-10-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric
Chain A 133–363（231 aa）
Mutation：A14C, E45C, W184A, M185A 9VI N-[(1S)-1-(3-{4-chloro-3-[(methanesulfonyl)amino]-1-methyl-1H-indazol-7-yl}-4-oxo-3,4-dihydropyrido[2,3-d]pyrimidin-2-yl)-2-(3,5-difluorophenyl)ethyl]-2-[3-(trifluoromethyl)-6,7-dihydro-1H-indazol-1-yl]acetamide × 6 IOD IODIDE ION × 24 CL CHLORIDE ION × 42 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277.15 K；0.2M NaI, 9% peg 3350, 6% glycerol, 0.1M sodium cacodylate trihydrate pH 6.5
Resolution 2.39 Å R-free 0.261
7SNN Disulfide stabilized HIV-1 CA hexamer in complex with capsid inhibitor N-(1-(3-(4-chloro-1-methyl-3-(methylsulfonamido)-1H-indazol-7-yl)-4-oxo-3,4-dihydropyrido[2,3-d]pyrimidin-2-yl)-2-(3,5-difluorophenyl)ethyl)-2-(3-(difluoromethyl)-5,6-dihydrocyclopenta[c]pyrazol-1(4H)-yl)acetamide Deposited 2021-10-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric
Chain A 133–363（231 aa）
Mutation：A14C, E45C, W184A, M185A IOD IODIDE ION × 18 9WW N-[(1S)-1-(3-{4-chloro-3-[(methanesulfonyl)amino]-1-methyl-1H-indazol-7-yl}-4-oxo-3,4-dihydroquinazolin-2-yl)-2-(3,5-difluorophenyl)ethyl]-2-[(3aM)-3-(difluoromethyl)cyclopenta[c]pyrazol-1(2H)-yl]acetamide × 6 CL CHLORIDE ION × 42 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277.15 K；0.275M NaI, 7.5% peg 3350, 6% glycerol, 0.1M sodium cacodylate trihydrate pH 6.5
Resolution 2.37 Å R-free 0.233
7SNP Crystal Structure of HIV-1 Reverse Transcriptase in Complex with (E)-3-(3-chloro-5-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)-4-(2-morpholinoethoxy)phenoxy)phenyl)acrylonitrile (JLJ530) Deposited 2021-10-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Not recorded 9UV (2E)-3-(3-chloro-5-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]-4-[2-(morpholin-4-yl)ethoxy]phenoxy}phenyl)prop-2-enenitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；18% (w/v) PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, 5 mM spermine, and 50 mM citric acid, pH 7.5
Resolution 2.89 Å R-free 0.272
7SNQ Hexamer HIV-1 CA in complex with CPSF6 peptide and IP6 ligand Deposited 2021-10-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 133–363（231 aa）
Chain B 133–363（231 aa）
Chain C 133–363（231 aa）
Chain D 133–363（231 aa）
Chain E 133–363（231 aa）
Chain F 133–363（231 aa）
Mutation：A14C, E45C, W184A, M185A Mutation：A14C, E45C, W184A, M185A Mutation：A14C, E45C, W184A, M185A Mutation：A14C, E45C, W184A, M185A Mutation：A14C, E45C, W184A, M185A Mutation：A14C, E45C, W184A, M185A IHP INOSITOL HEXAKISPHOSPHATE × 2 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291.15 K；0.1M Tris pH 8.2, 8% peg 8000, 5% Glycerol
Resolution 2.81 Å R-free 0.282
7SNQ Hexamer HIV-1 CA in complex with CPSF6 peptide and IP6 ligand Deposited 2021-10-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain G 133–363（231 aa）
Chain H 133–363（231 aa）
Chain I 133–363（231 aa）
Chain J 133–363（231 aa）
Chain K 133–363（231 aa）
Chain L 133–363（231 aa）
Mutation：A14C, E45C, W184A, M185A Mutation：A14C, E45C, W184A, M185A Mutation：A14C, E45C, W184A, M185A Mutation：A14C, E45C, W184A, M185A Mutation：A14C, E45C, W184A, M185A Mutation：A14C, E45C, W184A, M185A IHP INOSITOL HEXAKISPHOSPHATE × 2 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291.15 K；0.1M Tris pH 8.2, 8% peg 8000, 5% Glycerol
Resolution 2.81 Å R-free 0.282
7SNZ Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 6-((2-((4-cyanophenyl)amino)pyrimidin-4-yl)amino)-5,7-dimethylindolizine-2-carbonitrile (JLJ604) Deposited 2021-10-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Not recorded 9WI (4R)-6-{[2-(4-cyanoanilino)pyrimidin-4-yl]amino}-5,7-dimethylindolizine-2-carbonitrile × 1 SO4 SULFATE ION × 2 MG MAGNESIUM ION × 4 PUT 1,4-DIAMINOBUTANE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；18% (w/v) PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, 5 mM spermine, and 50 mM citric acid, pH 7.5
Resolution 2.37 Å R-free 0.245
7SO1 Crystal Structure of HIV-1 Reverse Transcriptase in Complex with (E)-4-((4-((4-(2-cyanovinyl)-2,6-dimethylphenyl)amino)-6-(3-morpholinopropoxy)-1,3,5-triazin-2-yl)amino)benzonitrile (JLJ564) Deposited 2021-10-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Not recorded 9W3 4-[(4-{4-[(E)-2-cyanoethenyl]-2,6-dimethylanilino}-6-[3-(morpholin-4-yl)propoxy]-1,3,5-triazin-2-yl)amino]benzonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；18% (w/v) PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, 5 mM spermine, and 50 mM citric acid, pH 7.5
Resolution 2.73 Å R-free 0.264
7SO2 Crystal Structure of HIV-1 Reverse Transcriptase Y181C Variant in Complex with (E)-4-((4-((4-(2-cyanovinyl)-2,6-dimethylphenyl)amino)-6-(3-morpholinopropoxy)-1,3,5-triazin-2-yl)amino)benzonitrile (JLJ564) Deposited 2021-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：Y181C 9W3 4-[(4-{4-[(E)-2-cyanoethenyl]-2,6-dimethylanilino}-6-[3-(morpholin-4-yl)propoxy]-1,3,5-triazin-2-yl)amino]benzonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；18% (w/v) PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, 5 mM spermine, and 50 mM citric acid, pH 7.5
Resolution 3.09 Å R-free 0.282
7SO3 Crystal Structure of HIV-1 Reverse Transcriptase K103N/Y181C Variant in Complex with (E)-4-((4-((4-(2-cyanovinyl)-2,6-dimethylphenyl)amino)-6-(3-morpholinopropoxy)-1,3,5-triazin-2-yl)amino)benzonitrile (JLJ564) Deposited 2021-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K103N, Y181C 9W3 4-[(4-{4-[(E)-2-cyanoethenyl]-2,6-dimethylanilino}-6-[3-(morpholin-4-yl)propoxy]-1,3,5-triazin-2-yl)amino]benzonitrile × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；18% (w/v) PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, 5 mM spermine, and 50 mM citric acid, pH 7.5
Resolution 2.77 Å R-free 0.272
7SO4 Crystal Structure of HIV-1 Y181C mutant Reverse Transcriptase in Complex with 5-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-7-fluoro-2-naphthonitrile (JLJ635), a Non-nucleoside Inhibitor Deposited 2021-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：Y181C M9A 5-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}-7-fluoronaphthalene-2-carbonitrile × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；50 mM MES pH 6.0, 18% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.95 Å R-free 0.274
7SO6 Crystal Structure of HIV-1 K103N, Y181C mutant Reverse Transcriptase in Complex with 5-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-7-fluoro-2-naphthonitrile (JLJ635), a Non-nucleoside Inhibitor Deposited 2021-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Not recorded M9A 5-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}-7-fluoronaphthalene-2-carbonitrile × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0 mM MES pH 6.0, 18% PEG 8,000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.79 Å R-free 0.275
7TAZ Crystal structure of HIV-1 reverse transcriptase (RT) in complex with VM-1500A, a non-nucleoside RT inhibitor Deposited 2021-12-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C180S Mutation：C280S VM5 2-[4-bromo-3-(3-chloro-5-cyanophenoxy)-2-fluorophenyl]-N-(2-chloro-4-sulfamoylphenyl)acetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；277 K；PEG 8,000, ammonium sulfate, Bis tris propane, ethylene glycol
Resolution 2.40 Å R-free 0.279
7U5Z Crystal Structure of HIV-1 Reverse Transcriptase in Complex with JLJ353 Deposited 2022-03-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C879S Mutation：C879S LE8 2-chloro-4-({5-[(2,6-difluorophenyl)methyl]-1,3-oxazol-2-yl}amino)benzonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；277.15 K；50 mM imidazole pH 6.4, 20% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.30 Å R-free 0.280
7Z24 Cryo-EM structure of HIV-1 reverse transcriptase with a DNA aptamer in complex with nevirapine Deposited 2022-02-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa） Fragment：P51 subunit
Not recorded NVP 11-CYCLOPROPYL-5,11-DIHYDRO-4-METHYL-6H-DIPYRIDO[3,2-B:2',3'-E][1,4]DIAZEPIN-6-ONE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.32 Å
7Z29 Cryo-EM structure of NNRTI resistant M184I/E138K mutant HIV-1 reverse transcriptase with a DNA aptamer in complex with nevirapine Deposited 2022-02-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：M184I Mutation：E138K NVP 11-CYCLOPROPYL-5,11-DIHYDRO-4-METHYL-6H-DIPYRIDO[3,2-B:2',3'-E][1,4]DIAZEPIN-6-ONE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.38 Å
7Z2D Cryo-EM structure of HIV-1 reverse transcriptase with a DNA aptamer in complex with rilpivirine Deposited 2022-02-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa） Fragment：P51 subunit
Not recorded T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.38 Å
7Z2E Cryo-EM structure of NNRTI resistant M184I/E138K mutant HIV-1 reverse transcriptase with a DNA aptamer in complex with rilpivirine Deposited 2022-02-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：M184I Mutation：E138K T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.45 Å
7Z2G Cryo-EM structure of HIV-1 reverse transcriptase with a DNA aptamer in complex with doravirine Deposited 2022-02-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa） Fragment：P51 subunit
Not recorded 2KW 3-chloro-5-({1-[(4-methyl-5-oxo-4,5-dihydro-1H-1,2,4-triazol-3-yl)methyl]-2-oxo-4-(trifluoromethyl)-1,2-dihydropyridin-3-yl}oxy)benzonitrile × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.65 Å
7Z2H Cryo-EM structure of NNRTI resistant M184I/E138K mutant HIV-1 reverse transcriptase with a DNA aptamer in complex with doravirine Deposited 2022-02-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：M184I Mutation：E138K 2KW 3-chloro-5-({1-[(4-methyl-5-oxo-4,5-dihydro-1H-1,2,4-triazol-3-yl)methyl]-2-oxo-4-(trifluoromethyl)-1,2-dihydropyridin-3-yl}oxy)benzonitrile × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.58 Å
8DX2 HIV-1 reverse transcriptase/rilpivirine with bound fragment 4-amino-3-bromopyridine at multiple sites Deposited 2022-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 DMS DIMETHYL SULFOXIDE × 5 EDO 1,2-ETHANEDIOL × 4 MG MAGNESIUM ION × 1 V06 3-bromopyridin-4-amine × 4 SO4 SULFATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；10-12% PEG 8000, 4% PEG 400, 100 mM imidazole pH 6.4-6.6, 15 mM MgSO4, 100 mM amm sulfate, 5 mM TCEP
Resolution 2.00 Å R-free 0.243
8DX3 HIV-1 reverse transcriptase/rilpivirine with bound fragment 3-bromobenzylamine in the thumb subdomain Deposited 2022-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S 4JH 1-(3-bromophenyl)methanamine × 1 T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 DMS DIMETHYL SULFOXIDE × 9 EDO 1,2-ETHANEDIOL × 3 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；10-12% PEG 8000, 4% PEG 400, 100 mM imidazole pH 6.4-6.6, 15 mM MgSO4, 100 mM amm sulfate, 5 mM TCEP
Resolution 2.06 Å R-free 0.228
8DX8 HIV-1 reverse transcriptase/rilpivirine with bound fragment 2-chloro-6-fluorophenethylamine at the 415 site Deposited 2022-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S W15 2-(2-chloro-6-fluorophenyl)ethan-1-amine × 1 T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 DMS DIMETHYL SULFOXIDE × 7 EDO 1,2-ETHANEDIOL × 3 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；10-12% PEG 8000, 4% PEG 400, 100 mM imidazole pH 6.4-6.6, 15 mM MgSO4, 100 mM amm sulfate, 5 mM TCEP
Resolution 1.85 Å R-free 0.223
8DXB HIV-1 reverse transcriptase/rilpivirine with bound fragment 5-fluoroindole-2-carboxylic acid at the NNRTI Adjacent site Deposited 2022-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K174A, K175A, C282S Mutation：C280S FIC 5-fluoroindole-2-carboxylic acid × 2 T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 DMS DIMETHYL SULFOXIDE × 9 EDO 1,2-ETHANEDIOL × 3 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；PISPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFREL NKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIF QSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWT VQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLSKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYD PSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWET WWTEYWQATWIPEWEFVNTPPLVKLWYQ
Resolution 2.10 Å R-free 0.235
8DXE HIV-1 reverse transcriptase/rilpivirine with bound fragment 2-amino-6-fluorobenzonitrile at the NNRTI adjacent site Deposited 2022-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S 0IF 2-amino-6-fluorobenzonitrile × 1 T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 DMS DIMETHYL SULFOXIDE × 7 EDO 1,2-ETHANEDIOL × 3 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；10-12% PEG 8000, 4% PEG 400, 100 mM imidazole pH 6.4-6.6, 15 mM MgSO4, 100 mM amm sulfate, 5 mM TCEP
Resolution 1.85 Å R-free 0.217
8DXG HIV-1 reverse transcriptase/rilpivirine with bound fragment 5-(trifluoromethyl)pyridin-2-ol at W24 site Deposited 2022-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S U4D 5-(trifluoromethyl)pyridin-2-one × 1 T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 DMS DIMETHYL SULFOXIDE × 9 EDO 1,2-ETHANEDIOL × 3 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；10-12% PEG 8000, 4% PEG 400, 100 mM imidazole pH 6.4-6.6, 15 mM MgSO4, 100 mM amm sulfate, 5 mM TCEP
Resolution 2.10 Å R-free 0.225
8DXH HIV-1 reverse transcriptase/rilpivirine with bound fragment 5-fluoroquinazolin-4-ol at W266 site Deposited 2022-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S JBQ 5-fluoranyl-3,4-dihydroquinazolin-4-ol × 1 T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 DMS DIMETHYL SULFOXIDE × 12 EDO 1,2-ETHANEDIOL × 2 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；10-12% PEG 8000, 4% PEG 400, 100 mM imidazole pH 6.4-6.6, 15 mM MgSO4, 100 mM amm sulfate, 5 mM TCEP
Resolution 1.80 Å R-free 0.213
8DXI HIV-1 reverse transcriptase/rilpivirine with bound fragment [1-(4-fluorophenyl)-5-methyl-1H-pyrazol-4-yl]methanol at multiple sites Deposited 2022-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K174A, K175A, C282S Mutation：C280S T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 DMS DIMETHYL SULFOXIDE × 7 EDO 1,2-ETHANEDIOL × 3 MG MAGNESIUM ION × 1 FMQ [1-(4-fluorophenyl)-5-methyl-1H-pyrazol-4-yl]methanol × 2 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；10-12% PEG 8000, 4% PEG 400, 100 mM imidazole pH 6.4-6.6, 15 mM MgSO4, 100 mM amm sulfate, 5 mM TCEP
Resolution 1.95 Å R-free 0.218
8DXJ HIV-1 reverse transcriptase/rilpivirine with bound fragment 1-N-methyl-4-(trifluoromethyl)benzene-1,2-diamine at the NNRTI adjacent site Deposited 2022-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 DMS DIMETHYL SULFOXIDE × 6 EDO 1,2-ETHANEDIOL × 3 MG MAGNESIUM ION × 1 U43 N~1~-methyl-4-(trifluoromethyl)benzene-1,2-diamine × 1 SO4 SULFATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；10-12% PEG 8000, 4% PEG 400, 100 mM imidazole pH 6.4-6.6, 15 mM MgSO4, 100 mM amm sulfate, 5 mM TCEP
Resolution 1.80 Å R-free 0.207
8DXK HIV-1 reverse transcriptase/rilpivirine with bound fragment 4-bromopyrazole at multiple sites Deposited 2022-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 DMS DIMETHYL SULFOXIDE × 6 EDO 1,2-ETHANEDIOL × 3 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 4 BYZ 4-bromo-1H-pyrazole × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；10-12% PEG 8000, 4% PEG 400, 100 mM imidazole pH 6.4-6.6, 15 mM MgSO4, 100 mM amm sulfate, 5 mM TCEP
Resolution 2.00 Å R-free 0.215
8DXL HIV-1 reverse transcriptase/rilpivirine with bound fragment 4-iodopyrazole at multiple sites Deposited 2022-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 DMS DIMETHYL SULFOXIDE × 5 EDO 1,2-ETHANEDIOL × 5 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 4 PYZ 4-IODOPYRAZOLE × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；10-12% PEG 8000, 4% PEG 400, 100 mM imidazole pH 6.4-6.6, 15 mM MgSO4, 100 mM amm sulfate, 5 mM TCEP
Resolution 2.25 Å R-free 0.208
8DXM HIV-1 reverse transcriptase/rilpivirine with bound fragment 4-bromophenol at the Knuckles site Deposited 2022-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S BML 4-BROMOPHENOL × 1 T27 4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 DMS DIMETHYL SULFOXIDE × 9 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 3 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；10-12% PEG 8000, 4% PEG 400, 100 mM imidazole pH 6.4-6.6, 15 mM MgSO4, 100 mM amm sulfate, 5 mM TCEP
Resolution 1.99 Å R-free 0.208
8FE8 Crystal Structure of HIV-1 RT in Complex with the non-nucleoside inhibitor 18b1 Deposited 2022-12-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S XRB 5-[(4-{4-[(E)-2-cyanoethenyl]-2,6-dimethylphenoxy}pyrimidin-2-yl)amino]-2-[4-(methanesulfonyl)piperazin-1-yl]benzonitrile × 1 SO4 SULFATE ION × 6 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；10%(v/v) PEG 8000, 4%(v/v) PEG 400, 100 mM MES pH 6.3-6.6, 10 mM spermine, 15 mM MgSO4, 100 mM ammonium sulfate, and 5 mM tris(2-carboxyethyl)phosphine
Resolution 2.50 Å R-free 0.277
8FFX Crystal structure of HIV-1 reverse transcriptase in complex with non-nucleoside inhibitor 19980 Deposited 2022-12-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S DMS DIMETHYL SULFOXIDE × 1 XU9 ethyl (8S)-4-(cyclopropylethynyl)pyrazolo[1,5-a]pyridine-3-carboxylate × 1 EDO 1,2-ETHANEDIOL × 3 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；10%(v/v) PEG 8000, 4%(v/v) PEG 400, 100 mM imidazole pH 6.6, 10 mM spermine, 15 mM MgSO4, 100 mM ammonium sulfate, and 5 mM tris(2-carboxyethyl)phosphine
Resolution 2.42 Å R-free 0.266
8STP Crystal Structure of HIV-1 Reverse Transcriptase (Y181C) varient in Complex with 8-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)indolizine-2-carbonitrile (JLJ555), a non-nucleoside inhibitor Deposited 2023-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C280S, Y181C, K172A, K173A 29T 8-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}indolizine-2-carbonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；50 mM HEPES pH 7.5, 12% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 3.09 Å R-free 0.252
8STQ Crystal Structure of HIV-1 Reverse Transcriptase (Y181C) varient in Complex with 5-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-2-naphthonitrile (JLJ600), a non-nucleoside inhibitor Deposited 2023-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：Y181C, C280S, K172A, K173A Mutation：C280S 3LQ 5-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}naphthalene-2-carbonitrile × 1 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；50 mM MES pH 7.0, 20% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.96 Å R-free 0.278
8STR Crystal Structure of HIV-1 Reverse Transcriptase (Y181C) varient in Complex with 5-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)-4-fluorophenoxy)-7-fluoro-2-naphthonitrile (JLJ636), a non-nucleoside inhibitor Deposited 2023-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：Y181C, C280S, K172A, K173A Mutation：C280S 7N1 5-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]-4-fluorophenoxy}-7-fluoronaphthalene-2-carbonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM MES/Imidazole/HEPES pH 6.0-7.0, 16-20% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.77 Å R-free 0.268
8STS Crystal Structure of HIV-1 Reverse Transcriptase (Y181C, V106A) varient in Complex with 5-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)-4-fluorophenoxy)-7-fluoro-2-naphthonitrile (JLJ636), a non-nucleoside inhibitor Deposited 2023-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 600–1155（556 aa）
Chain D 600–1027（428 aa）
Mutation：Y181C, V106A, C280S, K172A, K173A Mutation：C280S 7N1 5-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]-4-fluorophenoxy}-7-fluoronaphthalene-2-carbonitrile × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；50 mM HEPES pH 7.0, 20% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 3.02 Å R-free 0.285
8STS Crystal Structure of HIV-1 Reverse Transcriptase (Y181C, V106A) varient in Complex with 5-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)-4-fluorophenoxy)-7-fluoro-2-naphthonitrile (JLJ636), a non-nucleoside inhibitor Deposited 2023-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1155（556 aa）
Chain B 600–1027（428 aa）
Mutation：Y181C, V106A, C280S, K172A, K173A Mutation：C280S 7N1 5-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]-4-fluorophenoxy}-7-fluoronaphthalene-2-carbonitrile × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；50 mM HEPES pH 7.0, 20% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 3.02 Å R-free 0.285
8STT Crystal Structure of HIV-1 Reverse Transcriptase (Y181C, V106A) varient in Complex with 8-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)indolizine-2-carbonitrile (JLJ555), a non-nucleoside inhibitor Deposited 2023-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1155（556 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, Y181C, V106A, K172A, K173A Mutation：C879S MG MAGNESIUM ION × 1 29T 8-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}indolizine-2-carbonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；50 mM MES pH 6.0, 14% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.62 Å R-free 0.291
8STT Crystal Structure of HIV-1 Reverse Transcriptase (Y181C, V106A) varient in Complex with 8-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)indolizine-2-carbonitrile (JLJ555), a non-nucleoside inhibitor Deposited 2023-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 600–1155（556 aa）
Chain D 600–1027（428 aa）
Mutation：C879S, Y181C, V106A, K172A, K173A Mutation：C879S MG MAGNESIUM ION × 1 29T 8-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}indolizine-2-carbonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；50 mM MES pH 6.0, 14% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.62 Å R-free 0.291
8STU Crystal Structure of HIV-1 Reverse Transcriptase (Y181C, V106A) variant in Complex with 8-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)-4-fluorophenoxy)-6-fluoroindolizine-2-carbonitrile (JLJ578), a non-nucleoside inhibitor Deposited 2023-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：Y181C, V106A, C280S, K172A, K173A Mutation：C280S MG MAGNESIUM ION × 1 H9Y 8-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]-4-fluorophenoxy}-6-fluoroindolizine-2-carbonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；277 K；50 mM MES pH 6.0, 14% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.76 Å R-free 0.280
8STV Crystal Structure of HIV-1 Reverse Transcriptase (Y181C, V106A) variant in Complex with 5-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-2-naphthonitrile (JLJ600), a non-nucleoside inhibitor Deposited 2023-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1155（556 aa）
Chain B 600–1027（428 aa）
Mutation：Y181C, V106A, C280S, K172A, K173A Mutation：C280S SO4 SULFATE ION × 2 EDO 1,2-ETHANEDIOL × 1 3LQ 5-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}naphthalene-2-carbonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；50 mM MES pH 6.0, 16% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.78 Å R-free 0.276
8STV Crystal Structure of HIV-1 Reverse Transcriptase (Y181C, V106A) variant in Complex with 5-(2-(2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)-2-naphthonitrile (JLJ600), a non-nucleoside inhibitor Deposited 2023-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 600–1155（556 aa）
Chain D 600–1027（428 aa）
Mutation：Y181C, V106A, C280S, K172A, K173A Mutation：C280S EDO 1,2-ETHANEDIOL × 1 3LQ 5-{2-[2-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}naphthalene-2-carbonitrile × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；50 mM MES pH 6.0, 16% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.78 Å R-free 0.276
8U69 Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 3-chloro-5-(4-chloro-2-(2-(5-chloro-2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy)phenoxy)benzonitrile (JLJ334), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VQ0 3-chloro-5-{4-chloro-2-[2-(5-chloro-2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}benzonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；50 mM MES pH 5.5, 17.5% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.45 Å R-free 0.260
8U6A Crystal Structure of HIV-1 Reverse Transcriptase in Complex with (JLJ729), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VQK N-(3-{2-[5-chloro-2-(3-chloro-5-cyanophenoxy)phenoxy]ethyl}phenyl)prop-2-enamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；50 mM MES pH 5.0, 15% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.37 Å R-free 0.271
8U6B Crystal Structure of HIV-1 Reverse Transcriptase in Complex with N-(4-chloro-3-(3-chloro-5-cyanophenoxy)phenethyl)acrylamide (JLJ731), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A VTN N-{2-[4-chloro-3-(3-chloro-5-cyanophenoxy)phenyl]ethyl}prop-2-enamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；50 mM MES pH 5.5, 21.5% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.35 Å R-free 0.264
8U6C Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 2-chloro-N-(4-chloro-3-(3-chloro-5-cyanophenoxy)phenethyl)acetamide (JLJ732), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VWU 2-chloro-N-{2-[4-chloro-3-(3-chloro-5-cyanophenoxy)phenyl]ethyl}acetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；50 mM MES pH 5.0, 14% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.70 Å R-free 0.268
8U6D Crystal Structure of HIV-1 Reverse Transcriptase in Complex with N-(2-(4-chloro-3-(3-chloro-5-cyanophenoxy)phenoxy)ethyl)-N-methylacrylamide (JLJ736), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VTS N-{2-[4-chloro-3-(3-chloro-5-cyanophenoxy)phenoxy]ethyl}-N-methylprop-2-enamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；50 mM MES pH 5.0, 20% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.33 Å R-free 0.266
8U6E Crystal Structure of HIV-1 Reverse Transcriptase in Complex with N-(4-chloro-3-(3-chloro-5-cyanophenoxy)phenethyl)-N-methylacrylamide (JLJ738), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VTV N-{2-[4-chloro-3-(3-chloro-5-cyanophenoxy)phenyl]ethyl}-N-methylprop-2-enamide × 1 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；50 mM Imidazole pH 6.0, 17.5% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.31 Å R-free 0.293
8U6F Crystal Structure of HIV-1 Reverse Transcriptase in Complex with N-(2-(5-chloro-2-(3-chloro-5-cyanophenoxy)phenoxy)ethyl)-N-methylacrylamide (JLJ742), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1151（552 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VU8 N-{2-[5-chloro-2-(3-chloro-5-cyanophenoxy)phenoxy]ethyl}-N-methylprop-2-enamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；50 mM Imidazole pH 6.5, 15% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.69 Å R-free 0.284
8U6G Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 3-(2-(2-(3-acryloyl-2-oxo-2,3-dihydro-1H-benzo[d]imidazol-1-yl)ethoxy)-4-chlorophenoxy)-5-chlorobenzonitrile (JLJ744), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1152（553 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VVE 3-chloro-5-{4-chloro-2-[2-(2-oxo-3-propanoyl-2,3-dihydro-1H-benzimidazol-1-yl)ethoxy]phenoxy}benzonitrile × 1 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；50 mM Imidazole pH 6.8, 14% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.77 Å R-free 0.270
8U6H Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 3-(2-(2-(3-acryloyl-2-oxo-2,3-dihydro-1H-benzo[d]imidazol-1-yl)ethoxy)-4-chlorophenoxy)-5-chlorobenzonitrile (JLJ744), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VVE 3-chloro-5-{4-chloro-2-[2-(2-oxo-3-propanoyl-2,3-dihydro-1H-benzimidazol-1-yl)ethoxy]phenoxy}benzonitrile × 1 PO4 PHOSPHATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；277 K；50 mM Imidazole pH 6.3, 14% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.99 Å R-free 0.279
8U6H Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 3-(2-(2-(3-acryloyl-2-oxo-2,3-dihydro-1H-benzo[d]imidazol-1-yl)ethoxy)-4-chlorophenoxy)-5-chlorobenzonitrile (JLJ744), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 600–1153（554 aa）
Chain D 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VVE 3-chloro-5-{4-chloro-2-[2-(2-oxo-3-propanoyl-2,3-dihydro-1H-benzimidazol-1-yl)ethoxy]phenoxy}benzonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；277 K；50 mM Imidazole pH 6.3, 14% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.99 Å R-free 0.279
8U6I Crystal Structure of HIV-1 Reverse Transcriptase in Complex with N-(2-(2-((2-cyanoindolizin-8-yl)oxy)phenoxy)ethyl)-N-methylacrylamide (JLJ745), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VVN N-[2-(2-{[(4R)-2-cyanoindolizin-8-yl]oxy}phenoxy)ethyl]-N-methylpropanamide × 1 MG MAGNESIUM ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；277 K；50 mM Imidazole pH 6.3, 17.5% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.46 Å R-free 0.278
8U6J Crystal Structure of HIV-1 Reverse Transcriptase in Complex with N-(2-(5-chloro-2-((2-cyanoindolizin-8-yl)oxy)phenoxy)ethyl)-N-methylacrylamide (JLJ746), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VR9 N-[2-(5-chloro-2-{[(4R)-2-cyanoindolizin-8-yl]oxy}phenoxy)ethyl]-N-methylpropanamide × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；50 mM HEPES pH 7.0, 17.5% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.64 Å R-free 0.274
8U6K Crystal Structure of HIV-1 Reverse Transcriptase in Complex with N-(2-(2-((6-cyanonaphthalen-1-yl)oxy)phenoxy)ethyl)-N-methylacrylamide (JLJ747), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VRF N-(2-{2-[(6-cyanonaphthalen-1-yl)oxy]phenoxy}ethyl)-N-methylprop-2-enamide × 1 MG MAGNESIUM ION × 2 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；50 mM MES pH 5.0, 11% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.72 Å R-free 0.276
8U6L Crystal Structure of HIV-1 Reverse Transcriptase in Complex with N-(2-(5-chloro-2-((6-cyanonaphthalen-1-yl)oxy)phenoxy)ethyl)-N-methylacrylamide (JLJ748), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VRQ N-(2-{5-chloro-2-[(6-cyanonaphthalen-1-yl)oxy]phenoxy}ethyl)-N-methylprop-2-enamide × 1 MG MAGNESIUM ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；50 mM MES pH 5.5, 11% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.49 Å R-free 0.267
8U6M Crystal Structure of HIV-1 Reverse Transcriptase in Complex with N-(2-(2-((6-chloro-2-cyanoindolizin-8-yl)oxy)phenoxy)ethyl)-N-methylacrylamide (JLJ751), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VW2 N-[2-(2-{[(4R)-6-chloro-2-cyanoindolizin-8-yl]oxy}phenoxy)ethyl]-N-methylpropanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7；277 K；50 mM HEPES pH 7.0, 22.5% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.62 Å R-free 0.266
8U6N Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 3-(2-((6-cyanonaphthalen-1-yl)oxy)phenoxy)-N,N-dimethylpropanamide (JLJ752), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1136（537 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VWK 3-{2-[(6-cyanonaphthalen-1-yl)oxy]phenoxy}-N,N-dimethylpropanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM Tris pH 7.5, 15% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.74 Å R-free 0.291
8U6O Crystal Structure of HIV-1 Reverse Transcriptase in Complex with5-(2-(3-oxo-3-(pyrrolidin-1-yl)propoxy)phenoxy)-2-naphthonitrile (JLJ753), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VWB 5-{2-[3-oxo-3-(pyrrolidin-1-yl)propoxy]phenoxy}naphthalene-2-carbonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；50 mM MES pH 6.0, 15% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.48 Å R-free 0.269
8U6P Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 3-(2-((2-cyanoindolizin-8-yl)oxy)phenoxy)-N,N-dimethylpropanamide (JLJ754), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VOI 3-(2-{[(4S)-2-cyanoindolizin-8-yl]oxy}phenoxy)-N,N-dimethylpropanamide × 1 PO4 PHOSPHATE ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM MES pH 5.5, 17.5% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.81 Å R-free 0.260
8U6Q Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 8-(2-(3-oxo-3-(pyrrolidin-1-yl)propoxy)phenoxy)indolizine-2-carbonitrile (JLJ755), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VOU (4S)-8-{2-[3-oxo-3-(pyrrolidin-1-yl)propoxy]phenoxy}indolizine-2-carbonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；277 K；50 mM Imidazole pH 6.3, 20% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.55 Å R-free 0.270
8U6R Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 3-(2-((2-cyanoindolizin-8-yl)oxy)phenoxy)-N-(2,2-difluoroethyl)propanamide (JLJ756), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1151（552 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VP2 3-(2-{[(4R)-2-cyanoindolizin-8-yl]oxy}phenoxy)-N-(2,2-difluoroethyl)propanamide × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；50 mM Imidazole pH 6.5, 17.5% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.87 Å R-free 0.261
8U6S Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 8-(2-(3-morpholino-3-oxopropoxy)phenoxy)indolizine-2-carbonitrile (JLJ757), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1151（552 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VPB (4S)-8-{2-[3-(morpholin-4-yl)-3-oxopropoxy]phenoxy}indolizine-2-carbonitrile × 1 PO4 PHOSPHATE ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；50 mM Imidazole pH 6.8, 15% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.99 Å R-free 0.299
8U6T Crystal Structure of HIV-1 Reverse Transcriptase in Complex with 5-(2-(2-(3-acryloyl-2-oxo-2,3-dihydro-1H-benzo[d]imidazol-1-yl)ethoxy)phenoxy)-2-naphthonitrile (JLJ758), a non-nucleoside inhibitor Deposited 2023-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：C879S, K172A, K173A Mutation：C879S VO8 5-(2-{2-[2-oxo-3-(prop-2-enoyl)-2,3-dihydro-1H-benzimidazol-1-yl]ethoxy}phenoxy)naphthalene-2-carbonitrile × 1 PO4 PHOSPHATE ION × 3 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；50 mM MES pH 5.5, 17.5% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.25 Å R-free 0.287
8VB6 Kinetic intermediate states of HIV-1 RT DNA synthesis captured by cryo-EM Deposited 2023-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa） Fragment：UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：C280S D498N No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å
8VB7 Kinetic intermediate states of HIV-1 RT DNA synthesis captured by cryo-EM Deposited 2023-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa） Fragment：UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：C280S D498N MG MAGNESIUM ION × 1 DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
8VB8 Kinetic intermediate states of HIV-1 RT DNA synthesis captured by cryo-EM Deposited 2023-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa） Fragment：UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：C280S D498N DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8VB9 Kinetic intermediate states of HIV-1 RT DNA synthesis captured by cryo-EM Deposited 2023-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa） Fragment：UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：C280S D498N MG MAGNESIUM ION × 2 DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8VBC Kinetic intermediate states of HIV-1 RT DNA synthesis captured by cryo-EM Deposited 2023-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa） Fragment：UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：C280S D498N MG MAGNESIUM ION × 2 DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8VBD Kinetic intermediate states of HIV-1 RT DNA synthesis captured by cryo-EM Deposited 2023-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa） Fragment：UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：C280S D498N MG MAGNESIUM ION × 2 DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å
8VBE Kinetic intermediate states of HIV-1 RT DNA synthesis captured by cryo-EM Deposited 2023-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa） Fragment：UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：C280S D498N DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
8VBF Kinetic intermediate states of HIV-1 RT DNA synthesis captured by cryo-EM Deposited 2023-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa） Fragment：UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：C280S D498N DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 POP PYROPHOSPHATE 2- × 1 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8VBG Kinetic intermediate states of HIV-1 RT DNA synthesis captured by cryo-EM Deposited 2023-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa） Fragment：UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：C280S D498N F2A 2'-deoxy-5'-O-[(S)-hydroxy{[(S)-hydroxy(phosphonooxy)phosphoryl]methyl}phosphoryl]adenosine × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8VBH Kinetic intermediate states of HIV-1 RT DNA synthesis captured by cryo-EM Deposited 2023-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa） Fragment：UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：C280S D498N DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 UNX UNKNOWN LIGAND × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.20 Å
8VBI Kinetic intermediate states of HIV-1 RT DNA synthesis captured by cryo-EM Deposited 2023-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: trimeric
Chain A 600–1154（555 aa） Fragment：UNP residues 600-1154
Chain B 600–1027（428 aa） Fragment：UNP residues 600-1027
Mutation：C280S D498N DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.30 Å
8VU9 Crystal structure of wild-type HIV-1 reverse transcriptase in complex with non-nucleoside inhibitor 5i3 Deposited 2024-01-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1153（554 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S WB3 (2E)-3-[4-({2-[(1-{[4-(methanesulfonyl)phenyl]methyl}piperidin-4-yl)amino]pyrido[2,3-d]pyrimidin-4-yl}oxy)-3,5-dimethylphenyl]prop-2-enenitrile × 1 SO4 SULFATE ION × 6 EDO 1,2-ETHANEDIOL × 5 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；10% (v/v) poly(ethylene glycol) (PEG) 8000, 4% (v/v) PEG 400, 100 mM MES, pH 6.3, 10 mM spermine, 15 mM MgSO4, 100 mM ammonium sulfate, and 5 mM tris(2-carboxyethyl)phosphine
Resolution 1.99 Å R-free 0.244
8VUB Crystal structure of wild-type HIV-1 reverse transcriptase in complex with non-nucleoside inhibitor 5e2 Deposited 2024-01-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S Mutation：C280S PKX 4-[(4-{[4-(4-cyano-2,6-dimethylphenoxy)-6,7-dimethoxyquinazolin-2-yl]amino}piperidin-1-yl)methyl]benzamide × 1 SO4 SULFATE ION × 6 EDO 1,2-ETHANEDIOL × 5 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；10% (v/v) poly(ethylene glycol) (PEG) 8000, 4% (v/v) PEG 400, 100 mM MES pH 6.3, 10 mM spermine, 15 mM MgSO4, 100 mM ammonium sulfate, and 5 mM tris(2-carboxyethyl)phosphine
Resolution 2.18 Å R-free 0.242
8VUF Crystal structure of GH9 (K101P, K103N, V108I) HIV-1 reverse transcriptase in complex with non-nucleoside inhibitor 5i3 Deposited 2024-01-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S, K101P, K103N, V108I Mutation：C280S SO4 SULFATE ION × 8 WB3 (2E)-3-[4-({2-[(1-{[4-(methanesulfonyl)phenyl]methyl}piperidin-4-yl)amino]pyrido[2,3-d]pyrimidin-4-yl}oxy)-3,5-dimethylphenyl]prop-2-enenitrile × 1 EDO 1,2-ETHANEDIOL × 4 DMS DIMETHYL SULFOXIDE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；10% (v/v) poly(ethylene glycol) (PEG) 8000, 4% (v/v) PEG 400, 100 mM MES pH 6.3, 10 mM spermine, 15 mM MgSO4, 100 mM ammonium sulfate, and 5 mM tris(2-carboxyethyl)phosphine
Resolution 2.36 Å R-free 0.247
8VUM Crystal structure of GH9 (K101P, K103N, V108I) HIV-1 reverse transcriptase in complex with non-nucleoside inhibitor 5e2 Deposited 2024-01-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Mutation：K172A, K173A, C280S, K101P, K103N, V108I Mutation：C280S EDO 1,2-ETHANEDIOL × 5 SO4 SULFATE ION × 7 DMS DIMETHYL SULFOXIDE × 1 MG MAGNESIUM ION × 1 PKX 4-[(4-{[4-(4-cyano-2,6-dimethylphenoxy)-6,7-dimethoxyquinazolin-2-yl]amino}piperidin-1-yl)methyl]benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；10% (v/v) poly(ethylene glycol) (PEG) 8000, 4% (v/v) PEG 400, 100 mM MES pH 6.3, 10 mM spermine, 15 mM MgSO4, 100 mM ammonium sulfate, and 5 mM tris(2-carboxyethyl)phosphine
Resolution 2.15 Å R-free 0.265
9MXB Crystal Structure of WT HIV-1 Reverse Transcriptase in Complex with 5-{2-[2-(2-oxo-4-sulfanylidene-3,4-dihydropyrimidin-1(2H)-yl)ethoxy] phenoxy}naphthalene-2-carbonitrile (JLJ648), a non-nucleoside inhibitor Deposited 2025-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1027（428 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) CL CHLORIDE ION × 3 SO4 SULFATE ION × 2 A1BTU 5-{2-[2-(2-oxo-4-sulfanylidene-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}naphthalene-2-carbonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；50 mM Citric Acid pH 5.5, 15% PEG 8000, 100 mM ammonium sulfate, 15 mM magnesium sulfate, and 5 mM spermine
Resolution 2.37 Å R-free 0.275
9MXQ Cryo-EM Structure of HIV-1 Reverse Transcriptase p66 Homodimer Deposited 2025-01-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1154（555 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7；50mM Tris pH 7.0, 25mM NaCl, 5% Glycerol, 1mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.85 Å
9MXR Cryo-EM Structure of HIV-1 Reverse Transcriptase p66 Homodimer in Complex with 5-{2-[2-(2-oxo-4-sulfanylidene-3,4-dihydropyrimidin-1(2H)-yl)ethoxy] phenoxy}naphthalene-2-carbonitrile (JLJ648), a Non-nucleoside Inhibitor Deposited 2025-01-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1154（555 aa）
Not recorded A1BTU 5-{2-[2-(2-oxo-4-sulfanylidene-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}naphthalene-2-carbonitrile × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；50mM Tris pH 7.0, 25mM NaCl, 5% Glycerol, 1mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.05 Å
9MXS Cryo-EM Structure of HIV-1 Reverse Transcriptase p66 Homodimer in Complex with 5-{2-[2-(2-oxo-4-sulfanylidene-3,4-dihydropyrimidin-1(2H)-yl)ethoxy] phenoxy}naphthalene-2-carbonitrile, a Non-nucleoside Inhibitor, with an Additional Pocket of Density Deposited 2025-01-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 600–1154（555 aa）
Chain B 600–1154（555 aa）
Not recorded A1BTU 5-{2-[2-(2-oxo-4-sulfanylidene-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}naphthalene-2-carbonitrile × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；50mM Tris pH 7.0, 25mM NaCl, 5% Glycerol, 1mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.09 Å
9MXT Cryo-EM Structure of HIV-1 Reverse Transcriptase p66 tetramer in Complex with 5-{2-[2-(2-oxo-4-sulfanylidene-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}naphthalene-2-carbonitrile (JLJ648), a Non-nucleoside Inhibitor Deposited 2025-01-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 600–1154（555 aa）
Chain B 600–1154（555 aa）
Chain C 600–1154（555 aa）
Chain D 600–1154（555 aa）
Not recorded A1BTU 5-{2-[2-(2-oxo-4-sulfanylidene-3,4-dihydropyrimidin-1(2H)-yl)ethoxy]phenoxy}naphthalene-2-carbonitrile × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；50mM Tris pH 7.0, 25mM NaCl, 5% Glycerol, 1mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9NW9 CA117v2v8 Fab bound to HLA-E-RL9HIV Deposited 2025-03-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain P 275–283（9 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M magnesium chloride, 20% PEG 3350
Resolution 2.30 Å R-free 0.239

383 other PDB entries and 469 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name POL_HV1B1
Isoform —
PDB entities 3, 4
Chains and sequence ranges Author chain A； PDBConstruct 1–558； UniProt 168–725 Author chain B； PDBConstruct 1–429； UniProt 168–596

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 1t03

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1t03
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1t03
Deposition date deposition_date2004-04-07
Structure title titleHIV-1 reverse transcriptase crosslinked to tenofovir terminated template-primer (complex P)
Keywords keywordsHIV-1 RT, tenofovir, RT-DNA complex, Transferase-Antibody-DNA COMPLEX; Transferase/Antibody/DNA
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier44.44 Å
Radius of gyration Rg (electron density) rg_electron44.50 Å
Forward intensity I(0) i0467894000.00
Molecular weight molecular_weight173750.0 kDa
Excluded volume excluded_volume215710 ų
Envelope volume envelope_volume300960 ų
Hydration-shell volume shell_volume58591 ų
Envelope diameter envelope_diameter166.9 Å
Shell Rg shell_rg46.66 Å
Envelope Rg envelope_rg44.62 Å
Shape Rg shape_rg44.45 Å
Total Rg total_rg44.78 Å
Total atoms total_atoms12218
Residues n_residues1464
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax160.0 Å
Rg (real space) rg_real44.77 Å
Rg uncertainty (real space) rg_real_error1.67 Å
I(0) (real space) i0_real4.6790e+08
I(0) uncertainty (real space) i0_real_error8.6880e+06
Rg (reciprocal space) rg_reciprocal44.45 Å
I(0) (reciprocal space) i0_reciprocal467700000.0000
Solution quality estimate total_estimate0.6069
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary44.5 Å
Skewness Skewness skewness0.520
Kurtosis Kurtosis kurtosis-0.273
Angular range angular_range— – 0.1800 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha51090000.0000
Real-space data points n_real_points37
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.713; Stabil: 1.000; Sysdev: 0.005; Positv: 1.000; Valcen: 0.820; Smooth: 0.911
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

▼

7. Fold Classification (SCOP + CATH) 20 domains

SCOP 2.08 (7 domains)

Domain ID domain_idd1t03a1
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamilyc.55.3 — Ribonuclease H-like
Family Family familyc.55.3.1 — Ribonuclease H
Domain ID domain_idd1t03a2
Class classe — Multi-domain proteins (alpha and beta)
Fold Fold folde.8 — DNA/RNA polymerases
Superfamily Superfamily superfamilye.8.1 — DNA/RNA polymerases
Family Family familye.8.1.2 — Reverse transcriptase
Domain ID domain_idd1t03b_
Class classe — Multi-domain proteins (alpha and beta)
Fold Fold folde.8 — DNA/RNA polymerases
Superfamily Superfamily superfamilye.8.1 — DNA/RNA polymerases
Family Family familye.8.1.2 — Reverse transcriptase
Domain ID domain_idd1t03h1
Class classb — All beta proteins
Fold Fold foldb.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamilyb.1.1 — Immunoglobulin
Family Family familyb.1.1.1 — V set domains (antibody variable domain-like)
Domain ID domain_idd1t03h2
Class classb — All beta proteins
Fold Fold foldb.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamilyb.1.1 — Immunoglobulin
Family Family familyb.1.1.2 — C1 set domains (antibody constant domain-like)
Domain ID domain_idd1t03l1
Class classb — All beta proteins
Fold Fold foldb.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamilyb.1.1 — Immunoglobulin
Family Family familyb.1.1.1 — V set domains (antibody variable domain-like)
Domain ID domain_idd1t03l2
Class classb — All beta proteins
Fold Fold foldb.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamilyb.1.1 — Immunoglobulin
Family Family familyb.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (13 domains)

Domain ID domain_id1t03A01
Class class3 — Alpha Beta
Architecture architecture10 — Roll
Topology topology10 — HIV Type 1 Reverse Transcriptase; Chain A, domain 1
Homologous superfamily homologous superfamily10 — HIV Type 1 Reverse Transcriptase, subunit A, domain 1
Domain ID domain_id1t03A02
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily270 — Reverse transcriptase/Diguanylate cyclase domain
Domain ID domain_id1t03A03
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily270 — Reverse transcriptase/Diguanylate cyclase domain
Domain ID domain_id1t03A04
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily270 — Reverse transcriptase/Diguanylate cyclase domain
Domain ID domain_id1t03A05
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily10 — Ribonuclease H-like superfamily/Ribonuclease H
Domain ID domain_id1t03B01
Class class3 — Alpha Beta
Architecture architecture10 — Roll
Topology topology10 — HIV Type 1 Reverse Transcriptase; Chain A, domain 1
Homologous superfamily homologous superfamily10 — HIV Type 1 Reverse Transcriptase, subunit A, domain 1
Domain ID domain_id1t03B02
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily270 — Reverse transcriptase/Diguanylate cyclase domain
Domain ID domain_id1t03B03
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily270 — Reverse transcriptase/Diguanylate cyclase domain
Domain ID domain_id1t03B04
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily270 — Reverse transcriptase/Diguanylate cyclase domain
Domain ID domain_id1t03H01
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily10 — Immunoglobulins
Domain ID domain_id1t03H02
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily10 — Immunoglobulins
Domain ID domain_id1t03L01
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily10 — Immunoglobulins
Domain ID domain_id1t03L02
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily10 — Immunoglobulins
▶

8. Citations (1)

▶

9. Files and Curves (10)
