SAXSdb — 1t13

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

6,7-dimethyl-8-ribityllumazine synthase

Brucella abortus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 10	PHOSPHATE ION × 10 5-NITRO-6-RIBITYL-AMINO-2,4(1H,3H)-PYRIMIDINEDIONE × 10 water × 10	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RISB_BRUME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–158； UniProt 1–158 Author chain B； PDBConstruct 1–158； UniProt 1–158 Author chain C； PDBConstruct 1–158； UniProt 1–158 Author chain D； PDBConstruct 1–158； UniProt 1–158 Author chain E； PDBConstruct 1–158； UniProt 1–158

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1t13
Deposition date deposition_date	2004-04-15
Structure title title	Crystal Structure Of Lumazine Synthase From Brucella Abortus Bound To 5-nitro-6-(D-ribitylamino)-2,4(1H,3H) pyrimidinedione
Keywords keywords	TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1t13__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1t13__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

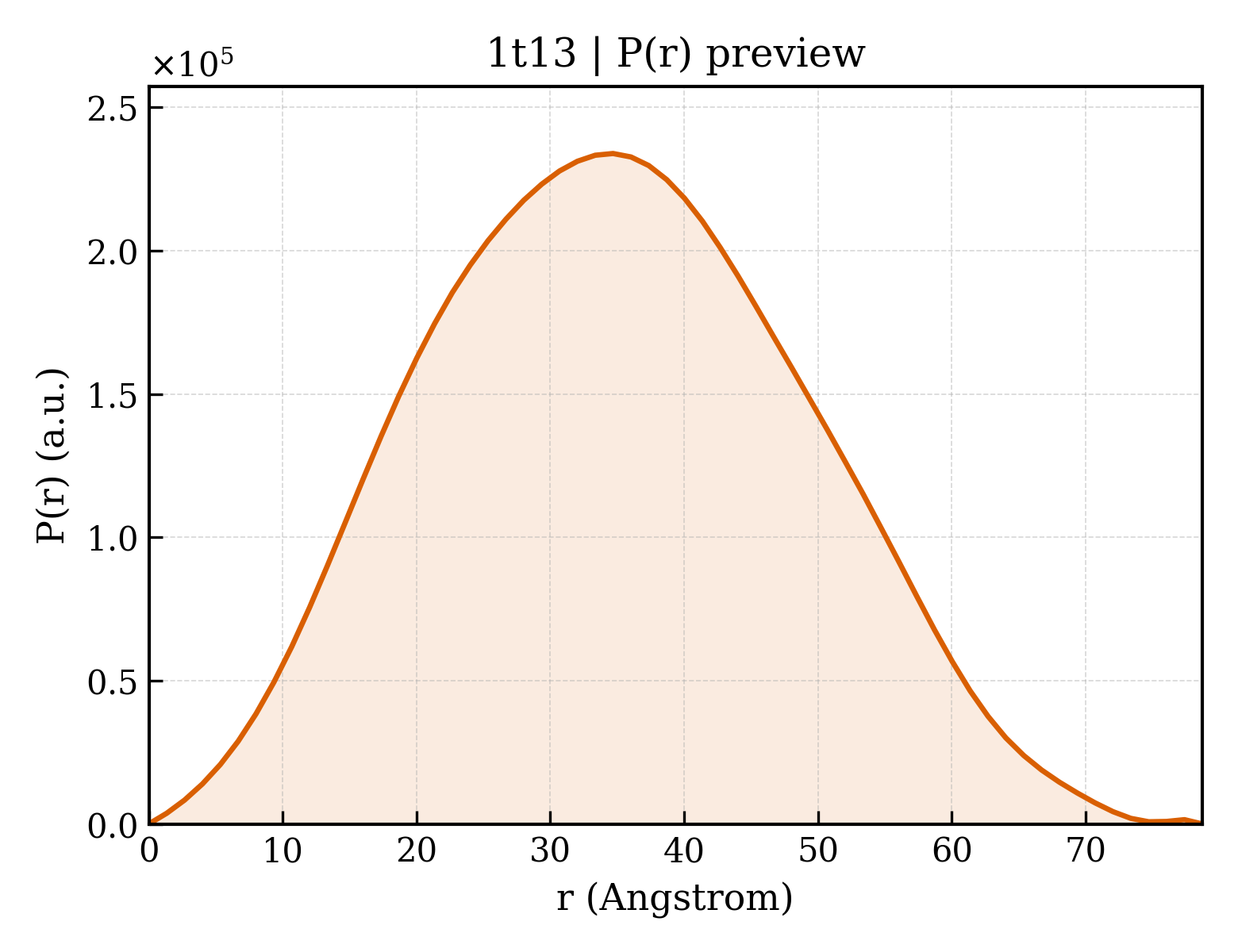

1t13__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.34 Å
Rg (electron density)	32.71 Å
Total Rg	33.53 Å
Atom count	11738
Residues	1480
Excluded volume	207770 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1t13__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	6,7-dimethyl-8-ribityllumazine synthase
Molecular weight formula_weight	17381.9 kDa
EC 编号 ec_number	2.5.1.78
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E
Atom count atom_count	5958

MNQSCPNKTSFKIAFIQARWHADIVDEARKSFVAELAAKTGGSVEVEIFDVPGAYEIPLHAKTLARTGRYAAIVGAAFVIDGGIYRHDFVATAVINGMMQVQLETEVPVLSVVLTPHHFHESKEHHDFFHAHFKVKGVEAAHAALQIVSERSRIAALV

Source Source

Source organism organism	Brucella abortus
NCBI taxonomy ID ncbi_taxonomy_id	235
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	5-NITRO-6-RIBITYL-AMINO-2,4(1H,3H)-PYRIMIDINEDIONE
Molecular weight formula_weight	306.2 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	89

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d1t13a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.16 — Lumazine synthase
Superfamily Superfamily superfamily	c.16.1 — Lumazine synthase
Family Family family	c.16.1.1 — Lumazine synthase

Domain ID domain_id	d1t13b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.16 — Lumazine synthase
Superfamily Superfamily superfamily	c.16.1 — Lumazine synthase
Family Family family	c.16.1.1 — Lumazine synthase

Domain ID domain_id	d1t13c_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.16 — Lumazine synthase
Superfamily Superfamily superfamily	c.16.1 — Lumazine synthase
Family Family family	c.16.1.1 — Lumazine synthase

Domain ID domain_id	d1t13d_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.16 — Lumazine synthase
Superfamily Superfamily superfamily	c.16.1 — Lumazine synthase
Family Family family	c.16.1.1 — Lumazine synthase

Domain ID domain_id	d1t13e_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.16 — Lumazine synthase
Superfamily Superfamily superfamily	c.16.1 — Lumazine synthase
Family Family family	c.16.1.1 — Lumazine synthase

CATH v4.4 (5 domains)

Domain ID domain_id	1t13A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	960 — Lumazine/riboflavin synthase

Domain ID domain_id	1t13B00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	960 — Lumazine/riboflavin synthase

Domain ID domain_id	1t13C00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	960 — Lumazine/riboflavin synthase

Domain ID domain_id	1t13D00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	960 — Lumazine/riboflavin synthase

Domain ID domain_id	1t13E00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	960 — Lumazine/riboflavin synthase

▶

Unit-cell length a length_a	126.321 Å
Unit-cell length b length_b	126.321 Å
Unit-cell length c length_c	165.669 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	30

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	52.000 Å
R factor r_factor	—
R_work r_work	0.2170
R_free r_free	0.2540
