1t16
Crystal structure of the bacterial fatty acid transporter FadL from Escherichia coli
SAXS 散射曲线 SAXS Profile

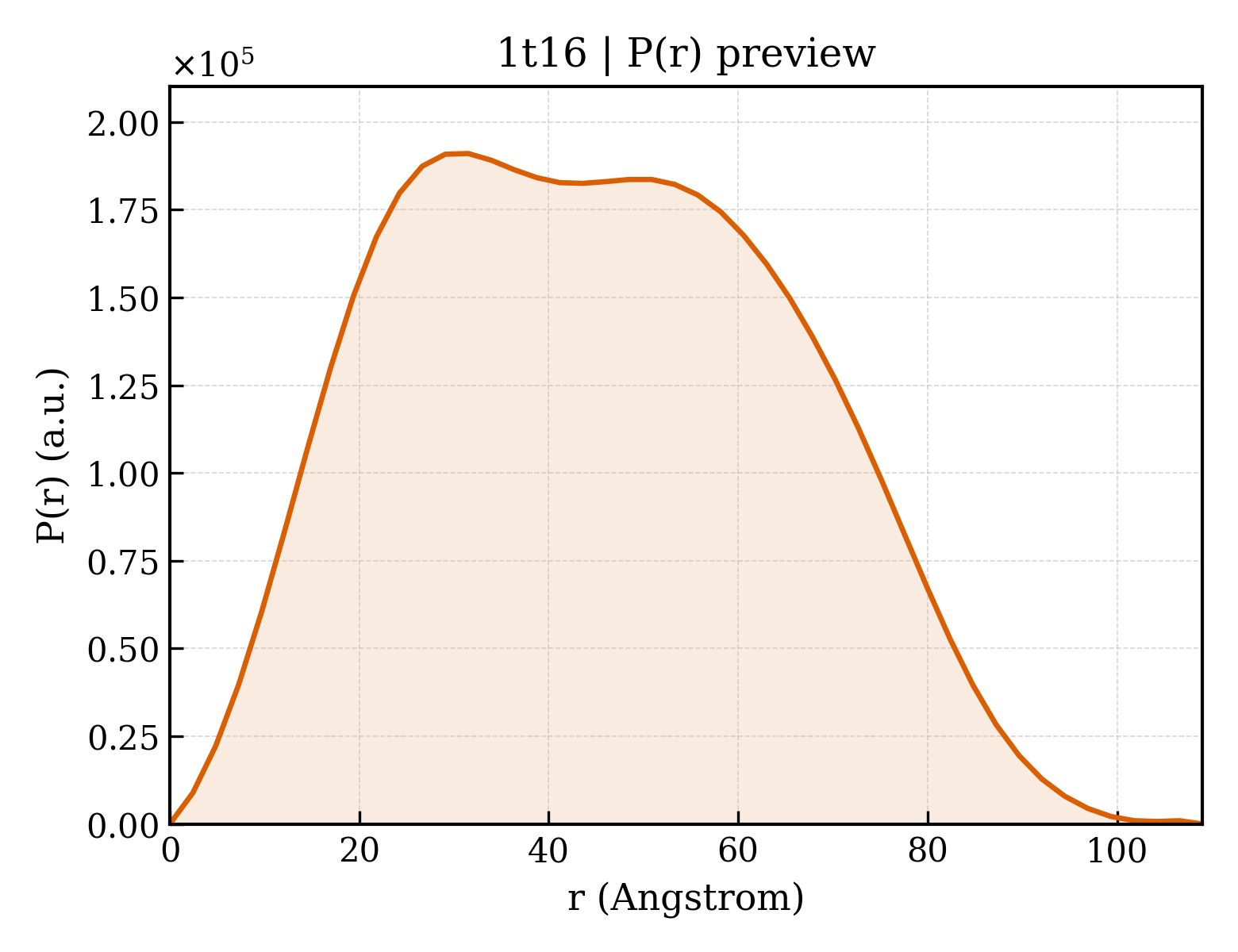

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1t16 |
| 沉积日期 deposition_date | 2004-04-15 |
| 结构标题 title | Crystal structure of the bacterial fatty acid transporter FadL from Escherichia coli |
| 关键词 keywords | beta-barrel, LIPID TRANSPORT; LIPID TRANSPORT |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 34.89 Å |
| 回转半径 Rg (电子) rg_electron | 33.91 Å |
| 零角强度 I(0) i0 | 146202000.00 |
| 分子量 molecular_weight | 95655.0 kDa |
| 排除体积 excluded_volume | 118680 ų |
| 包络体积 envelope_volume | 152040 ų |
| 水化壳体积 shell_volume | 36946 ų |
| 包络直径 envelope_diameter | 113.6 Å |
| 壳层 Rg shell_rg | 40.95 Å |
| 包络 Rg envelope_rg | 33.50 Å |
| 形状 Rg shape_rg | 33.88 Å |
| 总 Rg total_rg | 34.53 Å |
| 总原子数 total_atoms | 6759 |
| 残基数 n_residues | 854 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 109.0 Å |
| Rg (实空间) rg_real | 34.86 Å |
| Rg 误差 (实空间) rg_real_error | 0.76 Å |
| I(0) (实空间) i0_real | 1.4620e+08 |
| I(0) 误差 (实空间) i0_real_error | 2.2520e+06 |
| Rg (倒空间) rg_reciprocal | 34.89 Å |
| I(0) (倒空间) i0_reciprocal | 146200000.0000 |
| 解质量估计 total_estimate | 0.9011 |
| 解质量评级 solution_quality | EXCELLENT a EXCELLENT solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 31.5 Å |
| 偏度 Skewness skewness | 0.159 |
| 峰度 Kurtosis kurtosis | -0.783 |
| 角度范围 angular_range | — – 0.2250 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 19310000.0000 |
| 实空间数据点数 n_real_points | 46 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.947; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.896 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (5)
6. 折叠分类 (SCOP + CATH) 6 domains
SCOP 2.08 (4 domains)
| 结构域编号 domain_id | d1t16a1 |
| 类 Class class | f — Membrane and cell surface proteins and peptides |
| 折叠类型 Fold fold | f.4 — Transmembrane beta-barrels |
| 超家族 Superfamily superfamily | f.4.3 — Porins |
| 家族 Family family | f.4.3.4 — Outer membrane protein transport protein |
| 结构域编号 domain_id | d1t16a2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1t16b1 |
| 类 Class class | f — Membrane and cell surface proteins and peptides |
| 折叠类型 Fold fold | f.4 — Transmembrane beta-barrels |
| 超家族 Superfamily superfamily | f.4.3 — Porins |
| 家族 Family family | f.4.3.4 — Outer membrane protein transport protein |
| 结构域编号 domain_id | d1t16b2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 1t16A00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 160 — Porin |
| 同源超家族 H-superfamily homologous superfamily | 60 — Outer membrane protein transport protein (OMPP1/FadL/TodX) |
| 结构域编号 domain_id | 1t16B00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 160 — Porin |
| 同源超家族 H-superfamily homologous superfamily | 60 — Outer membrane protein transport protein (OMPP1/FadL/TodX) |
