Bacillus sp. MN-32
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | CALCIUM ION × 1 water × 1 | Consistent with protein count |
| UniProt name | Q8RR56_9BACI |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–552； UniProt 1–552 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1t1e |
| Deposition date deposition_date | 2004-04-16 |
| Structure title title | High Resolution Crystal Structure of the Intact Pro-Kumamolisin, a Sedolisin Type Proteinase (previously called Kumamolysin or KSCP) |
| Keywords keywords | proenzyme, prosubtilase, activation mechanism, sedolisin, serine-carboxyl proteinase, HYDROLASE; HYDROLASE |
| Experimental Method method | X-RAY DIFFRACTION |

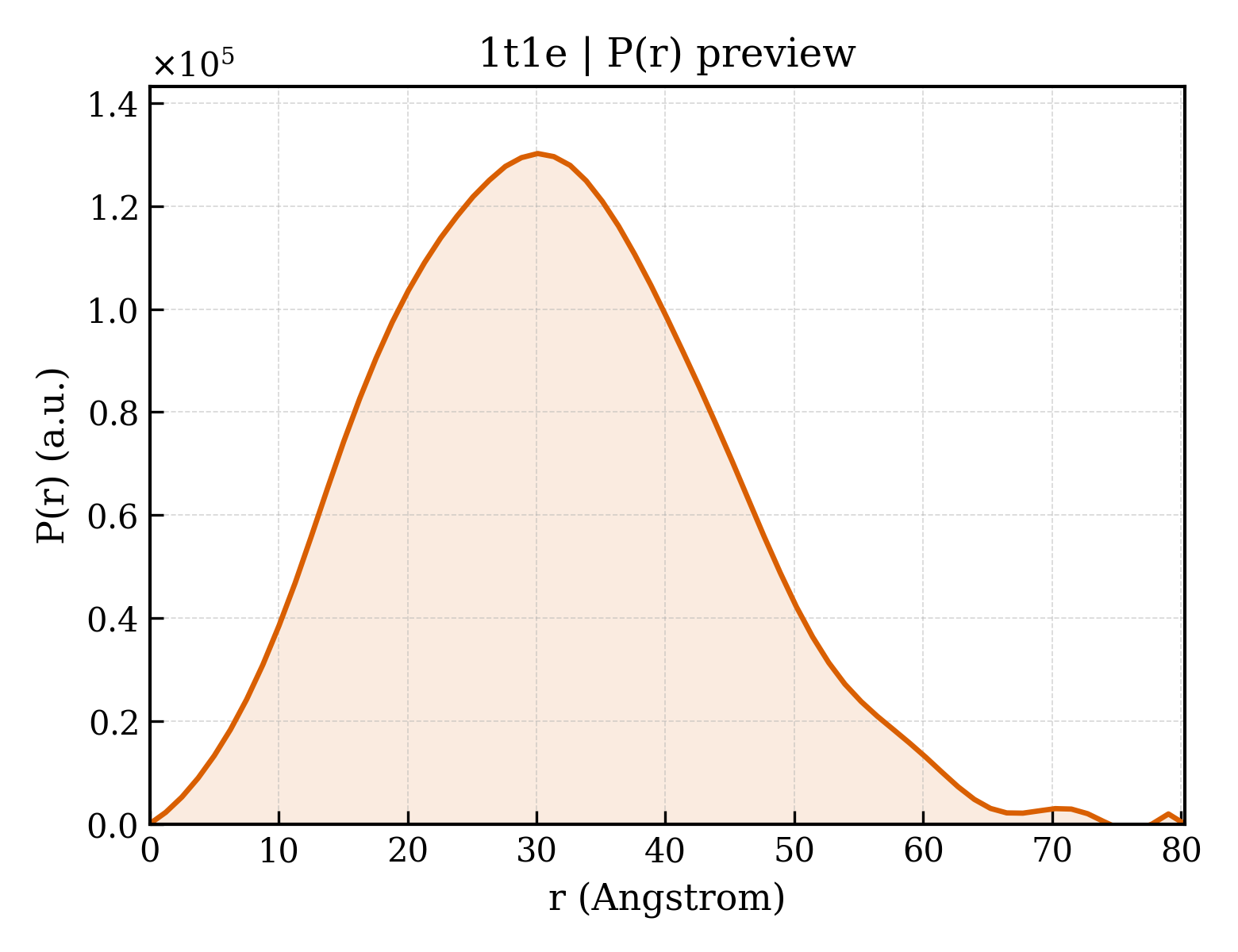

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 23.79 Å |
| Rg (electron density) | 22.68 Å |
| Total Rg | 23.59 Å |
| Atom count | 3932 |
| Residues | 534 |
| Excluded volume | 68928 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1t1ea1 |
| Class class | c — Alpha and beta proteins (a/b) |
| Fold Fold fold | c.41 — Subtilisin-like |
| Superfamily Superfamily superfamily | c.41.1 — Subtilisin-like |
| Family Family family | c.41.1.2 — Serine-carboxyl proteinase, SCP |
| Domain ID domain_id | d1t1ea2 |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.58 — Ferredoxin-like |
| Superfamily Superfamily superfamily | d.58.3 — Protease propeptides/inhibitors |
| Family Family family | d.58.3.2 — Subtilase propeptides/inhibitors |
| Domain ID domain_id | 1t1eA02 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 50 — Rossmann fold |
| Homologous superfamily homologous superfamily | 200 — Peptidase S8/S53 domain |
