1t6p

Crystal Structure of Phenylalanine Ammonia Lyase from Rhodosporidium toruloides

Method: X-RAY DIFFRACTION D_max: 212.7 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

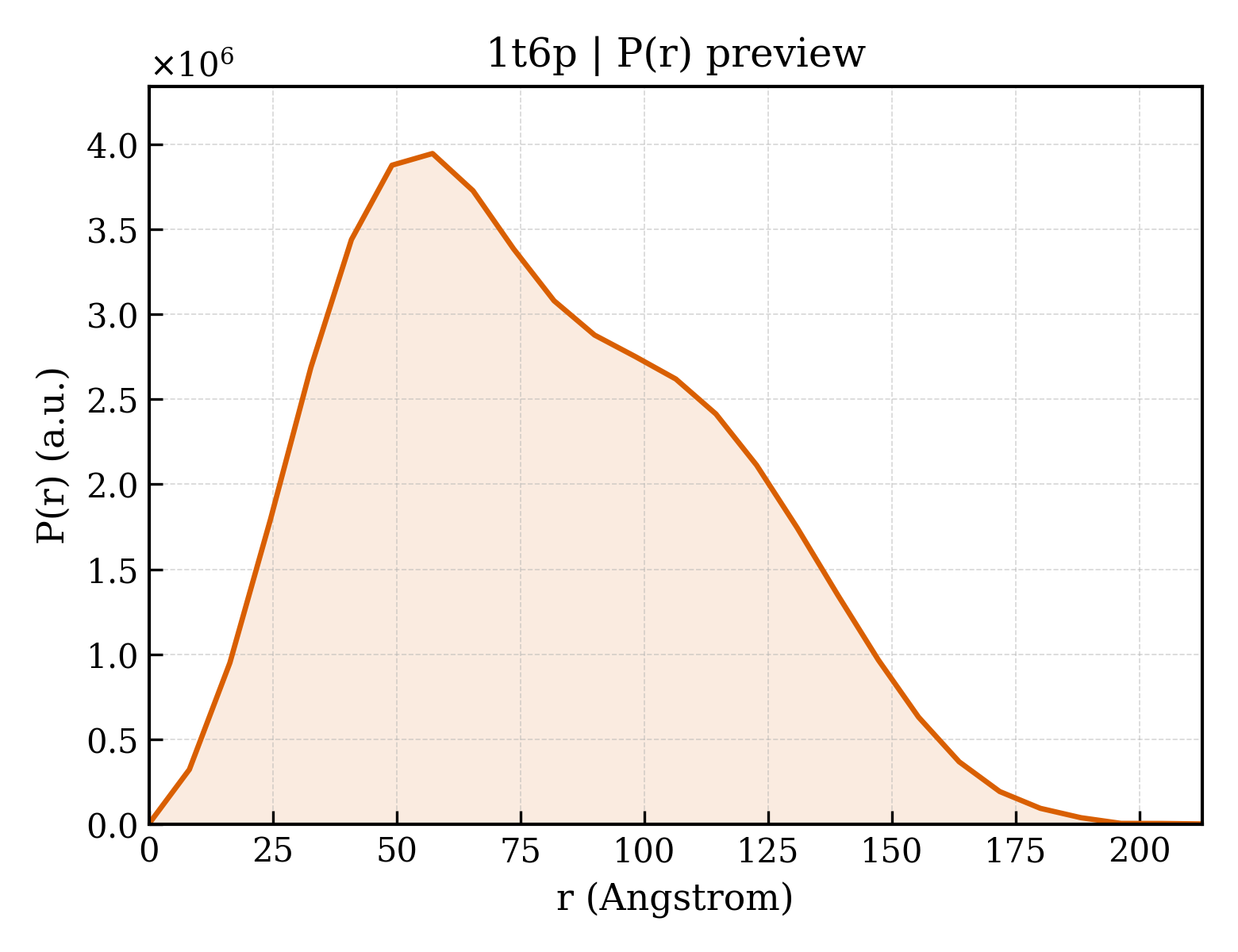

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1t6p
沉积日期 deposition_date	2004-05-06
结构标题 title	Crystal Structure of Phenylalanine Ammonia Lyase from Rhodosporidium toruloides
关键词 keywords	triple helix coiled coil; MIO; cinnamate, LYASE; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	61.19 Å
回转半径 Rg (电子) rg_electron	61.37 Å
零角强度 I(0) i0	4664410000.00
分子量 molecular_weight	569750.0 kDa
排除体积 excluded_volume	709690 Å³
包络体积 envelope_volume	932270 Å³
水化壳体积 shell_volume	123830 Å³
包络直径 envelope_diameter	210.5 Å
壳层 Rg shell_rg	63.65 Å
包络 Rg envelope_rg	60.96 Å
形状 Rg shape_rg	61.41 Å
总 Rg total_rg	61.29 Å
总原子数 total_atoms	39729
残基数 n_residues	5107
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	212.7 Å
Rg (实空间) rg_real	61.41 Å
Rg 误差 (实空间) rg_real_error	2.61 Å
I(0) (实空间) i0_real	4.6640e+09
I(0) 误差 (实空间) i0_real_error	1.0550e+08
Rg (倒空间) rg_reciprocal	60.95 Å
I(0) (倒空间) i0_reciprocal	4661000000.0000
解质量估计 total_estimate	0.8408
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	57.3 Å
偏度 Skewness skewness	0.366
峰度 Kurtosis kurtosis	-0.615
角度范围 angular_range	— – 0.1300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	2657000000.0000
实空间数据点数 n_real_points	27
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.719; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.771

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	phenylalanine ammonia-lyase
分子量 formula_weight	77655.9 kDa
EC 编号 ec_number	4.3.1.5
来源方法 src_method	man
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H
原子数 atom_count	40380

MAPSLDSISHSFANGVASAKQAVNGASTNLAVAGSHLPTTQVTQVDIVEKMLAAPTDSTLELDGYSLNLGDVVSAARKGRPVRVKDSDEIRSKIDKSVEFLRSQLSMSVYGVTTGFGGSADTRTEDAISLQKALLEHQLCGVLPSSFDSFRLGRGLENSLPLEVVRGAMTIRVNSLTRGHSAVRLVVLEALTNFLNHGITPIVPLRGTISXDLSPLSYIAAAISGHPDSKVHVVHEGKEKILYAREAMALFNLEPVVLGPKEGLGLVNGTAVSASMATLALHDAHMLSLLSQSLTAMTVEAMVGHAGSFHPFLHDVTRPHPTQIEVAGNIRKLLEGSRFAVHHEEEVKVKDDEGILRQDRYPLRTSPQWLGPLVSDLIHAHAVLTIEAGQSTTDNPLIDVENKTSHHGGNFQAAAVANTMEKTRLGLAQIGKLNFTQLTEMLNAGMNRGLPSCLAAEDPSLSYHCKGLDIAAAAYTSELGHLANPVTTHVQPAEMANQAVNSLALISARRTTESNDVLSLLLATHLYCVLQAIDLRAIEFEFKKQFGPAIVSLIDQHFGSAMTGSNLRDELVEKVNKTLAKRLEQTNSYDLVPRWHDAFSFAAGTVVEVLSSTSLSLAAVNAWKVAAAESAISLTRQVRETFWSAASTSSPALSYLSPRTQILYAFVREELGVKARRGDVFLGKQEVTIGSNVSKIYEAIKSGRINNVLLKMLA

来源 Source

来源生物 organism	Rhodosporidium toruloides
NCBI 分类编号 ncbi_taxonomy_id	5286
宿主生物 host_organism	Escherichia coli

Entity 2 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	651

▼

6. 折叠分类 (SCOP + CATH) 32 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1t6pa_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.127 — L-aspartase-like
超家族 Superfamily superfamily	a.127.1 — L-aspartase-like
家族 Family family	a.127.1.2 — HAL/PAL-like

结构域编号 domain_id	d1t6pb_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.127 — L-aspartase-like
超家族 Superfamily superfamily	a.127.1 — L-aspartase-like
家族 Family family	a.127.1.2 — HAL/PAL-like

结构域编号 domain_id	d1t6pc_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.127 — L-aspartase-like
超家族 Superfamily superfamily	a.127.1 — L-aspartase-like
家族 Family family	a.127.1.2 — HAL/PAL-like

结构域编号 domain_id	d1t6pd_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.127 — L-aspartase-like
超家族 Superfamily superfamily	a.127.1 — L-aspartase-like
家族 Family family	a.127.1.2 — HAL/PAL-like

结构域编号 domain_id	d1t6pe_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.127 — L-aspartase-like
超家族 Superfamily superfamily	a.127.1 — L-aspartase-like
家族 Family family	a.127.1.2 — HAL/PAL-like

结构域编号 domain_id	d1t6pf_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.127 — L-aspartase-like
超家族 Superfamily superfamily	a.127.1 — L-aspartase-like
家族 Family family	a.127.1.2 — HAL/PAL-like

结构域编号 domain_id	d1t6pg_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.127 — L-aspartase-like
超家族 Superfamily superfamily	a.127.1 — L-aspartase-like
家族 Family family	a.127.1.2 — HAL/PAL-like

结构域编号 domain_id	d1t6ph_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.127 — L-aspartase-like
超家族 Superfamily superfamily	a.127.1 — L-aspartase-like
家族 Family family	a.127.1.2 — HAL/PAL-like

CATH v4.4 (24 domains)

结构域编号 domain_id	1t6pA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	275 — Fumarase C; Chain B, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (N-terminal domain)

结构域编号 domain_id	1t6pA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	1t6pA03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	274 — Enzyme I; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	20 — Phenylalanine ammonia-lyase 1; domain 3

结构域编号 domain_id	1t6pB01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	275 — Fumarase C; Chain B, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (N-terminal domain)

结构域编号 domain_id	1t6pB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	1t6pB03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	274 — Enzyme I; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	20 — Phenylalanine ammonia-lyase 1; domain 3

结构域编号 domain_id	1t6pC01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	275 — Fumarase C; Chain B, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (N-terminal domain)

结构域编号 domain_id	1t6pC02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	1t6pC03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	274 — Enzyme I; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	20 — Phenylalanine ammonia-lyase 1; domain 3

结构域编号 domain_id	1t6pD01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	275 — Fumarase C; Chain B, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (N-terminal domain)

结构域编号 domain_id	1t6pD02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	1t6pD03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	274 — Enzyme I; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	20 — Phenylalanine ammonia-lyase 1; domain 3

结构域编号 domain_id	1t6pE01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	275 — Fumarase C; Chain B, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (N-terminal domain)

结构域编号 domain_id	1t6pE02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	1t6pE03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	274 — Enzyme I; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	20 — Phenylalanine ammonia-lyase 1; domain 3

结构域编号 domain_id	1t6pF01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	275 — Fumarase C; Chain B, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (N-terminal domain)

结构域编号 domain_id	1t6pF02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	1t6pF03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	274 — Enzyme I; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	20 — Phenylalanine ammonia-lyase 1; domain 3

结构域编号 domain_id	1t6pG01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	275 — Fumarase C; Chain B, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (N-terminal domain)

结构域编号 domain_id	1t6pG02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	1t6pG03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	274 — Enzyme I; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	20 — Phenylalanine ammonia-lyase 1; domain 3

结构域编号 domain_id	1t6pH01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	275 — Fumarase C; Chain B, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (N-terminal domain)

结构域编号 domain_id	1t6pH02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	1t6pH03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	274 — Enzyme I; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	20 — Phenylalanine ammonia-lyase 1; domain 3

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	105.192 Å
晶胞边长 b length_b	180.973 Å
晶胞边长 c length_c	149.215 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	96.95 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	25.100 Å
R 因子 r_factor	—
R_work r_work	0.1944
R_free r_free	0.2532
