SAXSdb — 1tbb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

;cAMP-specific 3',5'-cyclic phosphodiesterase 4D ;

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ZINC ION × 1 MAGNESIUM ION × 1 ROLIPRAM × 1 1,2-ETHANEDIOL × 5 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	ZINC ION × 1 MAGNESIUM ION × 1 ROLIPRAM × 1 1,2-ETHANEDIOL × 9 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PDE4D_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–332； UniProt 388–715 Author chain B； PDBConstruct 5–332； UniProt 388–715

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1tbb
Deposition date deposition_date	2004-05-19
Structure title title	Catalytic Domain Of Human Phosphodiesterase 4D In Complex With Rolipram
Keywords keywords	PDE4D, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1tbb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1tbb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

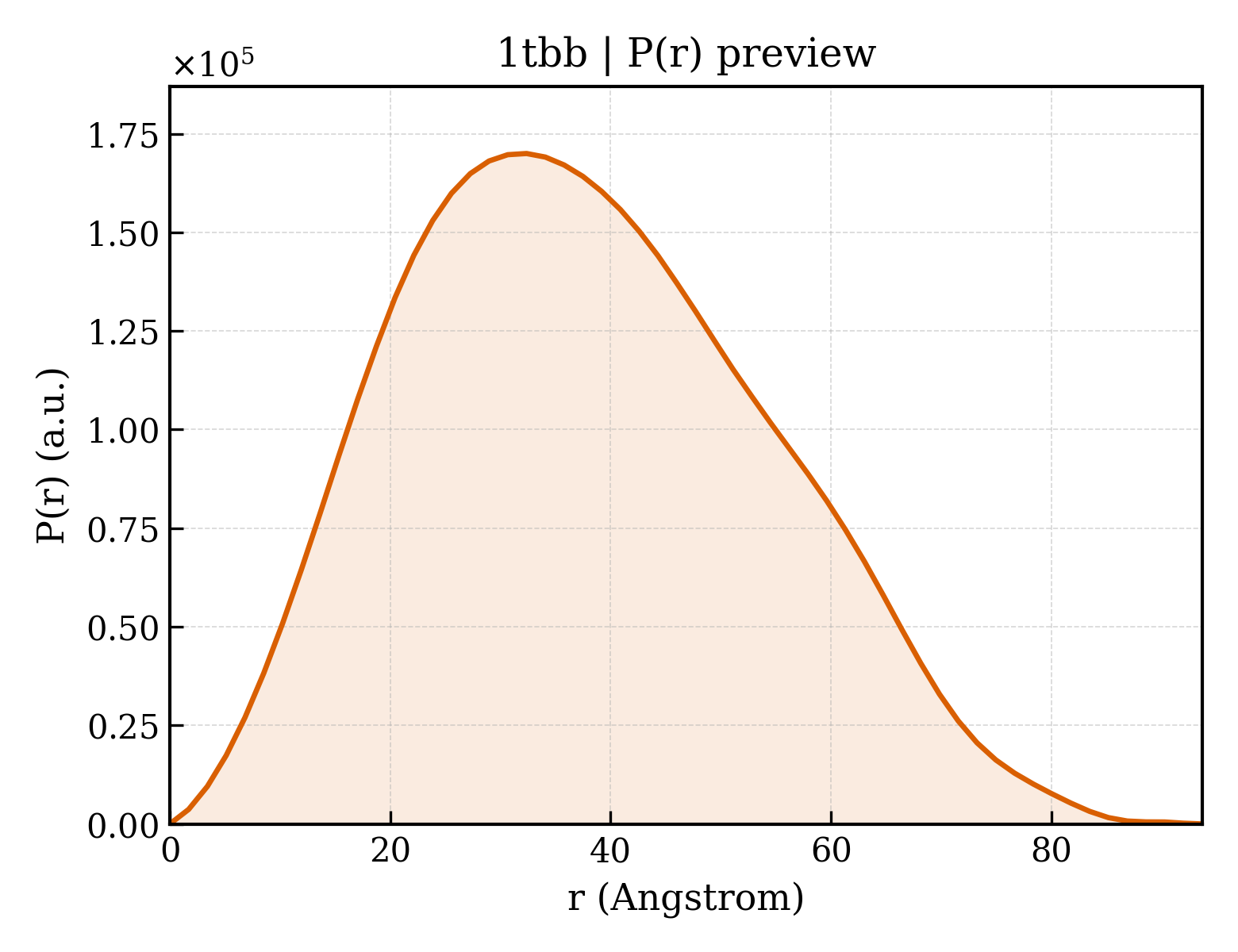

1tbb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.74 Å
Rg (electron density)	19.48 Å
Total Rg	20.49 Å
Atom count	2648
Residues	321
Excluded volume	47189 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1tbb__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1tbb__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	;cAMP-specific 3',5'-cyclic phosphodiesterase 4D ;
Molecular weight formula_weight	38207.3 kDa
EC 编号 ec_number	3.1.4.17
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5886

GSHMTEQEDVLAKELEDVNKWGLHVFRIAELSGNRPLTVIMHTIFQERDLLKTFKIPVDTLITYLMTLEDHYHADVAYHNNIHAADVVQSTHVLLSTPALEAVFTDLEILAAIFASAIHDVDHPGVSNQFLINTNSELALMYNDSSVLENHHLAVGFKLLQEENCDIFQNLTKKQRQSLRKMVIDIVLATDMSKHMNLLADLKTMVETKKVTSSGVLLLDNYSDRIQVLQNMVHCADLSNPTKPLQLYRQWTDRIMEEFFRQGDRERERGMEISPMCDKHNASVEKSQVGFIDYIVHPLWETWADLVHPDAQDILDTLEDNREWYQSTIPQS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	ROLIPRAM
Molecular weight formula_weight	275.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	14

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	443

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1tbba_
Class class	a — All alpha proteins
Fold Fold fold	a.211 — HD-domain/PDEase-like
Superfamily Superfamily superfamily	a.211.1 — HD-domain/PDEase-like
Family Family family	a.211.1.2 — PDEase

Domain ID domain_id	d1tbbb_
Class class	a — All alpha proteins
Fold Fold fold	a.211 — HD-domain/PDEase-like
Superfamily Superfamily superfamily	a.211.1 — HD-domain/PDEase-like
Family Family family	a.211.1.2 — PDEase

CATH v4.4 (2 domains)

Domain ID domain_id	1tbbA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1300 — Catalytic domain of cyclic nucleotide phosphodiesterase 4b2b
Homologous superfamily homologous superfamily	10 — 3'5'-cyclic nucleotide phosphodiesterase, catalytic domain

Domain ID domain_id	1tbbB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1300 — Catalytic domain of cyclic nucleotide phosphodiesterase 4b2b
Homologous superfamily homologous superfamily	10 — 3'5'-cyclic nucleotide phosphodiesterase, catalytic domain

▶

Unit-cell length a length_a	60.106 Å
Unit-cell length b length_b	79.019 Å
Unit-cell length c length_c	164.548 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	81.650 Å
R factor r_factor	0.1868
R_work r_work	0.1859
R_free r_free	0.2042

Catalytic Domain Of Human Phosphodiesterase 4D In Complex With Rolipram
