SAXSdb — 1tc1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (HYPOXANTHINE PHOSPHORIBOSYLTRANSFERASE)

Trypanosoma cruzi

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	FORMYCIN B × 2 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q27796_TRYCR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–220； UniProt 2–221 Author chain B； PDBConstruct 1–220； UniProt 2–221

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1tc1
Deposition date deposition_date	1998-09-30
Structure title title	A 1.4 ANGSTROM CRYSTAL STRUCTURE FOR THE HYPOXANTHINE PHOSPHORIBOSYLTRANSFERASE OF TRYPANOSOMA CRUZI
Keywords keywords	TRANSFERASE, PHOSPHORIBOSYLTRANSFERASE, PURINE SALVAGE, NUCLEOTIDE METABOLISM; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1tc1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1tc1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

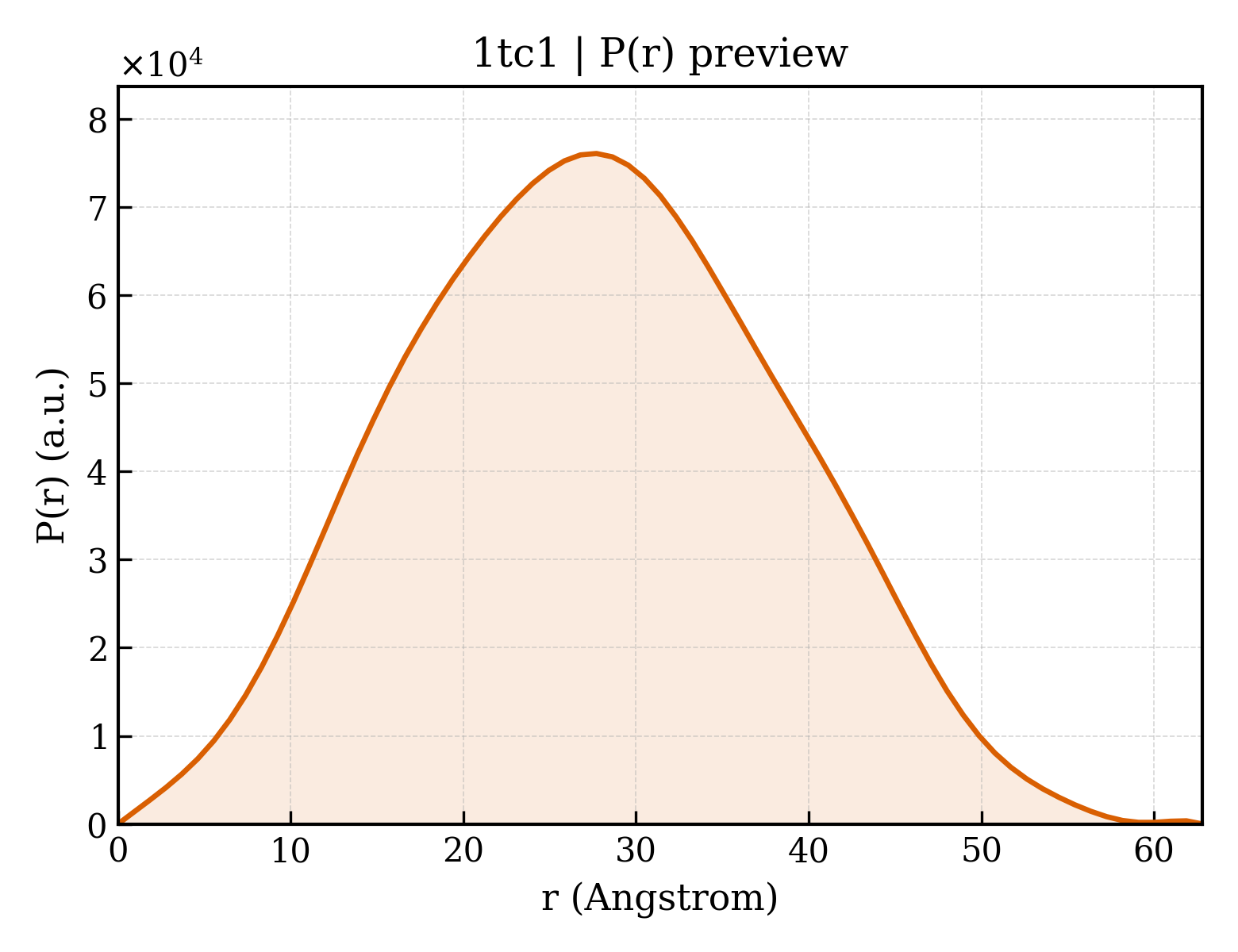

1tc1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.10 Å
Rg (electron density)	19.89 Å
Total Rg	20.74 Å
Atom count	2934
Residues	361
Excluded volume	52806 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1tc1__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PROTEIN (HYPOXANTHINE PHOSPHORIBOSYLTRANSFERASE)
Molecular weight formula_weight	25464.2 kDa
EC 编号 ec_number	2.4.2.8
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3082

PREYEFAEKILFTEEEIRTRIKEVAKRIADDYKGKGLRPYVNPLVLISVLKGSFMFTADLCRALCDFNVPVRMEFICVSSYGEGLTSSGQVRMLLDTRHSIEGHHVLIVEDIVDTALTLNYLYHMYFTRRPASLKTVVLLDKREGRRVPFSADYVVANIPNAFVIGYGLDYDDTYRELRDIVVLRPEVYAEREAARQKKQRAIGSADTDRDAKREFHSKY

Source Source

Source organism organism	Trypanosoma cruzi
NCBI taxonomy ID ncbi_taxonomy_id	5693
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FORMYCIN B
Molecular weight formula_weight	268.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	2-(N-MORPHOLINO)-ETHANESULFONIC ACID
Molecular weight formula_weight	195.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	148

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1tc1a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1tc1b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

CATH v4.4 (2 domains)

Domain ID domain_id	1tc1A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

Domain ID domain_id	1tc1B00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

▶

Unit-cell length a length_a	39.500 Å
Unit-cell length b length_b	94.090 Å
Unit-cell length c length_c	52.120 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	94.75 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.410 Å
Low-resolution limit resolution_low	6.000 Å
R factor r_factor	0.1930
R_work r_work	0.1980
R_free r_free	0.2280

A 1.4 ANGSTROM CRYSTAL STRUCTURE FOR THE HYPOXANTHINE PHOSPHORIBOSYLTRANSFERASE OF TRYPANOSOMA CRUZI
