1th7
Crystal Structure of an Archaeal Sm Protein from Sulfolobus solfataricus

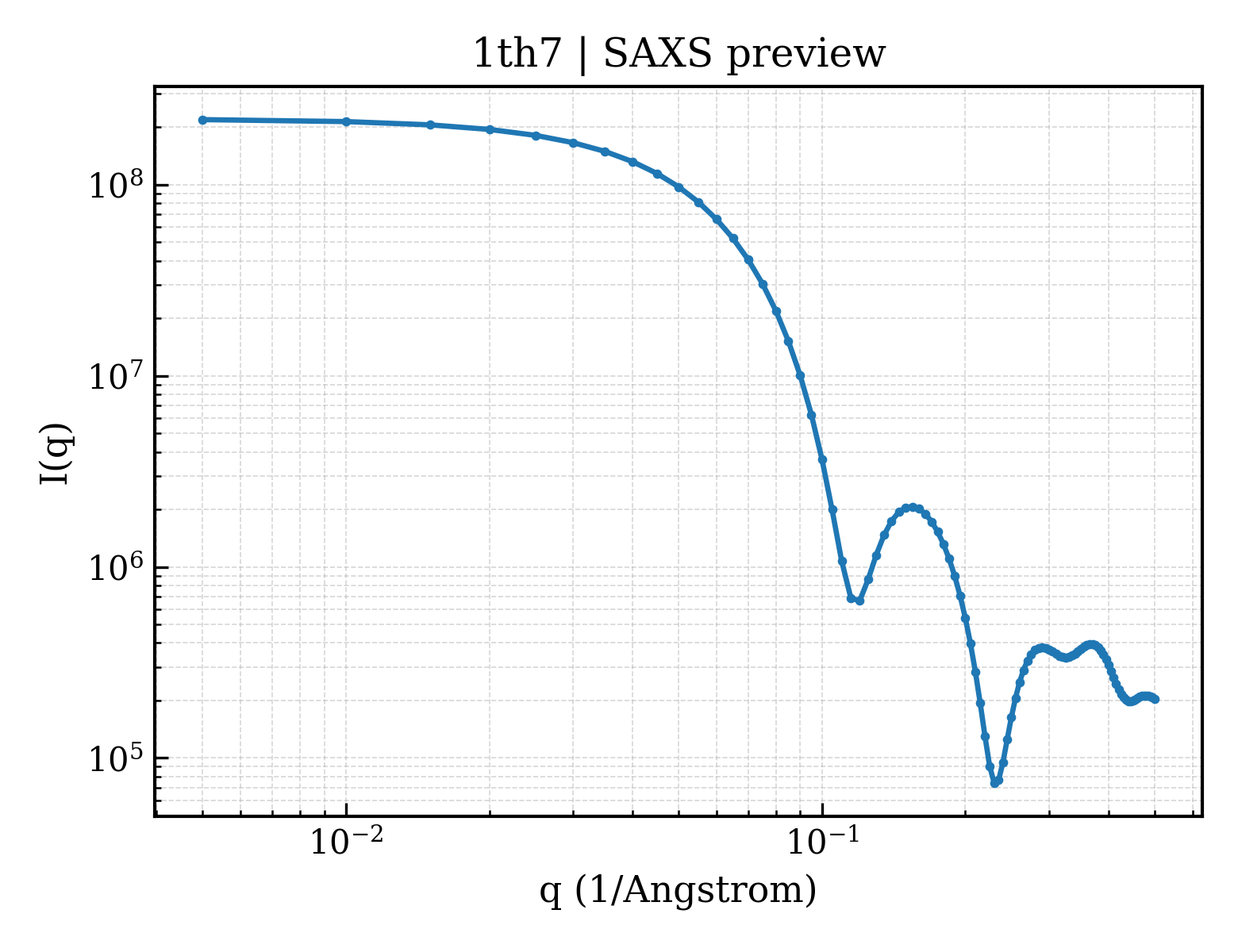

SAXS 散射曲线 SAXS Profile

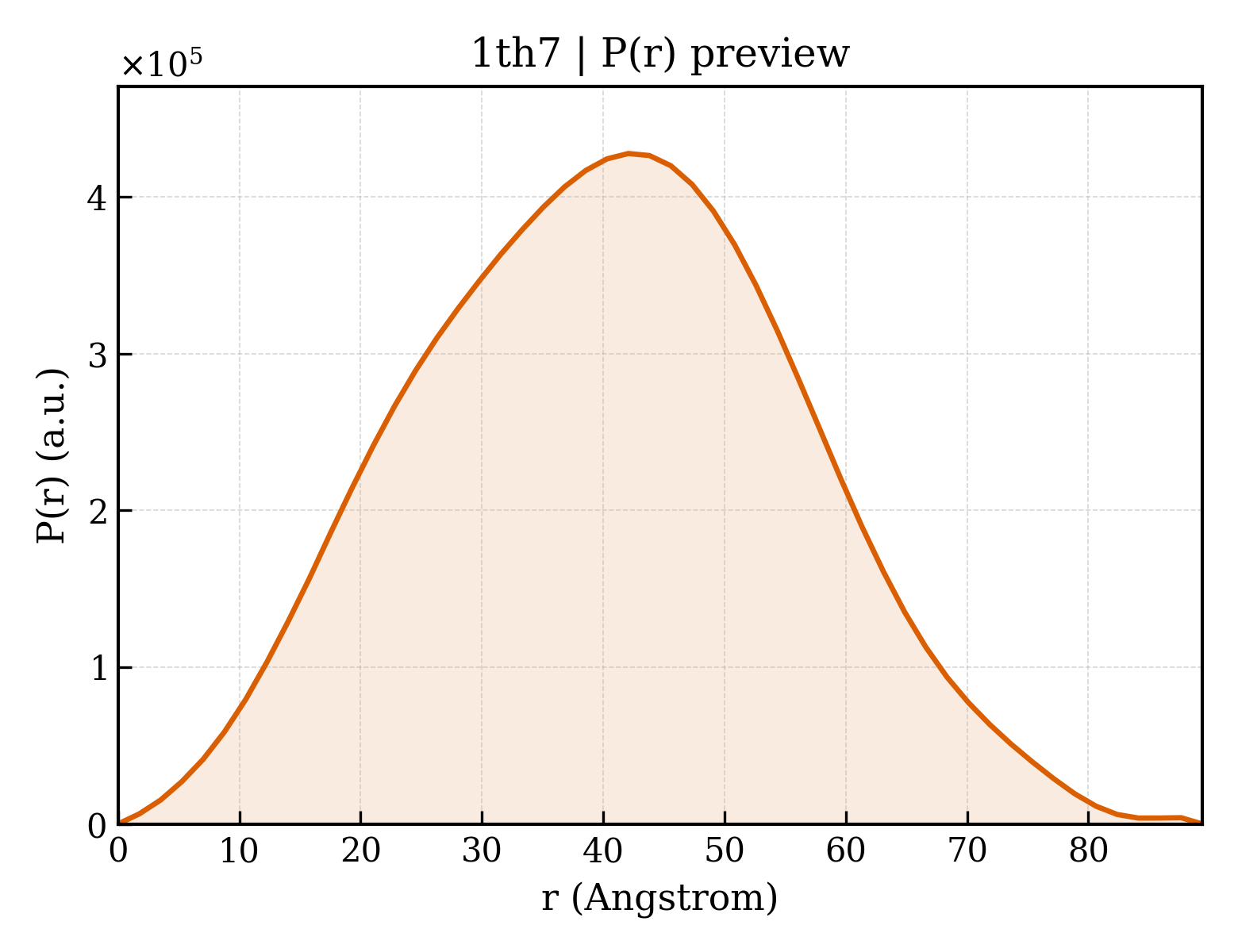

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1th7 |
| 沉积日期 deposition_date | 2004-06-01 |
| 结构标题 title | Crystal Structure of an Archaeal Sm Protein from Sulfolobus solfataricus |
| 关键词 keywords | archaea; SM protein; SM fold; SS-SM1, RNA BINDING PROTEIN; RNA BINDING PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 30.84 Å |
| 回转半径 Rg (电子) rg_electron | 29.64 Å |
| 零角强度 I(0) i0 | 221132000.00 |
| 分子量 molecular_weight | 118630.0 kDa |
| 排除体积 excluded_volume | 149400 ų |
| 包络体积 envelope_volume | 186110 ų |
| 水化壳体积 shell_volume | 49584 ų |
| 包络直径 envelope_diameter | 93.8 Å |
| 壳层 Rg shell_rg | 38.92 Å |
| 包络 Rg envelope_rg | 29.39 Å |
| 形状 Rg shape_rg | 29.62 Å |
| 总 Rg total_rg | 30.57 Å |
| 总原子数 total_atoms | 8302 |
| 残基数 n_residues | 1092 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 89.4 Å |
| Rg (实空间) rg_real | 30.58 Å |
| Rg 误差 (实空间) rg_real_error | 0.35 Å |
| I(0) (实空间) i0_real | 2.2110e+08 |
| I(0) 误差 (实空间) i0_real_error | 2.7050e+06 |
| Rg (倒空间) rg_reciprocal | 30.69 Å |
| I(0) (倒空间) i0_reciprocal | 221200000.0000 |
| 解质量估计 total_estimate | 0.8986 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 42.1 Å |
| 偏度 Skewness skewness | 0.065 |
| 峰度 Kurtosis kurtosis | -0.454 |
| 角度范围 angular_range | — – 0.2550 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 557500000.0000 |
| 实空间数据点数 n_real_points | 52 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.940; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.964; Smooth: 0.893 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 42 domains
SCOP 2.08 (28 domains)
| 结构域编号 domain_id | d1th7a1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.38 — Sm-like fold |
| 超家族 Superfamily superfamily | b.38.1 — Sm-like ribonucleoproteins |
| 家族 Family family | b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP |
| 结构域编号 domain_id | d1th7a2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1th7b2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.38 — Sm-like fold |
| 超家族 Superfamily superfamily | b.38.1 — Sm-like ribonucleoproteins |
| 家族 Family family | b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP |
| 结构域编号 domain_id | d1th7b3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1th7c2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.38 — Sm-like fold |
| 超家族 Superfamily superfamily | b.38.1 — Sm-like ribonucleoproteins |
| 家族 Family family | b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP |
| 结构域编号 domain_id | d1th7c3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1th7d2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.38 — Sm-like fold |
| 超家族 Superfamily superfamily | b.38.1 — Sm-like ribonucleoproteins |
| 家族 Family family | b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP |
| 结构域编号 domain_id | d1th7d3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1th7e2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.38 — Sm-like fold |
| 超家族 Superfamily superfamily | b.38.1 — Sm-like ribonucleoproteins |
| 家族 Family family | b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP |
| 结构域编号 domain_id | d1th7e3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1th7f2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.38 — Sm-like fold |
| 超家族 Superfamily superfamily | b.38.1 — Sm-like ribonucleoproteins |
| 家族 Family family | b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP |
| 结构域编号 domain_id | d1th7f3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1th7g2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.38 — Sm-like fold |
| 超家族 Superfamily superfamily | b.38.1 — Sm-like ribonucleoproteins |
| 家族 Family family | b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP |
| 结构域编号 domain_id | d1th7g3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1th7h2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.38 — Sm-like fold |
| 超家族 Superfamily superfamily | b.38.1 — Sm-like ribonucleoproteins |
| 家族 Family family | b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP |
| 结构域编号 domain_id | d1th7h3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1th7i2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.38 — Sm-like fold |
| 超家族 Superfamily superfamily | b.38.1 — Sm-like ribonucleoproteins |
| 家族 Family family | b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP |
| 结构域编号 domain_id | d1th7i3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1th7j2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.38 — Sm-like fold |
| 超家族 Superfamily superfamily | b.38.1 — Sm-like ribonucleoproteins |
| 家族 Family family | b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP |
| 结构域编号 domain_id | d1th7j3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1th7k2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.38 — Sm-like fold |
| 超家族 Superfamily superfamily | b.38.1 — Sm-like ribonucleoproteins |
| 家族 Family family | b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP |
| 结构域编号 domain_id | d1th7k3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1th7l2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.38 — Sm-like fold |
| 超家族 Superfamily superfamily | b.38.1 — Sm-like ribonucleoproteins |
| 家族 Family family | b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP |
| 结构域编号 domain_id | d1th7l3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1th7m2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.38 — Sm-like fold |
| 超家族 Superfamily superfamily | b.38.1 — Sm-like ribonucleoproteins |
| 家族 Family family | b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP |
| 结构域编号 domain_id | d1th7m3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1th7n2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.38 — Sm-like fold |
| 超家族 Superfamily superfamily | b.38.1 — Sm-like ribonucleoproteins |
| 家族 Family family | b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP |
| 结构域编号 domain_id | d1th7n3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
CATH v4.4 (14 domains)
| 结构域编号 domain_id | 1th7A00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 30 — SH3 type barrels. |
| 同源超家族 H-superfamily homologous superfamily | 100 — |
| 结构域编号 domain_id | 1th7B00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 30 — SH3 type barrels. |
| 同源超家族 H-superfamily homologous superfamily | 100 — |
| 结构域编号 domain_id | 1th7C00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 30 — SH3 type barrels. |
| 同源超家族 H-superfamily homologous superfamily | 100 — |
| 结构域编号 domain_id | 1th7D00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 30 — SH3 type barrels. |
| 同源超家族 H-superfamily homologous superfamily | 100 — |
| 结构域编号 domain_id | 1th7E00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 30 — SH3 type barrels. |
| 同源超家族 H-superfamily homologous superfamily | 100 — |
| 结构域编号 domain_id | 1th7F00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 30 — SH3 type barrels. |
| 同源超家族 H-superfamily homologous superfamily | 100 — |
| 结构域编号 domain_id | 1th7G00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 30 — SH3 type barrels. |
| 同源超家族 H-superfamily homologous superfamily | 100 — |
| 结构域编号 domain_id | 1th7H00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 30 — SH3 type barrels. |
| 同源超家族 H-superfamily homologous superfamily | 100 — |
| 结构域编号 domain_id | 1th7I00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 30 — SH3 type barrels. |
| 同源超家族 H-superfamily homologous superfamily | 100 — |
| 结构域编号 domain_id | 1th7J00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 30 — SH3 type barrels. |
| 同源超家族 H-superfamily homologous superfamily | 100 — |
| 结构域编号 domain_id | 1th7K00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 30 — SH3 type barrels. |
| 同源超家族 H-superfamily homologous superfamily | 100 — |
| 结构域编号 domain_id | 1th7L00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 30 — SH3 type barrels. |
| 同源超家族 H-superfamily homologous superfamily | 100 — |
| 结构域编号 domain_id | 1th7M00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 30 — SH3 type barrels. |
| 同源超家族 H-superfamily homologous superfamily | 100 — |
| 结构域编号 domain_id | 1th7N00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 30 — SH3 type barrels. |
| 同源超家族 H-superfamily homologous superfamily | 100 — |
