SAXSdb — 1thq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CrcA protein

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ACETATE ION × 5 LAURYL DIMETHYLAMINE-N-OXIDE × 5 (4S)-2-METHYL-2,4-PENTANEDIOL × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CRCA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–162； UniProt 26–186

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1thq
Deposition date deposition_date	2004-06-01
Structure title title	Crystal Structure of Outer Membrane Enzyme PagP
Keywords keywords	palmitoyltransferase, beta-barrel, outer membrane enzyme, pagp, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1thq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1thq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

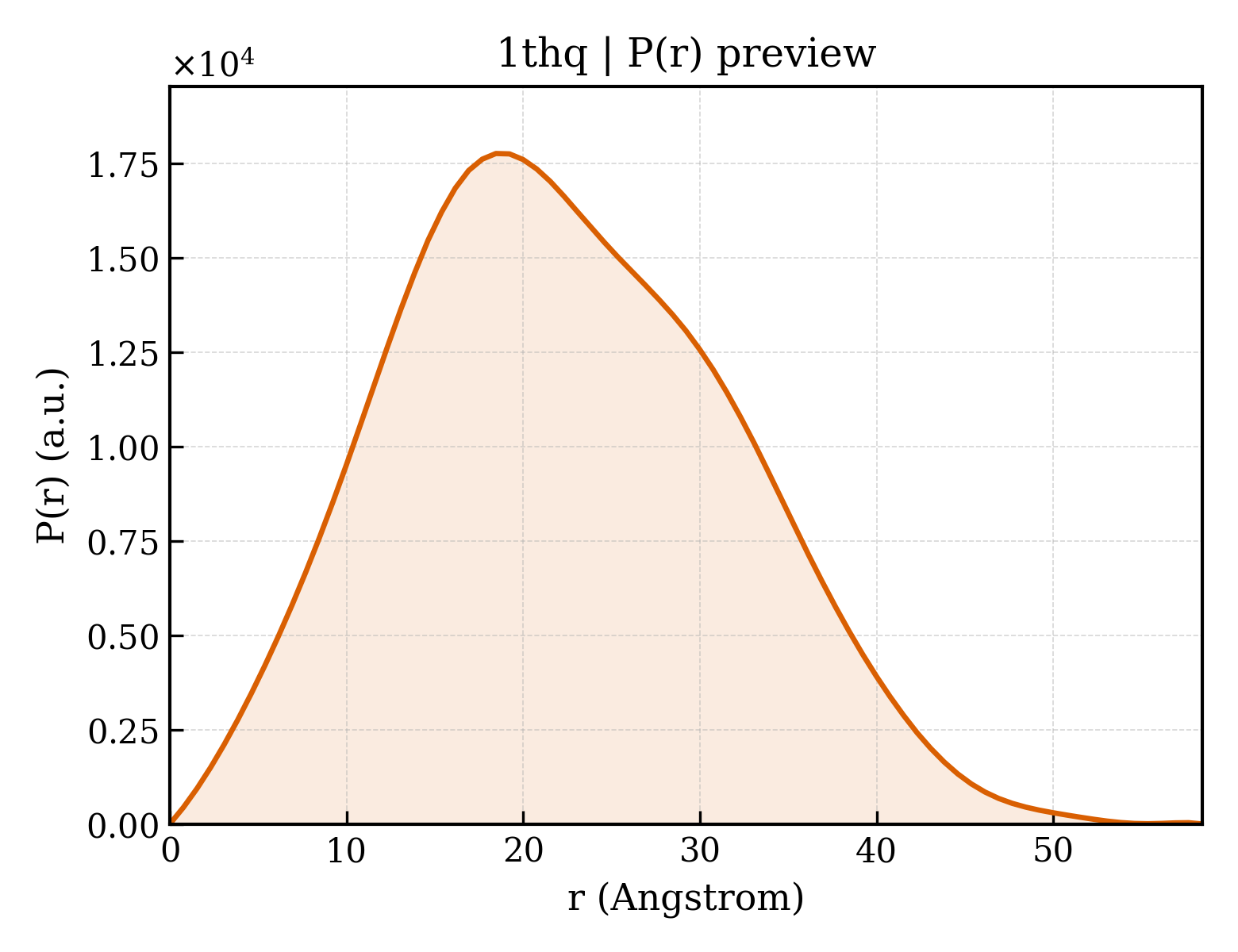

1thq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.19 Å
Rg (electron density)	15.98 Å
Total Rg	17.24 Å
Atom count	1326
Residues	147
Excluded volume	23965 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1thq__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	CrcA protein
Molecular weight formula_weight	20198.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1364

MNADEWMTTFRENIAQTWQQPEHYDLYIPAITWHARFAYDKEKTDRYNERPWGGGFGLSRWDEKGNWHGLYAMAFKDSWNKWEPIAGYGWESTWRPLADENFHLGLGFTAGVTARDNWNYIPLPVLLPLASVGYGPVTFQMTYIPGTYNNGNVYFAWMRFQFLEHHHHHH

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	LAURYL DIMETHYLAMINE-N-OXIDE
Molecular weight formula_weight	229.4 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 non-polymer

Description description	(4S)-2-METHYL-2,4-PENTANEDIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	38

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1thqa1
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.4 — Transmembrane beta-barrels
Superfamily Superfamily superfamily	f.4.1 — OMPA-like
Family Family family	f.4.1.2 — Outer membrane enzyme PagP

Domain ID domain_id	d1thqa2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	1thqA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	160 — Porin
Homologous superfamily homologous superfamily	20 —

▶

Unit-cell length a length_a	50.670 Å
Unit-cell length b length_b	50.670 Å
Unit-cell length c length_c	158.480 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 2 2
Space-group number int_tables_number	91
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	18.290 Å
R factor r_factor	0.2184
R_work r_work	0.2165
R_free r_free	0.2555
