SAXSdb — 1tk6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Iron-rich dpsA-homolog protein

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 12	SULFATE ION × 6 FE (III) ION × 18 MAGNESIUM ION × 12 SODIUM ION × 6 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DPSA_HALN1
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–182； UniProt 1–182 Author chain B； PDBConstruct 1–182； UniProt 1–182 Author chain C； PDBConstruct 1–182； UniProt 1–182 Author chain D； PDBConstruct 1–182； UniProt 1–182

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1tk6
Deposition date deposition_date	2004-06-08
Structure title title	Iron-oxo clusters biomineralizing on protein surfaces. Structural analysis of H.salinarum DpsA in its low and high iron states
Keywords keywords	DpsA, ferritin, low-iron, METAL BINDING PROTEIN; METAL BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1tk6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1tk6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

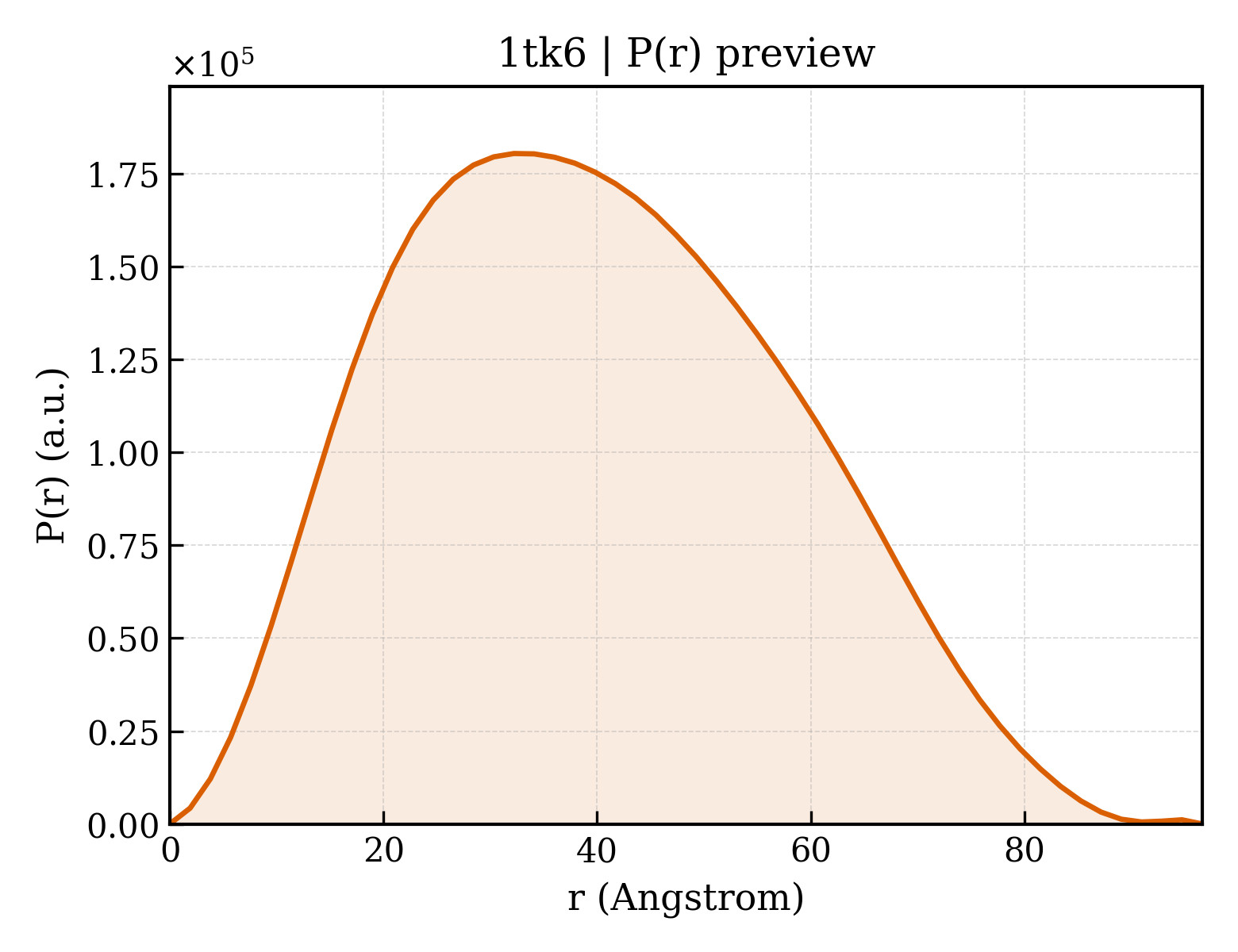

1tk6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.45 Å
Rg (electron density)	36.19 Å
Total Rg	36.76 Å
Atom count	16439
Residues	2115
Excluded volume	284440 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1tk6__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Iron-rich dpsA-homolog protein
Molecular weight formula_weight	20121.8 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	5751

MSTQKNARATAGEVEGSDALRMDADRAEQCVDALNADLANVYVLYHQLKKHHWNVEGAEFRDLHLFLGEAAETAEEVADELAERVQALGGVPHASPETLQAEASVDVEDEDVYDIRTSLANDMAIYGDIIEATREHTELAENLGDHATAHMLREGLIELEDDAHHIEHYLEDDTLVTQGALE

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	FE (III) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	270

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1tk6a_
Class class	a — All alpha proteins
Fold Fold fold	a.25 — Ferritin-like
Superfamily Superfamily superfamily	a.25.1 — Ferritin-like
Family Family family	a.25.1.1 — Ferritin

Domain ID domain_id	d1tk6b_
Class class	a — All alpha proteins
Fold Fold fold	a.25 — Ferritin-like
Superfamily Superfamily superfamily	a.25.1 — Ferritin-like
Family Family family	a.25.1.1 — Ferritin

Domain ID domain_id	d1tk6c_
Class class	a — All alpha proteins
Fold Fold fold	a.25 — Ferritin-like
Superfamily Superfamily superfamily	a.25.1 — Ferritin-like
Family Family family	a.25.1.1 — Ferritin

Domain ID domain_id	d1tk6d_
Class class	a — All alpha proteins
Fold Fold fold	a.25 — Ferritin-like
Superfamily Superfamily superfamily	a.25.1 — Ferritin-like
Family Family family	a.25.1.1 — Ferritin

CATH v4.4 (4 domains)

Domain ID domain_id	1tk6A00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	10 — Ferritin, core subunit, four-helix bundle

Domain ID domain_id	1tk6B00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	10 — Ferritin, core subunit, four-helix bundle

Domain ID domain_id	1tk6C00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	10 — Ferritin, core subunit, four-helix bundle

Domain ID domain_id	1tk6D00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	10 — Ferritin, core subunit, four-helix bundle

▶

Unit-cell length a length_a	91.110 Å
Unit-cell length b length_b	91.110 Å
Unit-cell length c length_c	150.040 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 3 2 1
Space-group number int_tables_number	150
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	158.110 Å
R factor r_factor	0.1765
R_work r_work	0.1721
R_free r_free	0.2354

Iron-oxo clusters biomineralizing on protein surfaces. Structural analysis of H.salinarum DpsA in its low and high iron states
