Rattus norvegicus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein homooligomer | Homooligomer | Protein 4 | FE (III) ION × 4 water × 4 | Consistent with protein count |
| UniProt name | TY3H_RAT |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–343； UniProt 156–498 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1toh |
| Deposition date deposition_date | 1997-06-04 |
| Structure title title | TYROSINE HYDROXYLASE CATALYTIC AND TETRAMERIZATION DOMAINS FROM RAT |
| Keywords keywords | HYDROXYLASE, NEUROTRANSMITTER BIOSYNTHESIS, NON-HEME IRON, PTERIN CO-SUBSTRATE; HYDROXYLASE |
| Experimental Method method | X-RAY DIFFRACTION |

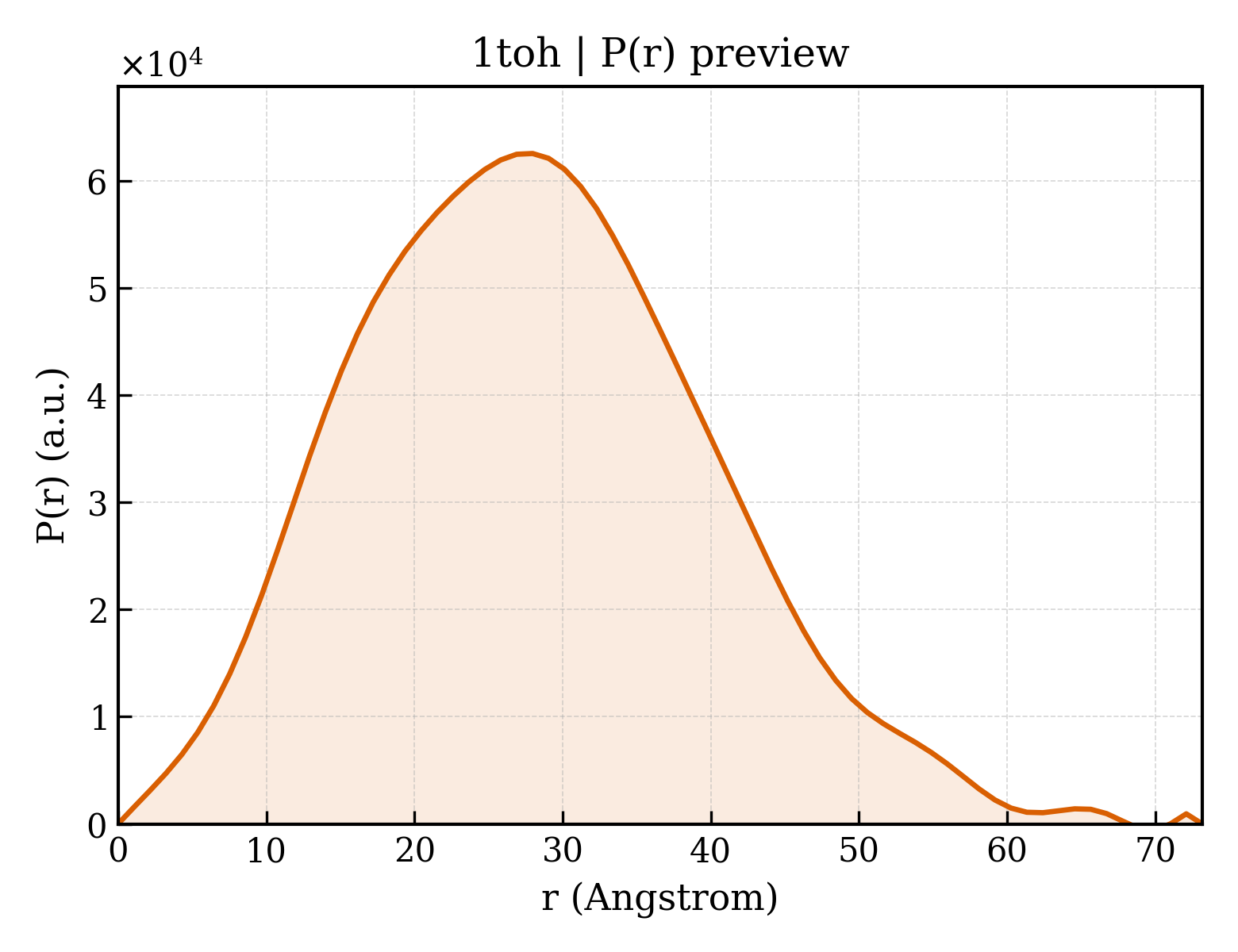

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 36.58 Å |
| Rg (electron density) | 36.11 Å |
| Total Rg | 36.50 Å |
| Atom count | 10492 |
| Residues | 1300 |
| Excluded volume | 185560 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1toha_ |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.178 — Aromatic aminoacid monoxygenases, catalytic and oligomerization domains |
| Superfamily Superfamily superfamily | d.178.1 — Aromatic aminoacid monoxygenases, catalytic and oligomerization domains |
| Family Family family | d.178.1.1 — Aromatic aminoacid monoxygenases, catalytic and oligomerization domains |
| Domain ID domain_id | 1tohA00 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 10 — Orthogonal Bundle |
| Topology topology | 800 — Phenylalanine Hydroxylase |
| Homologous superfamily homologous superfamily | 10 — Aromatic amino acid hydroxylase |
