1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1tp7
沉积日期 deposition_date	2004-06-15
结构标题 title	Crystal Structure of the RNA-dependent RNA Polymerase from Human Rhinovirus 16
关键词 keywords	Rhinovirus, RNA, polymerase, 3D, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	48.59 Å
回转半径 Rg (电子) rg_electron	48.74 Å
零角强度 I(0) i0	619041000.00
分子量 molecular_weight	211650.0 kDa
排除体积 excluded_volume	266510 Å³
包络体积 envelope_volume	377800 Å³
水化壳体积 shell_volume	66597 Å³
包络直径 envelope_diameter	174.9 Å
壳层 Rg shell_rg	50.23 Å
包络 Rg envelope_rg	47.51 Å
形状 Rg shape_rg	48.76 Å
总 Rg total_rg	48.77 Å
总原子数 total_atoms	14781
残基数 n_residues	1800
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	165.8 Å
Rg (实空间) rg_real	48.76 Å
Rg 误差 (实空间) rg_real_error	1.90 Å
I(0) (实空间) i0_real	6.1900e+08
I(0) 误差 (实空间) i0_real_error	1.3200e+07
Rg (倒空间) rg_reciprocal	48.59 Å
I(0) (倒空间) i0_reciprocal	618900000.0000
解质量估计 total_estimate	0.8443
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	67.3 Å
偏度 Skewness skewness	0.372
峰度 Kurtosis kurtosis	-0.306
角度范围 angular_range	— – 0.1600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	105600000.0000
实空间数据点数 n_real_points	33
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.831; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.512

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Genome polyprotein
分子量 formula_weight	52813.0 kDa
EC 编号 ec_number	2.7.7.48
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	15051

GQIQISKHVKDVGLPSIHTPTKTKLQPSVFYDIFPGSKEPAVLTEKDPRLKVDFDSALFSKYKGNTECSLNEHIQVAVAHYSAQLATLDIDPQPIAMEDSVFGMDGLEALDLNTSAGYPYVTLGIKKKDLINNKTKDISKLKLALDKYDVDLPMITFLKDELRKKDKIAAGKTRVIEASSINDTILFRTVYGNLFSKFHLNPGVVTGCAVGCDPETFWSKIPLMLDGDCIMAFDYTNYDGSIHPIWFKALGMVLDNLSFNPTLINRLCNSKHIFKSTYYEVEGGVPSGCSGTSIFNSMINNIIIRTLVLDAYKHIDLDKLKIIAYGDDVIFSYKYKLDMEAIAKEGQKYGLTITPADKSSEFKELDYGNVTFLKRGFRQDDKYKFLIHPTFPVEEIYESIRWTKKPSQMQEHVLSLCHLMWHNGPEIYKDFETKIRSVSAGRALYIPPYELLRHEWYEKF

来源 Source

来源生物 organism	Human rhinovirus 16
NCBI 分类编号 ncbi_taxonomy_id	31708
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	3-[BENZYL(DIMETHYL)AMMONIO]PROPANE-1-SULFONATE
分子量 formula_weight	257.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	270

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1tp7a_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.4 — RNA-dependent RNA-polymerase

结构域编号 domain_id	d1tp7b_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.4 — RNA-dependent RNA-polymerase

结构域编号 domain_id	d1tp7c_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.4 — RNA-dependent RNA-polymerase

结构域编号 domain_id	d1tp7d_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.4 — RNA-dependent RNA-polymerase

CATH v4.4 (8 domains)

结构域编号 domain_id	1tp7A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

结构域编号 domain_id	1tp7A03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	960 — Mitochondrial Import Receptor Subunit Tom20; Chain A
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	1tp7B02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

结构域编号 domain_id	1tp7B03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	960 — Mitochondrial Import Receptor Subunit Tom20; Chain A
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	1tp7C02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

结构域编号 domain_id	1tp7C03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	960 — Mitochondrial Import Receptor Subunit Tom20; Chain A
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	1tp7D02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

结构域编号 domain_id	1tp7D03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	960 — Mitochondrial Import Receptor Subunit Tom20; Chain A
同源超家族 H-superfamily homologous superfamily	20 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	59.428 Å
晶胞边长 b length_b	118.890 Å
晶胞边长 c length_c	183.107 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	96.06 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	0.2430
R_work r_work	0.2430
R_free r_free	0.2920

fit	/app/data/saxs_computation/tp/1tp7/1tp7.fit
pddf	/app/data/pr_computation/tp/1tp7/1tp7.pr.out
profile	/app/data/saxs_computation/tp/1tp7/1tp7.dat

Crystal Structure of the RNA-dependent RNA Polymerase from Human Rhinovirus 16

SAXS 散射曲线 SAXS Profile

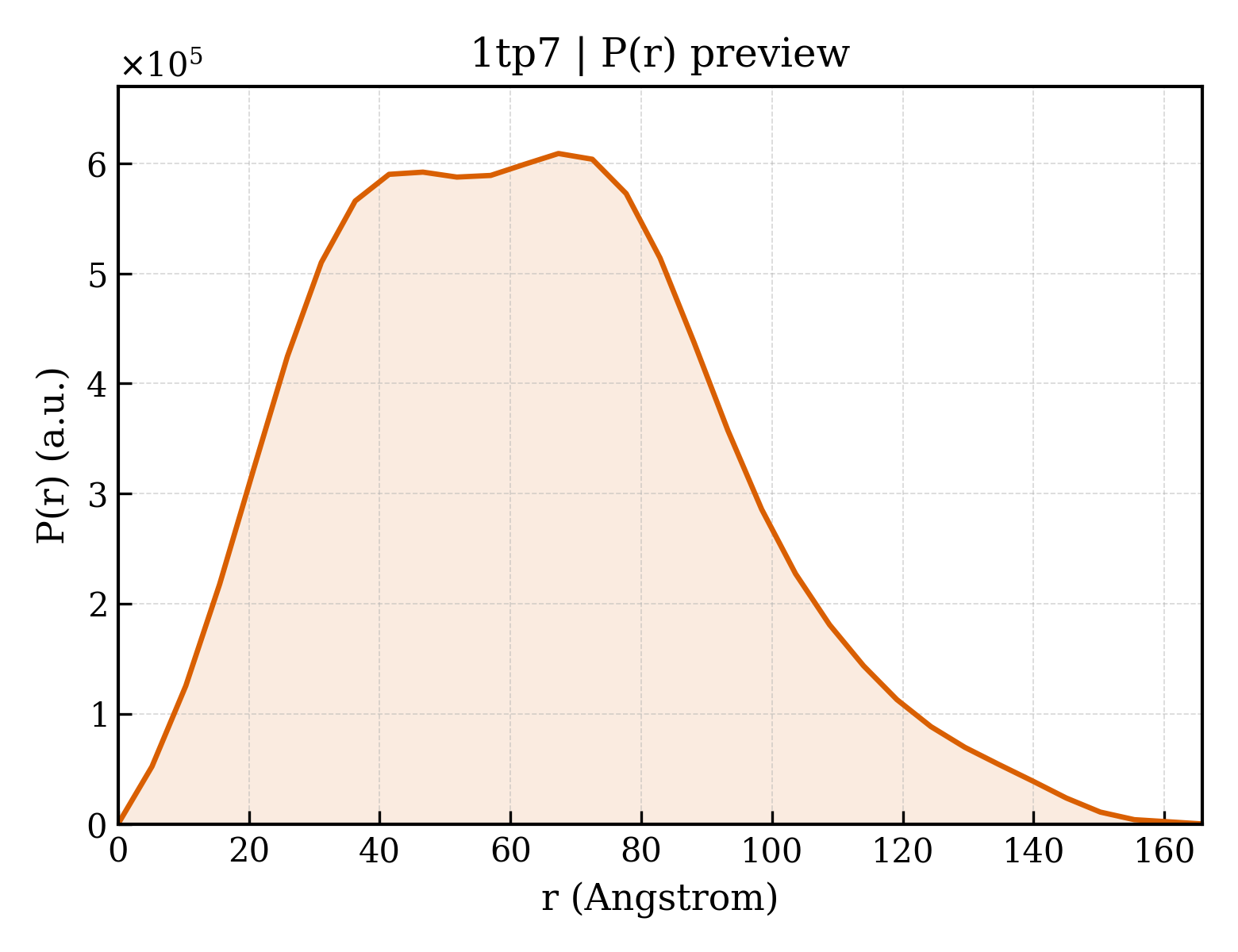

P(r) 距离分布 P(r) Distribution
