Actinia equina
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | EQT2_ACTEQ |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–175； UniProt 40–214 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1tzq |
| Deposition date deposition_date | 2004-07-11 |
| Structure title title | Crystal structure of the equinatoxin II 8-69 double cysteine mutant |
| Keywords keywords | beta-sandwich, TOXIN; TOXIN |
| Experimental Method method | X-RAY DIFFRACTION |

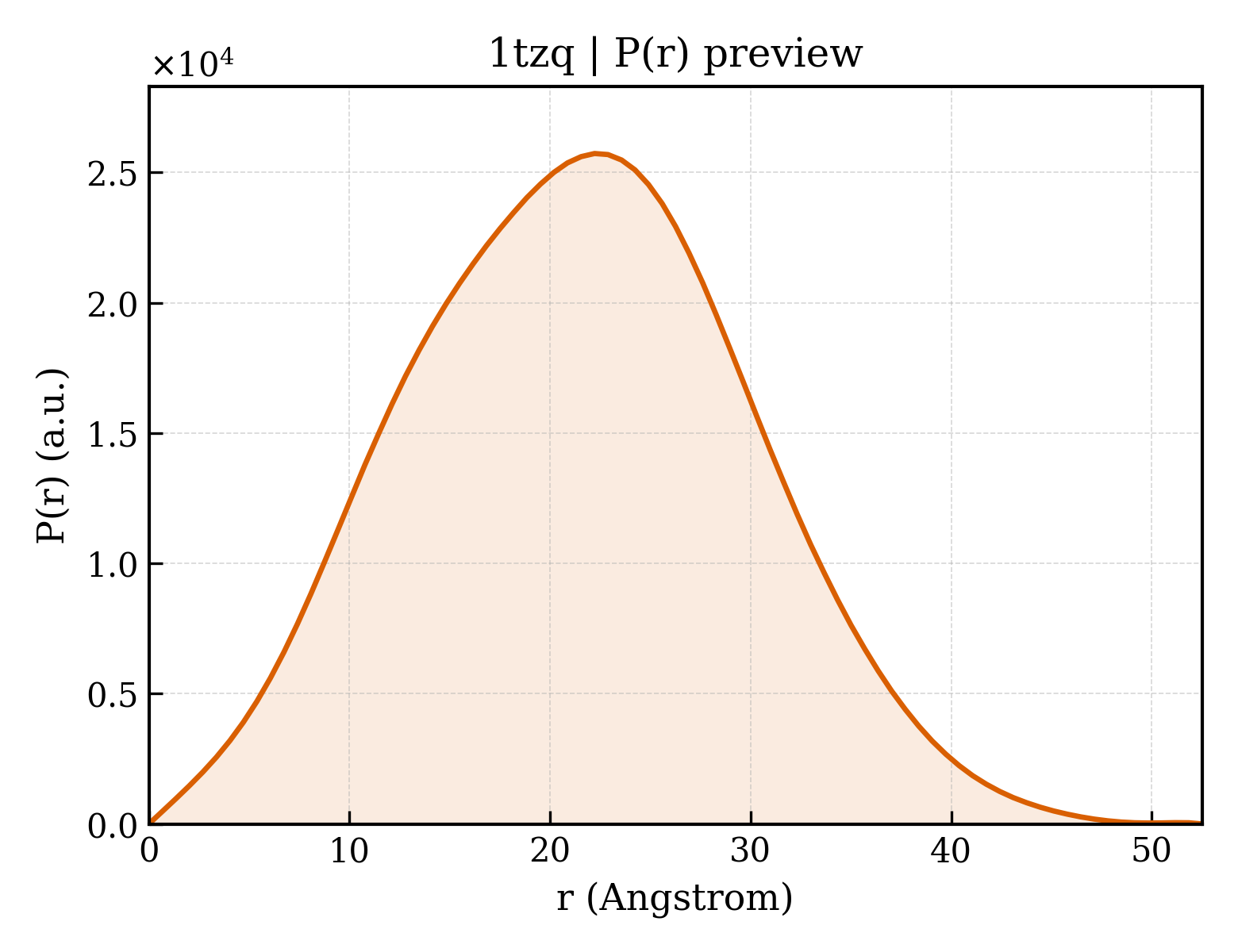

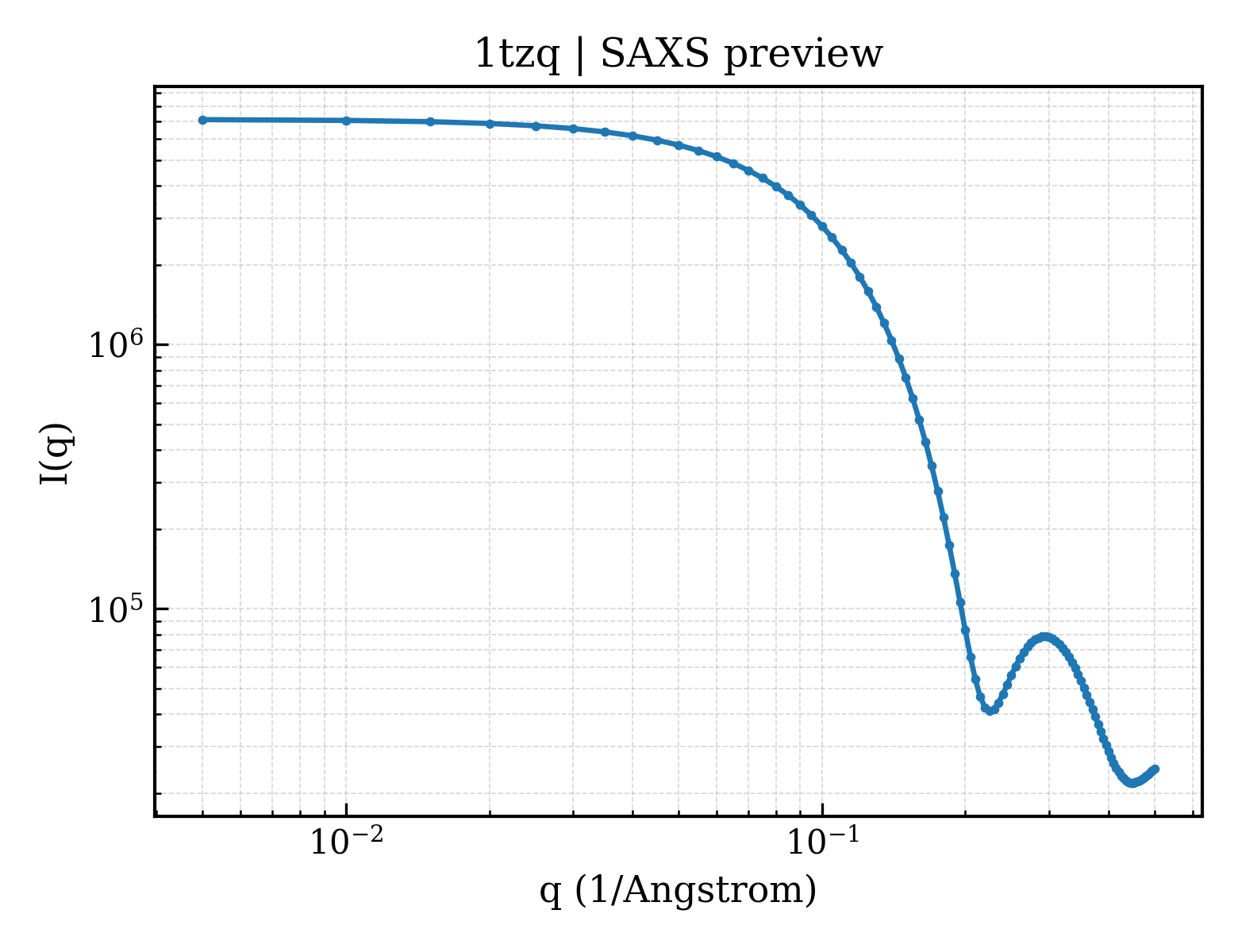

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 16.43 Å |
| Rg (electron density) | 15.06 Å |
| Total Rg | 16.24 Å |
| Atom count | 1373 |
| Residues | 175 |
| Excluded volume | 24311 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1tzqa_ |
| Class class | b — All beta proteins |
| Fold Fold fold | b.97 — Cytolysin/lectin |
| Superfamily Superfamily superfamily | b.97.1 — Cytolysin/lectin |
| Family Family family | b.97.1.1 — Anemone pore-forming cytolysin |
| Domain ID domain_id | 1tzqA00 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 60 — Sandwich |
| Topology topology | 270 — Mutm (Fpg) Protein; Chain: A, domain 2 |
| Homologous superfamily homologous superfamily | 20 — Cytolysin/lectin |
