SAXSdb — 1u02

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

trehalose-6-phosphate phosphatase related protein

Thermoplasma acidophilum

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	MAGNESIUM ION × 1 SODIUM ION × 2 GLYCEROL × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9HIW7_THEAC
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–231； UniProt 2–229

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1u02
Deposition date deposition_date	2004-07-12
Structure title title	Crystal structure of trehalose-6-phosphate phosphatase related protein
Keywords keywords	Structural genomics, Phosphatase, PSI, Protein Structure Initiative, New York SGX Research Center for Structural Genomics, NYSGXRC; STRUCTURAL GENOMICS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1u02__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1u02__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

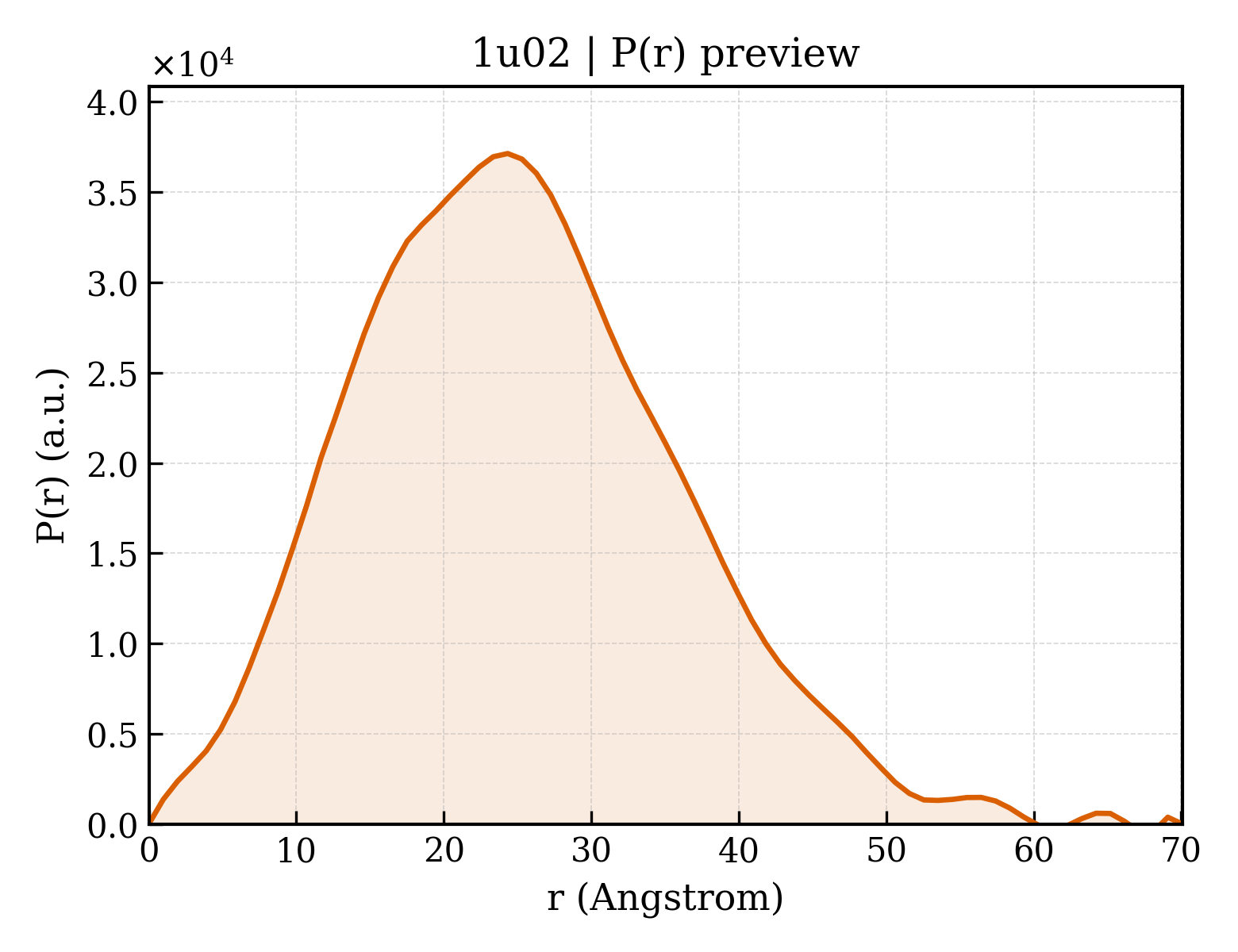

1u02__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.20 Å
Rg (electron density)	18.26 Å
Total Rg	19.26 Å
Atom count	1832
Residues	222
Excluded volume	32999 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1u02__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	trehalose-6-phosphate phosphatase related protein
Molecular weight formula_weight	27519.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2005

MSLIFLDYDGTLVPIIMNPEESYADAGLLSLISDLKERFDTYIVTGRSPEEISRFLPLDINMICYHGACSKINGQIVYNNGSDRFLGVFDRIYEDTRSWVSDFPGLRIYRKNLAVLYHLGLMGADMKPKLRSRIEEIARIFGVETYYGKMIIELRVPGVNKGSAIRSVRGERPAIIAGDDATDEAAFEANDDALTIKVGEGETHAKFHVADYIEMRKILKFIEMLGVQKKQEGHHHHHH

Source Source

Source organism organism	Thermoplasma acidophilum
NCBI taxonomy ID ncbi_taxonomy_id	2303
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	173

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1u02a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.108 — HAD-like
Superfamily Superfamily superfamily	c.108.1 — HAD-like
Family Family family	c.108.1.15 — Trehalose-phosphatase

Domain ID domain_id	d1u02a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	1u02A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1000 — HAD superfamily/HAD-like

Domain ID domain_id	1u02A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1020 — Trehalose-6-phosphate phosphatase related protein; domain 2

▶

Unit-cell length a length_a	117.995 Å
Unit-cell length b length_b	45.056 Å
Unit-cell length c length_c	53.391 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.65 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.920 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	—
R_work r_work	0.1968
R_free r_free	0.2161
