SAXSdb — 1u0e

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glucose-6-phosphate isomerase

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 10 BETA-MERCAPTOETHANOL × 5 GLYCEROL × 7 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	G6PI_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–558； UniProt 0–557 Author chain B； PDBConstruct 1–558； UniProt 0–557

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1u0e
Deposition date deposition_date	2004-07-13
Structure title title	Crystal structure of mouse phosphoglucose isomerase
Keywords keywords	aldose-ketose isomerase, dimer, ISOMERASE; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1u0e__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

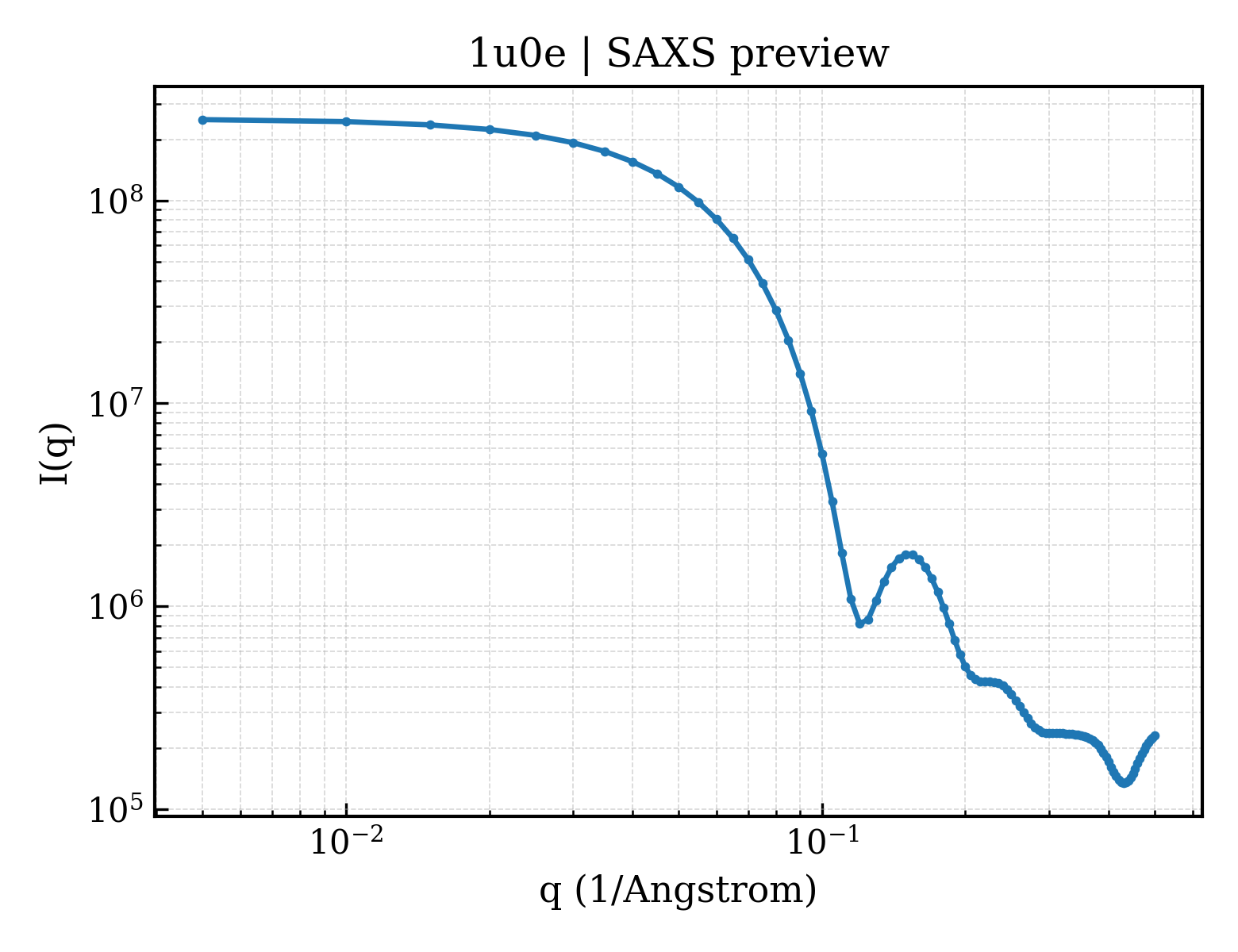

1u0e__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

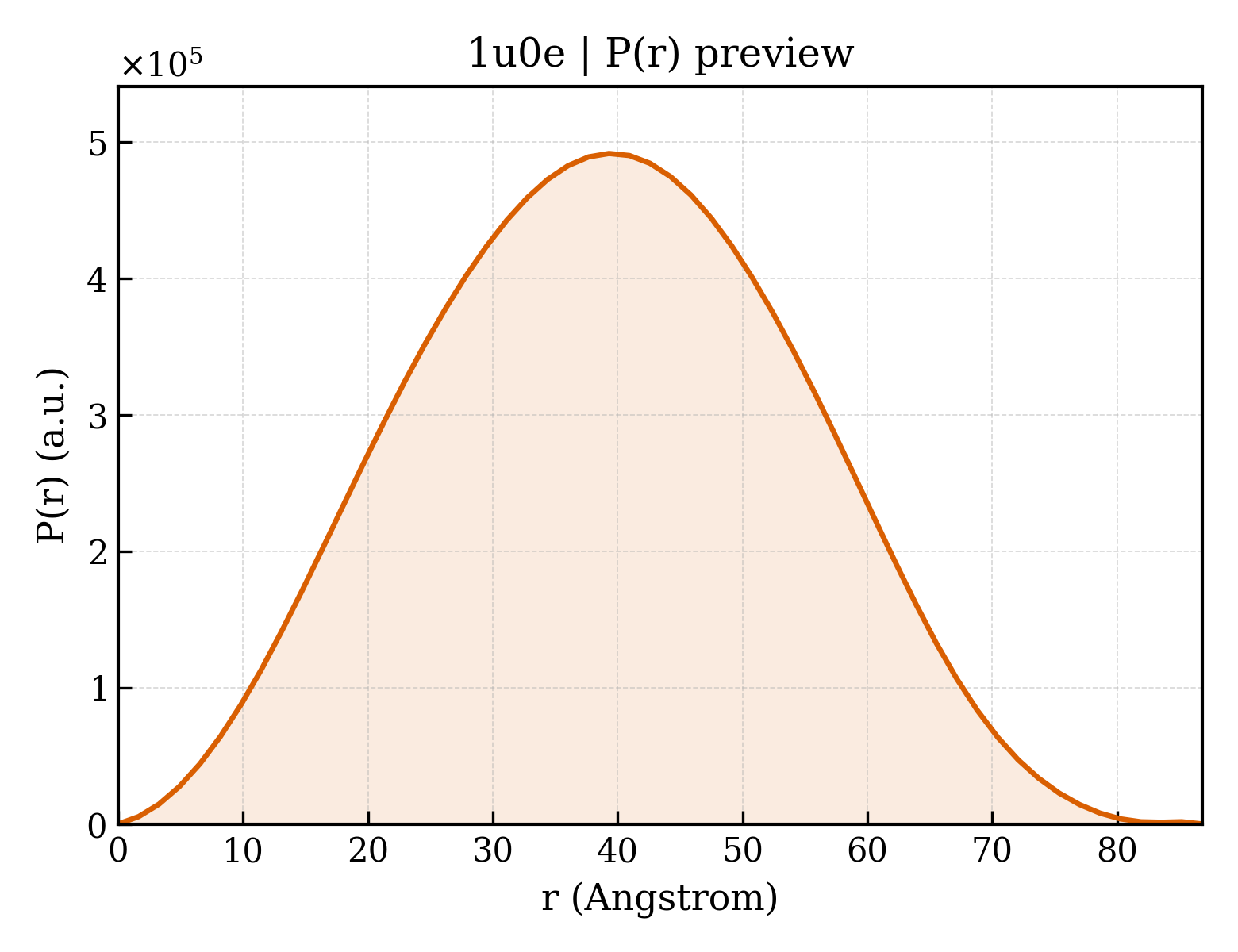

1u0e__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.95 Å
Rg (electron density)	28.57 Å
Total Rg	29.55 Å
Atom count	8926
Residues	1112
Excluded volume	159110 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1u0e__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Glucose-6-phosphate isomerase
Molecular weight formula_weight	63644.6 kDa
EC 编号 ec_number	5.3.1.9
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	9970

MAALTRNPQFQKLLEWHRANSANLKLRELFEADPERFNNFSLNLNTNHGHILVDYSKNLVNKEVMQMLVELAKSRGVEAARDNMFSGSKINYTEDRAVLHVALRNRSNTPIKVDGKDVMPEVNRVLDKMKSFCQRVRSGDWKGYTGKSITDIINIGIGGSDLGPLMVTEALKPYSKGGPRVWFVSNIDGTHIAKTLASLSPETSLFIIASKTFTTQETITNAETAKEWFLEAAKDPSAVAKHFVALSTNTAKVKEFGIDPQNMLEFWDWVGGRYSLWSAIGLSIALHVGFDHFEQLLSGAHWMDQHFLKTPLEKNAPVLLALLGIWYINCYGCETHALLPYDQYMHRFAAYFQQGDMESNGKYITKSGARVDHQTGPIVWGEPGTNGQHAFYQLIHQGTKMIPCDFLIPVQTQHPIRKGLHHKILLANFLAQTEALMKGKLPEEARKELQAAGKSPEDLEKLLPHKVFEGNRPTNSIVFTKLTPFILGALIAMYEHKIFVQGIMWDINSFDQWGVELGKQLAKKIEPELEGSSAVTSHDSSTNGLISFIKQQRDTKLEHHHHHH

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	10

Entity 3 Entity 3 non-polymer

Description description	BETA-MERCAPTOETHANOL
Molecular weight formula_weight	78.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1017

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1u0ea1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.80 — SIS domain
Superfamily Superfamily superfamily	c.80.1 — SIS domain
Family Family family	c.80.1.2 — Phosphoglucose isomerase, PGI

Domain ID domain_id	d1u0ea2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1u0eb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.80 — SIS domain
Superfamily Superfamily superfamily	c.80.1 — SIS domain
Family Family family	c.80.1.2 — Phosphoglucose isomerase, PGI

Domain ID domain_id	d1u0eb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (6 domains)

Domain ID domain_id	1u0eA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

Domain ID domain_id	1u0eA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

Domain ID domain_id	1u0eA03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1390 — Phosphoglucose isomerase, C-terminal domain
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1u0eB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

Domain ID domain_id	1u0eB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

Domain ID domain_id	1u0eB03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1390 — Phosphoglucose isomerase, C-terminal domain
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	69.200 Å
Unit-cell length b length_b	116.100 Å
Unit-cell length c length_c	73.100 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	101.30 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	14.960 Å
R factor r_factor	0.2130
R_work r_work	0.2110
R_free r_free	0.2460
