1. Protein Identity and Related Structures Protein Identity & Related Structures

Src-associated adaptor protein

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9Z2K4_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–211； UniProt 12–222 Author chain B； PDBConstruct 1–211； UniProt 12–222

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1u5e
Deposition date deposition_date	2004-07-27
Structure title title	Crystal Structure of a N-terminal Fragment of SKAP-Hom Containing Both the Helical Dimerization Domain and the PH Domain
Keywords keywords	Novel Dimerization Domain, PH Domain, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1u5e__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1u5e__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

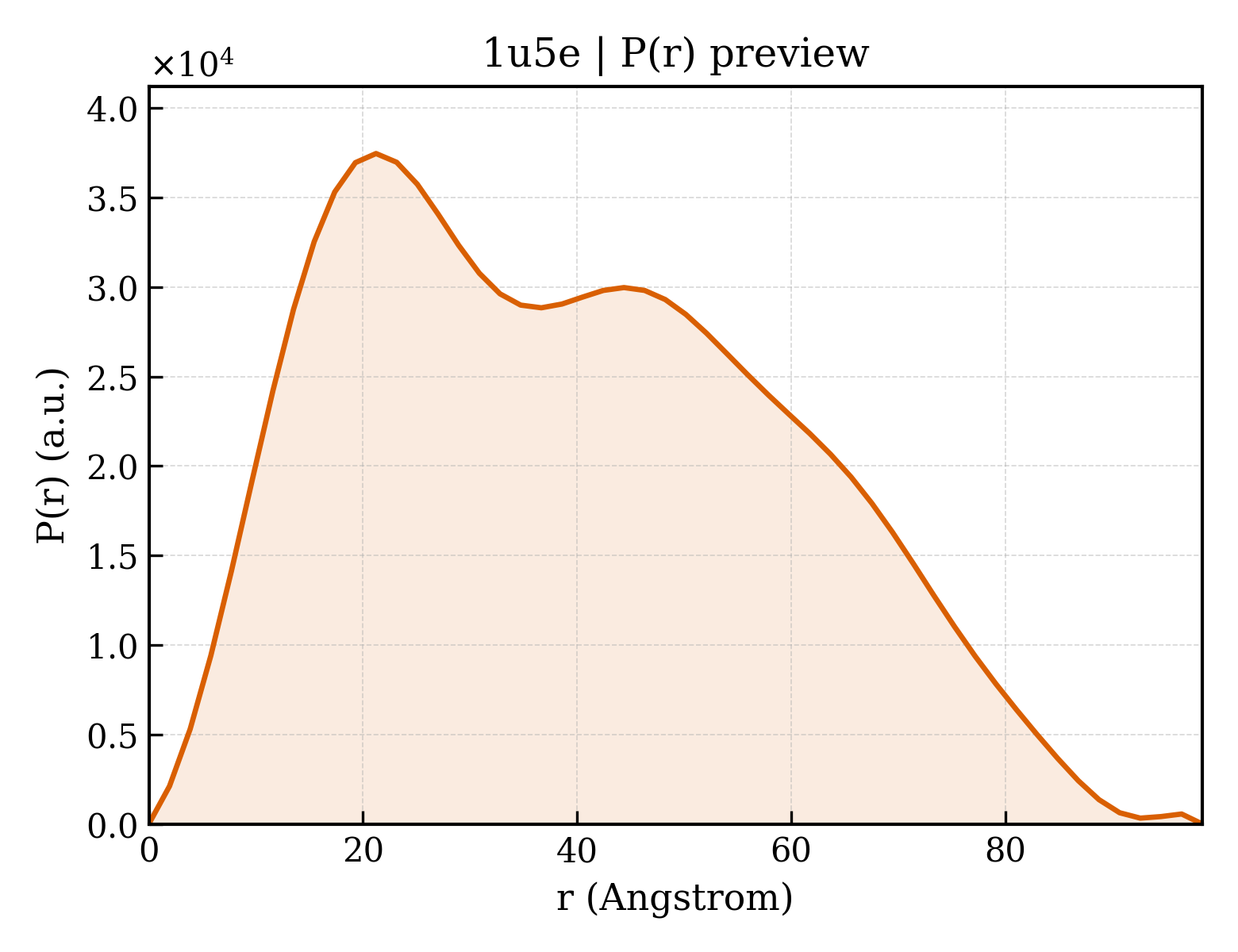

1u5e__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.96 Å
Rg (electron density)	30.37 Å
Total Rg	30.80 Å
Atom count	2784
Residues	338
Excluded volume	49875 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1u5e__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1u5ea1
Class class	b — All beta proteins
Fold Fold fold	b.55 — PH domain-like barrel
Superfamily Superfamily superfamily	b.55.1 — PH domain-like
Family Family family	b.55.1.1 — Pleckstrin-homology domain (PH domain)

Domain ID domain_id	d1u5eb_
Class class	b — All beta proteins
Fold Fold fold	b.55 — PH domain-like barrel
Superfamily Superfamily superfamily	b.55.1 — PH domain-like
Family Family family	b.55.1.1 — Pleckstrin-homology domain (PH domain)

CATH v4.4 (4 domains)

Domain ID domain_id	1u5eA01
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	220 —

Domain ID domain_id	1u5eA02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	29 — PH-domain like
Homologous superfamily homologous superfamily	30 — Pleckstrin-homology domain (PH domain)/Phosphotyrosine-binding domain (PTB)

Domain ID domain_id	1u5eB01
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	220 —

Domain ID domain_id	1u5eB02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	29 — PH-domain like
Homologous superfamily homologous superfamily	30 — Pleckstrin-homology domain (PH domain)/Phosphotyrosine-binding domain (PTB)

▶

Unit-cell length a length_a	106.205 Å
Unit-cell length b length_b	56.742 Å
Unit-cell length c length_c	89.115 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.82 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	35.000 Å
R factor r_factor	0.1810
R_work r_work	0.1790
R_free r_free	0.2160

Description description	Src-associated adaptor protein
Molecular weight formula_weight	24172.0 kDa
Mutation mutation	P12G, L13S
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2807

Crystal Structure of a N-terminal Fragment of SKAP-Hom Containing Both the Helical Dimerization Domain and the PH Domain

1. Protein Identity and Related Structures Protein Identity & Related Structures

Src-associated adaptor protein

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1u5e__assembly_1__model_1

1u5e__assembly_1__model_1 | I(q)

1u5e__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli BL21(DE3)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	23
