SAXSdb — 1udu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

;cGMP-specific 3',5'-cyclic phosphodiesterase ;

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 2 MAGNESIUM ION × 2 6-BENZO[1,3]DIOXOL-5-YL-2-METHYL-2,3,6,7,12,12A-HEXAHYDRO-PYRAZINO[1',2':1,6]PYRIDO[3,4-B]INDOLE-1,4-DIONE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PDE5A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–324； UniProt 537–860 Author chain B； PDBConstruct 1–324； UniProt 537–860

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1udu
Deposition date deposition_date	2003-05-06
Structure title title	Crystal structure of Human Phosphodiesterase 5 complexed with tadalafil(Cialis)
Keywords keywords	cGMP-specific phosphodiesterase 5, Tadalafil, selective inhibitor, hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1udu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1udu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

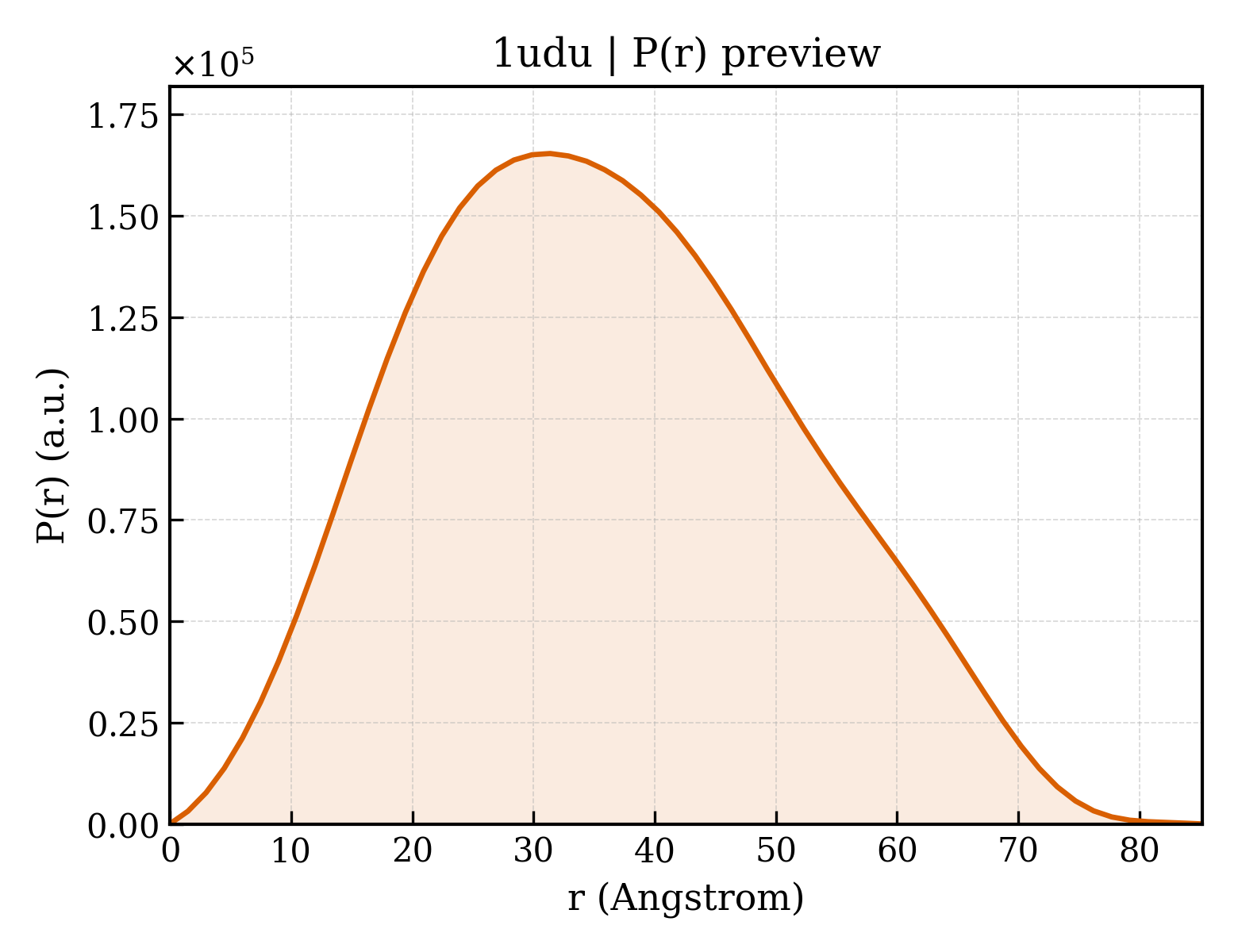

1udu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.73 Å
Rg (electron density)	26.90 Å
Total Rg	27.71 Å
Atom count	5146
Residues	626
Excluded volume	92090 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1udu__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	;cGMP-specific 3',5'-cyclic phosphodiesterase ;
Molecular weight formula_weight	37530.3 kDa
EC 编号 ec_number	3.1.4.17
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5146

TRELQSLAAAVVPSAQTLKITDFSFSDFELSDLETALCTIRMFTDLNLVQNFQMKHEVLCRWILSVKKNYRKNVAYHNWRHAFNTAQCMFAALKAGKIQNKLTDLEILALLIAALSHDLDHRGVNNSYIQRSEHPLAQLYCHSIMEHHHFDQCLMILNSPGNQILSGLSIEEYKTTLKIIKQAILATDLALYIKRRGEFFELIRKNQFNLEDPHQKELFLAMLMTACDLSAITKPWPIQQRIAELVATEFFDQGDRERKELNIEPTDLMNREKKNKIPSMQVGFIDAICLQLYEALTHVSEDCFPLLDGCRKNRQKWQALAEQQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	6-BENZO[1,3]DIOXOL-5-YL-2-METHYL-2,3,6,7,12,12A-HEXAHYDRO-PYRAZINO[1',2':1,6]PYRIDO[3,4-B]INDOLE-1,4-DIONE
Molecular weight formula_weight	389.4 kDa
Source method src_method	syn
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1udua_
Class class	a — All alpha proteins
Fold Fold fold	a.211 — HD-domain/PDEase-like
Superfamily Superfamily superfamily	a.211.1 — HD-domain/PDEase-like
Family Family family	a.211.1.2 — PDEase

Domain ID domain_id	d1udub_
Class class	a — All alpha proteins
Fold Fold fold	a.211 — HD-domain/PDEase-like
Superfamily Superfamily superfamily	a.211.1 — HD-domain/PDEase-like
Family Family family	a.211.1.2 — PDEase

CATH v4.4 (2 domains)

Domain ID domain_id	1uduA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1300 — Catalytic domain of cyclic nucleotide phosphodiesterase 4b2b
Homologous superfamily homologous superfamily	10 — 3'5'-cyclic nucleotide phosphodiesterase, catalytic domain

Domain ID domain_id	1uduB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1300 — Catalytic domain of cyclic nucleotide phosphodiesterase 4b2b
Homologous superfamily homologous superfamily	10 — 3'5'-cyclic nucleotide phosphodiesterase, catalytic domain

▶

Unit-cell length a length_a	131.352 Å
Unit-cell length b length_b	48.561 Å
Unit-cell length c length_c	123.863 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	117.28 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.830 Å
Low-resolution limit resolution_low	19.590 Å
R factor r_factor	0.2630
R_work r_work	0.2630
R_free r_free	0.3740
