SAXSdb — 1ues

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

superoxide dismutase

Porphyromonas gingivalis

UniProt P19665

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	MANGANESE (II) ION × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	MANGANESE (II) ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SODF_PORGI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–191； UniProt 1–191 Author chain B； PDBConstruct 1–191； UniProt 1–191 Author chain C； PDBConstruct 1–191； UniProt 1–191 Author chain D； PDBConstruct 1–191； UniProt 1–191

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ues
Deposition date deposition_date	2003-05-20
Structure title title	Crystal structure of Porphyromonas gingivalis SOD
Keywords keywords	metal-specific, cambialistic, superoxide dismutase, SOD, oxidoreductase; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ues__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ues__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

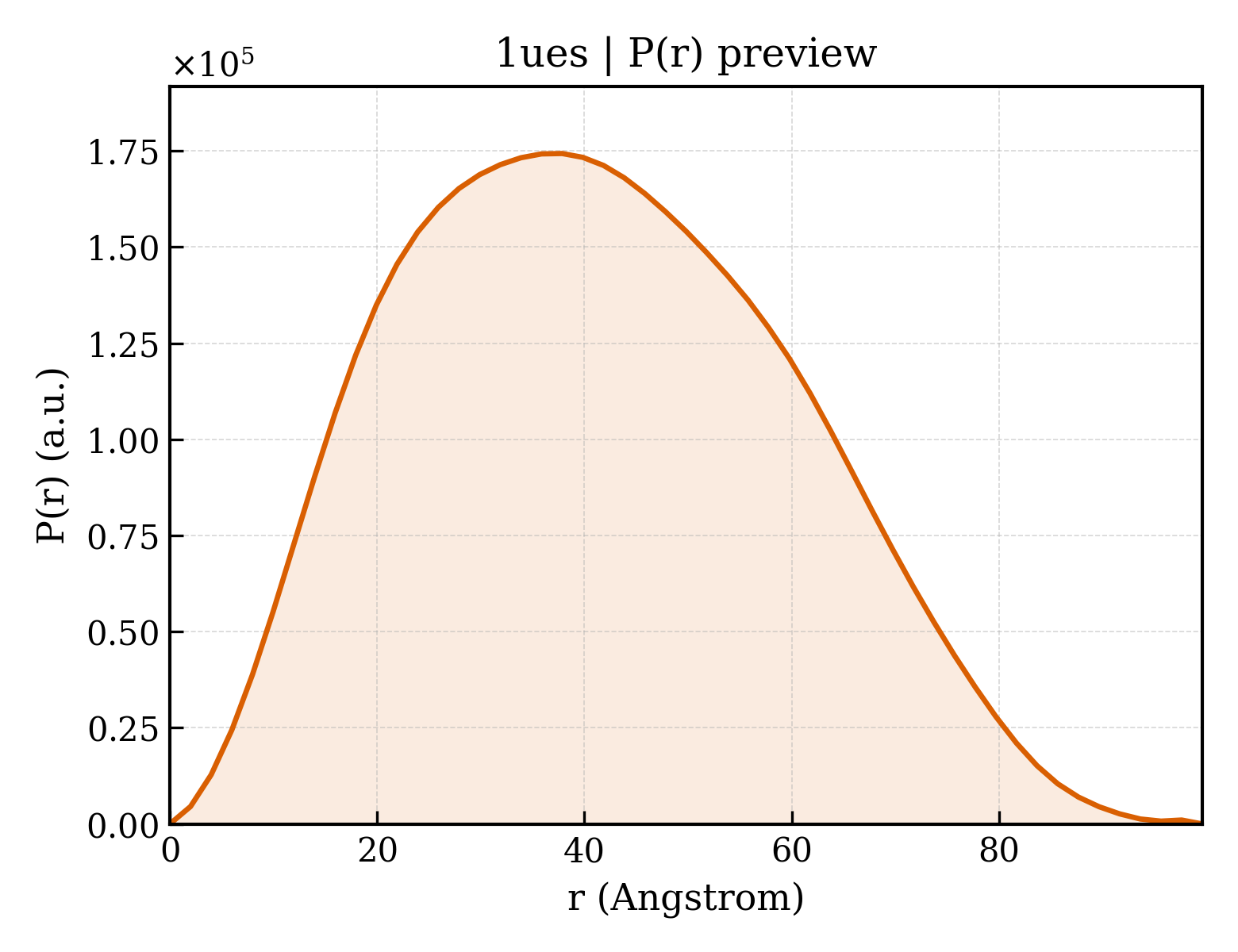

1ues__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.74 Å
Rg (electron density)	21.91 Å
Total Rg	22.89 Å
Atom count	3060
Residues	382
Excluded volume	54252 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ues__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1ues__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	superoxide dismutase
Molecular weight formula_weight	21572.2 kDa
EC 编号 ec_number	1.15.1.1
Mutation mutation	G155T
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	6472

MTHELISLPYAVDALAPVISKETVEFHHGKHLKTYVDNLNKLIIGTEFENADLNTIVQKSEGGIFNNAGQTLNHNLYFTQFRPGKGGAPKGKLGEAIDKQFGSFEKFKEEFNTAGTTLFGSGWVWLASDANGKLSIEKEPNAGNPVRKGLNPLLTFDVWEHAYYLTYQNRRADHLKDLWSIVDWDIVESRY

Source Source

Source organism organism	Porphyromonas gingivalis
NCBI taxonomy ID ncbi_taxonomy_id	837
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	352

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1uesa1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.11 — Fe,Mn superoxide dismutase (SOD), N-terminal domain
Family Family family	a.2.11.1 — Fe,Mn superoxide dismutase (SOD), N-terminal domain

Domain ID domain_id	d1uesa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.44 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Superfamily Superfamily superfamily	d.44.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Family Family family	d.44.1.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain

Domain ID domain_id	d1uesb1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.11 — Fe,Mn superoxide dismutase (SOD), N-terminal domain
Family Family family	a.2.11.1 — Fe,Mn superoxide dismutase (SOD), N-terminal domain

Domain ID domain_id	d1uesb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.44 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Superfamily Superfamily superfamily	d.44.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Family Family family	d.44.1.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain

Domain ID domain_id	d1uesc1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.11 — Fe,Mn superoxide dismutase (SOD), N-terminal domain
Family Family family	a.2.11.1 — Fe,Mn superoxide dismutase (SOD), N-terminal domain

Domain ID domain_id	d1uesc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.44 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Superfamily Superfamily superfamily	d.44.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Family Family family	d.44.1.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain

Domain ID domain_id	d1uesd1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.11 — Fe,Mn superoxide dismutase (SOD), N-terminal domain
Family Family family	a.2.11.1 — Fe,Mn superoxide dismutase (SOD), N-terminal domain

Domain ID domain_id	d1uesd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.44 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Superfamily Superfamily superfamily	d.44.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Family Family family	d.44.1.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain

▶

Unit-cell length a length_a	71.680 Å
Unit-cell length b length_b	95.120 Å
Unit-cell length c length_c	98.750 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.2210
R_free r_free	0.2500
