SAXSdb — 1ulm

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

lectin-D2

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Monomer	Protein 1 其他Polymer 1	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 water × 1	Consistent with protein count
2	Other combination	Monomer	Protein 1 其他Polymer 1	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LED2_PHYAM
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–82； UniProt 1–82 Author chain B； PDBConstruct 1–82； UniProt 1–82

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ulm
Deposition date deposition_date	2003-09-12
Structure title title	Crystal Structure of Pokeweed Lectin-D2 complexed with tri-N-acetylchitotriose
Keywords keywords	Lectin, chitin-binding, Hevein domain, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ulm__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

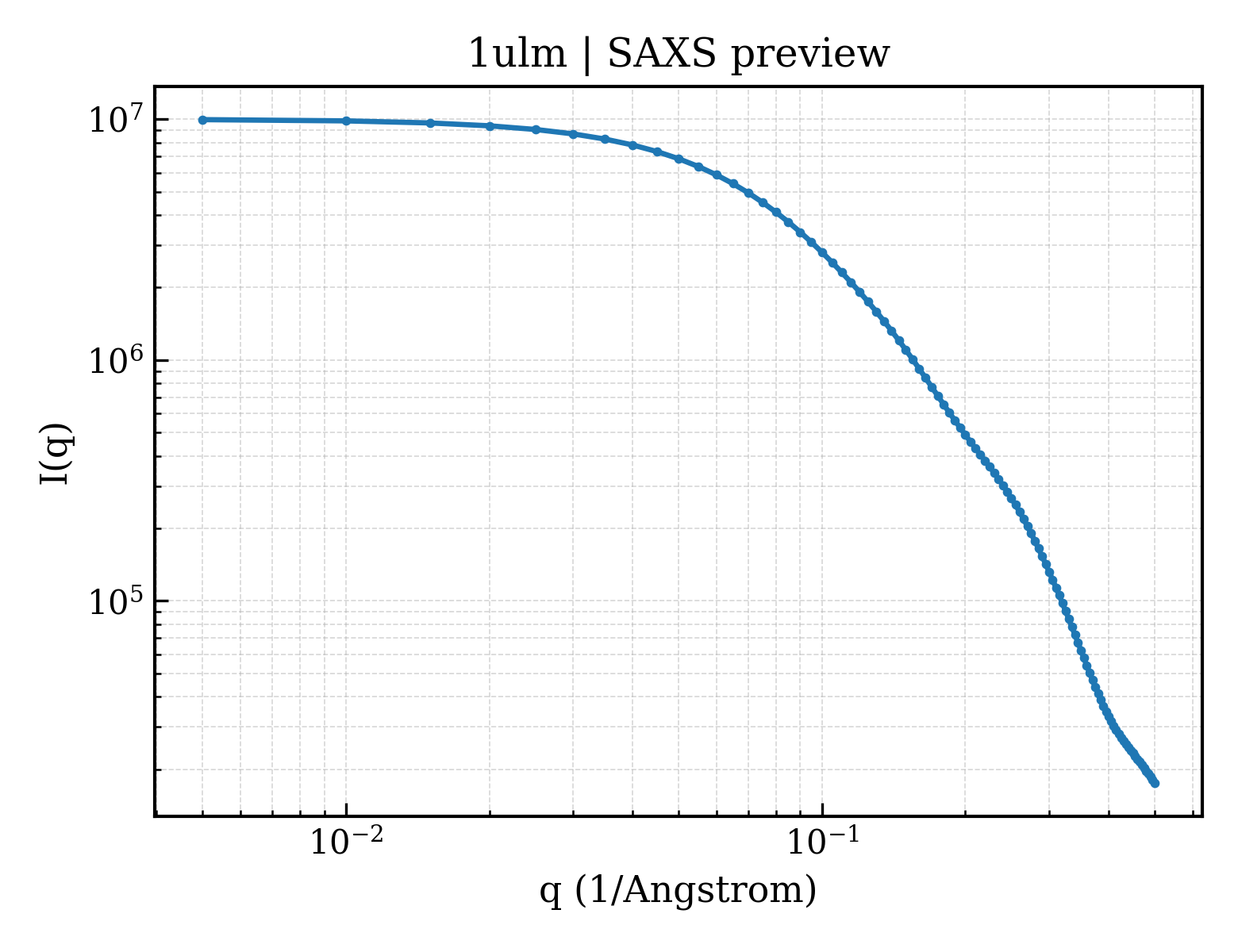

1ulm__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

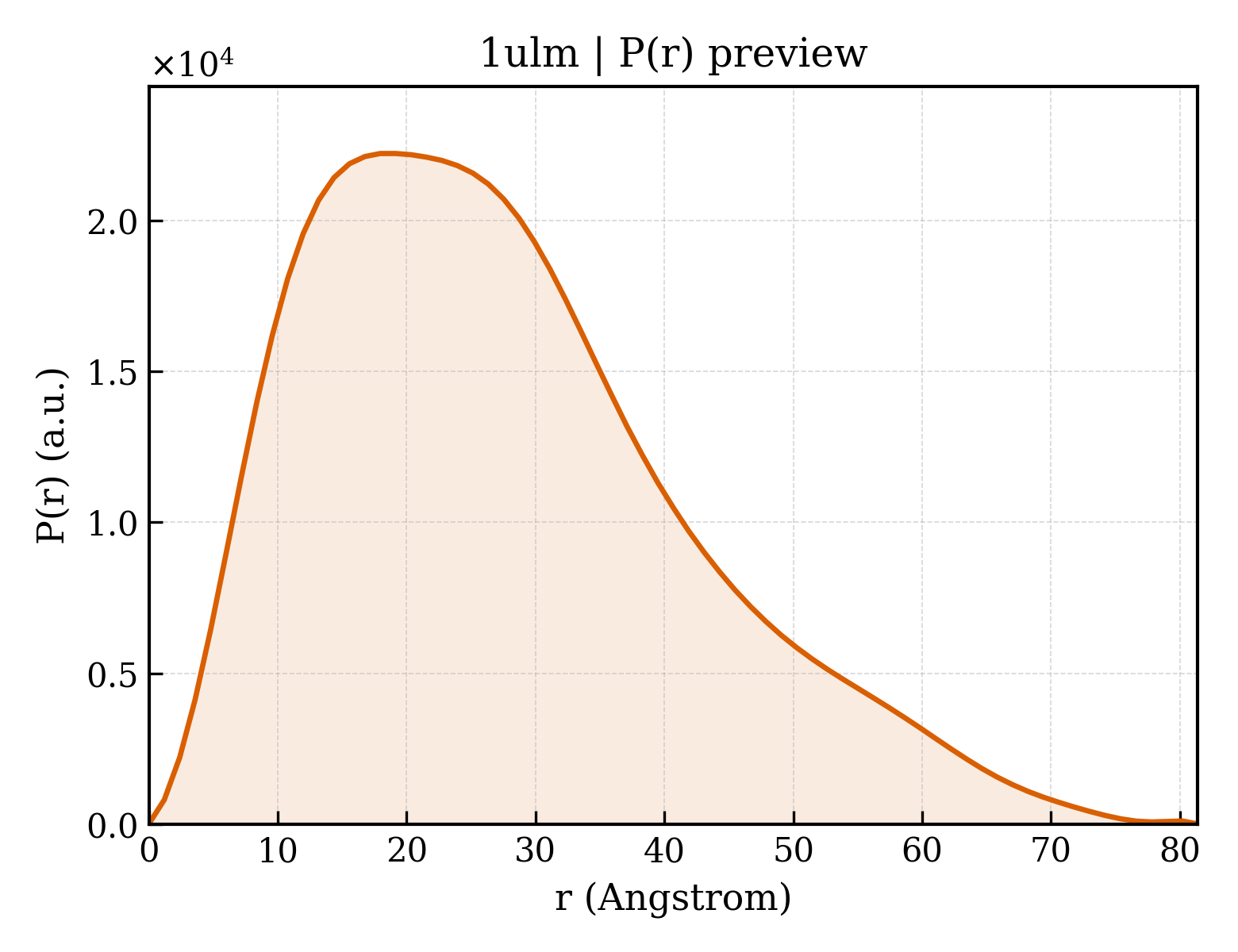

1ulm__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	14.51 Å
Rg (electron density)	13.85 Å
Total Rg	14.65 Å
Atom count	666
Residues	82
Excluded volume	11250 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ulm__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1ulm__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1ulma1
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.1 — Plant lectins/antimicrobial peptides
Family Family family	g.3.1.1 — Hevein-like agglutinin (lectin) domain

Domain ID domain_id	d1ulma2
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.1 — Plant lectins/antimicrobial peptides
Family Family family	g.3.1.1 — Hevein-like agglutinin (lectin) domain

Domain ID domain_id	d1ulmb1
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.1 — Plant lectins/antimicrobial peptides
Family Family family	g.3.1.1 — Hevein-like agglutinin (lectin) domain

Domain ID domain_id	d1ulmb2
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.1 — Plant lectins/antimicrobial peptides
Family Family family	g.3.1.1 — Hevein-like agglutinin (lectin) domain

CATH v4.4 (4 domains)

Domain ID domain_id	1ulmA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
Homologous superfamily homologous superfamily	10 — Endochitinase-like

Domain ID domain_id	1ulmA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
Homologous superfamily homologous superfamily	10 — Endochitinase-like

Domain ID domain_id	1ulmB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
Homologous superfamily homologous superfamily	10 — Endochitinase-like

Domain ID domain_id	1ulmB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
Homologous superfamily homologous superfamily	10 — Endochitinase-like

▶

Unit-cell length a length_a	98.561 Å
Unit-cell length b length_b	26.282 Å
Unit-cell length c length_c	65.217 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	109.90 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	24.180 Å
R factor r_factor	0.1950
R_work r_work	0.1950
R_free r_free	0.2340

Description description	lectin-D2
Molecular weight formula_weight	9112.0 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1454

Crystal Structure of Pokeweed Lectin-D2 complexed with tri-N-acetylchitotriose

1. Protein Identity and Related Structures Protein Identity & Related Structures

lectin-D2

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1ulm__assembly_1__model_1

1ulm__assembly_1__model_1 | I(q)

1ulm__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 branched

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	122

Crystal Structure of Pokeweed Lectin-D2 complexed with tri-N-acetylchitotriose
